Overview

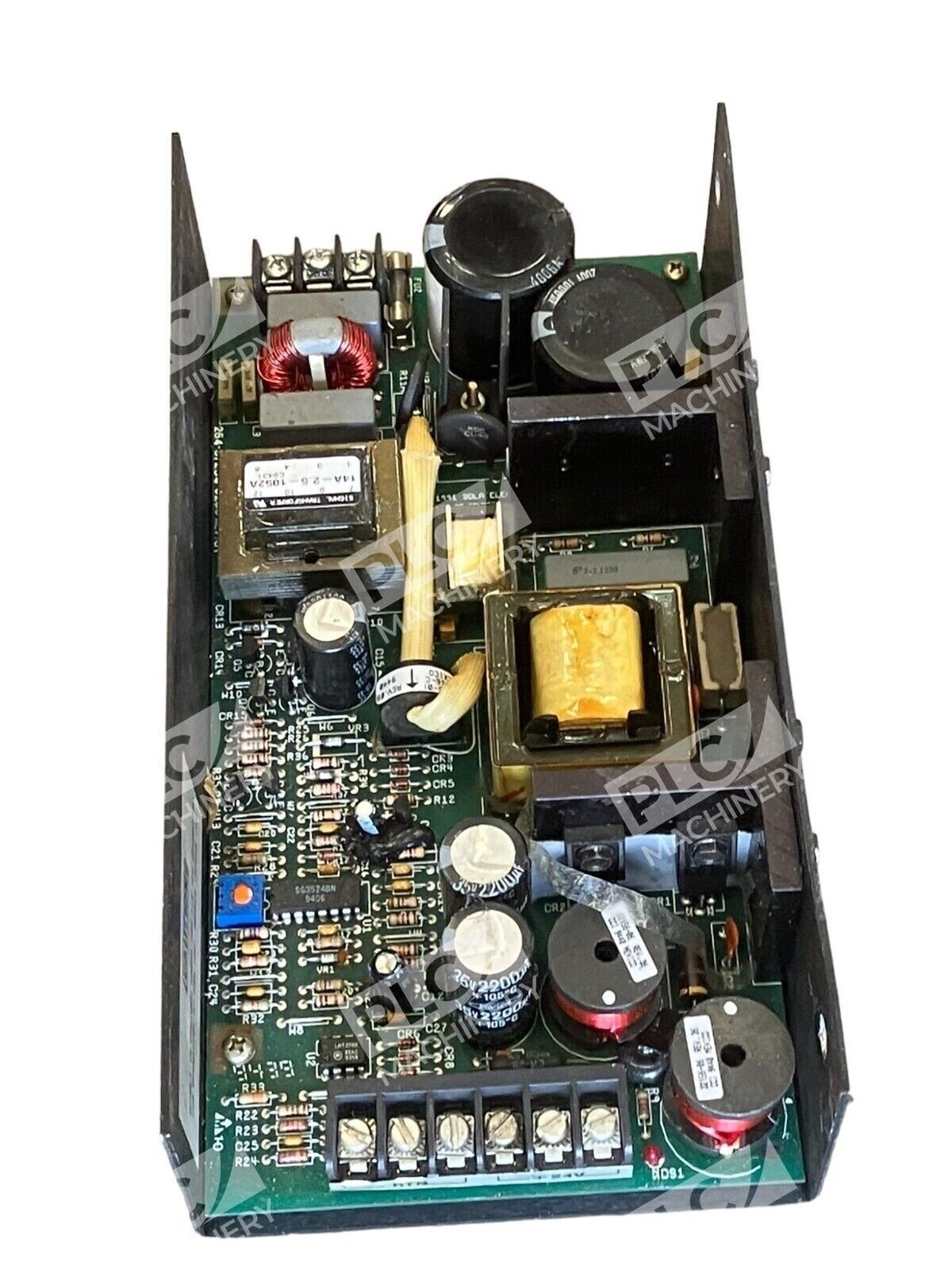

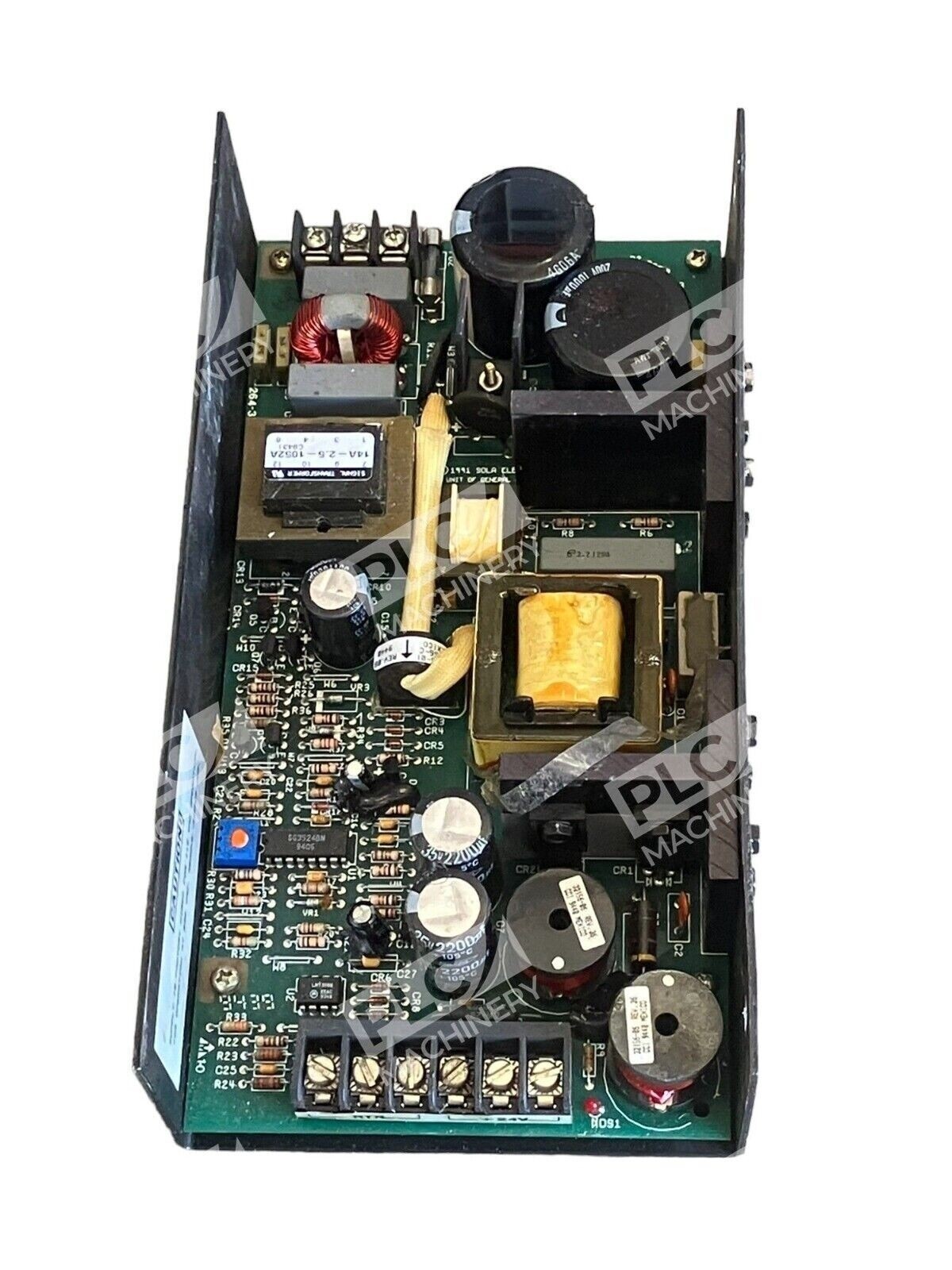

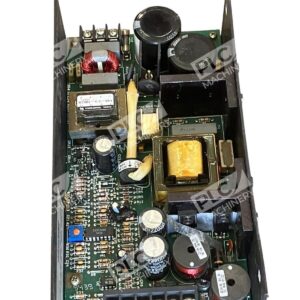

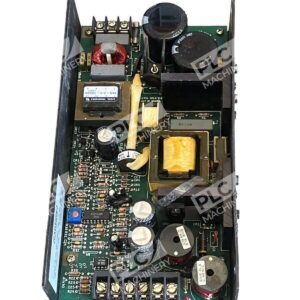

The Sola 86-24-310 is a regulated switch mode power supply designed for industrial control and automation systems. Manufactured by Emerson Sola HD, this enclosed-frame unit converts 115/230VAC input to stable 24VDC output at 10 amps, delivering 240W of continuous power. The Sola 86-24-310 is rated for 5 amp input current and is commonly used in PLC systems, machine control cabinets, and instrumentation applications where reliable DC power distribution is critical.
Key Features
- Selectable 115/230VAC input with automatic voltage sensing
- Regulated 24VDC output at 10 amps (240W capacity)
- Enclosed frame design suitable for cabinet mounting
- Industrial-grade switch mode topology for efficiency and compact size
- Suitable for automation, control, and instrumentation systems
Technical Specifications

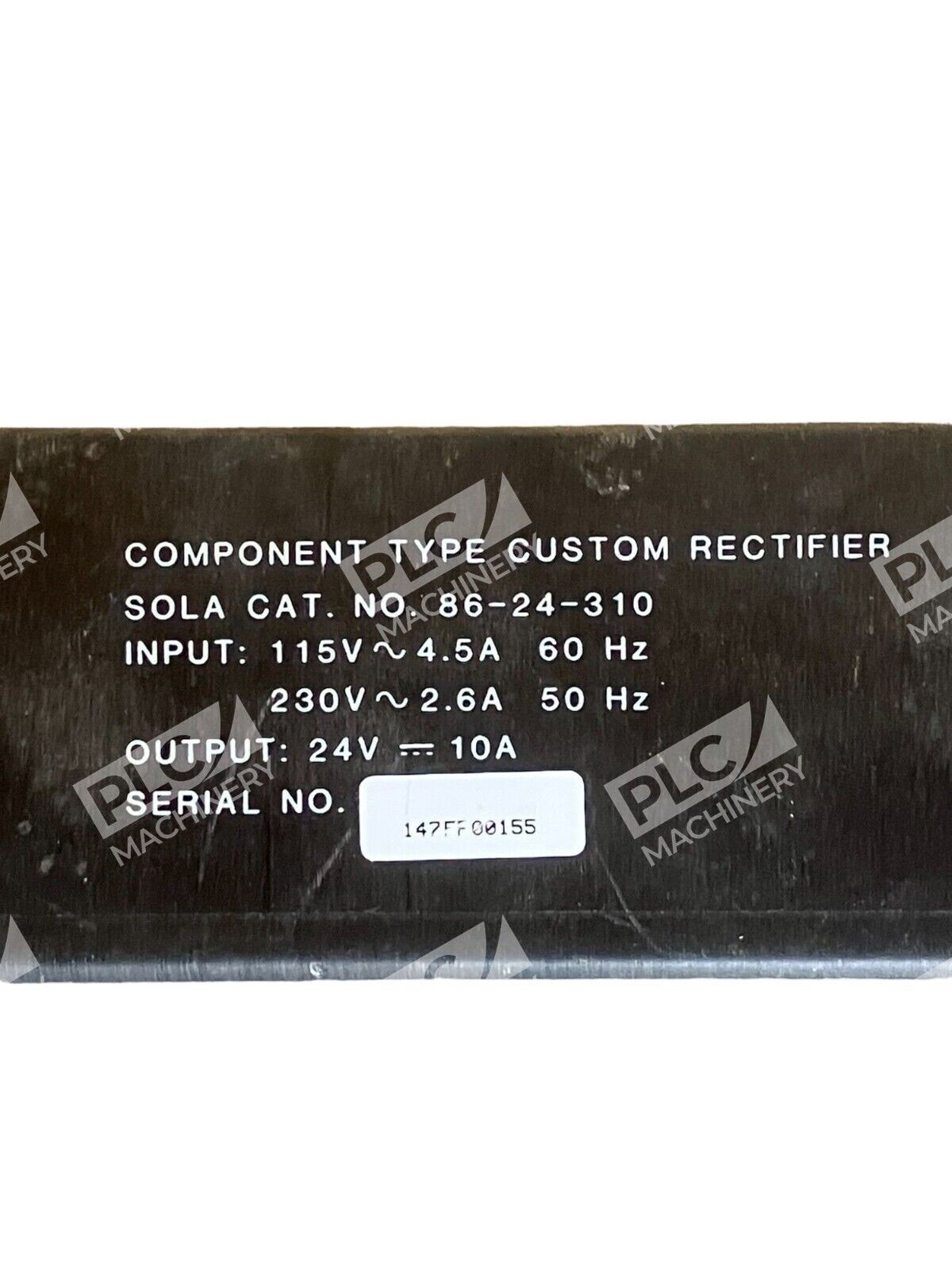

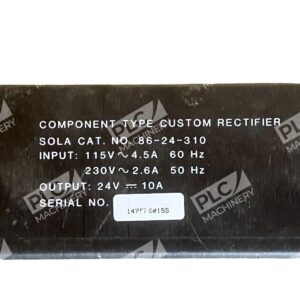

The Sola 86-24-310 features a switch mode architecture that provides stable, filtered DC output. Input frequency range is 47–63 Hz, and the unit accepts both 93–132VAC and 187–264VAC depending on the selected input voltage setting. The 10 amp output rating at 24VDC ensures sufficient capacity for most industrial DC loads including solenoids, pilot lights, and control relays.
Typical Applications
- PLC and automation control cabinets
- Machine tool electrical panels
- Industrial instrumentation and sensor systems
- DC power distribution in hazardous or critical control zones
- Retrofit and replacement installations in legacy machinery
Compatibility & Replacements
Compatible With
- Industrial control systems requiring 24VDC regulated power
- PLC input/output module power distribution
- Solenoid and relay control circuits
- Automation cabinets with DIN rail or enclosed mounting
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Sola 86-24-310 is discontinued by the manufacturer; confirm pin-out and terminal configuration match legacy equipment specifications.
Works With
- Industrial AC/DC power conversion systems
- Cabinet-level DC distribution architectures
- OEM automation equipment using 24VDC standards
