Overview

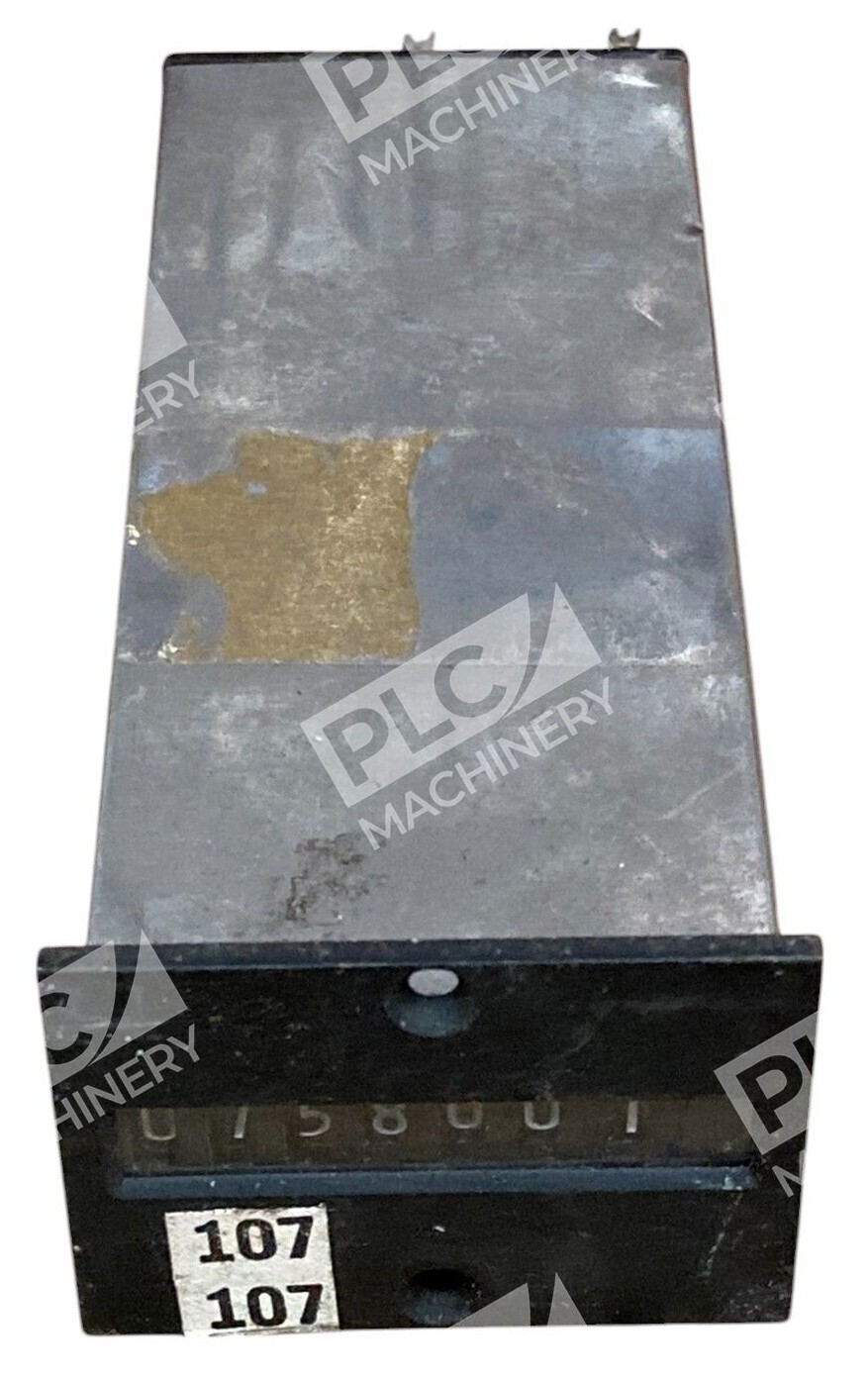

The Sodeco TCE7E is a precision 7-digit electromechanical impulse counter designed for industrial control and measurement applications. This Swiss-engineered counter is built to tolerate harsh industrial environments while maintaining reliable pulse-counting accuracy. The TCE7E operates on AC or DC power depending on variant and is commonly found in manufacturing, test equipment, and OEM control systems where durable mechanical counting is preferred over electronic alternatives.
Key Features
- 7-digit mechanical display for clear, observable count readings
- Electromechanical design—no electronic memory or battery required
- Panel-mount form factor with compact flange footprint
- Swiss engineering and manufacturing for durability and precision
- Support for counting speeds up to 25 impulses per second (depending on variant)
- Available in multiple voltage configurations (12V, 220V AC, and others)
Technical Specifications
The following specifications apply to common TCE7E variants. Verify exact voltage and impedance for your application:

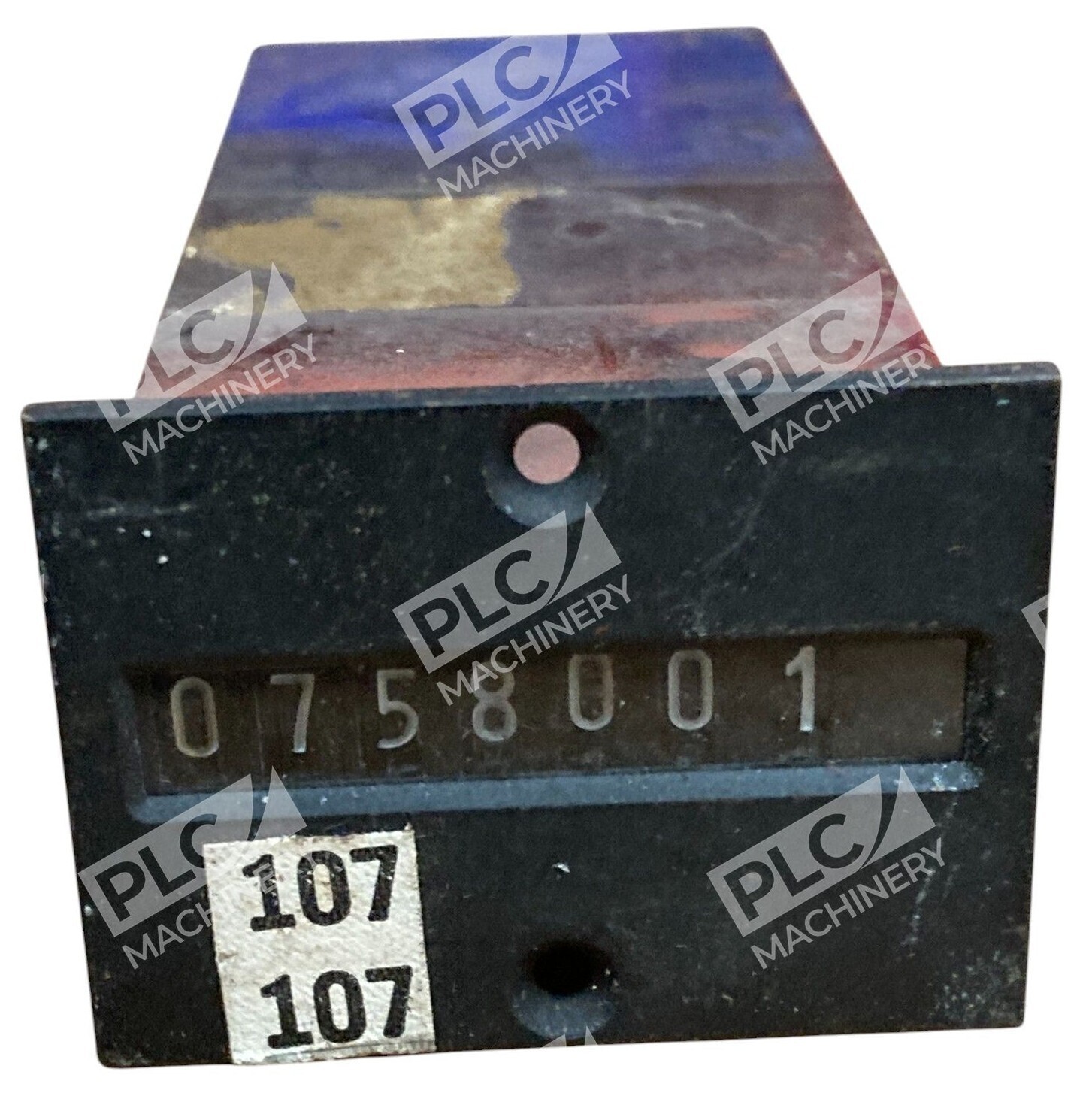

- Display: 7-digit mechanical counter
- Counting Speed: Up to 25 impulses/second (typical)
- Input Impedance: 8,000 ohms (220V variant); other variants available
- Mounting: Panel-mount with 1-1/4″ × 1-5/8″ front flange
- Depth: 4-1/2″ behind panel
- Display Window: 1-9/16″ × 13/16″ wide

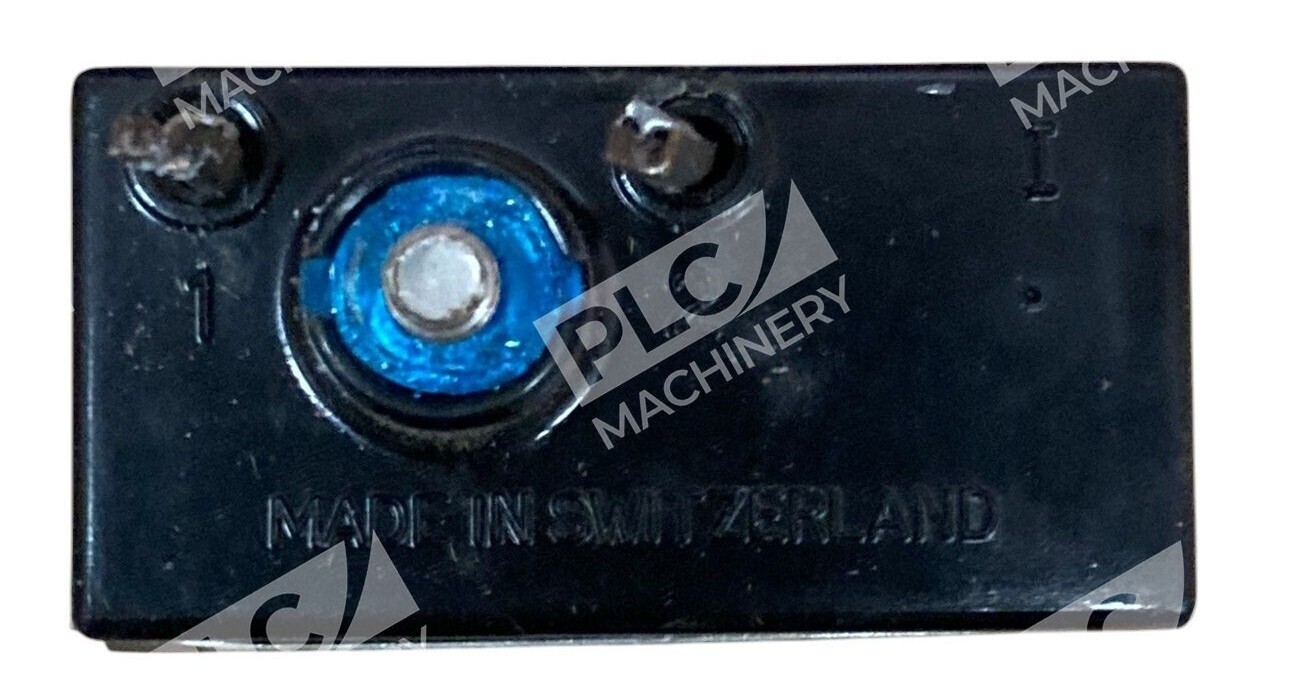

- Origin: Swiss-made
Typical Applications
- Meter and flow-control systems requiring mechanical pulse tallying
- Test benches and quality control measurement setups
- OEM equipment panel instrumentation
- Machine tool and production line monitoring
- Electrical pulse counting in laboratory and field environments
Compatibility & Replacements
Compatible With
- Industrial control systems with 12V, 48V, or 220V AC/DC pulse inputs
- Panel mounting standard DIN and custom enclosures
- Systems requiring electromechanical (non-electronic) counting
- Devices generating 10–25 impulses per second
Replaces / Drop-In Replacement For
- Sodeco TCE7E variants (TCE7E-31 with 220V, 8000Ω rating)
- Legacy mechanical counter applications where model-specific compatibility is verified
- Other Sodeco TCe series counters where footprint and voltage match original equipment
Works With
- Panel meters and analog instrumentation systems
- AC or DC pulse generators (voltage-dependent on variant)
- Industrial control systems and test measurement equipment
- Direct integration into OEM machine control panels
