Overview

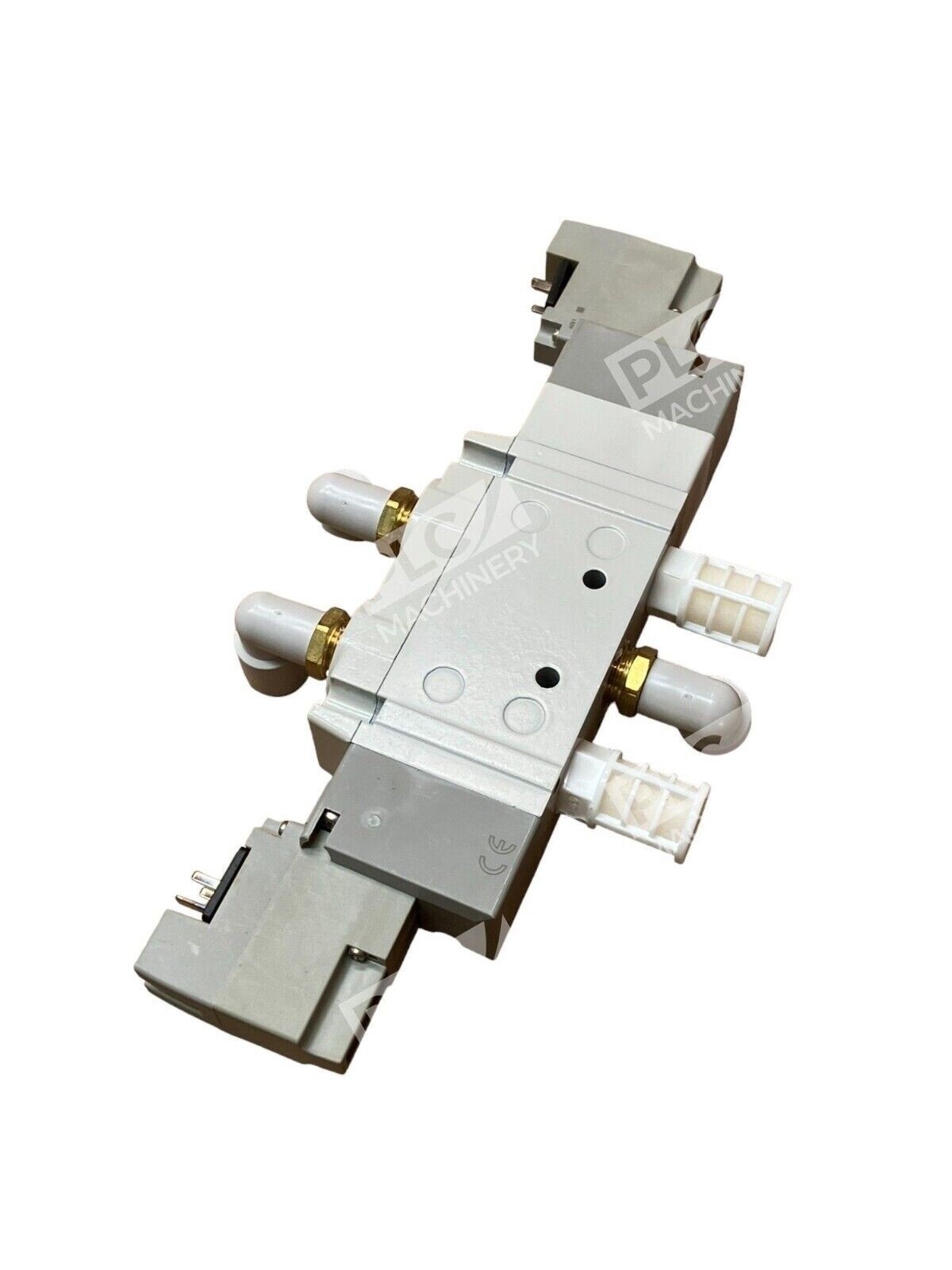

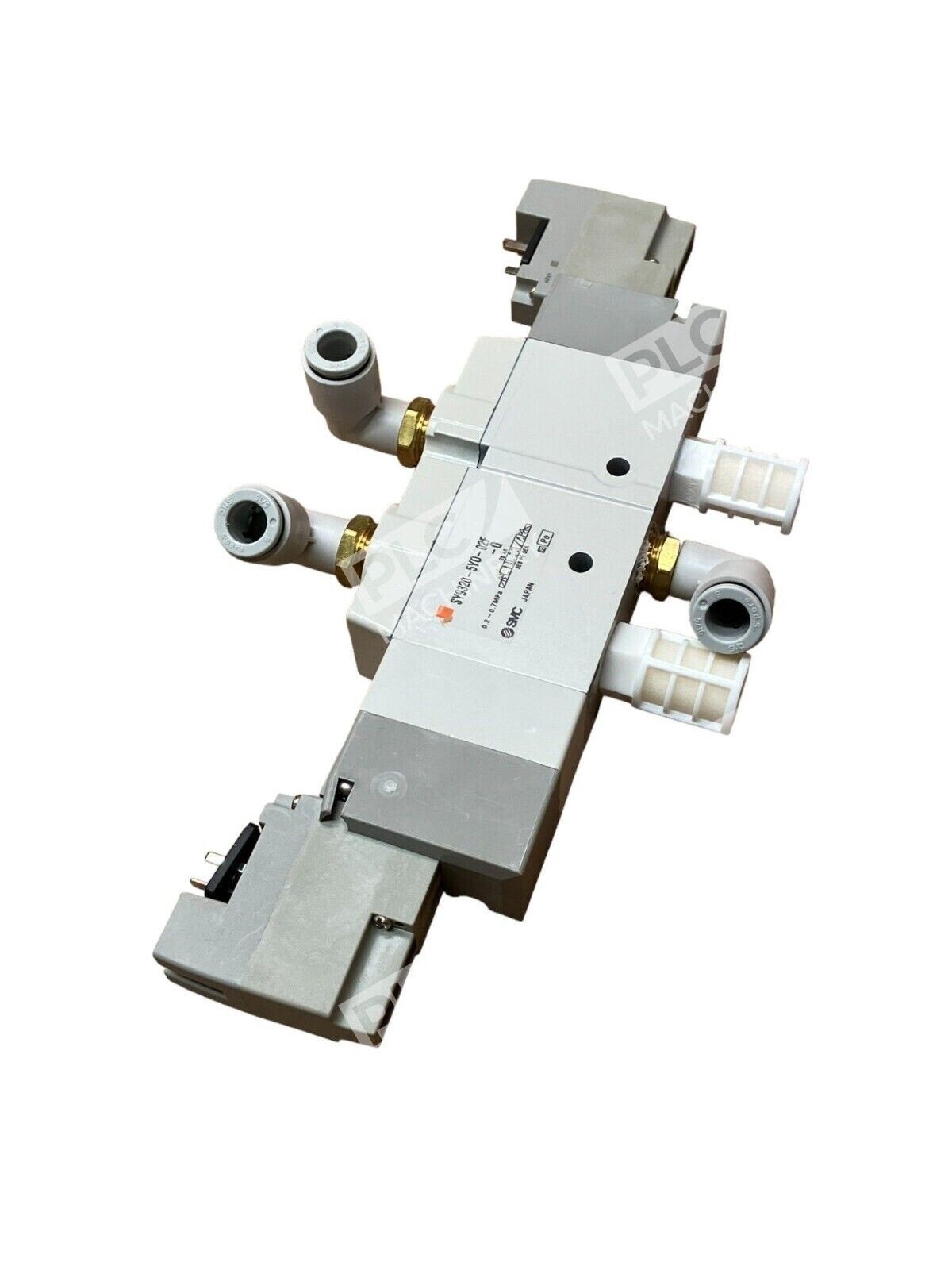

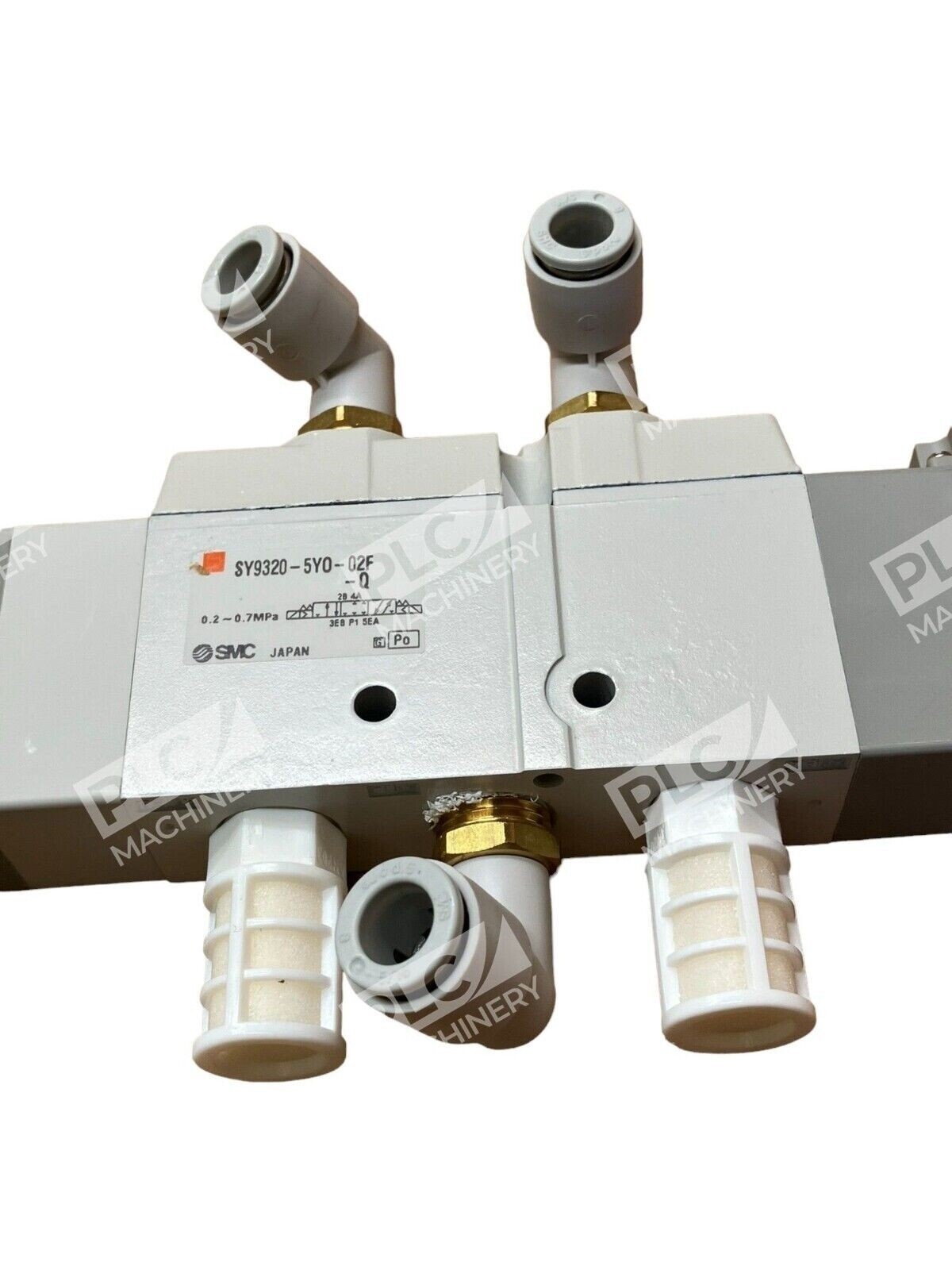

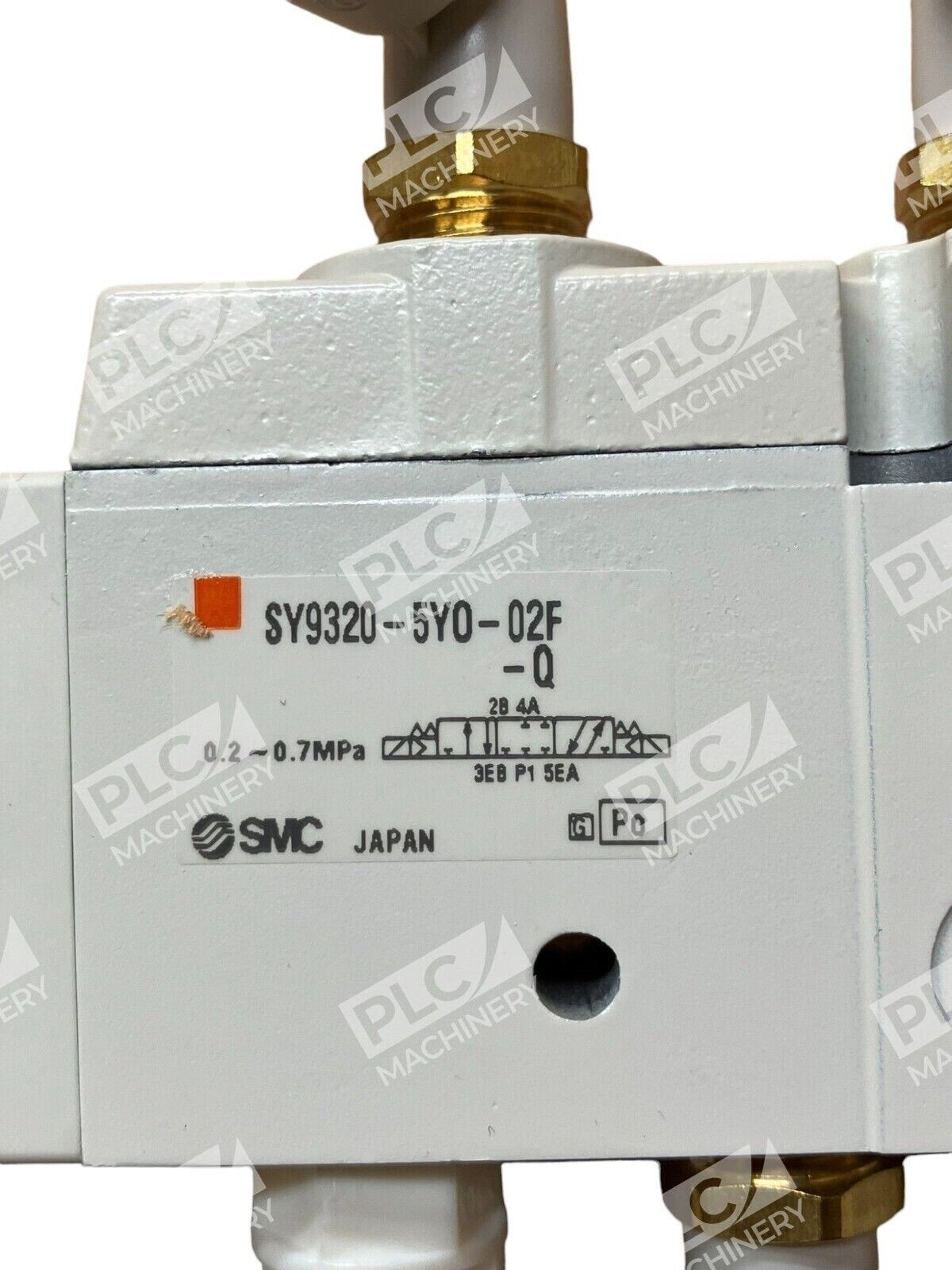

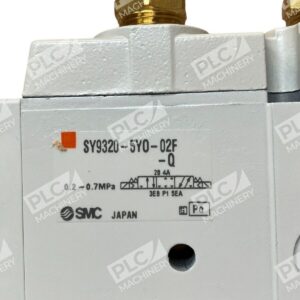

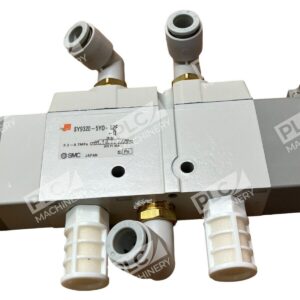

The SMC SY9320-5Y0-02F-Q is a 5-port body-ported solenoid valve from SMC’s proven SY9000 series. The series offers major advances in valve performance for cost-effective solutions with high flow and low power consumption in a compact design. This valve delivers reliable pneumatic control for industrial automation, process machinery, and fluid power applications.
Key Features
- 3-position closed center operation with 24V DC solenoid
- Low power consumption at 0.1W with power-saving circuit

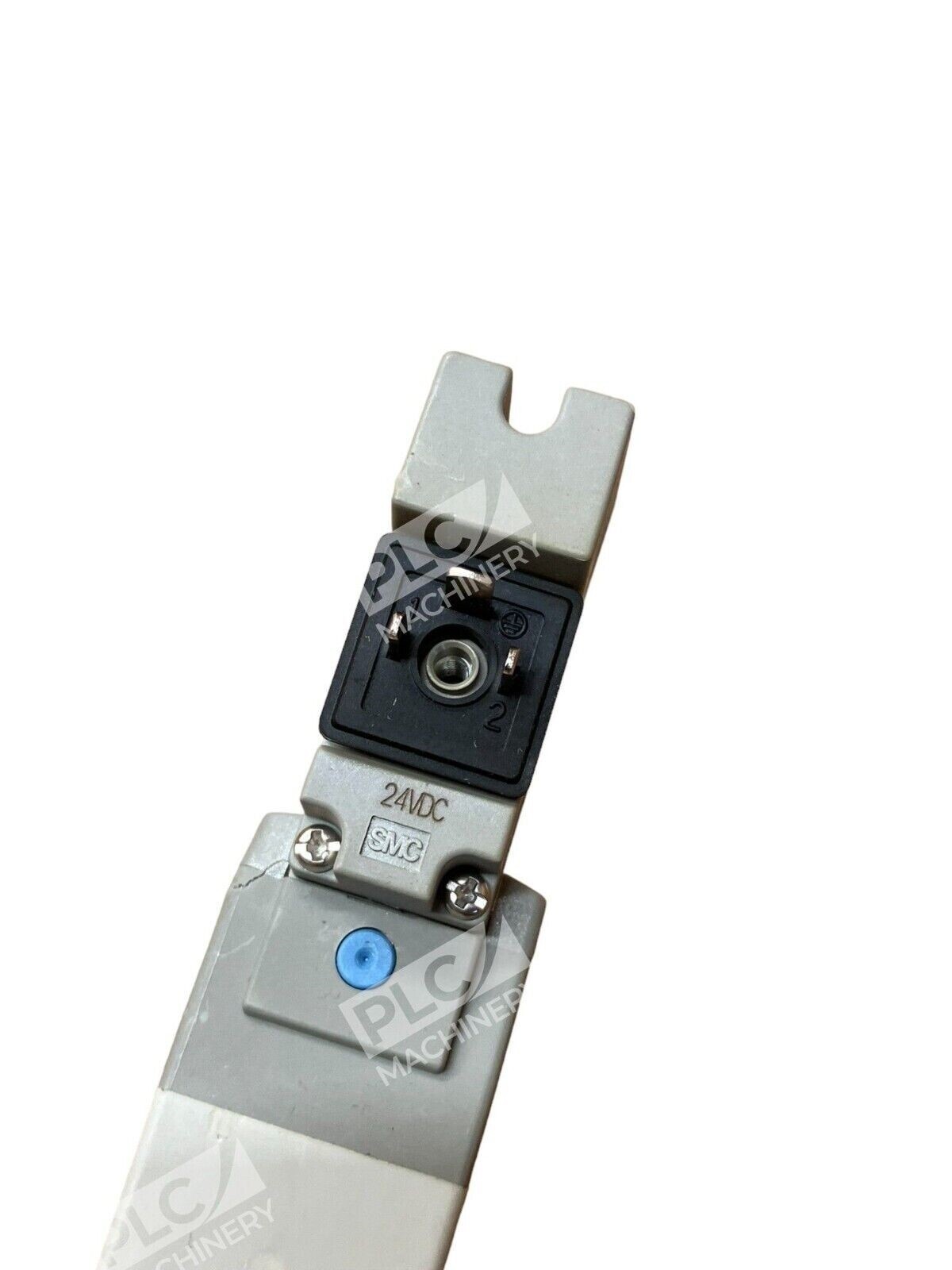

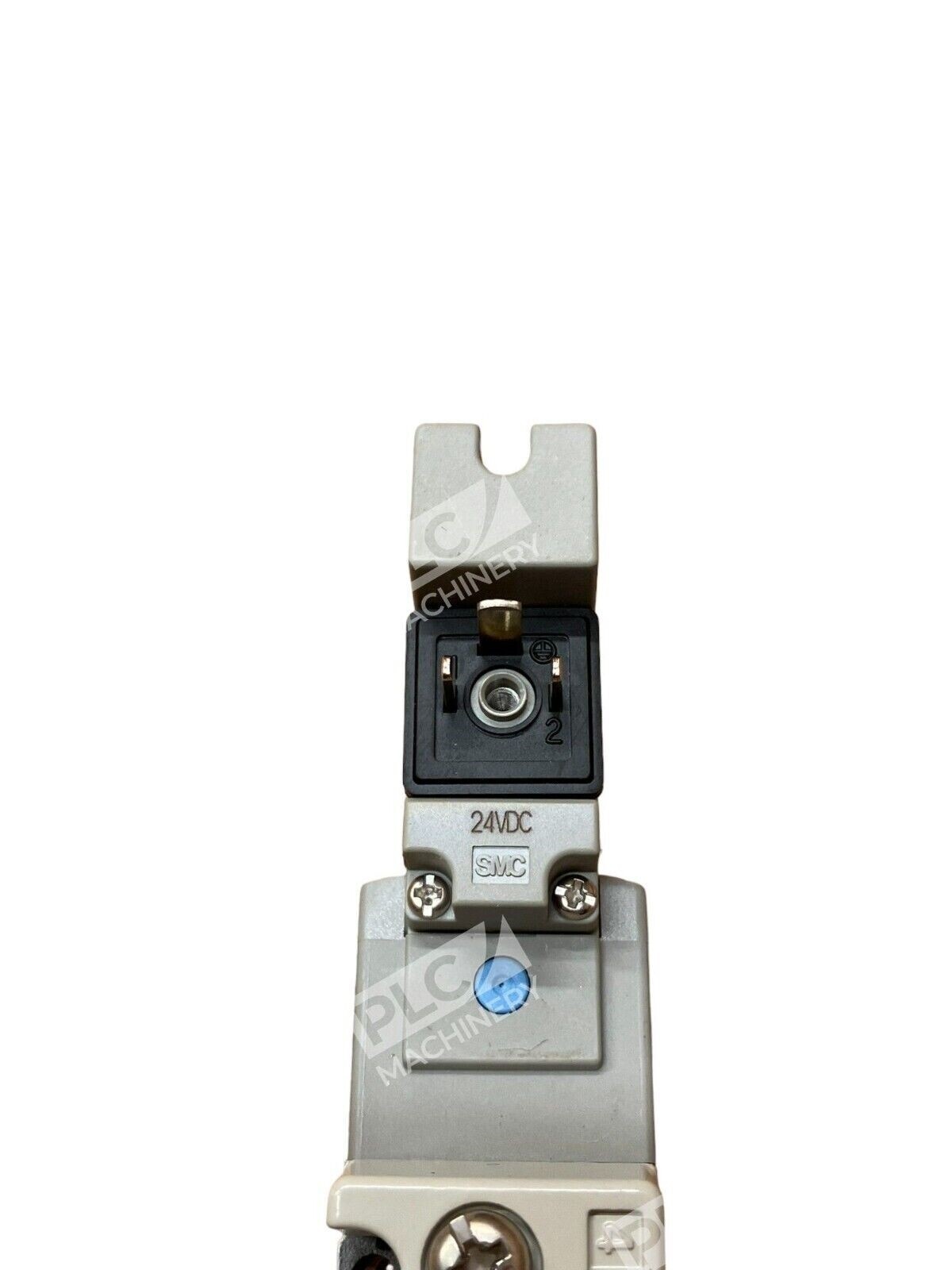

- DIN terminal connection without connector
- Body ported or base mounted design with manifold mounting capability
- Non-locking push manual override for manual valve actuation
- CE-compliant design for global use
Technical Specifications
Typical specifications for the SY9320 series include 3/8-inch port size with G-thread connections, designed for industrial pneumatic systems. The valve operates on 24V DC power with minimal energy draw, making it suitable for continuous-duty applications and integrated automation systems where energy efficiency is important.
Typical Applications
- Pneumatic automation and motion control systems
- Machine tool fluid power circuits
- Industrial manufacturing equipment
- Manifold-mounted valve arrays
- Process automation in food, beverage, and packaging industries
- Mobile and heavy equipment control systems
Compatibility & Replacements
Compatible With
- SMC pneumatic manifold systems
- DIN rail-mounted valve stacks
- Standard 24V DC industrial power supplies
- Pneumatic proportional control systems
- Industrial PLC and automation controllers
Replaces / Drop-In Replacement For
- Older SY3000 series 5-port valves (upgrade path)
- SY5000 and SY7000 series equivalents with same port configuration
Works With
- ISO 4401 standard valve interfaces
- DIN 43650 electrical connectors
- DMG solenoid coil replacements (verify voltage/wattage)
- SMC manifold blocks and subplates
