Overview

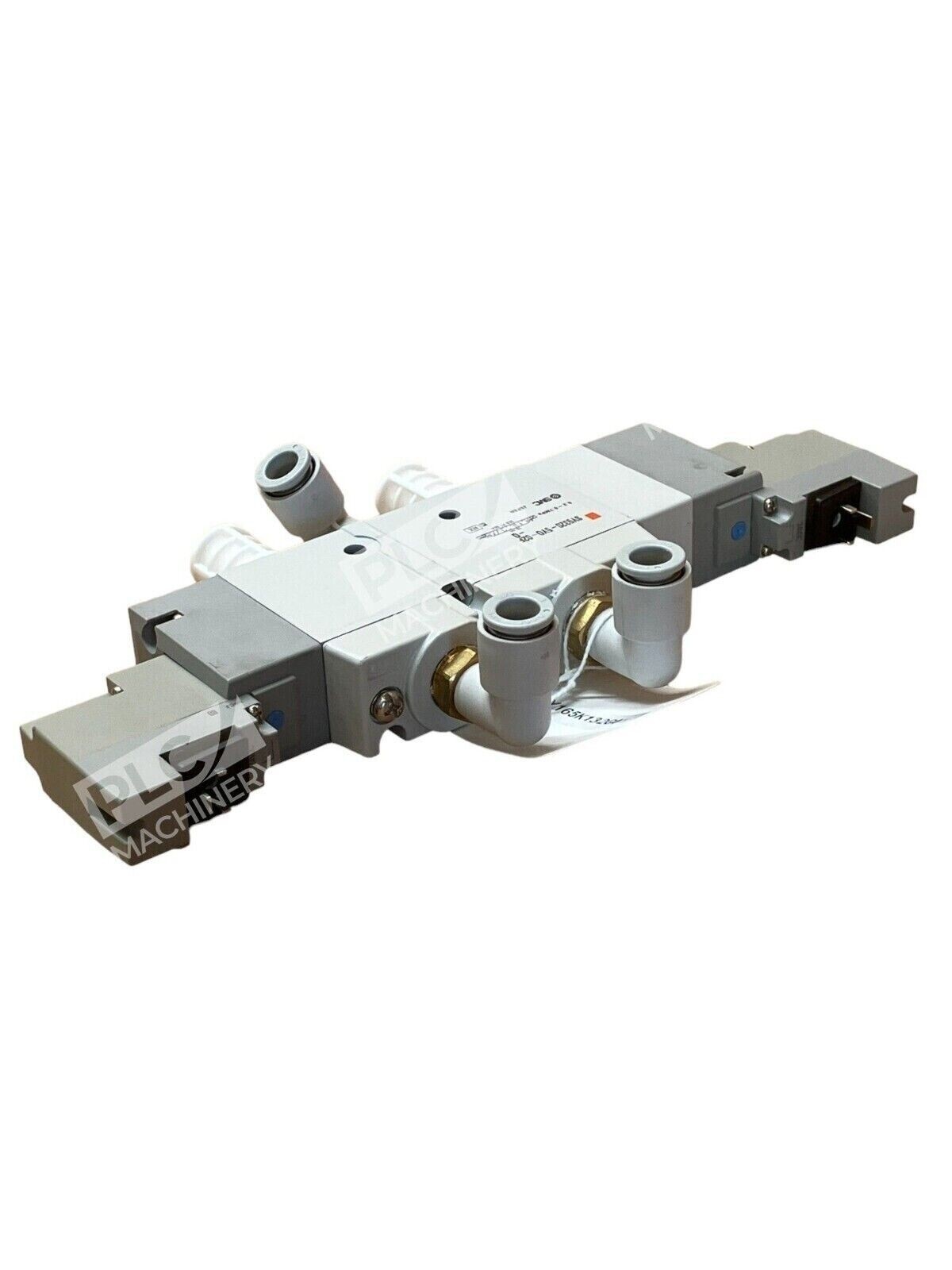

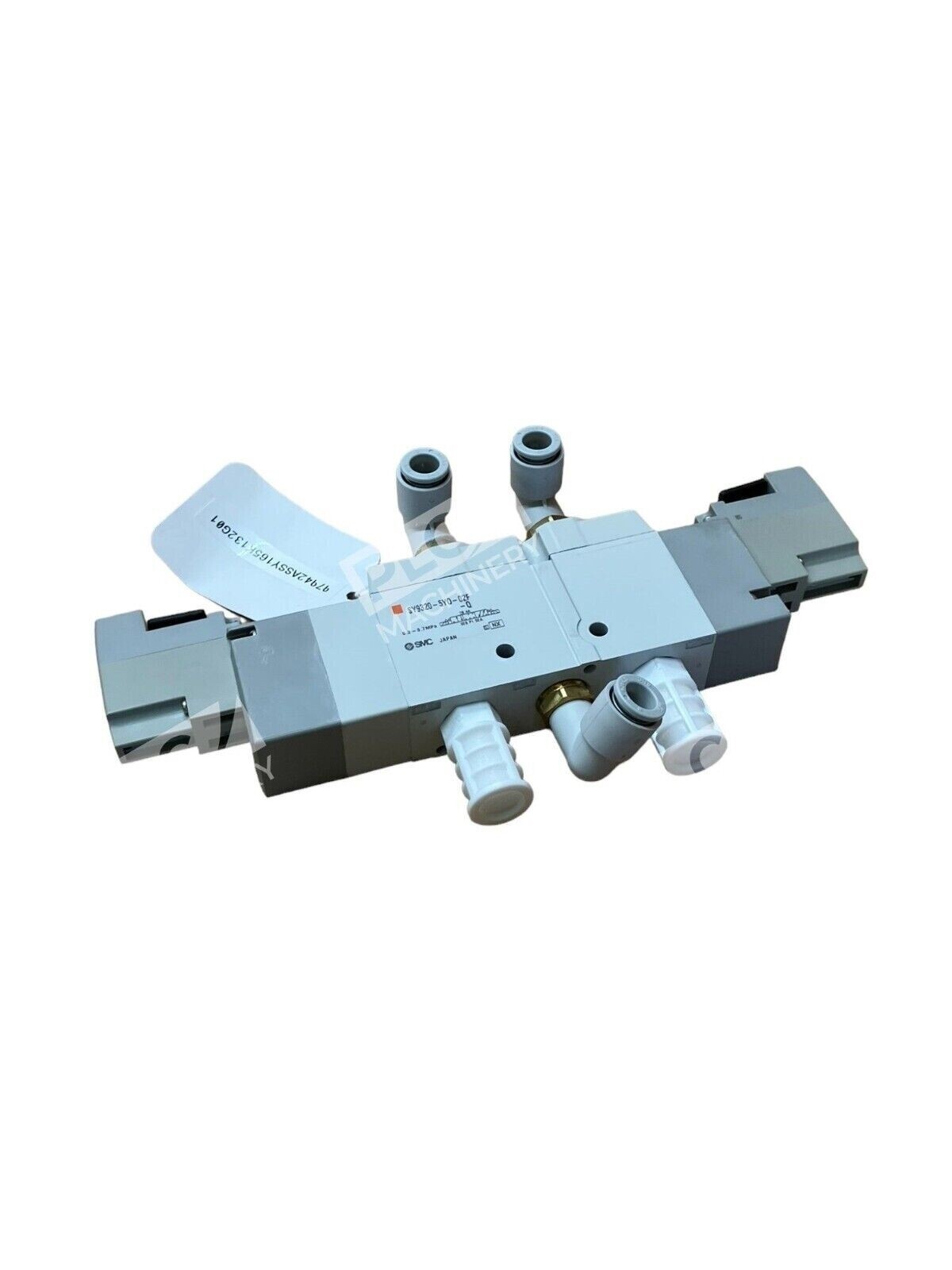

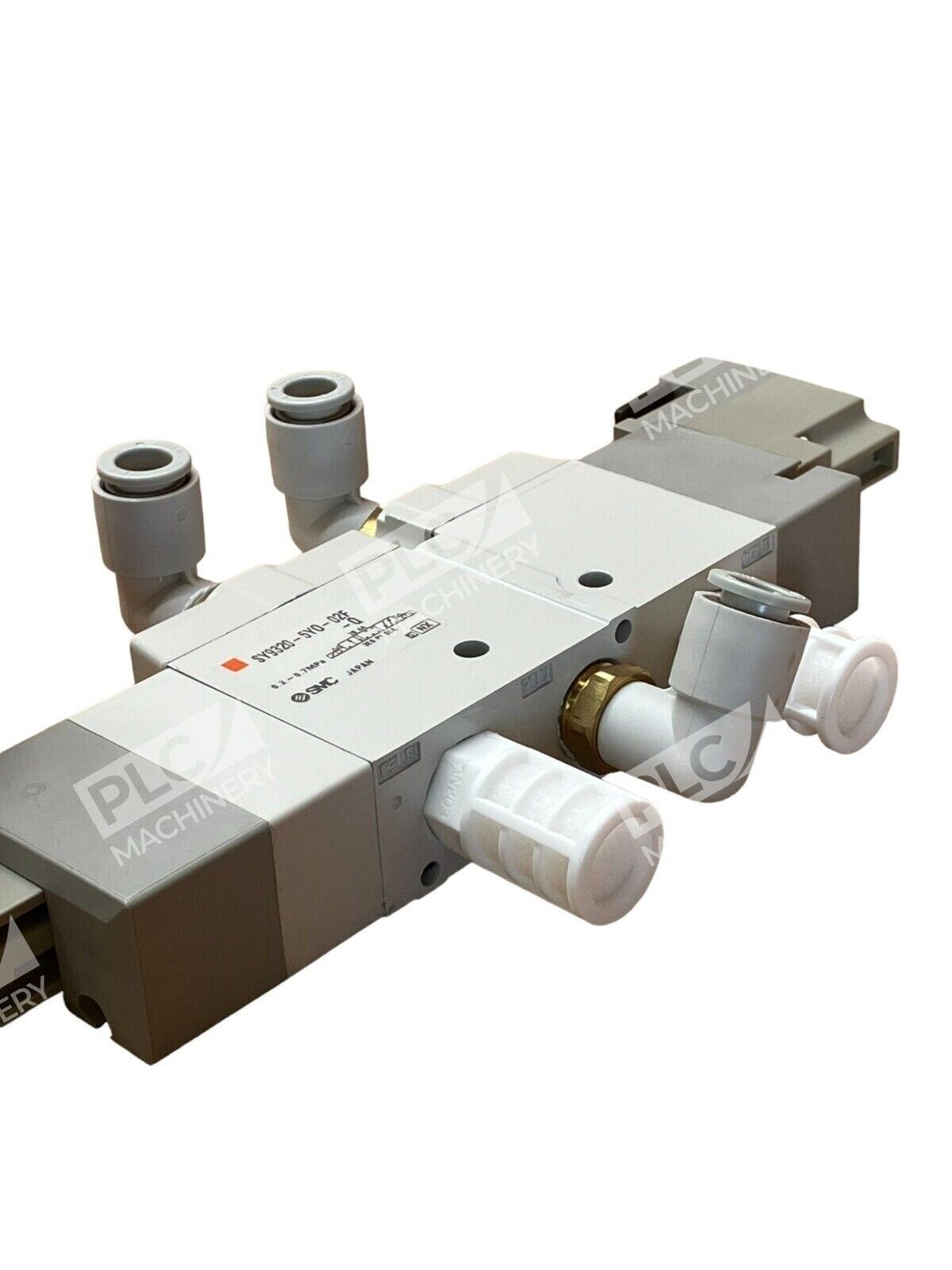

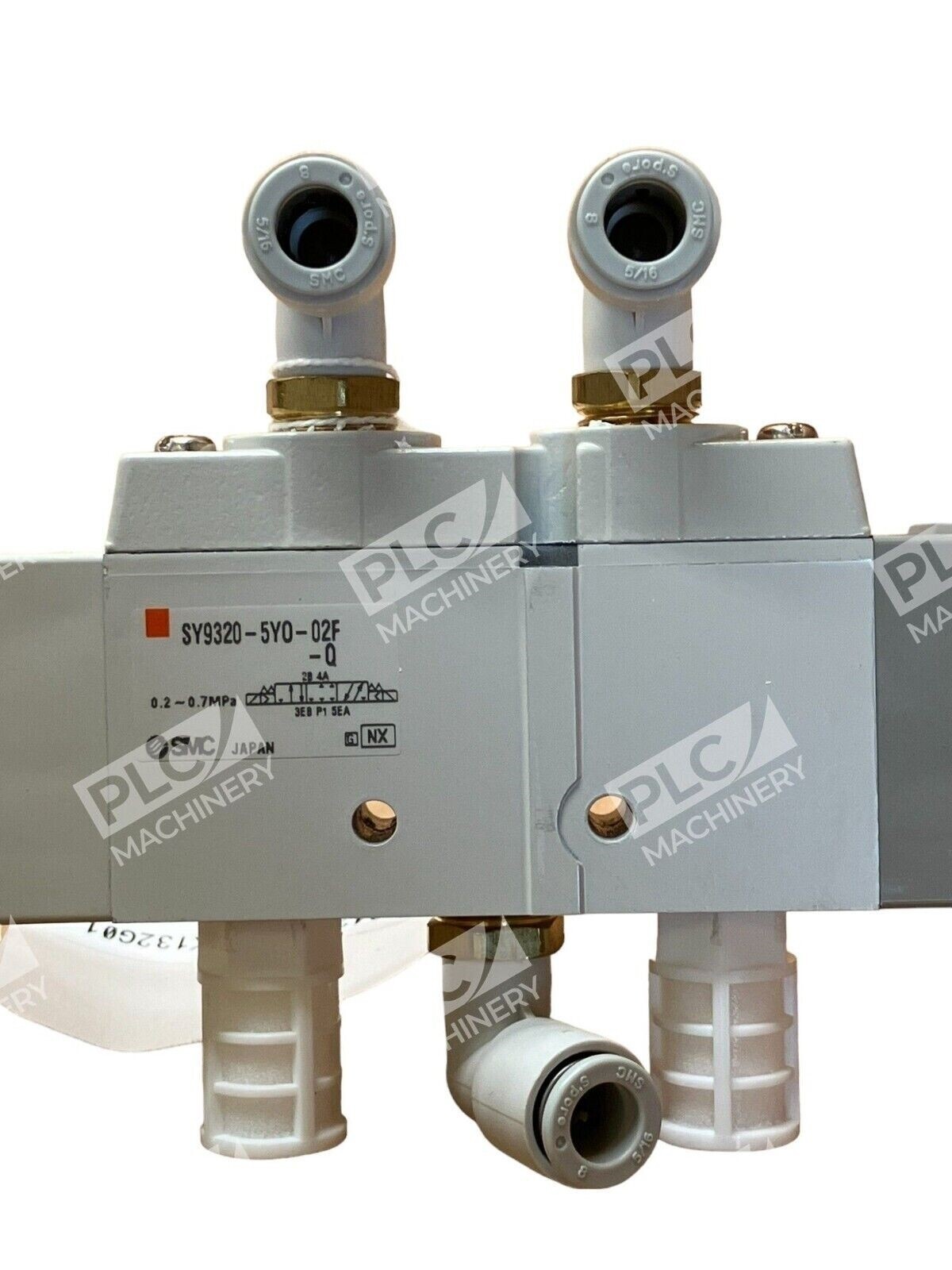

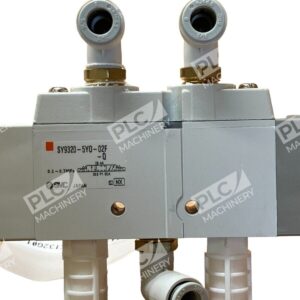

The SMC SY9320-5Y0-02F-Q is a 5-port, body-ported solenoid valve from SMC’s SY9000 series. This valve is engineered for pneumatic control applications requiring reliable directional spool control with energy-efficient operation. It delivers straightforward functionality in a compact design suitable for OEM automation, machine tool control, and process applications.
Key Features
- 5-port configuration with body-ported design for direct manifold integration
- 3-position closed center spool for fail-safe operation
- 24V DC solenoid with low power consumption (0.1 W with power-saving circuit)
- DIN terminal connection without connector—direct wiring ready
- Non-locking push manual override for emergency manual actuation
- Compatible with aluminum and DIN rail manifold mounting systems
Technical Specifications
- Operating Pressure Range: 2–7 bar (0.29–1.0 psi)
- Port Size: 3/8″ G thread
- Body Material: Aluminum alloy
- Seal Material: HNBR elastomer
- Electrical Rating: 24V DC nominal
- Power Consumption: 0.1 W (with power-saving circuit)
- IP Rating: IP65 (dust and water jet resistant)
- Spool Type: 3-position closed center
- Manual Override: Non-locking push button
- Connector Type: DIN terminal without connector
- Compliance: CE compliant
Typical Applications
- Pneumatic directional control in industrial machinery
- Machine tool automation and fluid power circuits
- OEM equipment requiring compact solenoid valve solutions
- Process automation with fail-safe center-closed operation
- Material handling and conveyor systems
Compatibility & Replacements
Compatible With
- SMC manifold systems (aluminum body, DIN rail, stacking-type)
- Standard 3/8″ G thread pneumatic ports
- 24V DC industrial control circuits
- Pneumatic automation platforms using pilot or direct solenoid actuation
Replaces / Drop-In Replacement For
- SY9320-5YO-03F-Q (higher amperage variant)
- Other SY series 5-port body-ported valves with equivalent port configuration
- Verify compatibility with your system integrator before ordering alternative solenoid models.
Works With
- Standard 24V DC PLC outputs and relay logic circuits
- SMC pneumatic control manifolds and accessories
- Industrial pressure gauges and sensing equipment
- Pneumatic cylinders, motors, and actuators rated 2–7 bar
