Overview

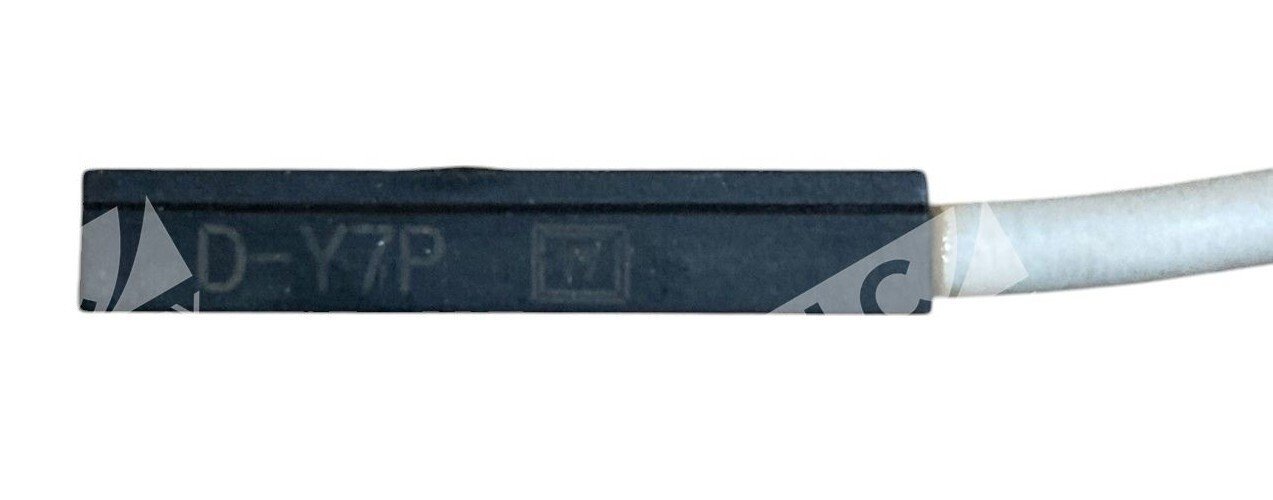

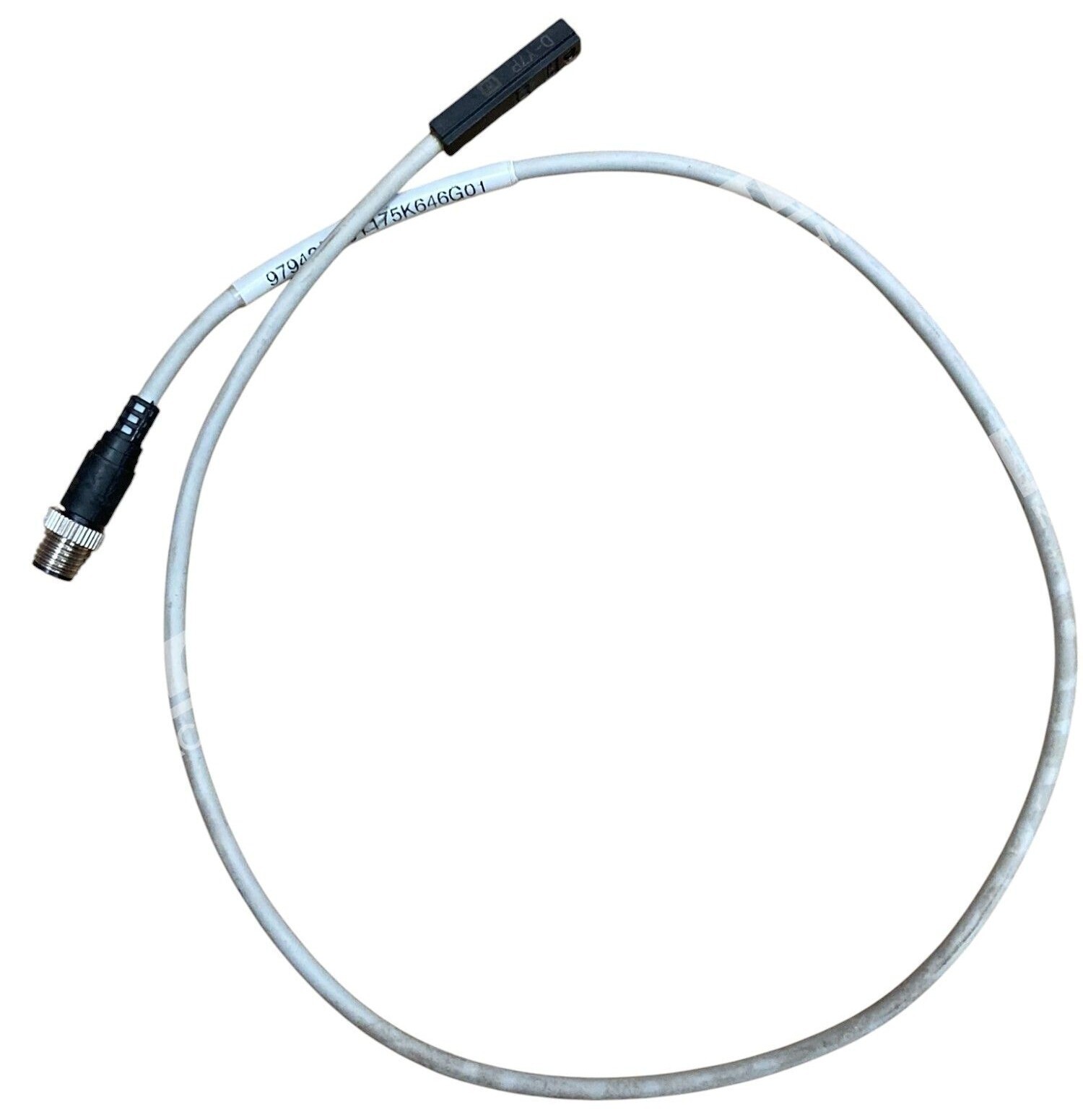

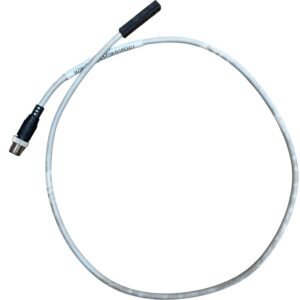

The SMC D-Y7P autoswitch cable is a solid-state proximity sensor designed for pneumatic actuators and air grippers in industrial automation. This used unit features a 0.5m pre-attached lead wire with oilproof vinyl heavy insulation and 3-wire PNP output logic, making it compatible with most PLC and controller platforms. The D-Y7P operates reliably across multiple DC voltage ranges and is ideal for OEM equipment retrofits or maintenance replacements where a proven, cost-effective switch is required.
Key Features
- Solid-state Hall-effect sensing with no moving mechanical parts
- 3-wire PNP (push-pull NPN-compatible output) configuration

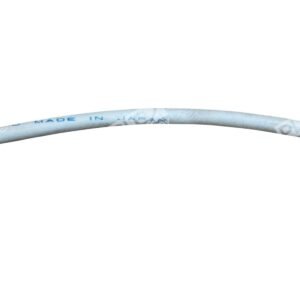

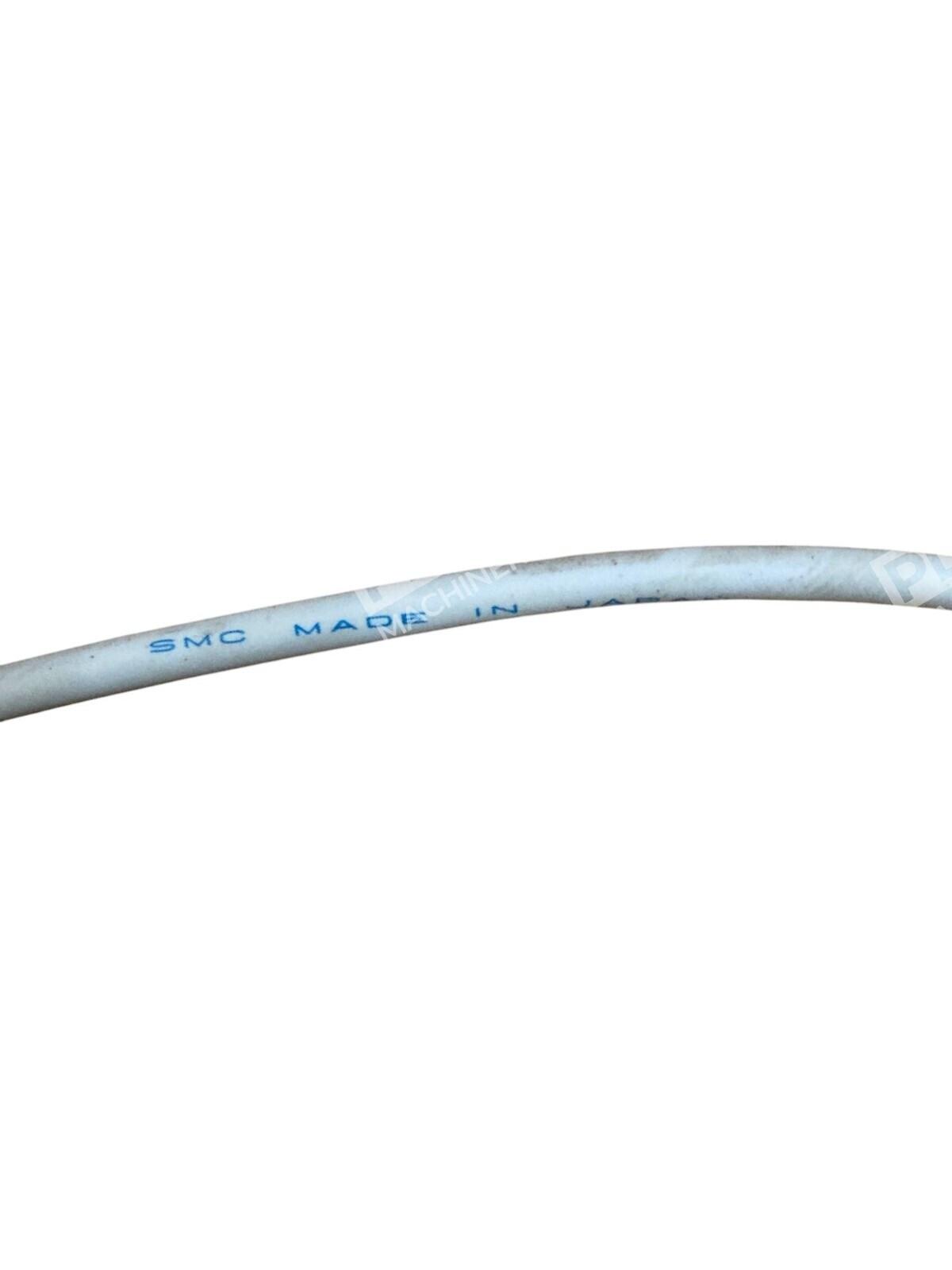

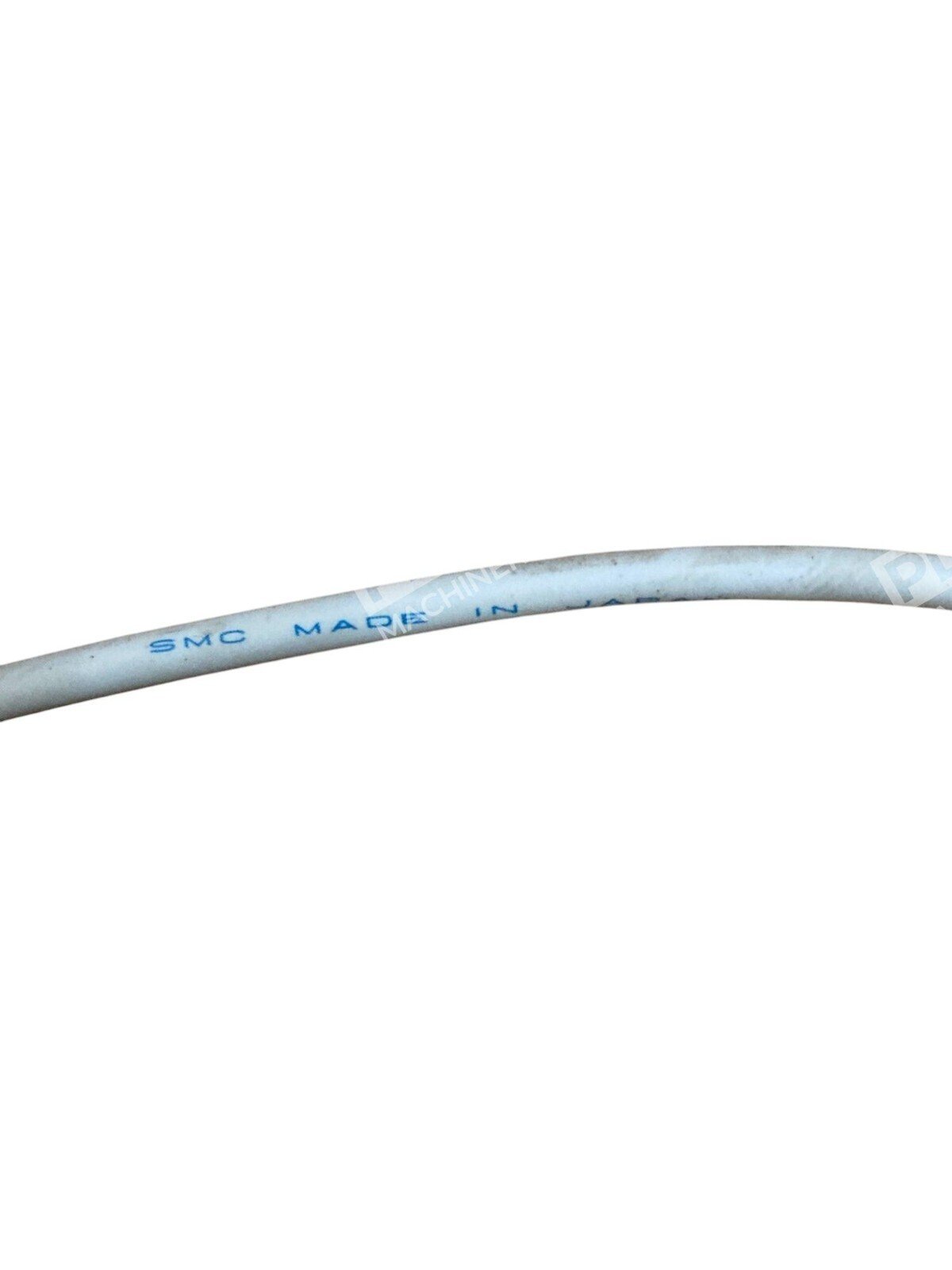

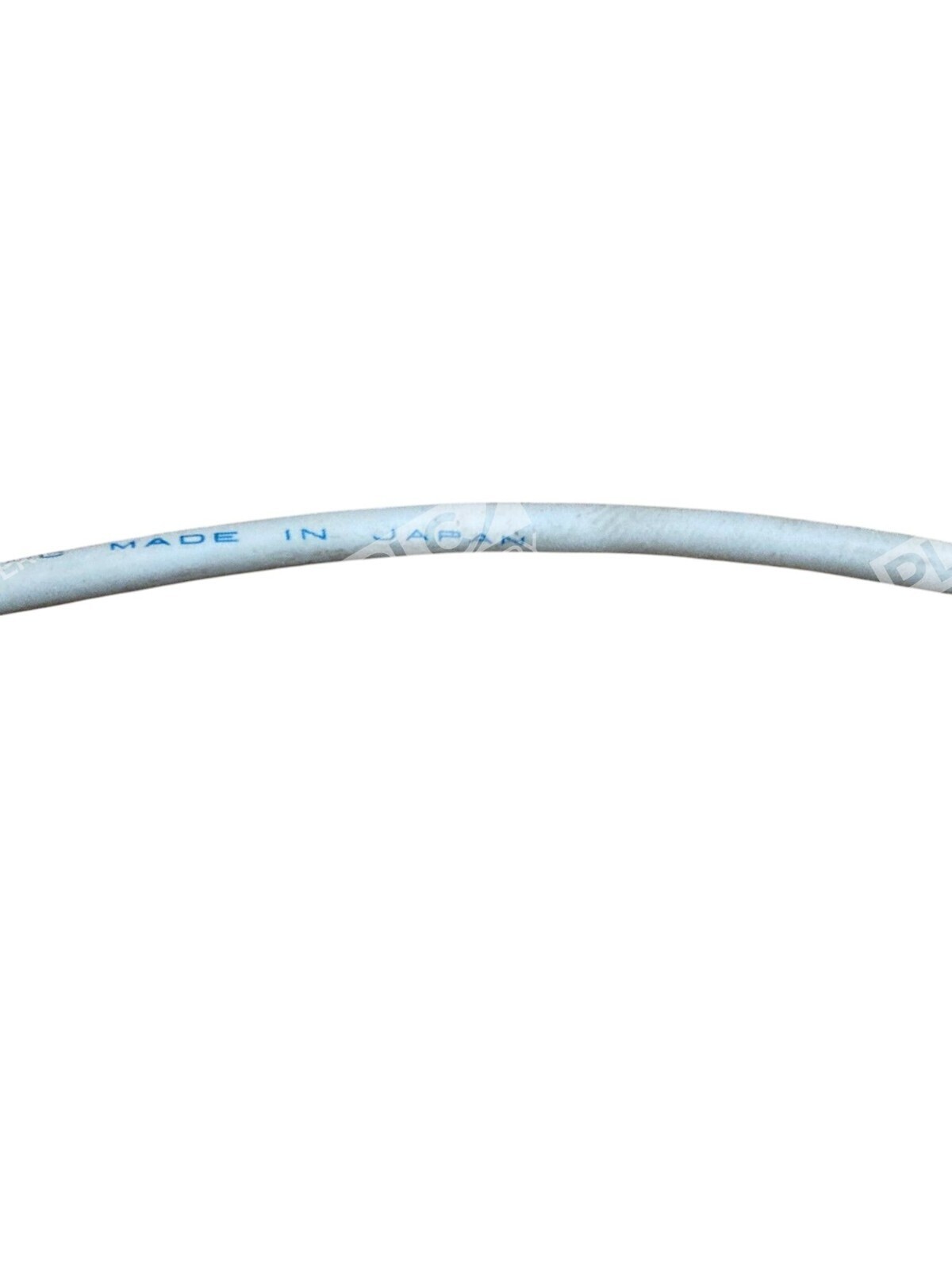

- 0.5m pre-attached oilproof vinyl lead wire (ø3.4, 3-core: Brown, Black, Blue)

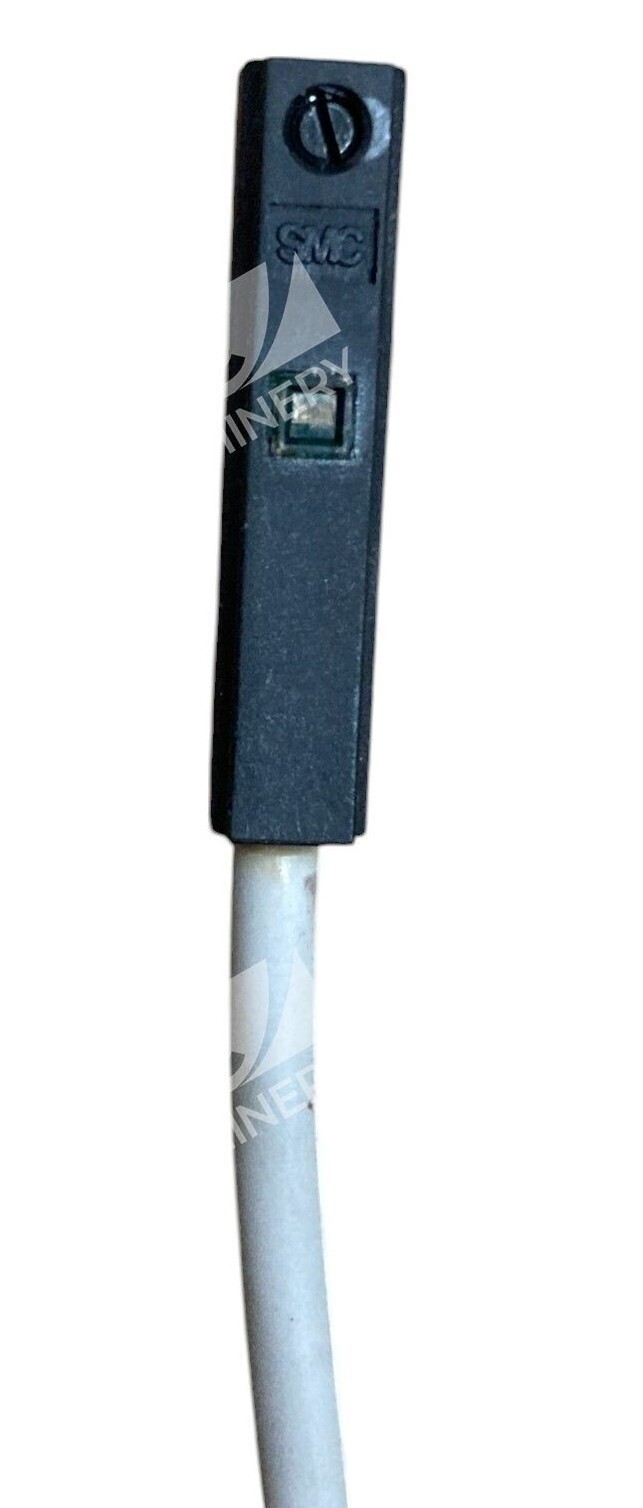

- Integrated indicator light for visual position confirmation
- Horizontal mounting orientation with direct grommet attachment
- General-purpose detection suitable for standard pneumatic applications
Technical Specifications
- Output Type: 3-Wire PNP
- Detection Method: Solid-State (Hall-Effect)
- Operating Voltage: DC 5V, 12V, 24V (DC 4.5–28V range)
- Lead Wire Length: 0.5m
- Lead Wire Insulation: Oilproof vinyl heavy-duty
- Wire Diameter: ø3.4mm
- Wire Cross-Section: 0.2mm²
- Wire Cores: 3-core (Brown, Black, Blue)
- Mounting Style: Horizontal direct grommet
- Indicator Light: Yes
- Series: D-Y
Typical Applications
- Pneumatic cylinder position sensing on assembly equipment
- Air gripper stroke detection and feedback
- Industrial automation binary status monitoring
- OEM retrofit and replacement installations
- Factory automation and material handling systems
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC platforms
- Siemens S7-1200 and S7-1500 controllers
- Mitsubishi FX and Q series PLCs
- Omron CP and CJ series controllers
- Standard industrial DC power supplies (4.5–28V DC)
- Any system accepting 3-wire PNP proximity output signals
Replaces / Drop-In Replacement For
- Original SMC D-Y7P units in service
- Verify specific actuator and wiring compatibility with your system integrator before replacement
Works With
- SMC pneumatic actuators, cylinders, and air grippers
- Standard industrial automation networks (discrete I/O wiring)
- EtherNet/IP and PROFINET gateways for remote monitoring
- Relay and logic-based control systems requiring PNP input signals
