Overview

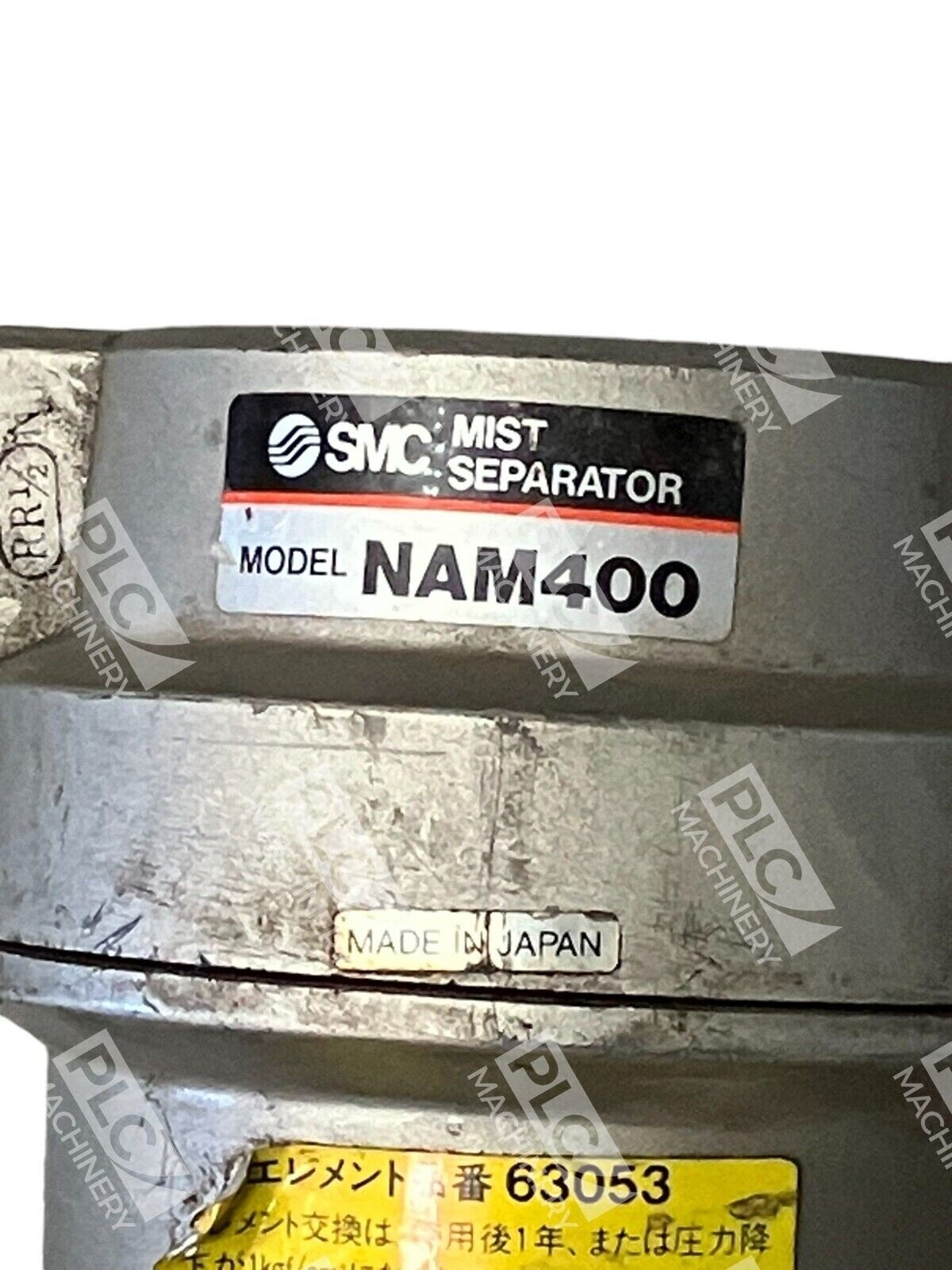

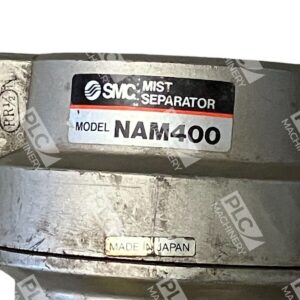

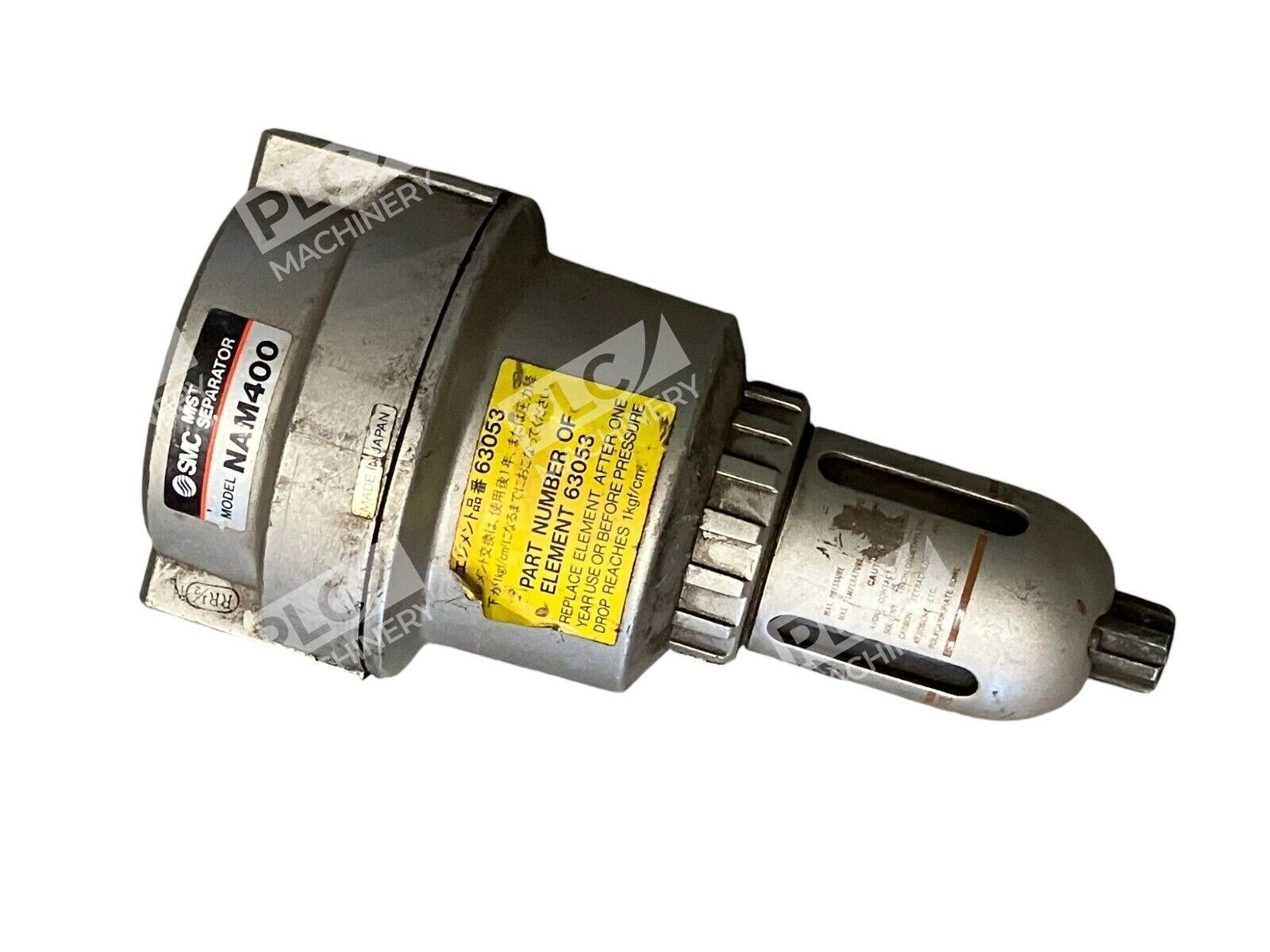

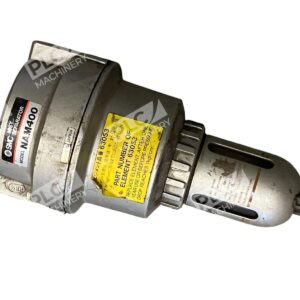

The SMC NAM400 mist separator is a pneumatic filtration component designed to remove oil mist, aerosol particles, and contaminants from compressed air systems. Built by SMC, the world’s largest manufacturer of pneumatic automation products, this unit separates and absorbs fine oil particles to deliver cleaner air downstream. Used in metalworking shops, CNC operations, and manufacturing facilities where air quality directly impacts tool life and product quality.
Key Features
- Removes aerosol oil mist and airborne contaminants from compressed air
- Converts oil-lubricated compressed air to near oilless air quality
- Durable construction rated for industrial pneumatic systems
- Manual or automatic drain options for accumulated oil and moisture
- Compatible with standard pneumatic piping and control systems
Technical Specifications
- Manufacturer: SMC Pneumatics
- Model: NAM400
- Product Type: Mist Separator
- Operating Pressure: Up to 150 PSI maximum (typical for SMC series)
- Filtration Level: 0.3 µm (removes oil and fine particulates)
- Condition: Used, inspected
- Port Type: NPT standard connections
- Operating Temperature: 40–140°F ambient operating range
- Minimum Operating Pressure: 7 PSI (no underflow at standard rating)
- Application: Pneumatic air preparation and compressed air treatment
Typical Applications
The NAM400 is ideal for:
- CNC machining centers and turning centers
- Metalworking and manufacturing operations
- Pneumatic tool supply lines
- Air blow-off and cleaning systems
- Precision assembly and coating applications requiring high air cleanliness
- Compressed air systems requiring ISO 6:8:4 air quality or better
Compatibility & Replacements
Compatible With
- SMC pneumatic air preparation units (filters, regulators, lubricators)
- Standard pneumatic piping with NPT connections
- Compressed air systems rated 7–150 PSI
- ISO 1219 pneumatic circuit standards
- Industrial air preparation modular systems
Replaces / Drop-In Replacement For
Verify with your system integrator or original equipment documentation for direct model replacement compatibility. Used units may have been configured with specific drain options or port sizes—confirm your current setup before ordering.
Works With
- SMC AM, AMD, and AFM series mist separators (same pressure/flow compatibility)
- Standard industrial pneumatic controllers and solenoid valves
- Compressed air dryers and aftercoolers
- Manual and automatic drain systems
- Pressure regulators and moisture traps
