Overview

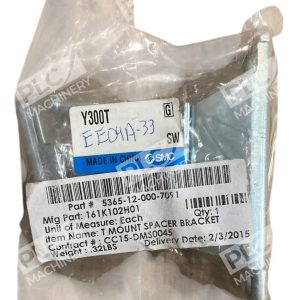

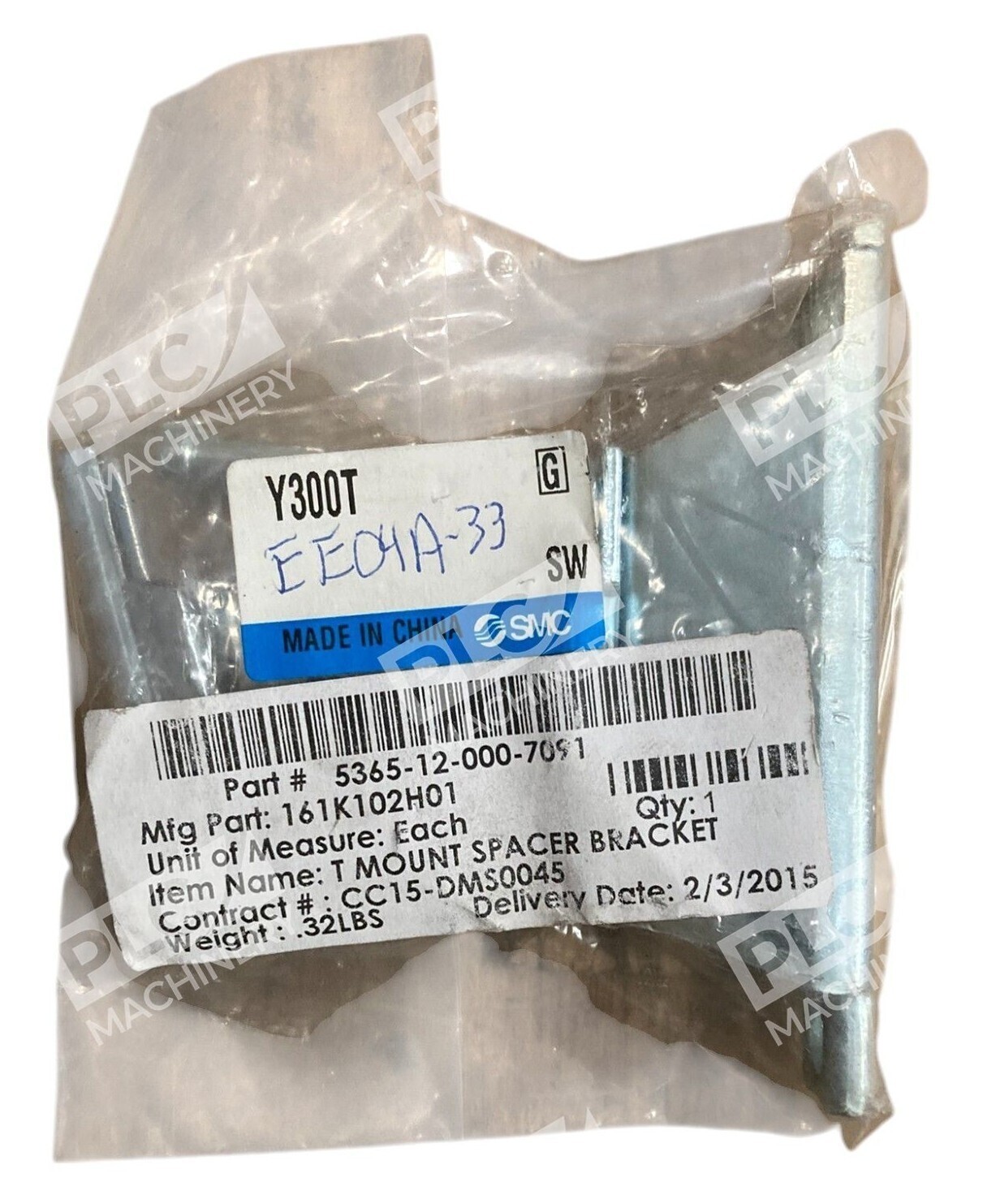

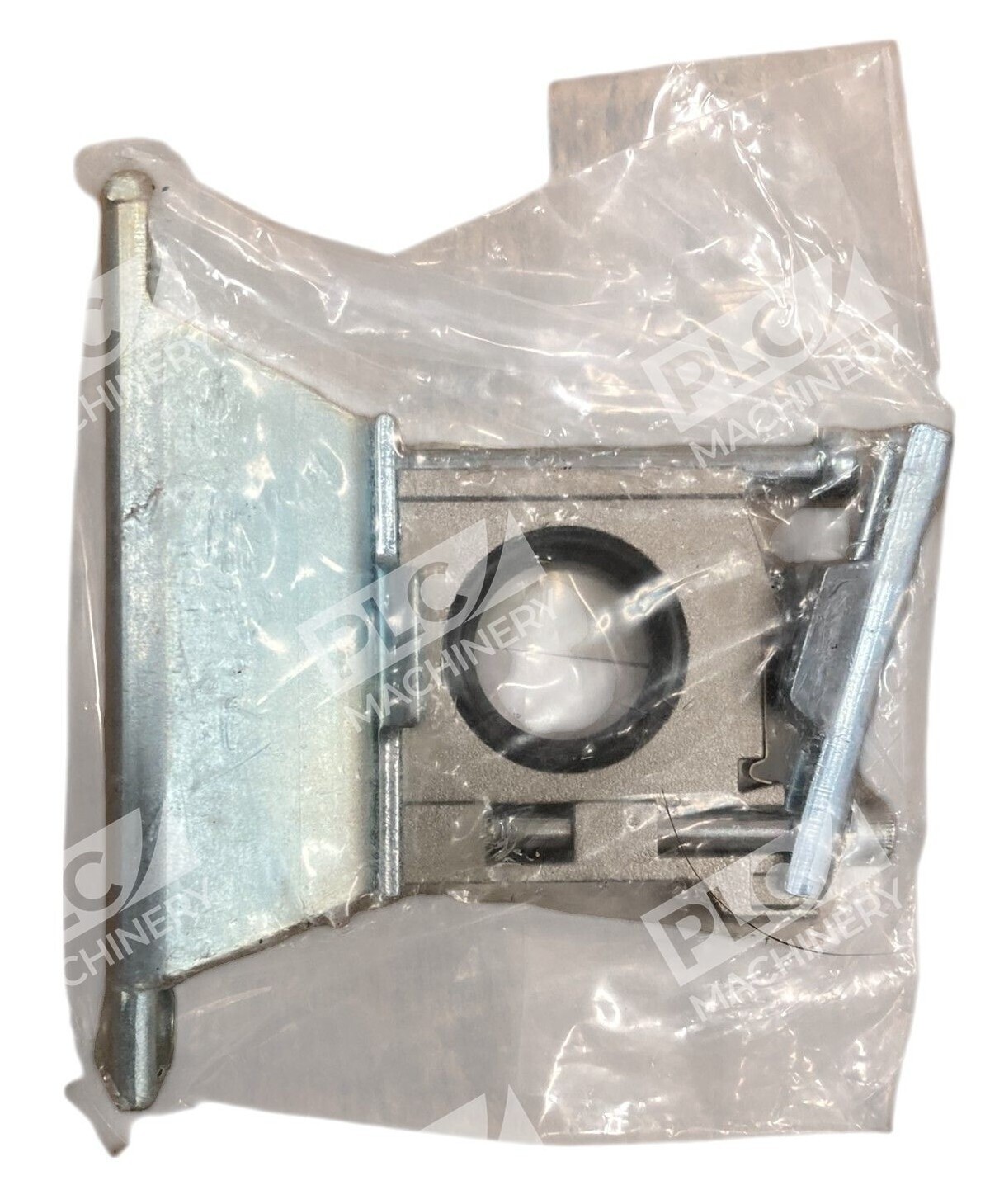

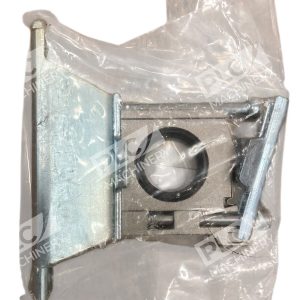

The SMC Y300T spacer bracket is a precision-engineered mounting spacer designed for modular pneumatic systems. The Air Management System requires additional clearance on the back side for electrical connections, and tall spacers enable modular connection while providing the necessary clearance. This component supports vertical stacking and alignment of filter/regulator/lubricator (FRL) units in industrial pneumatic applications.
Key Features
- Compact spacer with bracket reduces assembly space and attaches FRL’s with tightening of screws
- O-ring prevents leakage
- Easy maintenance
- Integrated mounting bracket design for wall mount applications
- Precision-engineered to maintain structural integrity under high-pressure conditions
Technical Specifications
- Model: Y300T
- Manufacturer: SMC Corporation
- Type: Spacer with mounting bracket
- O-Ring Material: NBR
- Mounting Style: Wall mount / vertical stack
- Applicable FRL Series: AC25, AC30
Typical Applications
The SMC Y300T spacer bracket is used in:
- Combining FRL units together with integrated mounting bracket design for wall mount applications
- Modular pneumatic control systems
- Automated manufacturing processes where precision and reliability are paramount
- Industrial compressed air system integration
- Machine tool accessory applications
Compatibility & Replacements
Compatible With
- AC25 Series FRL units
- AC30 Series FRL units
- SMC pneumatic filter/regulator/lubricator combinations
- Wall-mount pneumatic control panels
Replaces / Drop-In Replacement For
- Y300T-2-D variant
- Y300T-A (wall mount configuration)
- Y300T-D (modular pneumatic variant)
Works With
- SMC Air Management System platforms
- Pneumatic pressure regulation networks
- Industrial automation control cabinets
- Compressed air tool integration systems
