Overview

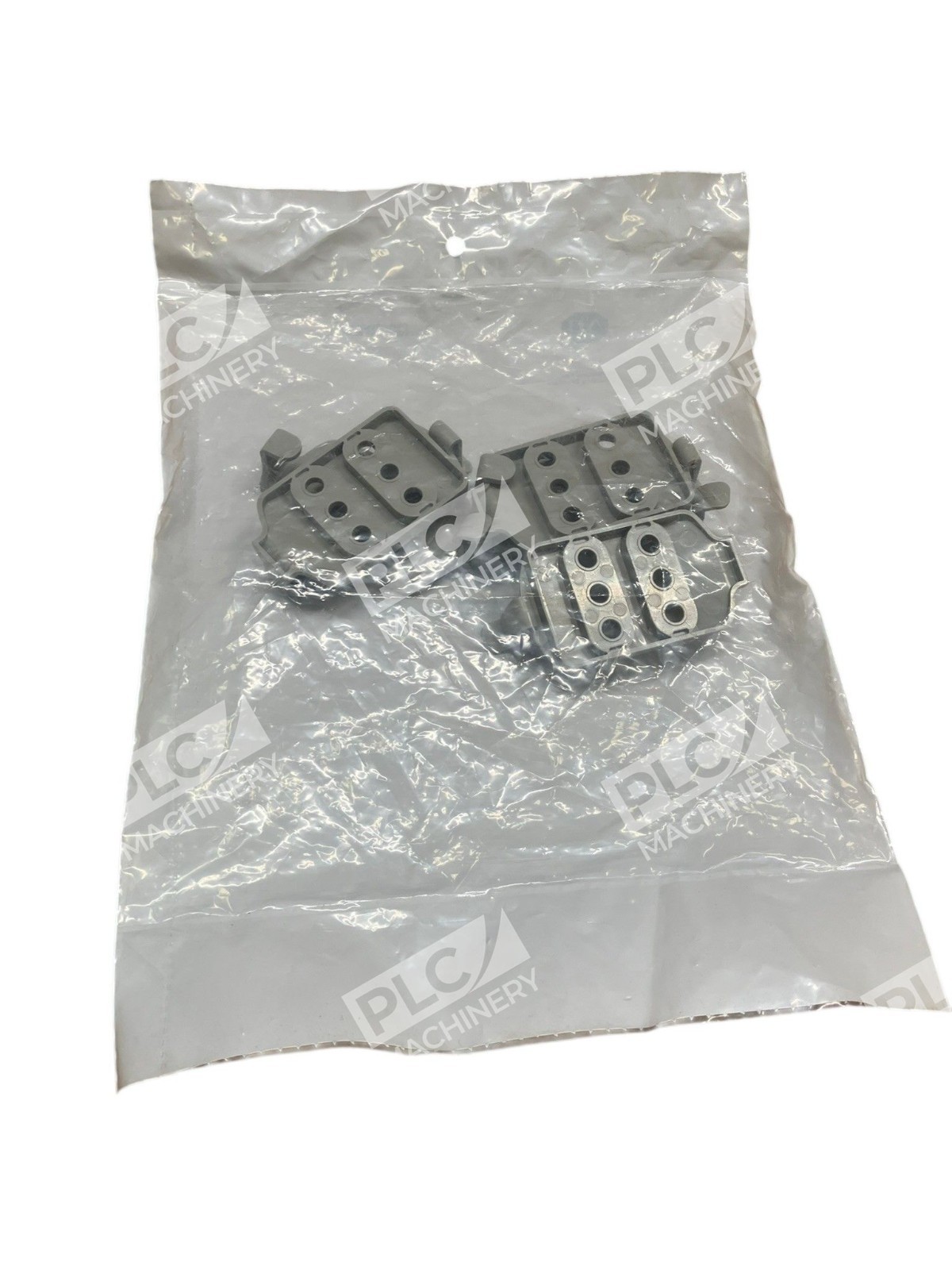

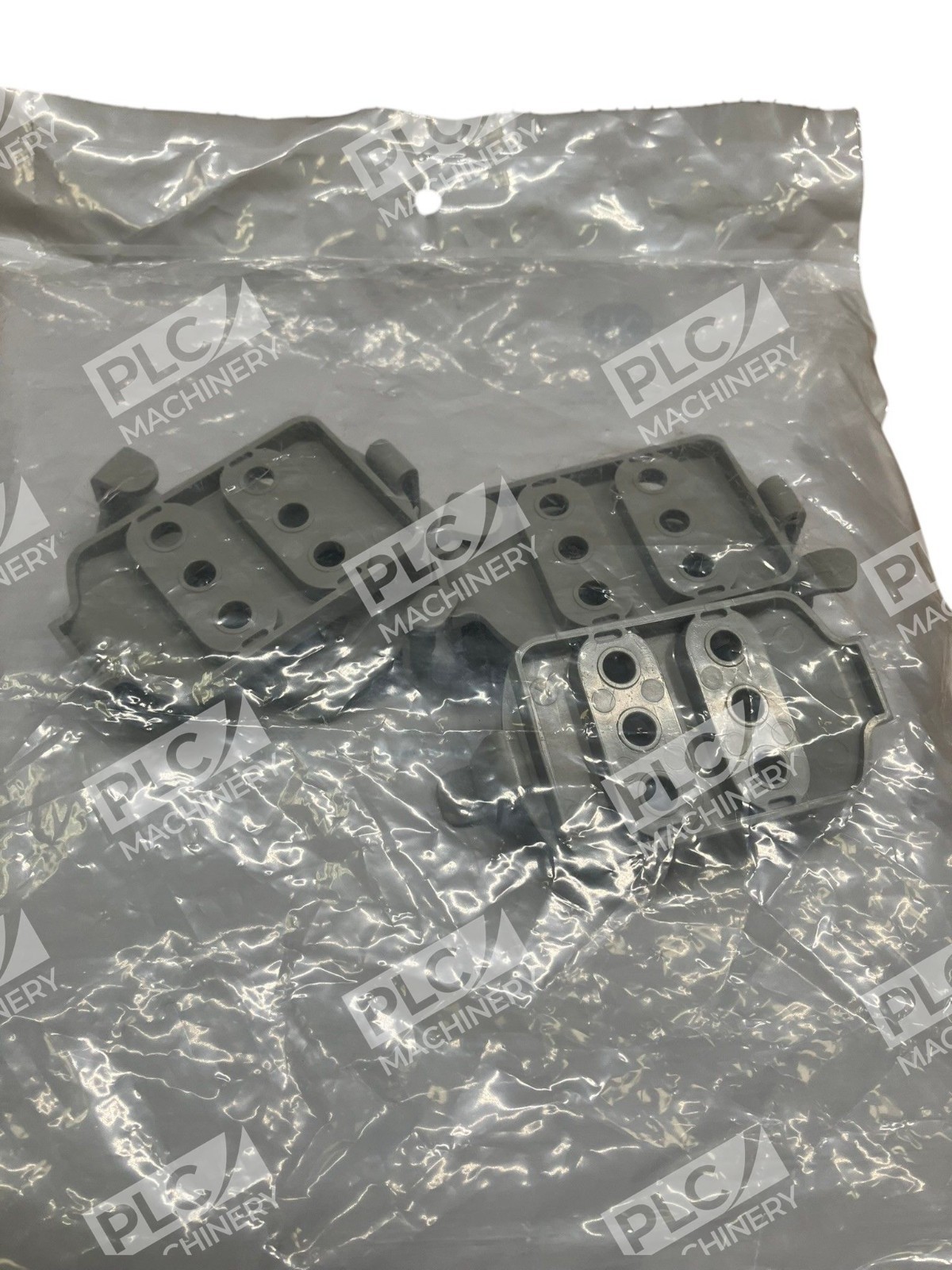

The Allen-Bradley 440S-GLTAPBRK5 is a GuardLink mounting bracket accessory that provides a quick-disconnect connection solution for safety-critical applications. Supplied as a pack of five, this bracket integrates with the Allen-Bradley Guardmaster safety system to streamline installation and troubleshooting on DIN rail. The mounting bracket supports Category 3 safety systems and enables clear, modular terminal layout for power inputs and outputs.
Key Features
- GuardLink Communication Protocol: GuardLink taps connect safety input devices to a GuardLink system, a safety-based communications protocol that links safety to The Connected Enterprise.
- Advanced Diagnostics: GuardLink enabled devices offer advanced features and diagnostics that can only be accessed through a GuardLink enabled connection tap.
- Simplified Installation: Reduce installation cost, ease system expansion, simplify troubleshooting, and promote system modularity.
- Organized Terminal Layout: Terminals are grouped together by power inputs and outputs for clear connection.
- Compact DIN Rail Design: Offers compact solution which saves energy and space on DIN rail.
- Quantity Pack: Supplied as 5 per box.
Technical Specifications
The 440S-GLTAPBRK5 is manufactured to support GuardLink safety protocols. Key specifications include:
- Material: Plastic
- Type: GuardLink Tap Mounting Bracket
- Quantity per Package: 5
- Sub-Brand: GuardLinkâ„¢
- Standards: C-TICK, KC

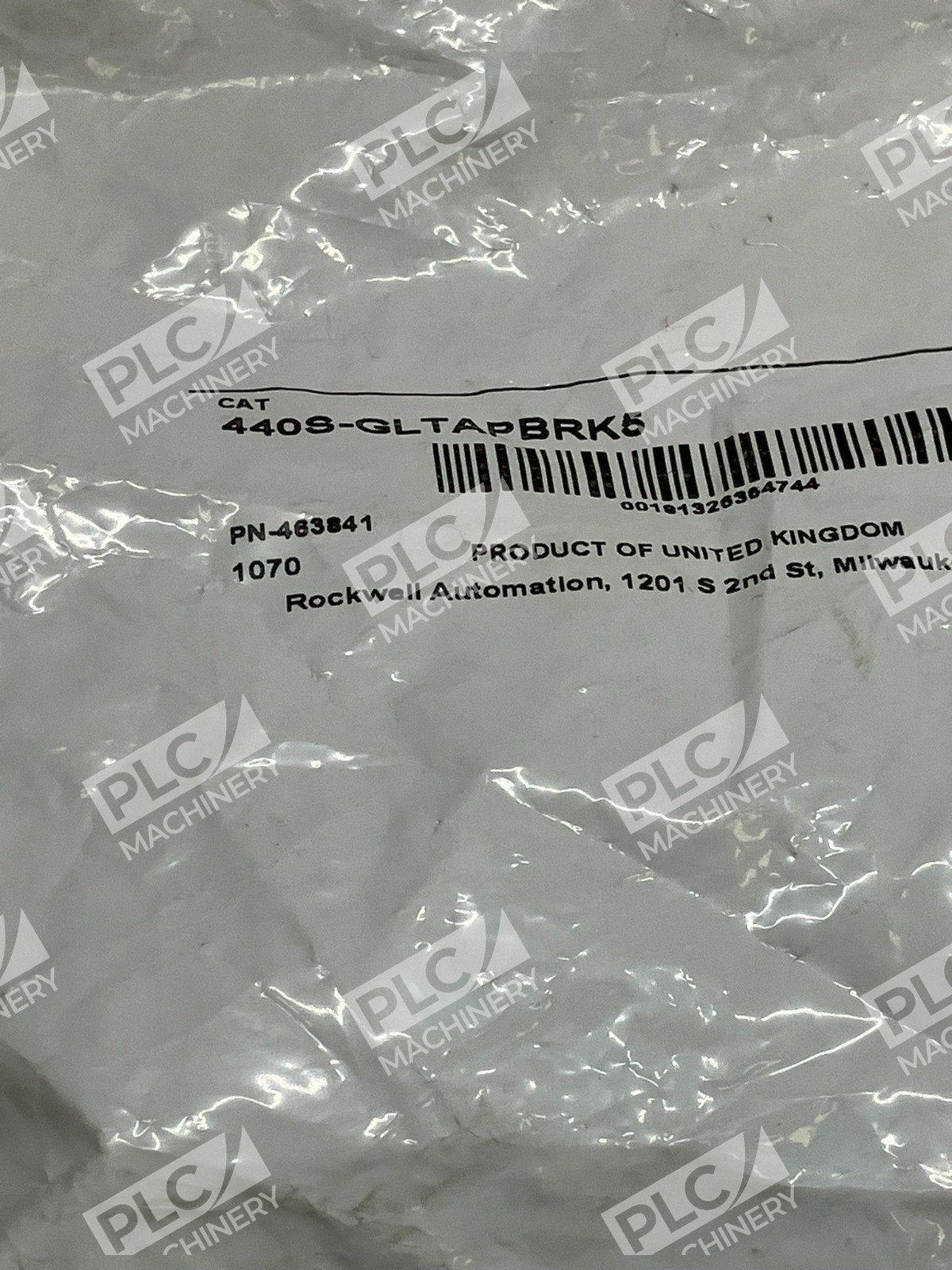

- UPC: 191326364744
- Designed for DIN rail mounting
- Support systems up to Category 3
Typical Applications
The Allen-Bradley 440S-GLTAPBRK5 is used in machine guarding and safety interlock applications, including:
- Guard locking mechanism installations (Power to Release and Power to Lock compatibility)
- Emergency stop (E-stop) system integration with GuardLink-enabled smart safety devices
- Safety PLC input expansion on industrial automation machinery
- Modular safety system configuration in manufacturing and processing equipment
- Integration with Guardmaster Dual GuardLink safety relays for multi-door or multi-guard installations
Compatibility & Replacements
Compatible With
- GuardLink System (Guardmaster family)
- Allen-Bradley Guardmaster Dual GuardLink Safety Relays
- GuardLink-enabled smart safety devices
- DIN rail industrial control cabinets and enclosures
- Category 3 safety-rated automation systems
Replaces / Drop-In Replacement For
- Earlier versions of Allen-Bradley GuardLink tap mounting brackets
- Manual safety circuit connections in modular safety systems
Works With
- Guardmaster Safety Relay systems
- Allen-Bradley Guardmaster EtherNet/IP Network Interface (440R-ENETR) for networked safety applications
- Guard locking switches (PTR and PTL types)
- Passive GuardLink taps (440S-PF5D, 440S-PF5D4)
- Allen-Bradley industrial safety and machine guarding product lines
