Overview

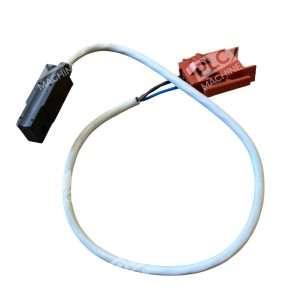

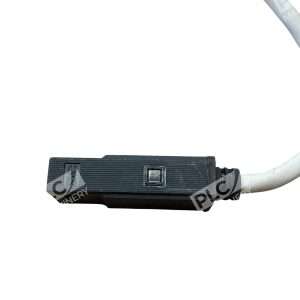

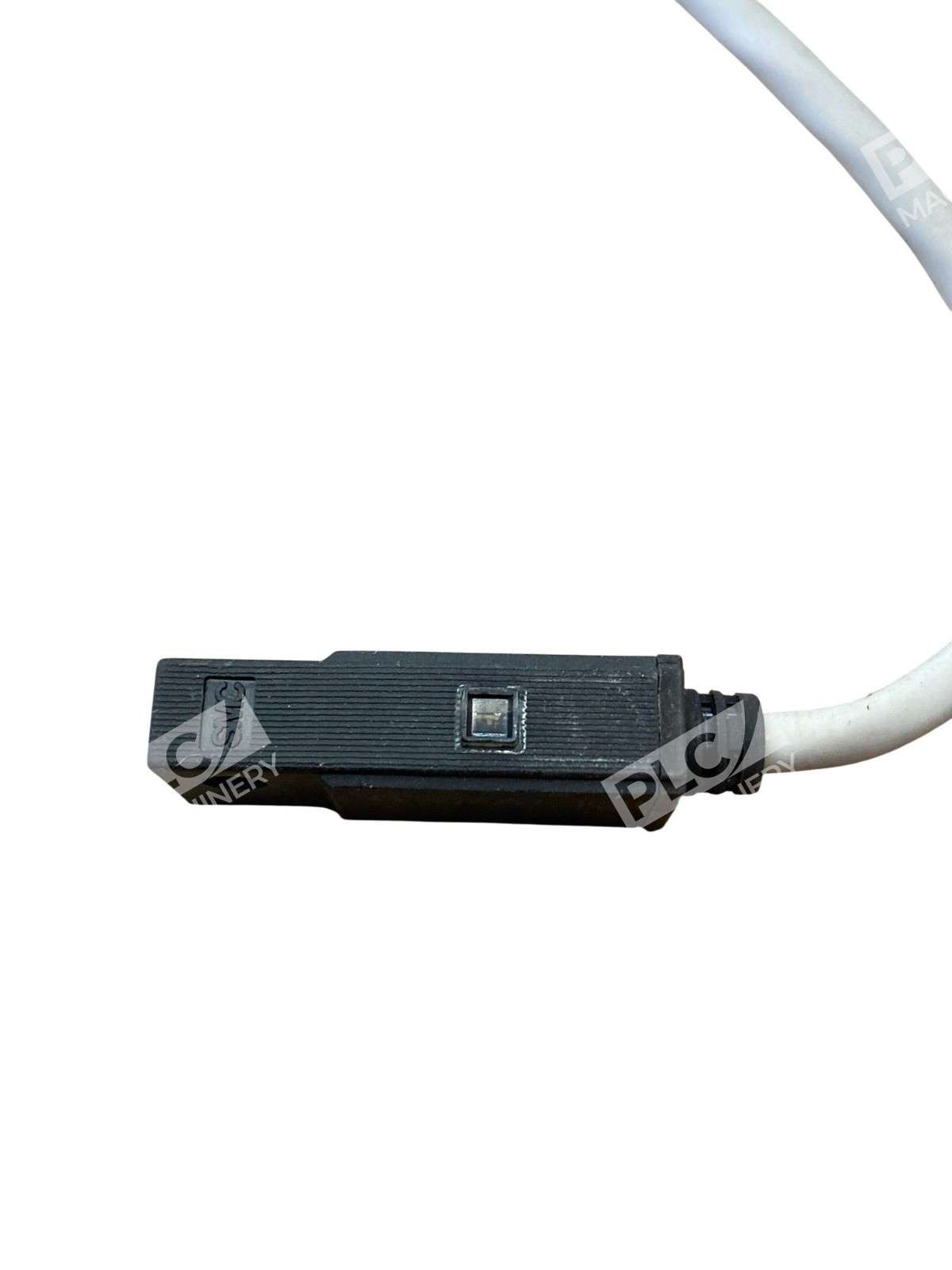

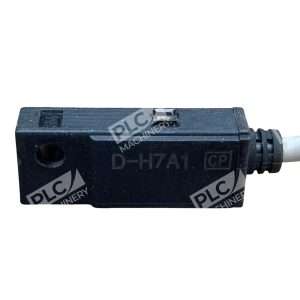

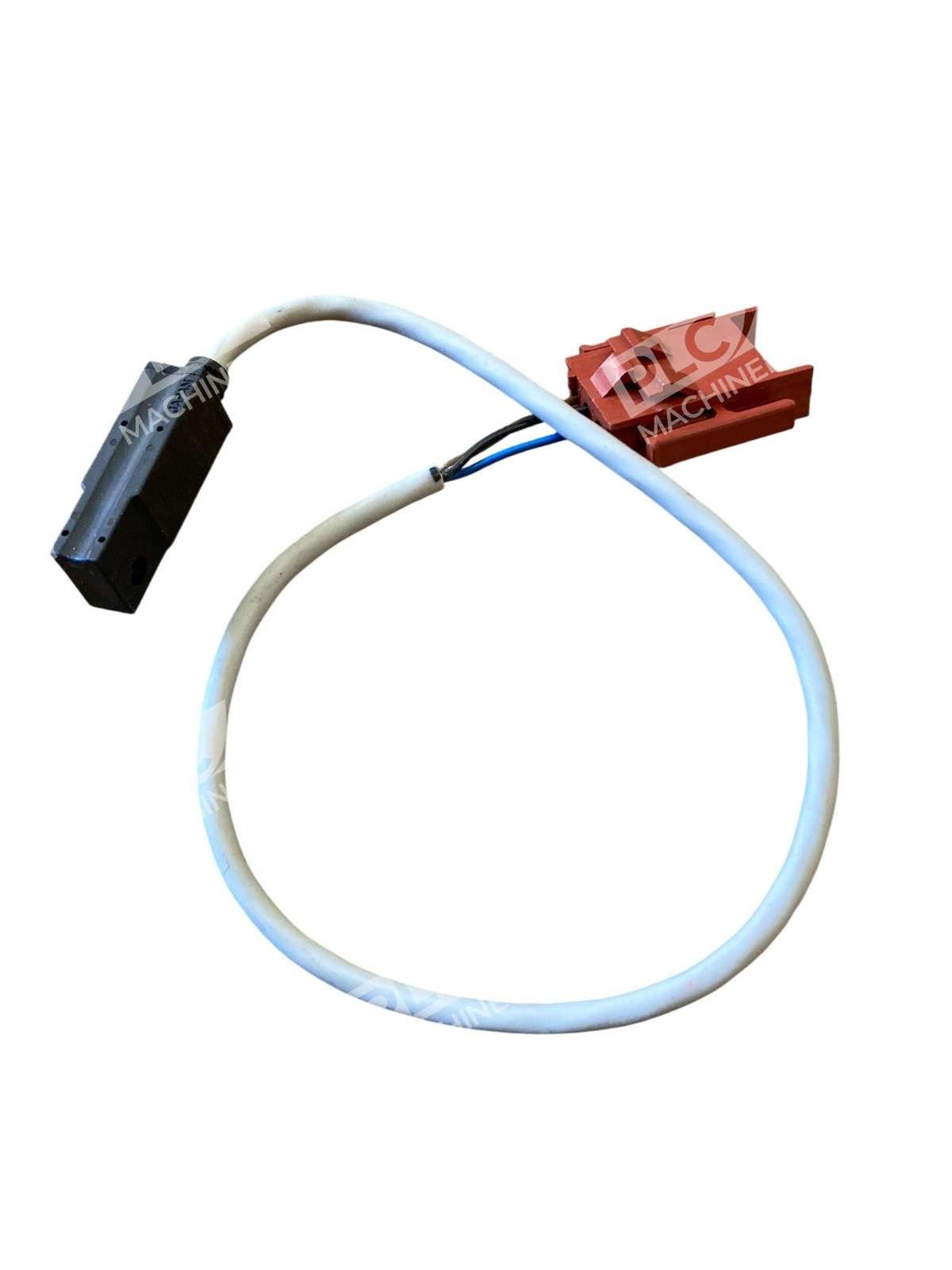

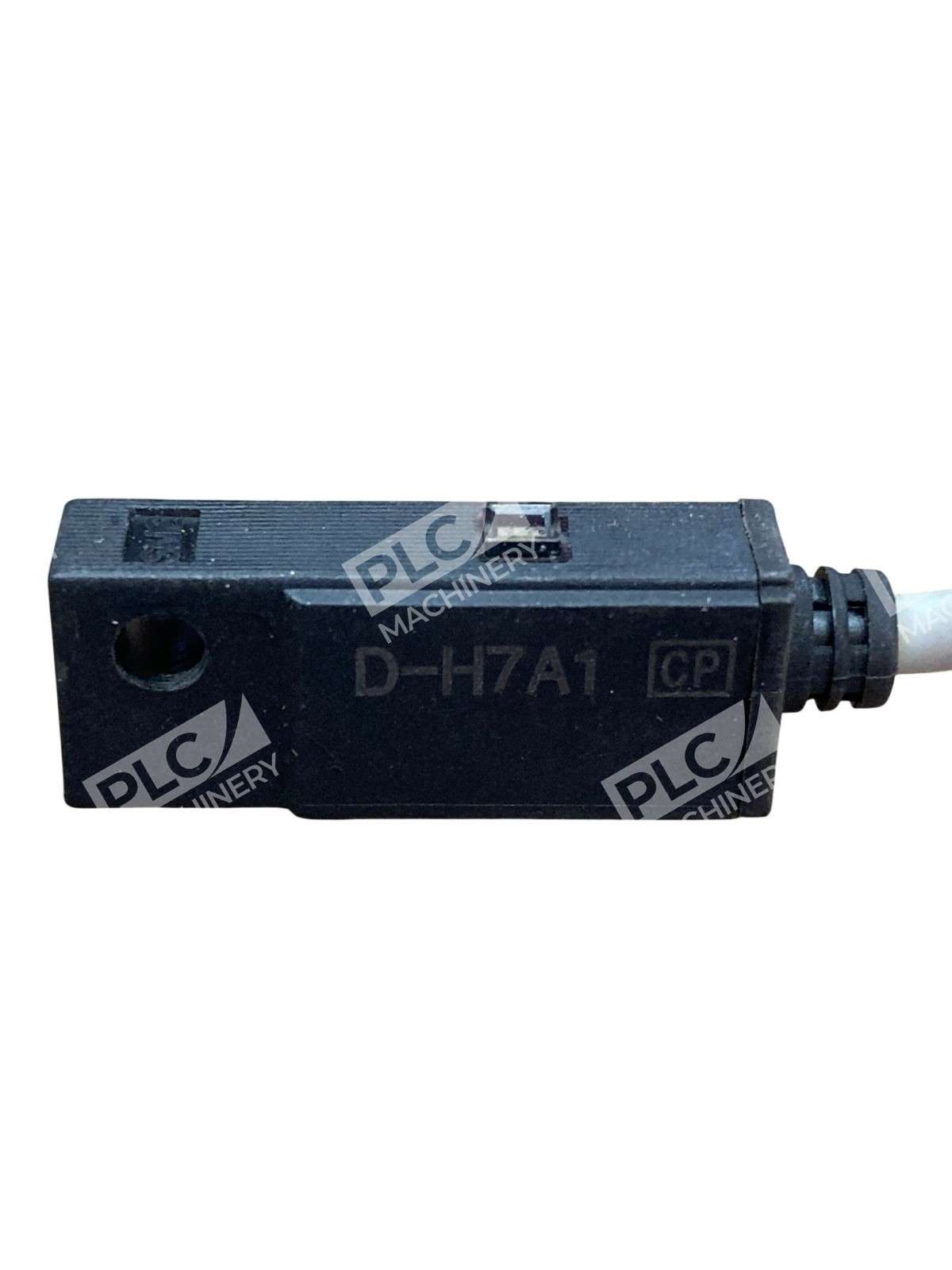

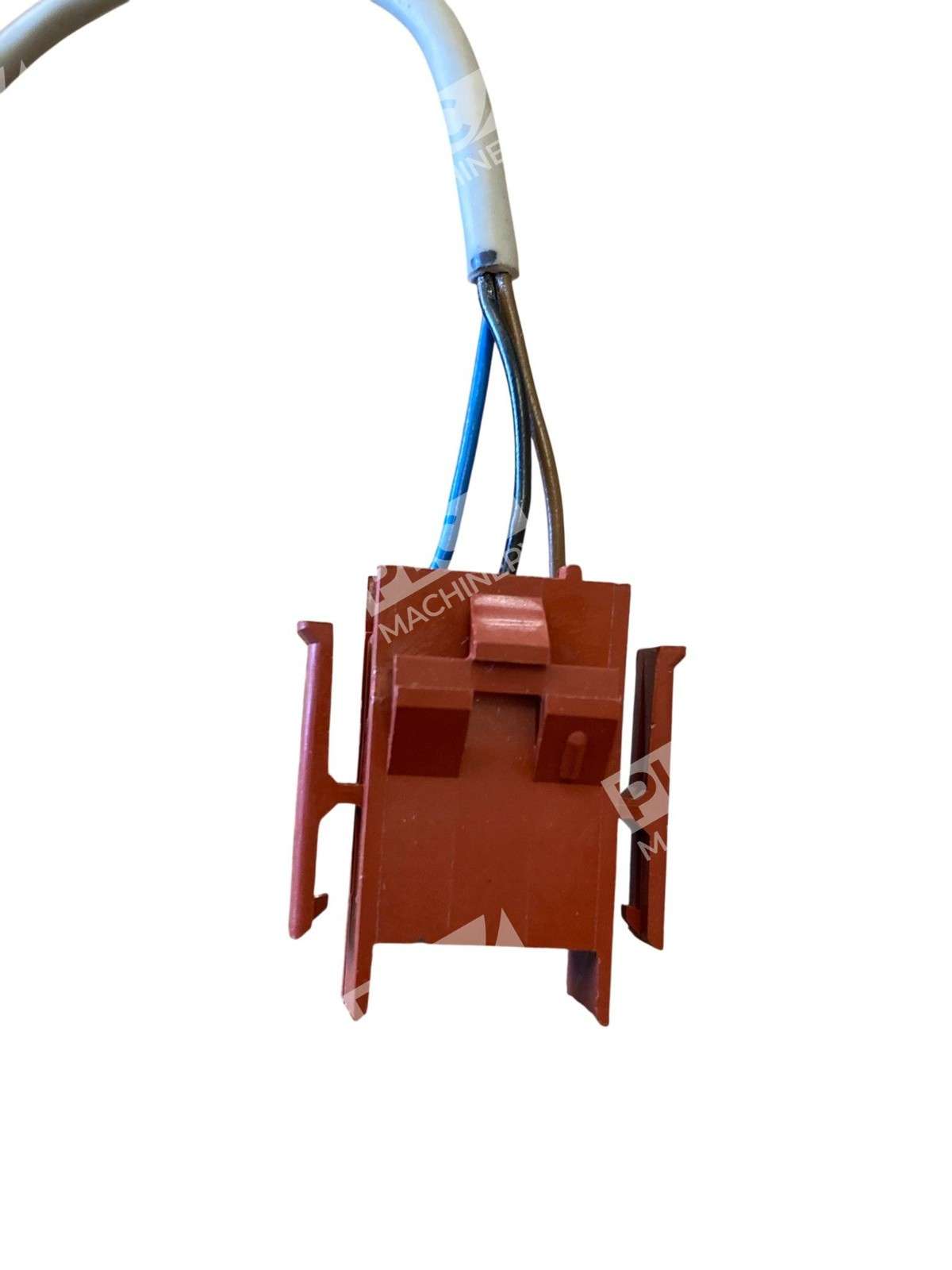

The SMC D-H7A1 solid state auto switch is a magnetic position sensor engineered for detecting and controlling actuator placement in pneumatic systems. The intended use of the auto switch is to detect and control the position of an actuator using magnetic detection. This NPN output sensor eliminates mechanical wear found in reed-type switches and is widely deployed in manufacturing, assembly, and process automation.
Key Features
- Solid state output — no moving contacts, designed for long service life
- NPN 3-wire configuration — compatible with PLCs, relays, and IC input circuits
- LED indicator light — visual confirmation of switch state
- Band mounting style — quick installation on pneumatic cylinders and linear actuators
- Grommet design — secure cable retention and environmental sealing

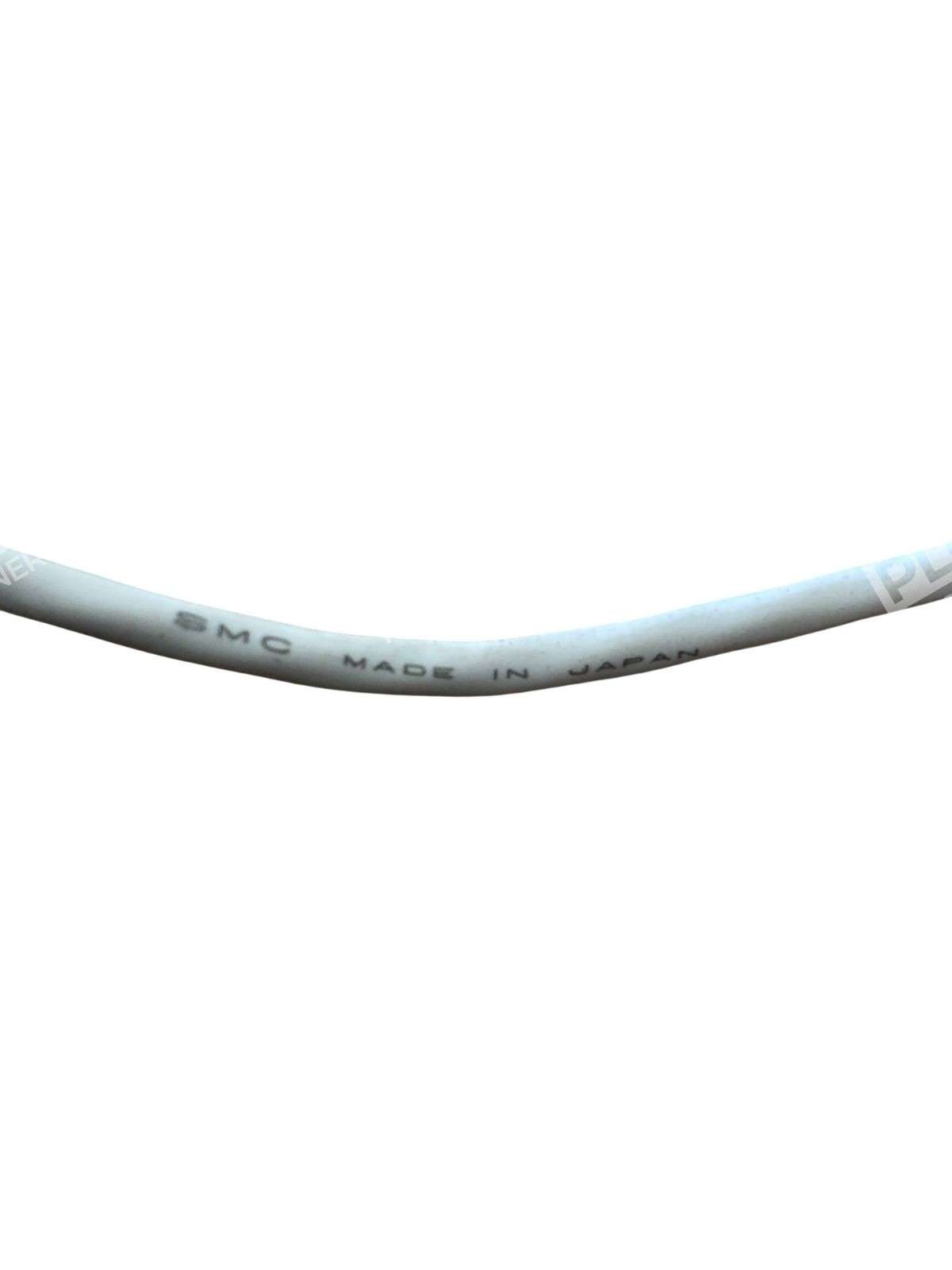

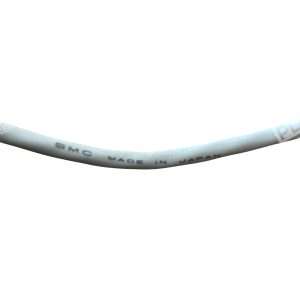

- Flexible lead wire — available in 0.5m standard and extended lengths
Technical Specifications
- Model Number: D-H7A1
- Supply Voltage: 24VDC
- Output Current (Max): 40mA
- Output Type: NPN (sink output)
- Wiring: 3-wire (power, ground, signal)
- Detection Method: Magnetic (band-mounted)
- Operating Voltage Range: DC 4.5–28V
- Standard Lead Length: 0.5m (extended 3m available)
- Mounting Type: Band mounting / grommet style
- Certifications: Compliance with ISO 4414 (pneumatic systems)
Typical Applications
- Pneumatic cylinder end-of-stroke detection
- Linear actuator position monitoring on assembly equipment
- Automated material handling and conveyor systems
- Machine tool and production line interlocking
- PLC and industrial controller input feedback
- Valve actuation and pneumatic circuit control
Compatibility & Replacements
Compatible With
- Allen-Bradley PLCs and CompactLogix controllers
- Siemens S7-1200, S7-1500, and modular PLC systems
- Mitsubishi FX and Q-series PLCs
- Omron CP/CJ-series and NX-series controllers
- Generic 24VDC relay and IC input circuits
- All standard 24VDC pneumatic control systems
- EtherNet/IP and PROFIBUS networks via gateway modules
Replaces / Drop-In Replacement For
- SMC D-H7A1 original equipment manufacturer replacements
- Most band-mounting magnetic position sensors with identical 3-wire NPN interface
- Legacy reed-type position switches requiring 40mA sink-output sensors
Works With
- Studio 5000 (Logix) ladder logic programming
- TIA Portal (Siemens STEP 7)
- GX Works (Mitsubishi)
- CX-Programmer (Omron)
- Pneumatic actuator bands and cylinders from SMC and other OEMs
- 24VDC industrial control cabinets and DIN-rail mounted terminals
