Overview

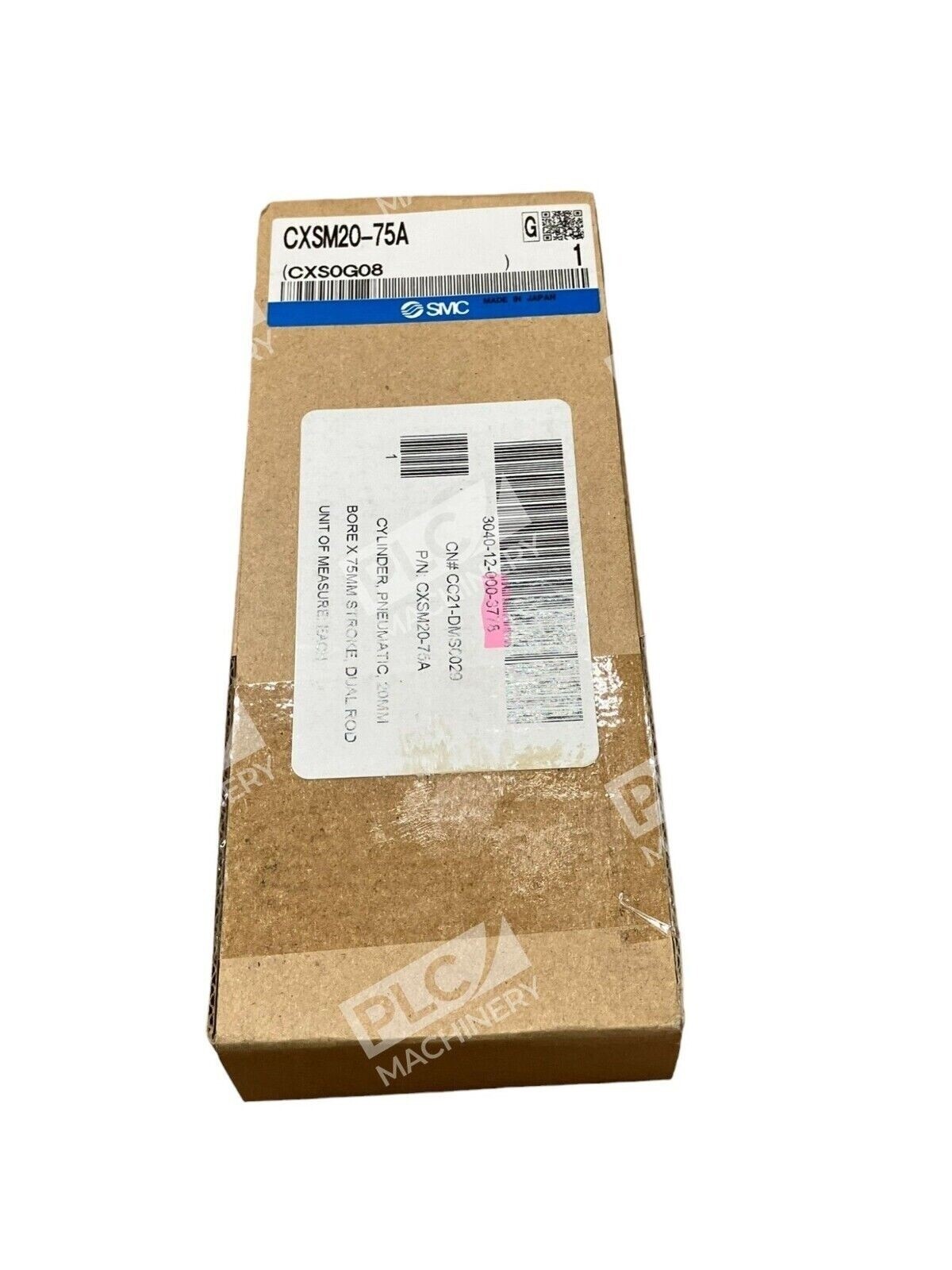

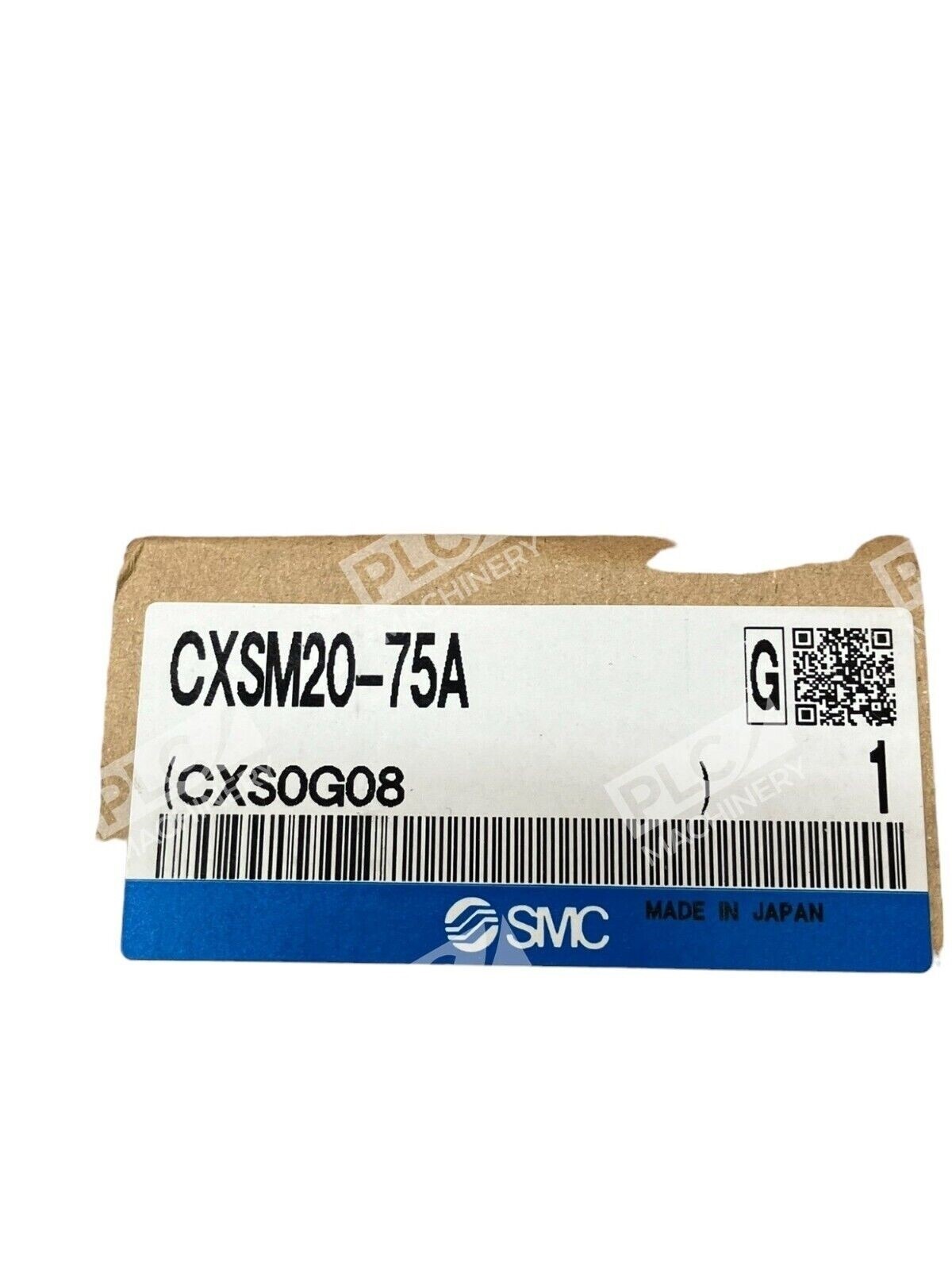

The SMC CXSM20-75A is a compact dual rod pneumatic guided cylinder designed for precision motion control in industrial automation systems. Part of SMC’s CXS series, this guided cylinder combines non-rotating accuracy with robust slide bearing construction to deliver stable, repeatable performance in demanding applications. The CXSM20-75A is supplied new in box, ready for immediate integration into your automation system.
Key Features
- Dual piston rods with slide bearing design for enhanced lateral stability
- Non-rotating accuracy of 0.1 degrees ensures precise positioning
- Auto-switch capable for integrated position sensing
- Compact footprint (169 × 64 × 25 mm) ideal for space-constrained installations
- Air cushioning for smooth deceleration at end of stroke
- Stroke adjustment range: 0 to -5 mm for fine-tuning
Technical Specifications
The CXSM20-75A delivers reliable performance across standard industrial operating conditions with verified pressure and temperature ratings.
- Bore Diameter: 20 mm
- Stroke Length: 75 mm
- Maximum Operating Pressure: 0.7 MPa
- Operating Temperature Range: −10°C to +60°C
- Weight: 640 g
- Dimensions (L × W × H): 169 × 64 × 25 mm
- Type: Dual rod cylinder with slide bearing
- Cushioning: Air cushion
- Series: CXS (Guided Cylinder)
- Condition: New in Box
Typical Applications
The SMC CXSM20-75A is well-suited for applications requiring precise, non-rotating linear motion with lateral load support. Common uses include machinery component positioning, assembly process automation, material handling guiding systems, and precision equipment clamping. The slide bearing construction protects the cylinder from side loads while maintaining strict positioning accuracy, making it ideal for applications where off-axis forces are present.
Compatibility & Replacements
Compatible With
- SMC pneumatic valve systems (ISO 4401 standard)
- Standard compressed air supplies (0.7 MPa maximum)
- Auto-switch position sensing systems
- Industrial pneumatic networks and manifold systems
- 5/3 and 4/3 directional solenoid control valves
Replaces / Drop-In Replacement For
- Earlier CXSM20-75 variants without full CXS0G08 designation
- Other dual rod slide bearing cylinders with matching bore (20 mm) and stroke (75 mm) specifications
- Non-guided dual rod cylinders in equivalent size classes requiring lateral load support
Works With
- SMC EX series proportional control valves
- SMC LS (Load Sensing) valve systems
- Standard industrial PLC and pneumatic controllers
- Pneumatic logic circuits and sequential control systems
- ISO 4401 ported manifold blocks and sandwich valves
