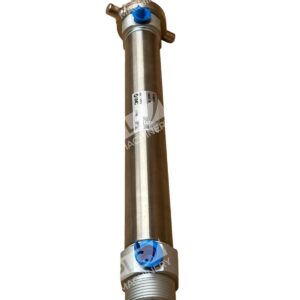

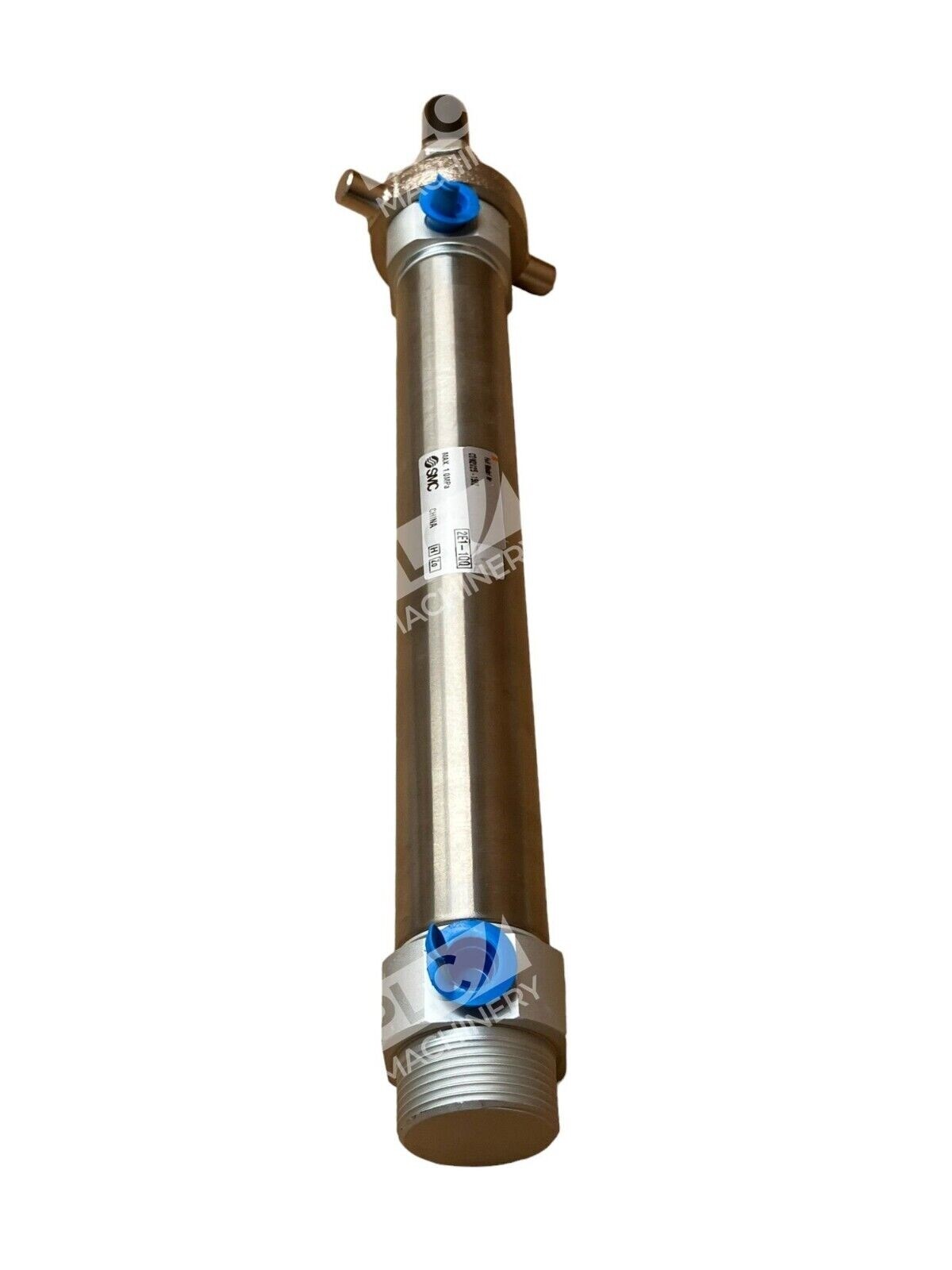

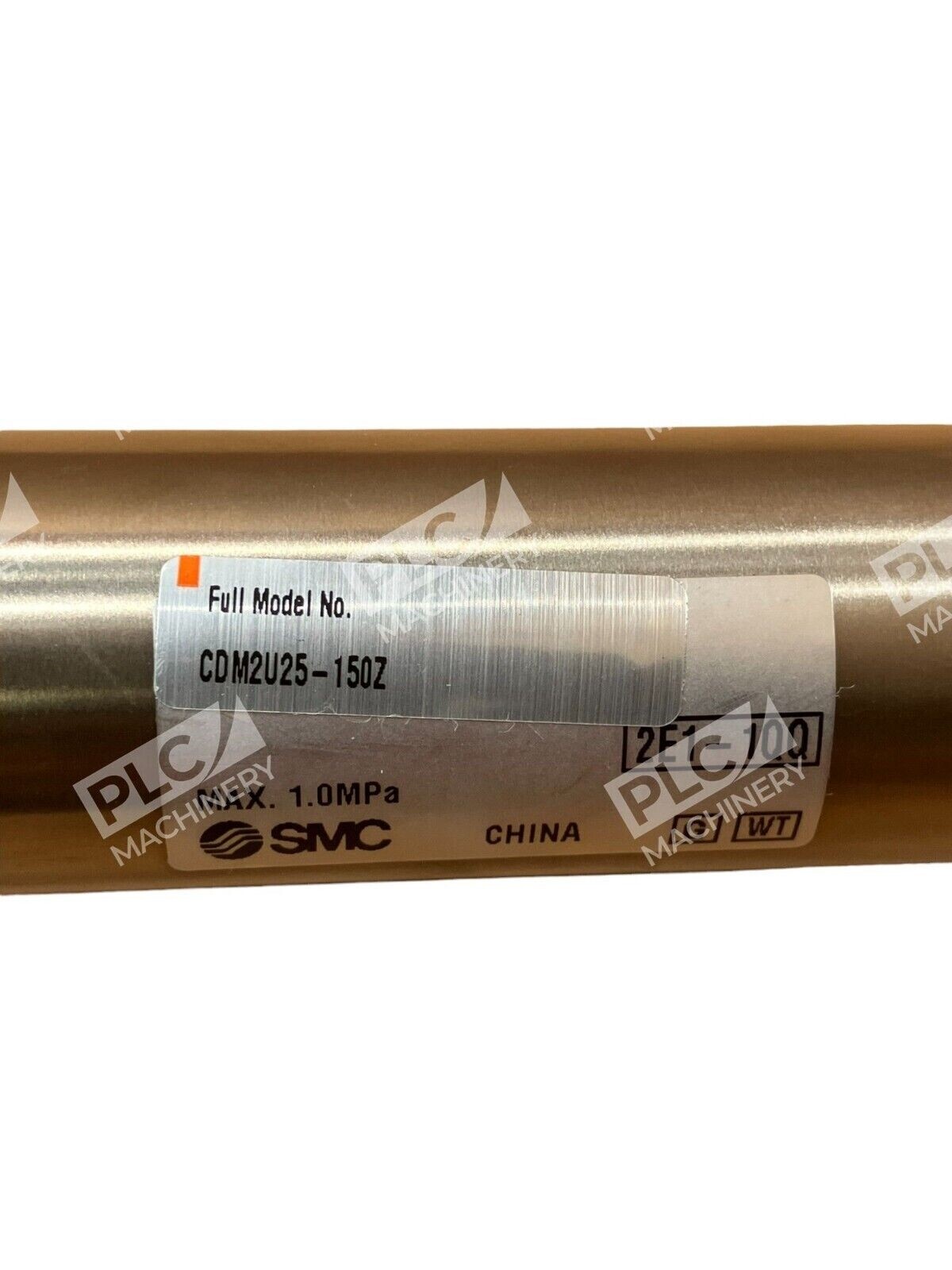

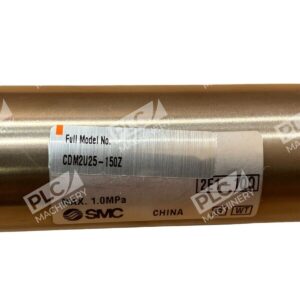

The SMC CDM2U25-150Z Air Cushion Pneumatic Cylinder is a high-performance component designed for precision and durability in various industrial applications.
Key Features
- Bore Size: 25 mm
- Stroke Length: 150 mm
- Actuation Type: Double acting, single rod
- Cushioning: Air cushion for smooth operation
- Rod End Thread: Male thread

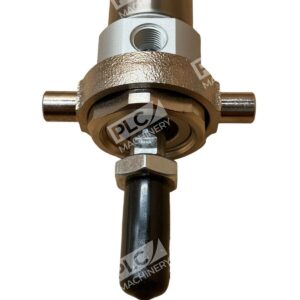

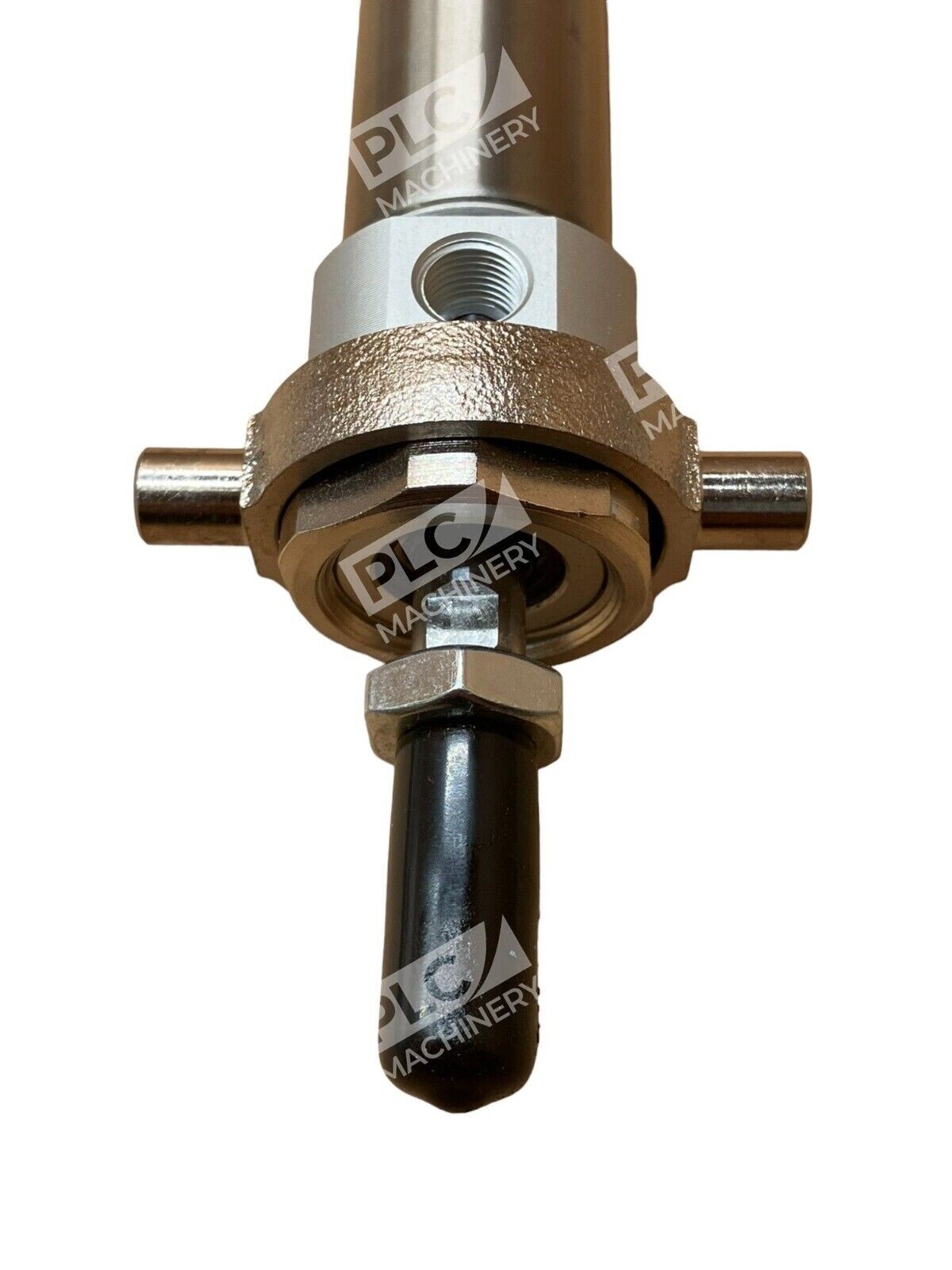

- Mounting Style: Rod trunnion style
- Port Thread Type: Rc standard
- Built-in Magnet: Yes, for auto switch compatibility
Design and Performance
The CDM2U25-150Z features a 25 mm bore and a 150 mm stroke, making it suitable for applications requiring precise linear motion. Its double-acting, single-rod configuration ensures efficient operation in both directions. The air cushion design minimizes impact at the end of the stroke, reducing noise and extending the cylinder’s lifespan. The male rod end thread facilitates easy integration into existing systems. The rod trunnion mounting style offers flexibility in installation, accommodating various mounting requirements. The Rc port thread standard ensures compatibility with a wide range of pneumatic fittings. The built-in magnet allows for the addition of auto switches, enabling position sensing and enhancing automation capabilities.
Applications
This pneumatic cylinder is ideal for use in automation systems, material handling, and other industrial processes where reliable and precise linear motion is essential. Its robust construction and thoughtful design make it a valuable component in enhancing operational efficiency and performance.
