Overview

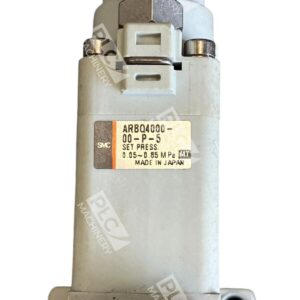

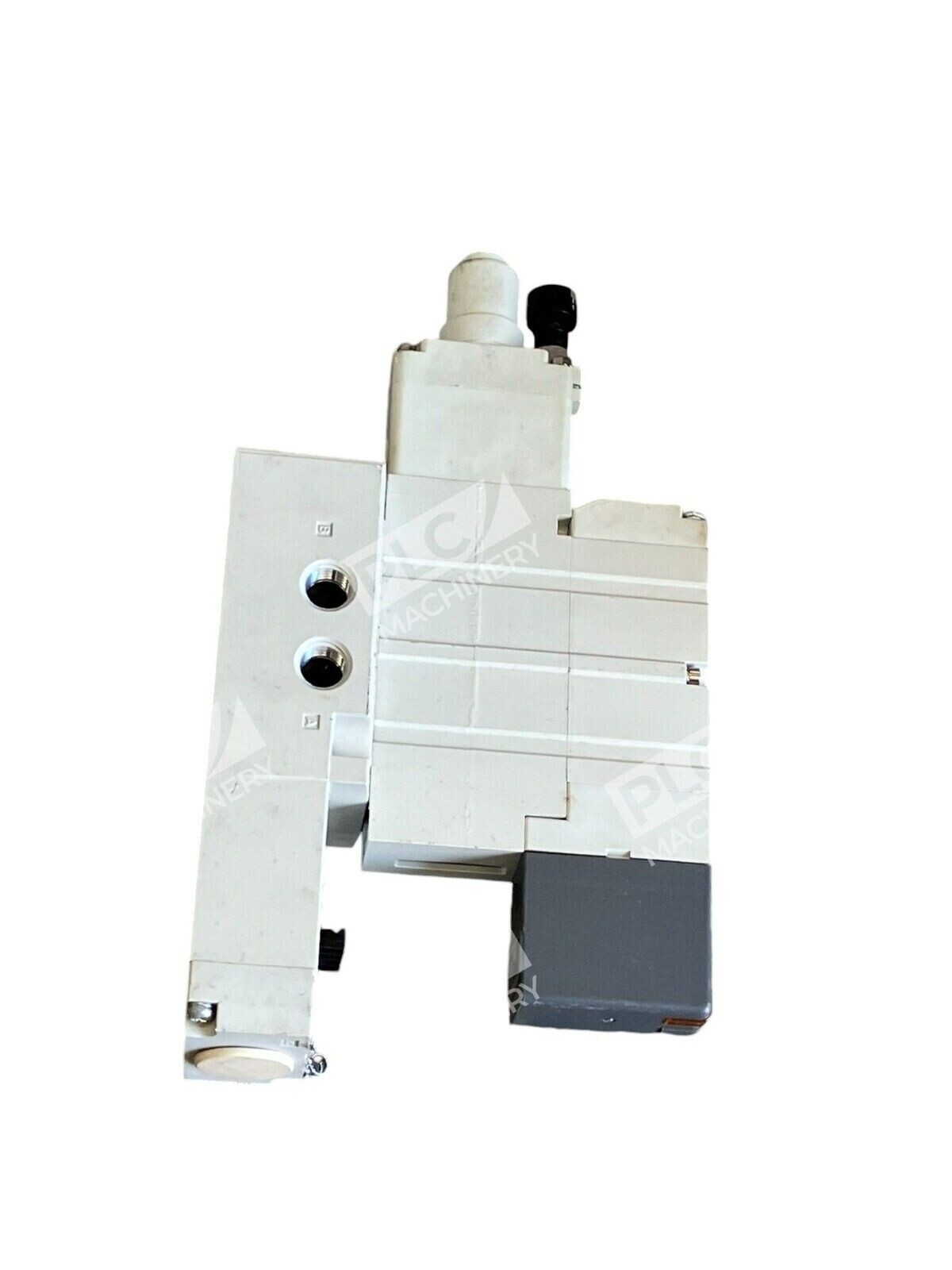

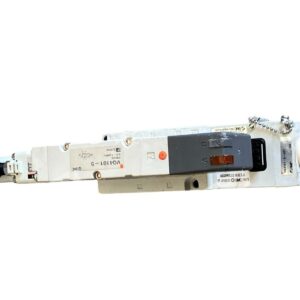

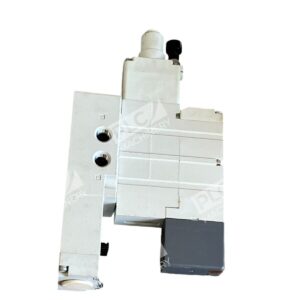

The SMC ARBQ4000-00-P-5 is a pneumatic interface regulator tailored for VQ4000 series 4/5-port solenoid valves. This modular regulator provides localized pressure adjustment directly at the manifold, enabling independent control of individual valve performance. The unit features a cost-effective design with manual adjustment knob for simple pressure setting without requiring external controls.
Key Features
- Modular interface regulator compatible with VQ4000 series solenoid valves
- Adjustable pressure control for optimized valve performance
- Locking adjustment knob prevents accidental setting changes during operation
- Space-saving design integrates seamlessly into manifold assemblies
- Standardized connector interface for easy installation and maintenance
- Designed for pneumatic automation systems requiring multi-valve pressure regulation
Technical Specifications
| Manufacturer | SMC |

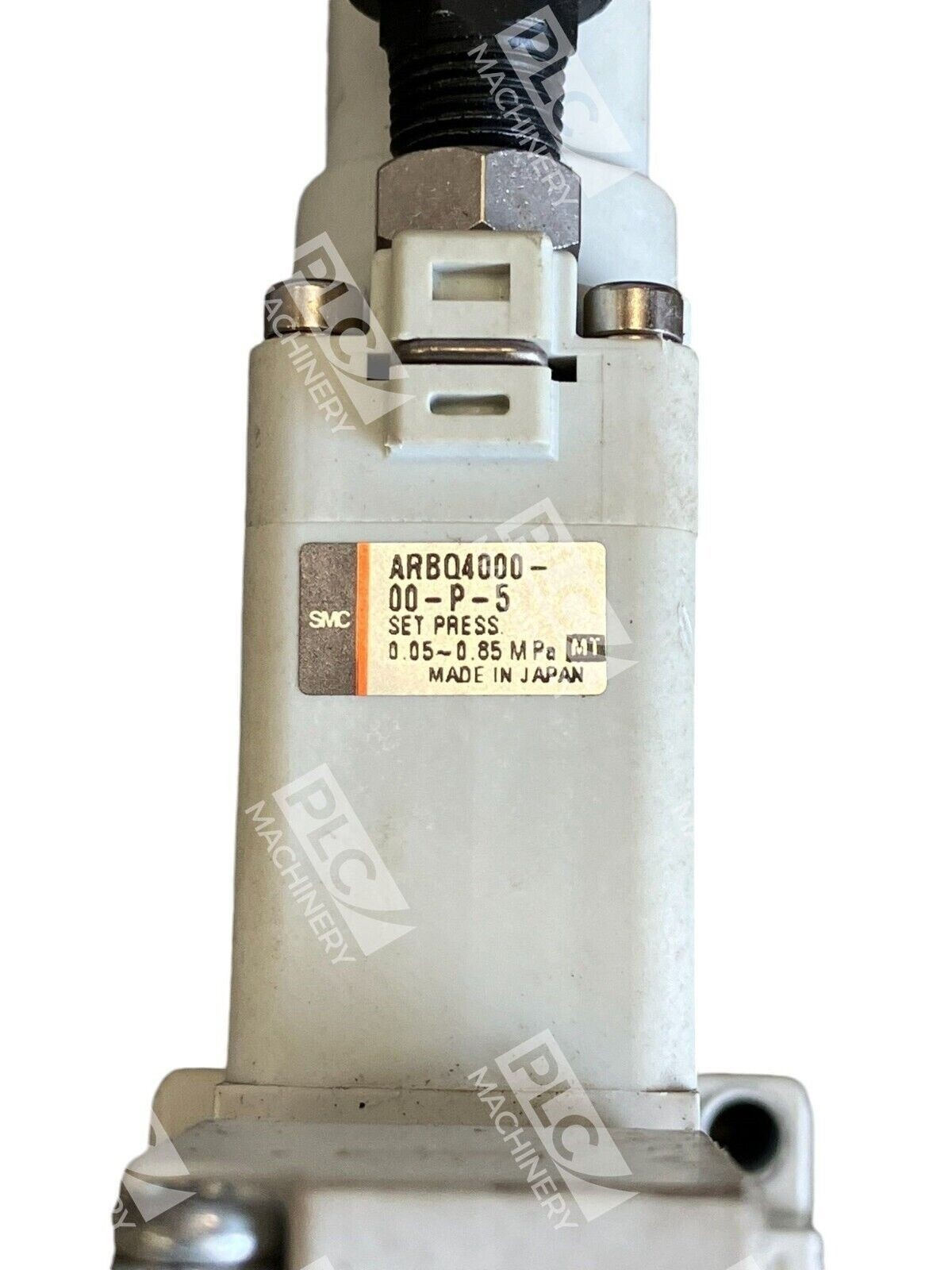

| Model | ARBQ4000-00-P-5 |
| Series | VQ4000 Interface Regulator |
| Application | 4/5-Port Solenoid Valve Regulating Interface |
| Port Configuration | Regulating Port P |
| Design Type | Modular Spacer Mount |
| Adjustment Type | Manual (Knob with Lock) |
| Compatible Valves | VQ4000 series 4/5-port solenoid valves |

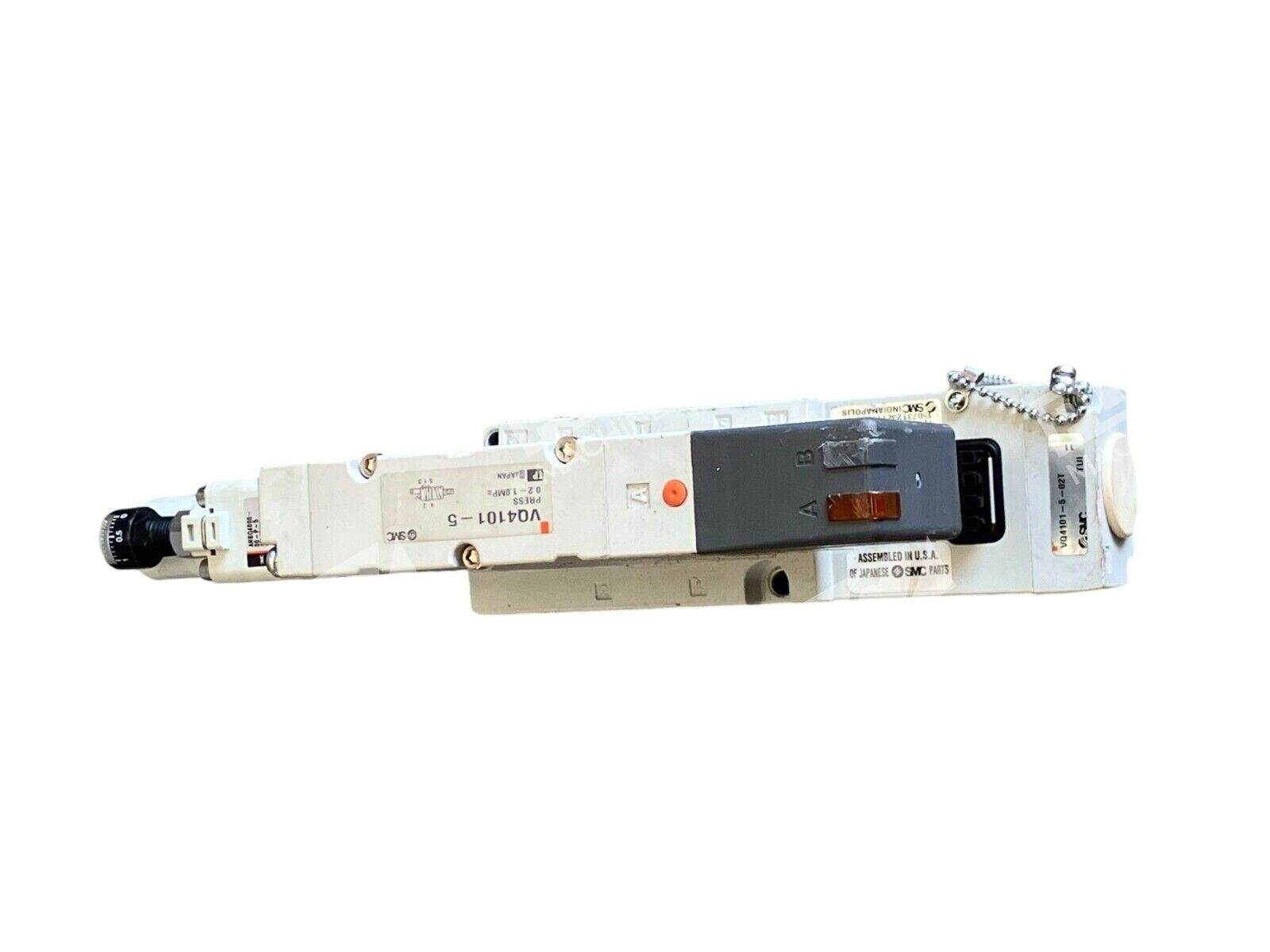

| Included Components | VQ4101-5, VQ4101-5-02T |
| Condition | Used |
| Country of Origin | Japan |
Typical Applications
- Manifold-Based Pneumatic Systems: Localized pressure control for multiple solenoid valves in integrated manifold blocks
- Industrial Automation: Manufacturing lines requiring independent valve pressure regulation and synchronized multi-valve operation
- Process Control: Applications needing real-time pressure adjustment without external electrical controls
- Robotics and Assembly Equipment: Pneumatic actuation systems where individual valve performance must be optimized
- Packaging Machinery: Multi-stage pneumatic processes requiring flexible pressure settings across multiple valve stations
Compatibility & Replacements
Compatible With
- SMC VQ4000 series 4/5-port solenoid valves
- SMC pneumatic manifold systems with VQ4000 valve compatibility
- Modular pneumatic control blocks using standard SMC interfaces
- Multi-pin connector pneumatic systems
- Industrial compressed air preparation systems
Replaces / Drop-In Replacement For
- SMC ARBQ4000-00-P-1 (same regulator series, different solenoid valve interface)
- Other SMC ARBQ4000 series variants with equivalent P-port configurations
Works With

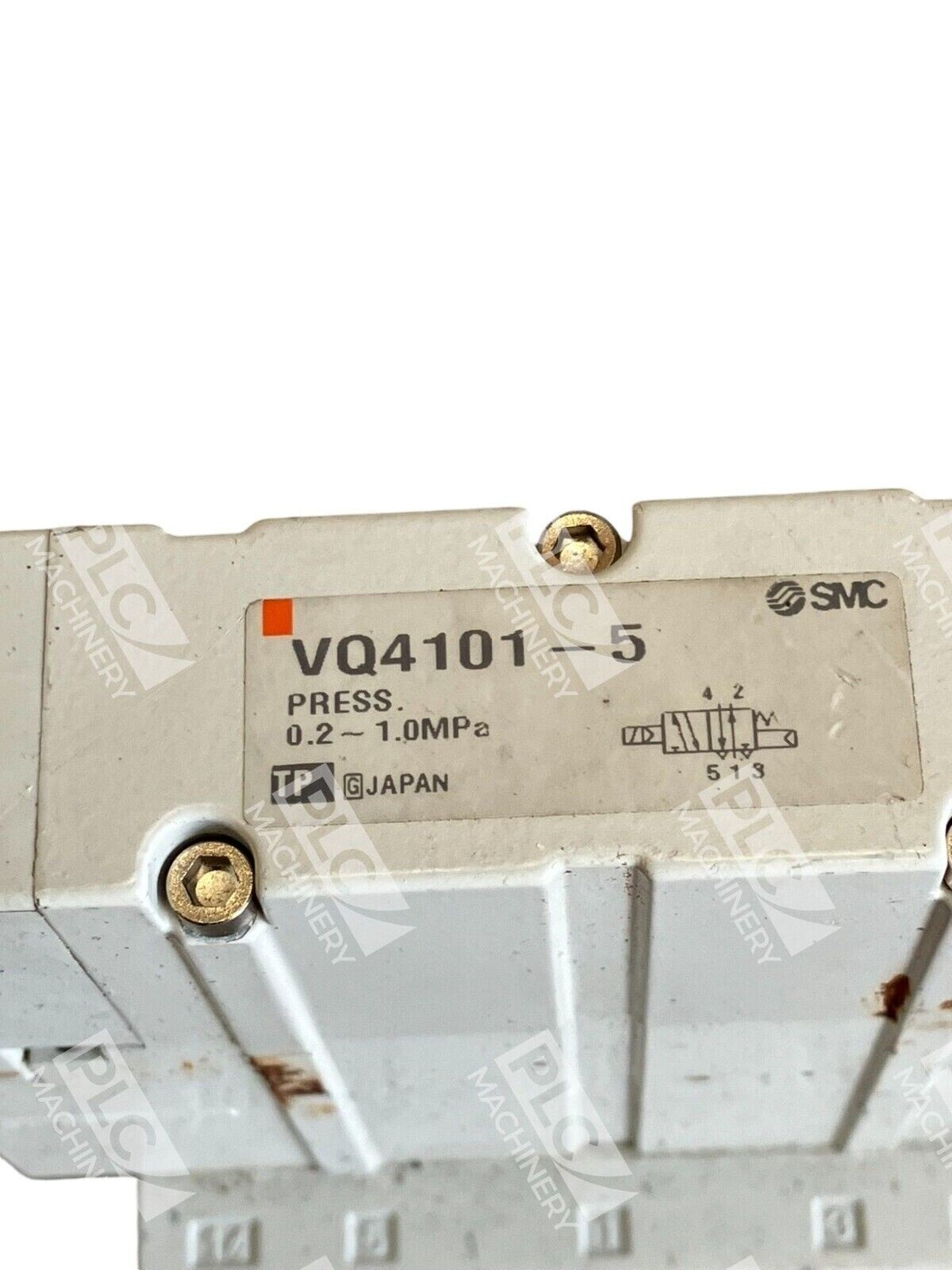

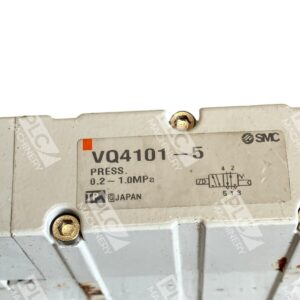

- SMC VQ4101-5 solenoid valve assembly

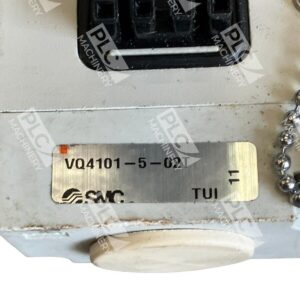

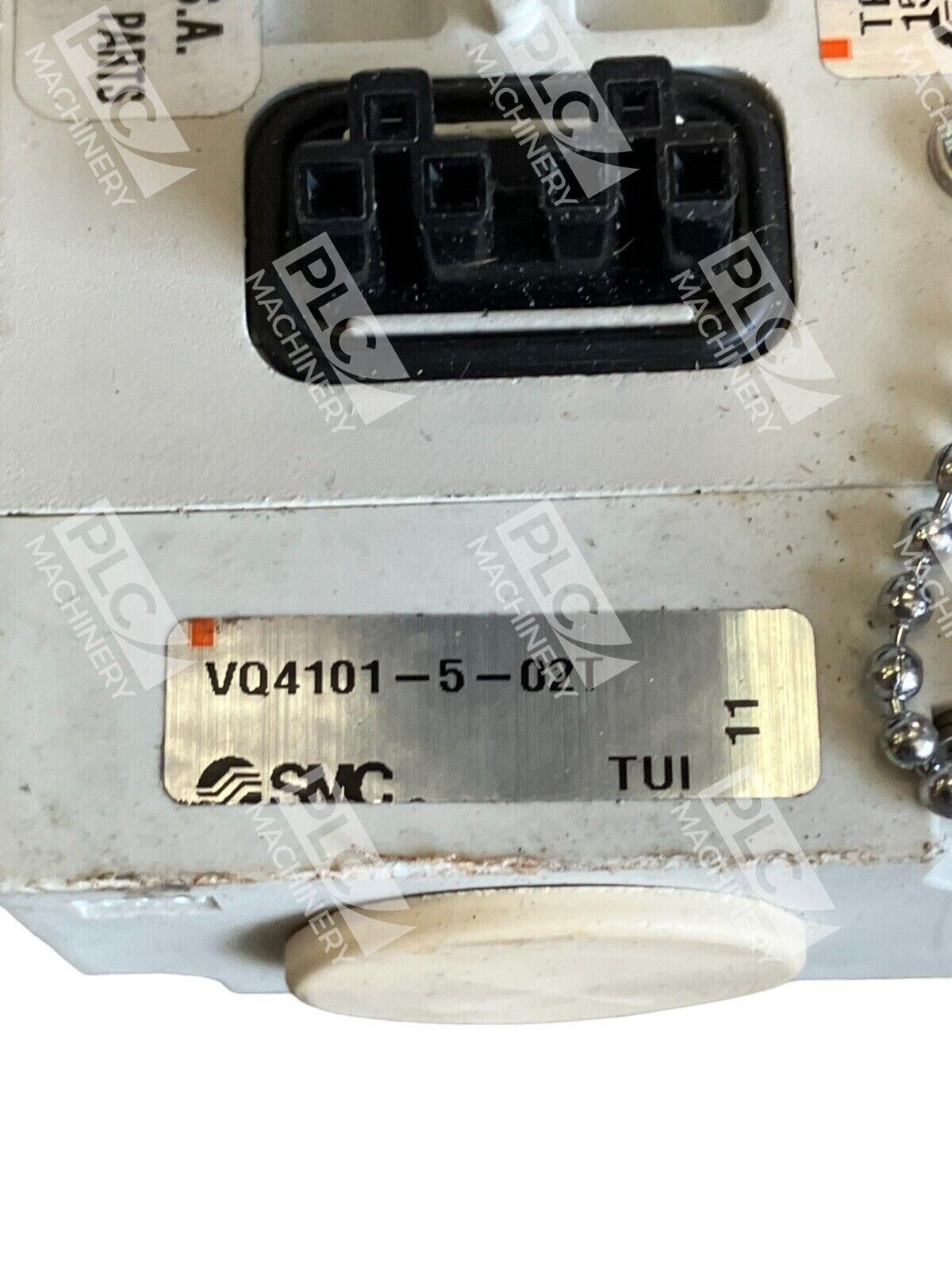

- SMC VQ4101-5-02T solenoid valve (as supplied with this unit)
- Standard pneumatic pressure gauges for monitoring output
- Industrial pneumatic hoses and fittings (standard port sizing)
- SMC air preparation components and modular accessories
