Overview

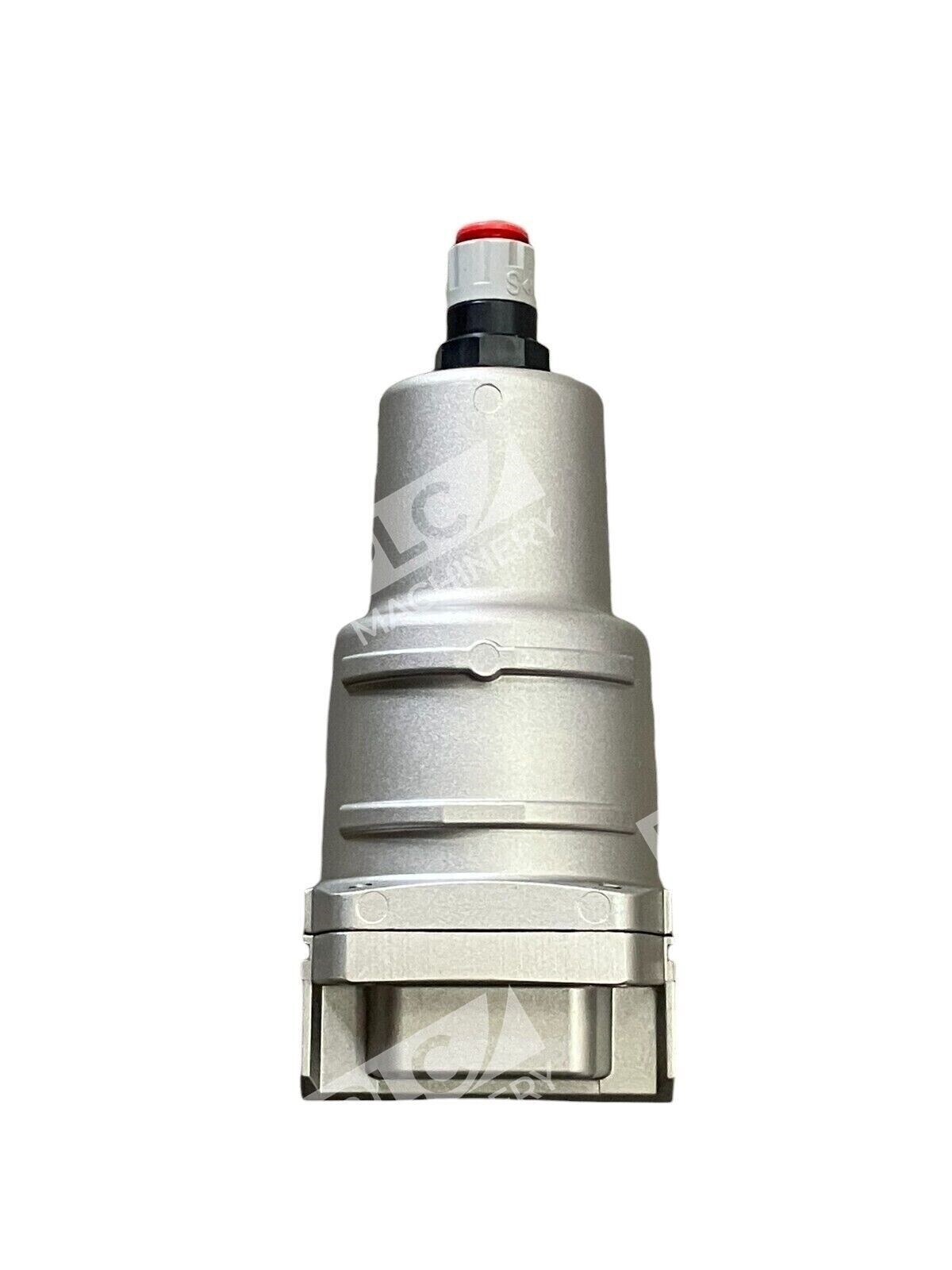

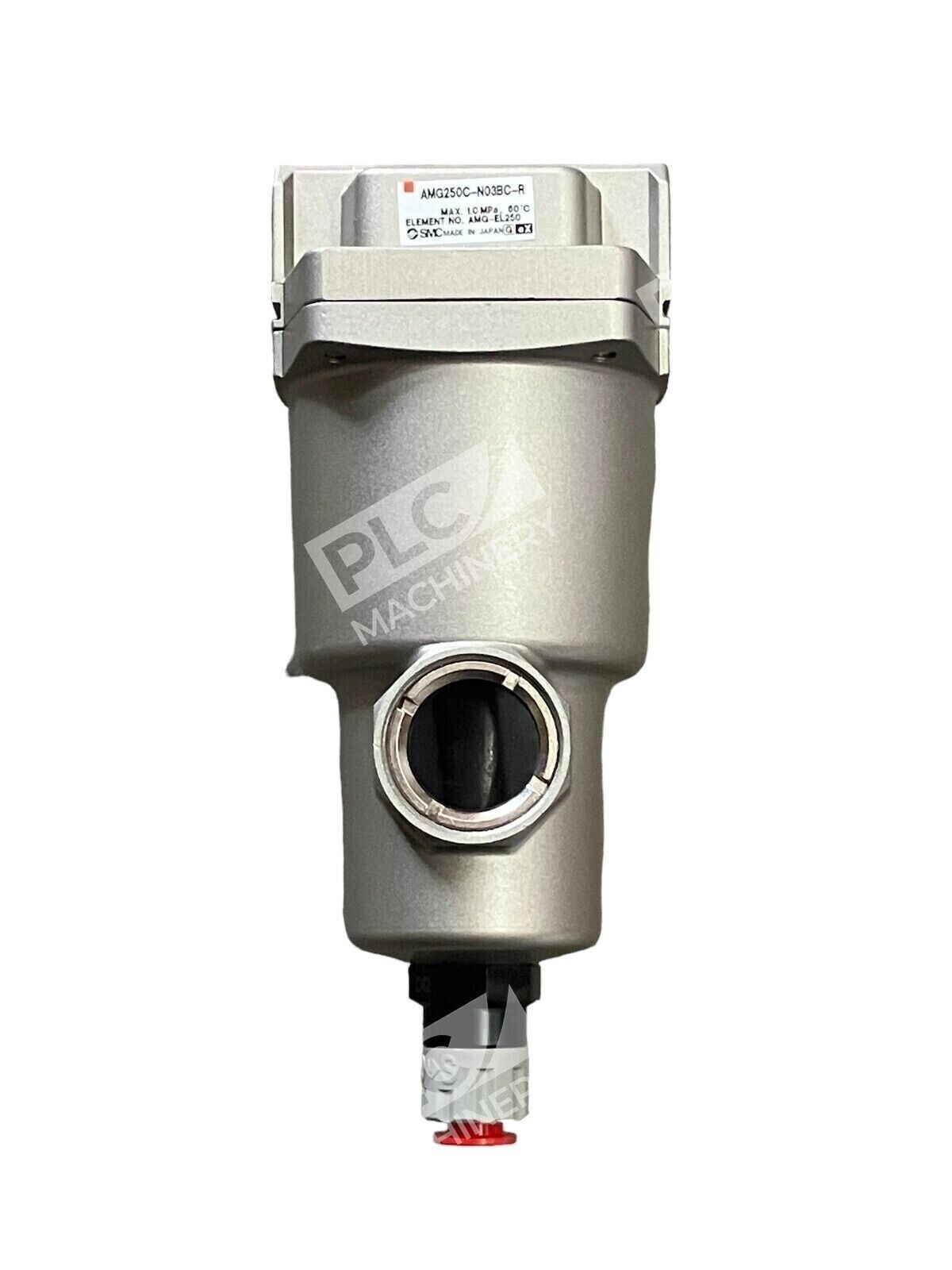

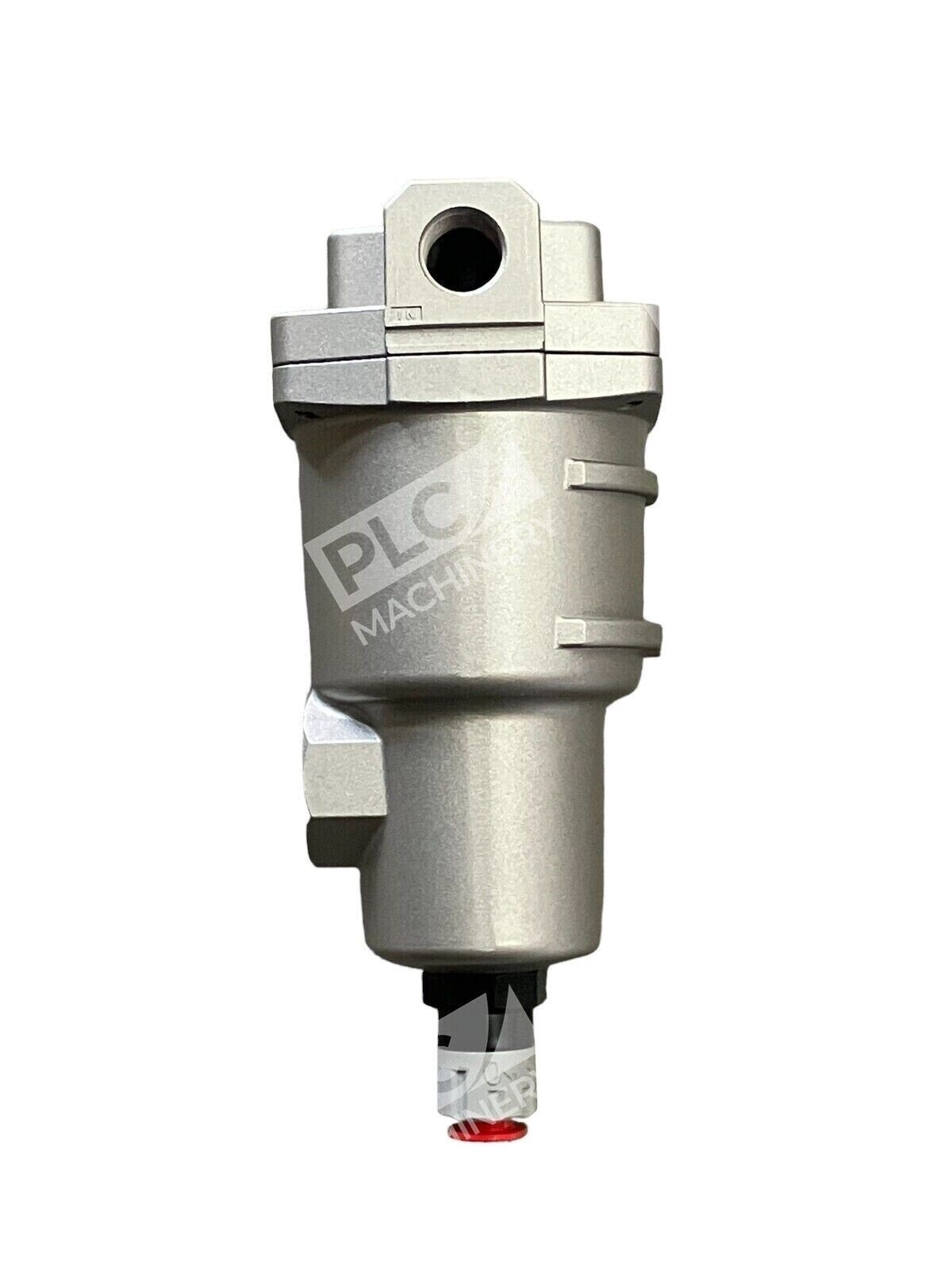

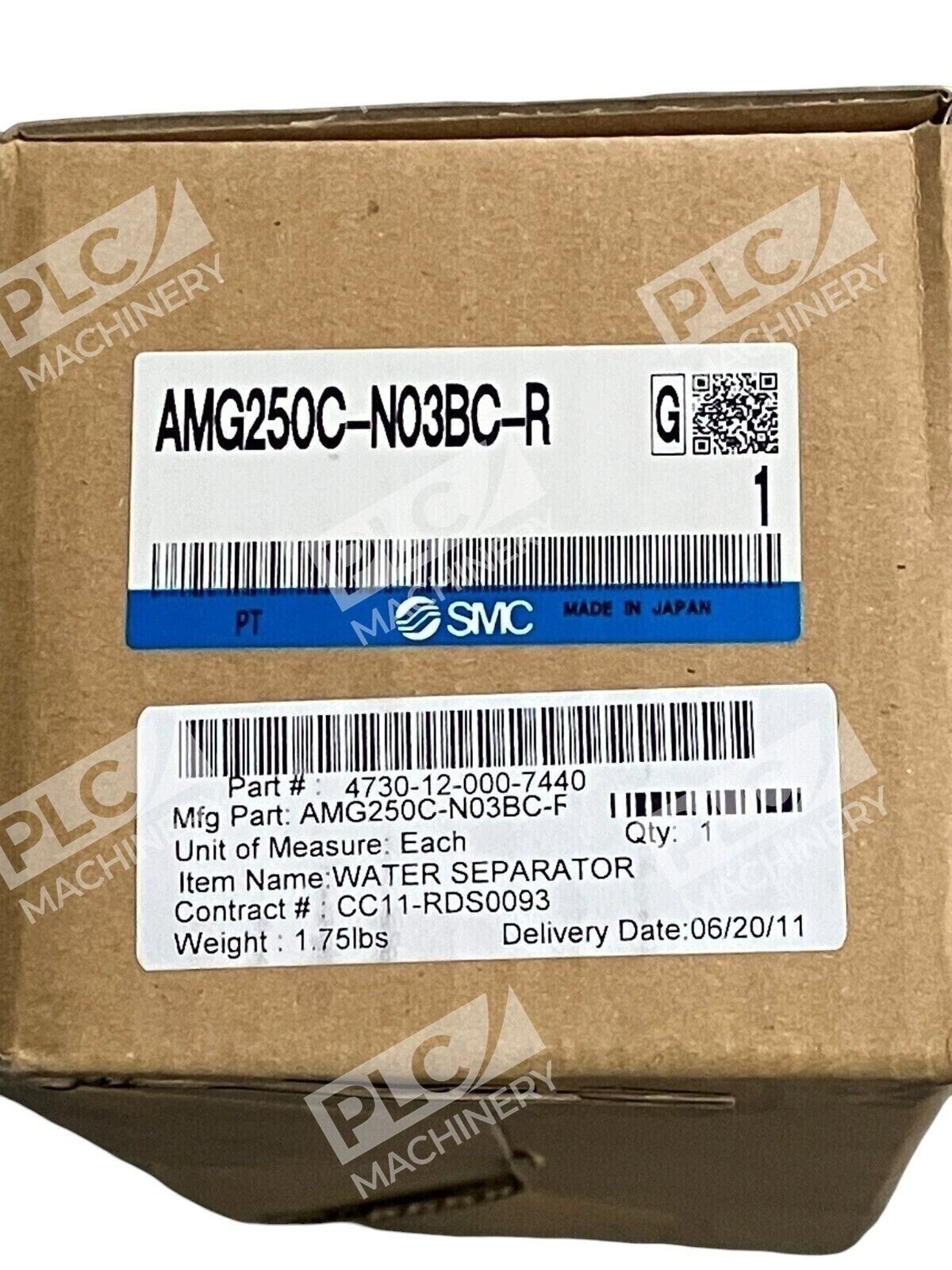

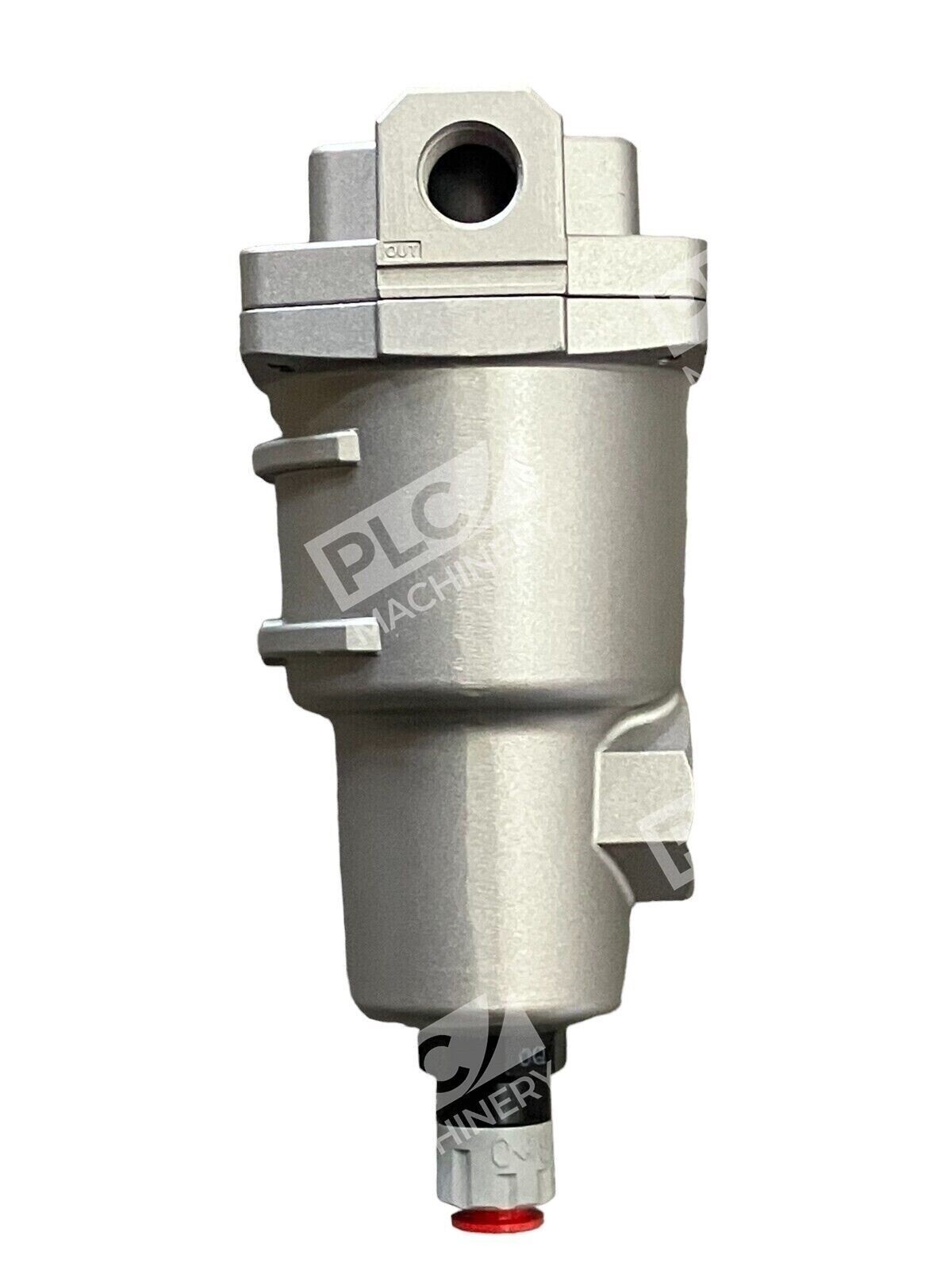

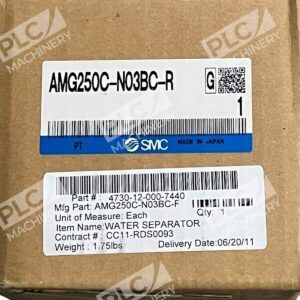

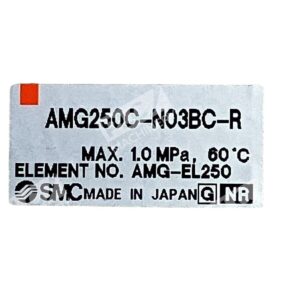

SMC AMG250C-N03BC-R is an ambient temperature water separator from SMC’s AMG series, designed to remove moisture from pneumatic air lines. This unit mounts directly on compressed air pressure lines and delivers dependable water removal without requiring external power or coolant circulation. New in Box condition from a family-owned surplus distributor in Austin, TX.
Key Features
- 99% water drop removal efficiency for clean, dry compressed air
- 750 L/min (26 CFM) flow capacity at rated pressure

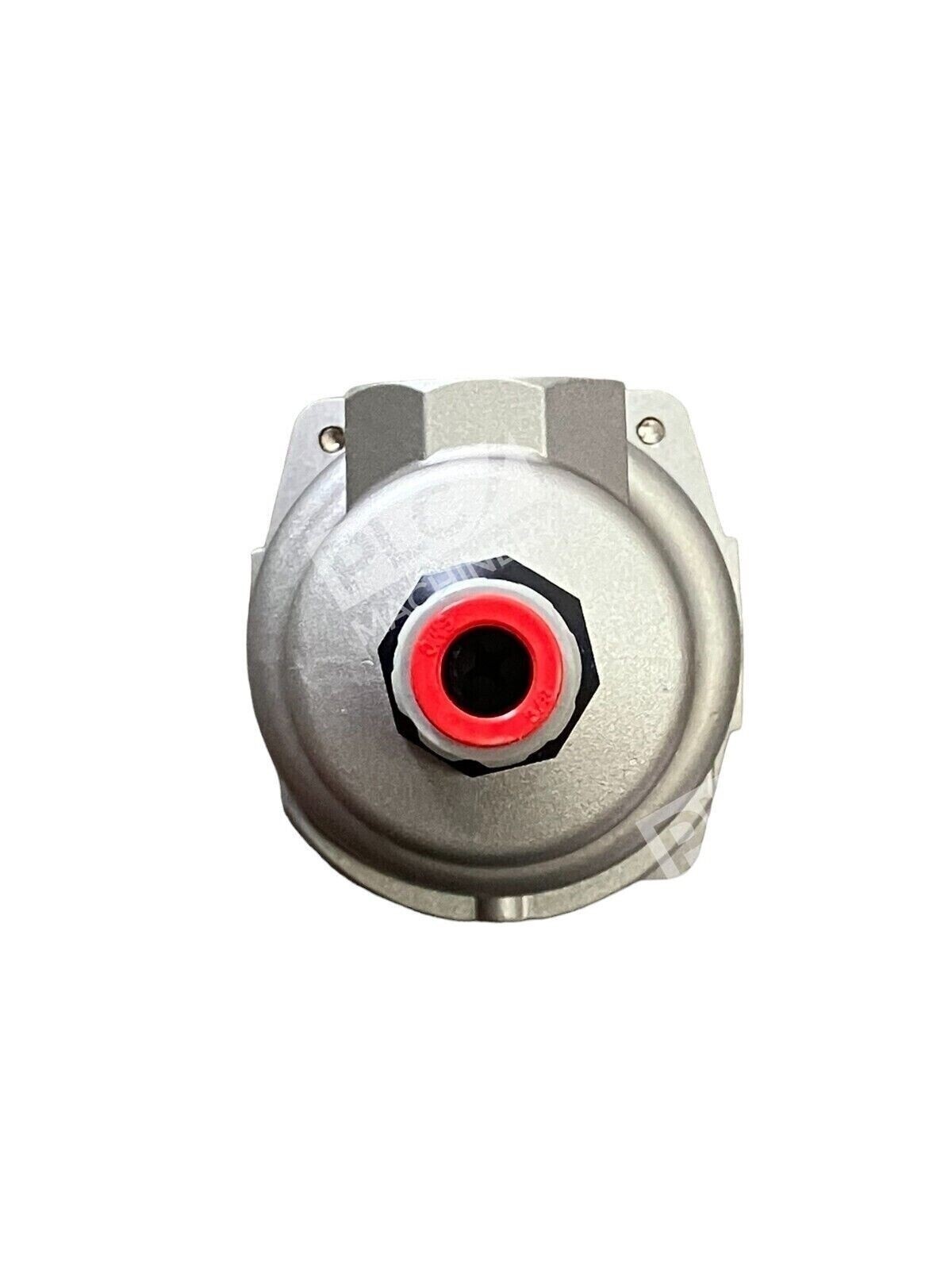

- N.C. (normally closed) auto-drain for continuous condensate removal
- Mounting bracket included for secure installation
- Standard rubber seals; options for fluoro-rubber available
- Compact size 250C body for confined spaces
Technical Specifications
- Port Size: 3/8″ NPT (female inlet and outlet)
- Flow Rating: 750 L/min at max pressure

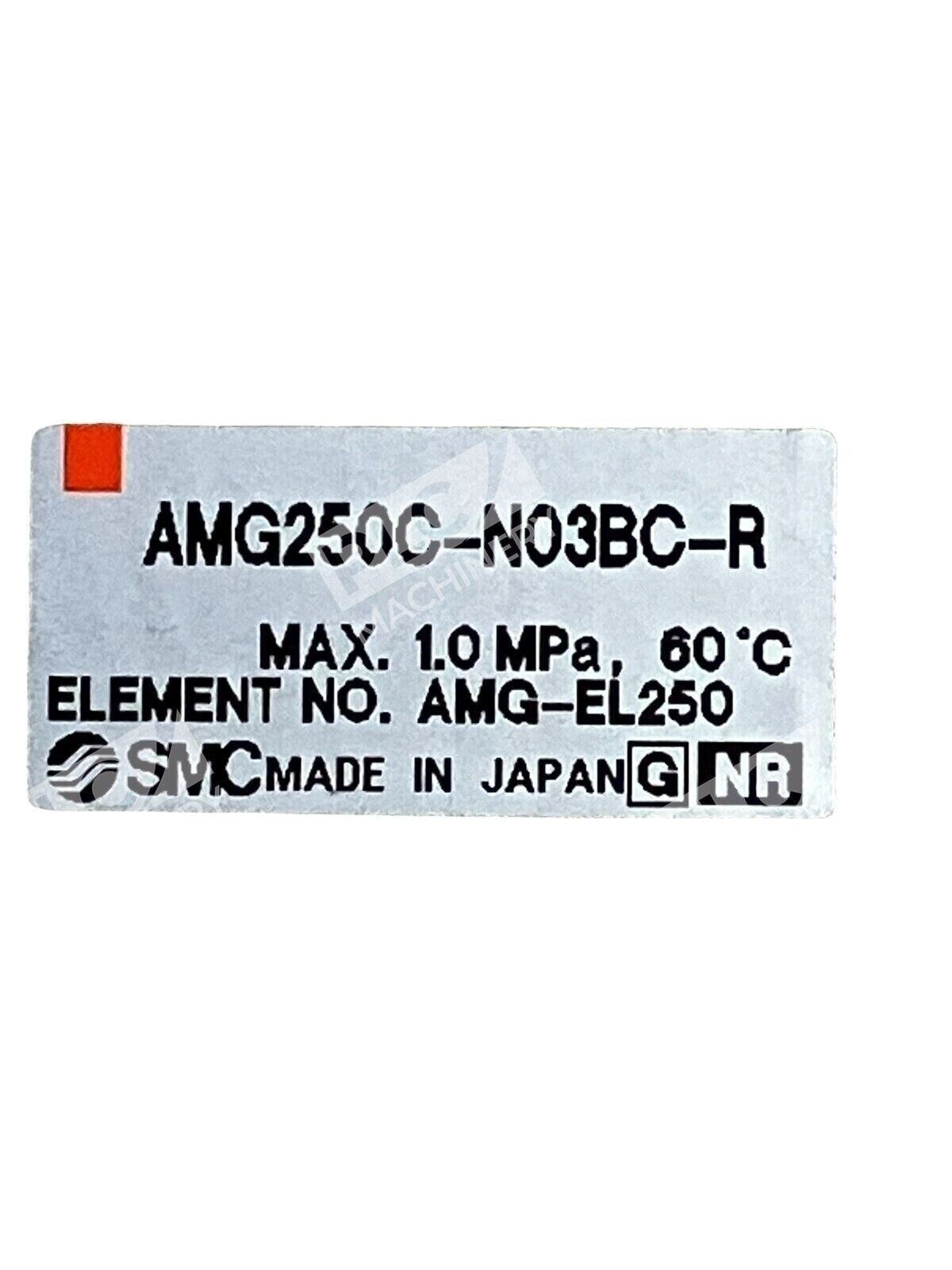

- Maximum Operating Pressure: 1.0 MPa (145 psi)
- Water Removal Ratio: 99%
- Auto Drain Type: N.C. (Normally Closed) – drain port sealed when pressure is not applied
- Body Size: 250C
- Port Direction: IN-OUT Reversal Direction (right-to-left flow option)
- Standard Fluid: Compressed air
- Accessories Included: Mounting bracket
- Material: Standard (fluoro-rubber upgrades available)
Typical Applications
The AMG250C-N03BC-R is ideal for pneumatic systems requiring moisture protection:
- Compressed air distribution networks in manufacturing plants
- Automated assembly equipment and robotic systems
- Precision pneumatic tools and air-powered actuators
- Paint spray systems, air drills, and finishing equipment
- Humidity-sensitive process applications and food processing equipment
- Ambient temperature (non-refrigerated) drying applications
Compatibility & Replacements
Compatible With
- Standard compressed air lines with 3/8″ NPT ports
- Pneumatic actuators and solenoid valves
- Air filter units and regulator combinations
- SMC FRL (filter-regulator-lubricator) manifolds
- Any system operating at or below 1.0 MPa pressure
Replaces / Drop-In Replacement For
- SMC AMG250C-N03BC (earlier variant without “R” suffix)
- SMC AMG250C-N03C
- Equivalent water separators in the AMG250C size class from other manufacturers meeting 3/8″ NPT compatibility
Works With
- SMC pneumatic component ecosystems (valves, regulators, filters)
- Third-party air line components using standard NPT threads
- Manual and automatic drain systems
- Ambient temperature compressed air networks (no external cooling required)
