Overview

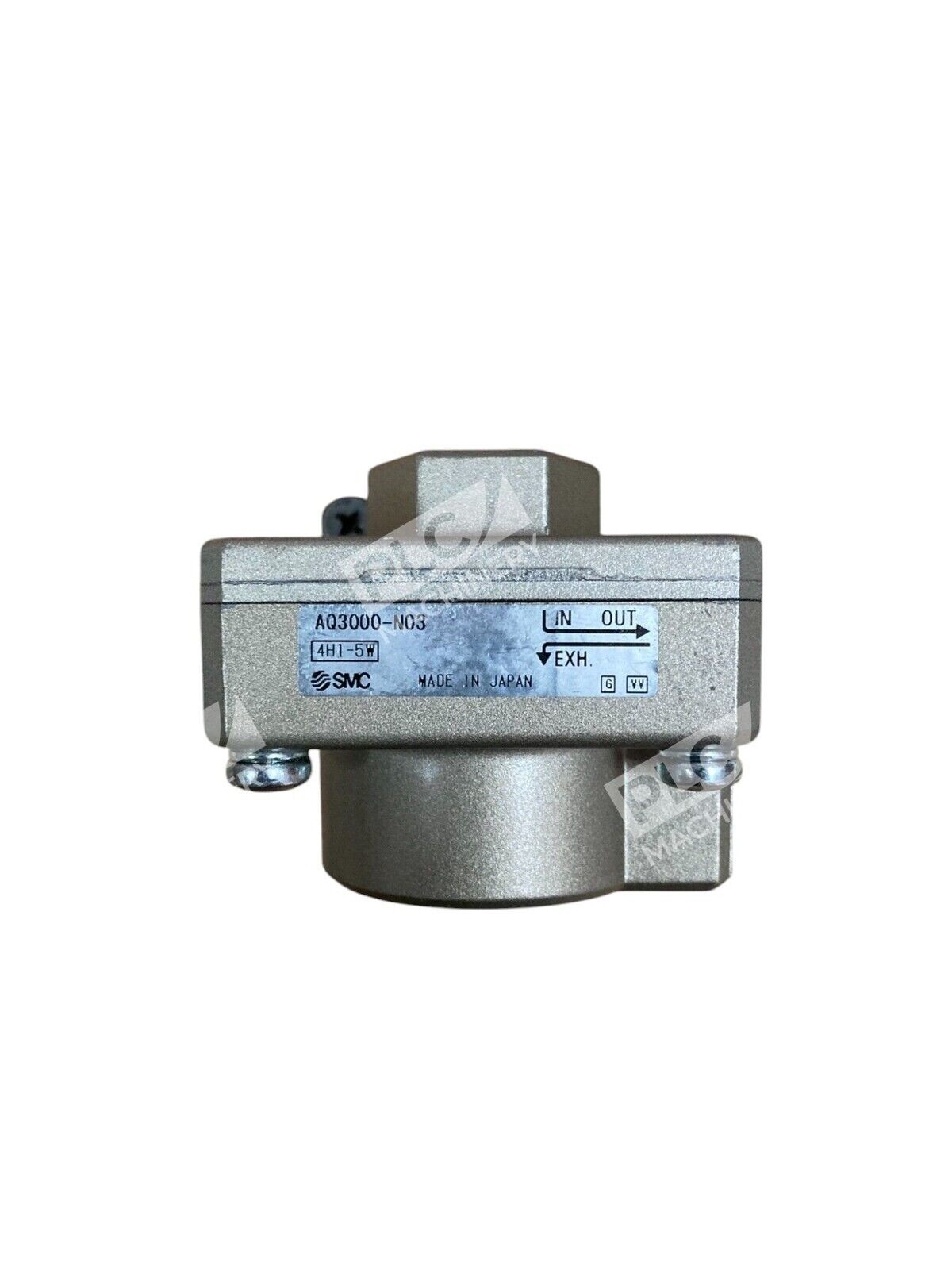

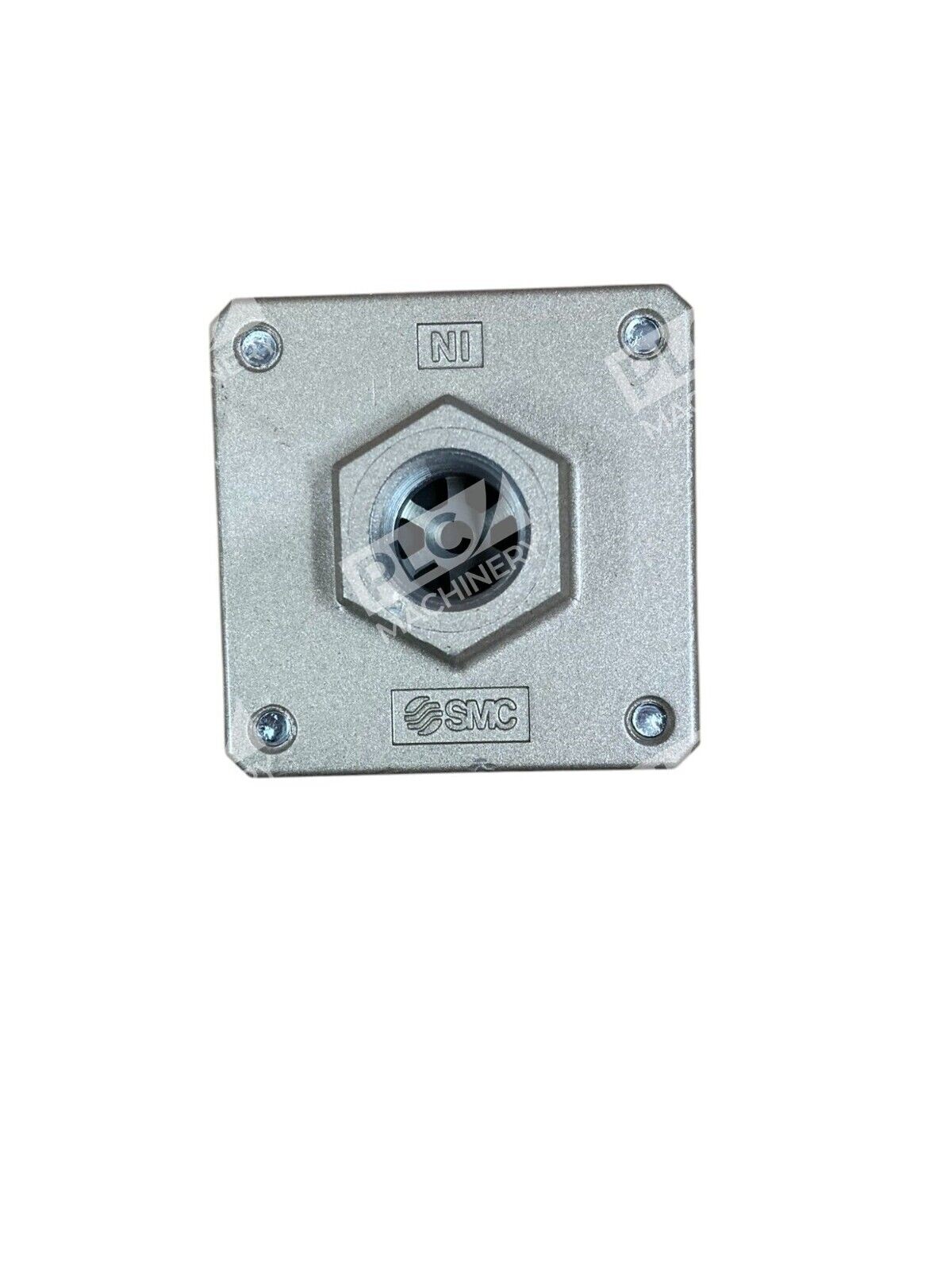

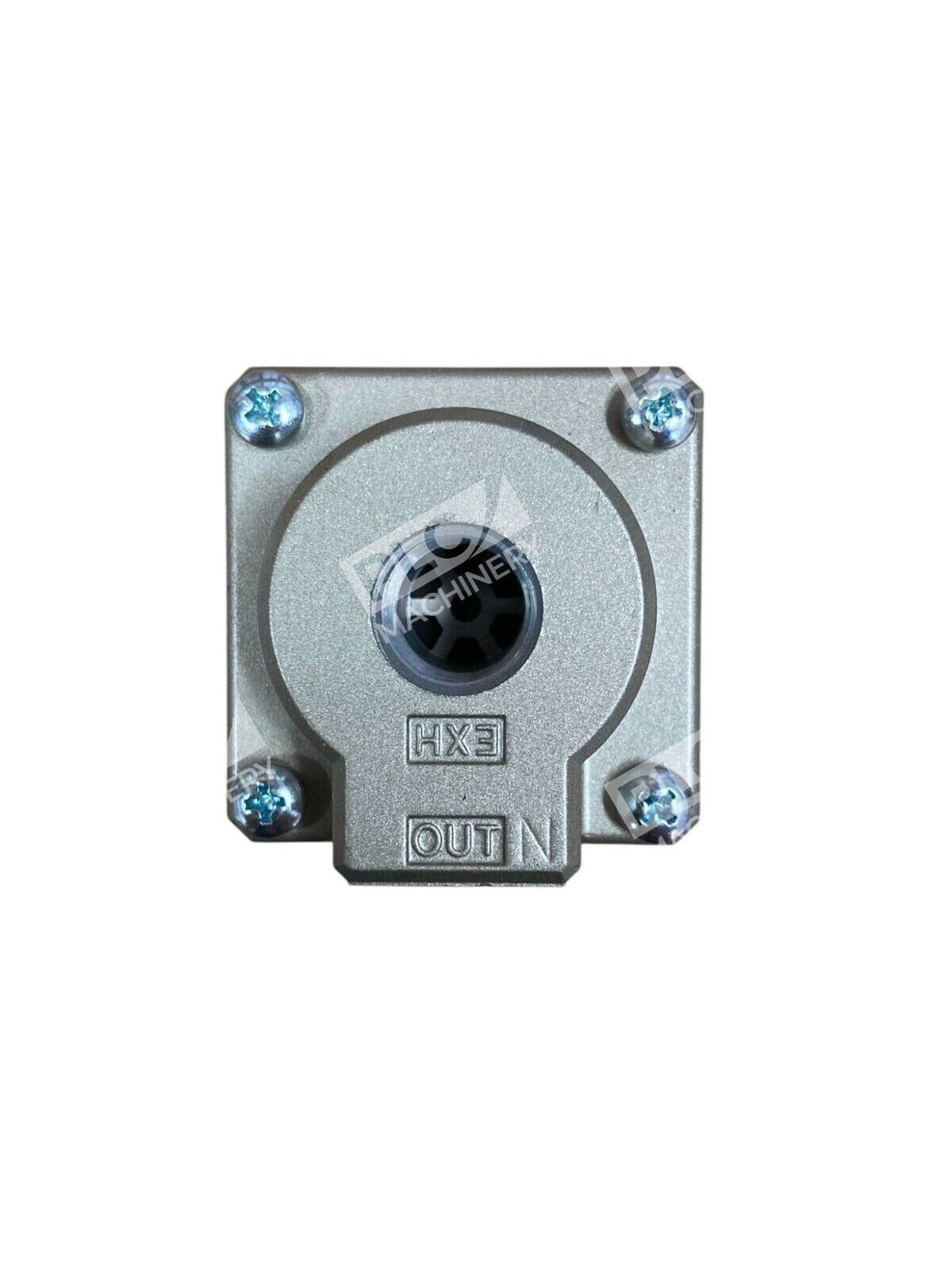

The SMC AQ3000-N03 is a quick exhaust valve from SMC’s AQ series, engineered for pneumatic automation and control applications. This valve is designed to rapidly vent pilot pressure, enabling fast actuation cycles and improved system response. The compact aluminum body with diaphragm-style sealing makes it ideal for space-constrained installations while maintaining high flow efficiency.
Key Features
- High flow capacity with low differential pressure drop
- Compact and lightweight aluminum construction
- Available in diaphragm or lip seal configuration
- 3/8 NPT (female threaded) connections
- Nitrile seal material for standard pneumatic applications
- One-touch push-fit fitting compatibility available in AQ series variants
Technical Specifications
- Series: AQ (Quick Exhaust)
- Port Size: 3/8 NPT (female)
- Exhaust Port Size: 3/8 NPT
- Body Material: Aluminum
- Seal Material: Nitrile
- Maximum Operating Pressure: 145 psi (1.0 MPa)
- Minimum Operating Pressure: 7 psi (0.05 MPa)
- Operating Pressure Range: 7 to 145 psi
- Operating Temperature Range: 23 to 140 °F (-5 to 60 °C)
- Flow Coefficient (Cv): 60 mm² (In to Out), 70 mm² (Out to Exhaust)
- Overall Dimensions: 56 mm (L) × 56 mm (W) × 50 mm (H)
- Weight: 205 g
- Standards Compliance: JIS
- Condition: New – No Box
Typical Applications
- Pneumatic cylinder speed control and fast exhaust
- Automated assembly and material handling systems
- Packaging machinery with rapid actuation requirements
- Robotic pick-and-place operations
- Industrial press and clamp applications
- Any pneumatic system requiring quick pilot pressure relief
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems and PLC-driven automation
- Manifold blocks with 3/8 NPT female ports
- Solenoid pilot valves (2/2, 3/2 configurations)
- Industrial air compressors and pneumatic supplies rated 7–145 psi
- SMC directional control valves and actuators
Replaces / Drop-In Replacement For
- AQ3000-N03-L (long body variant)
- AQ3000-N03-H (alternative variant)
- Other SMC AQ series models with equivalent 3/8 NPT port configuration (verify exact model code)
Works With
- Standard pneumatic ISO 4401 directional control valve interfaces
- One-touch push-fit fittings (M5 to 3/4 port size range in AQ series)
- NPT threaded manifold and subplate connections
- Pneumatic simulation and design software (FluidSIM, CATIA, etc.)
