Overview

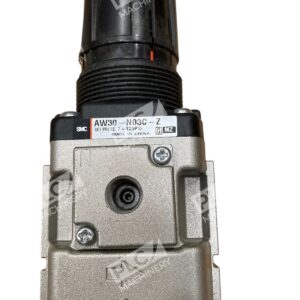

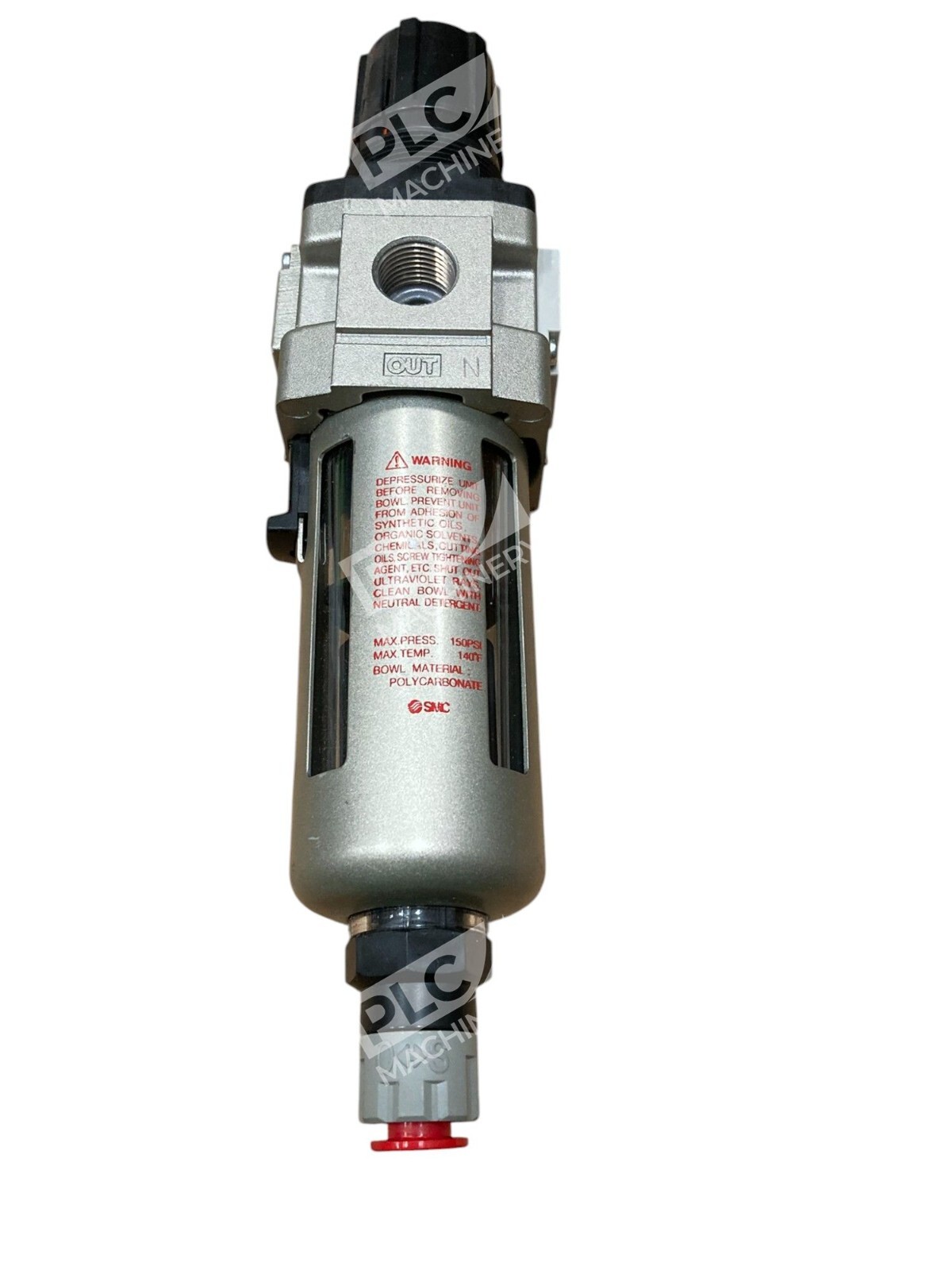

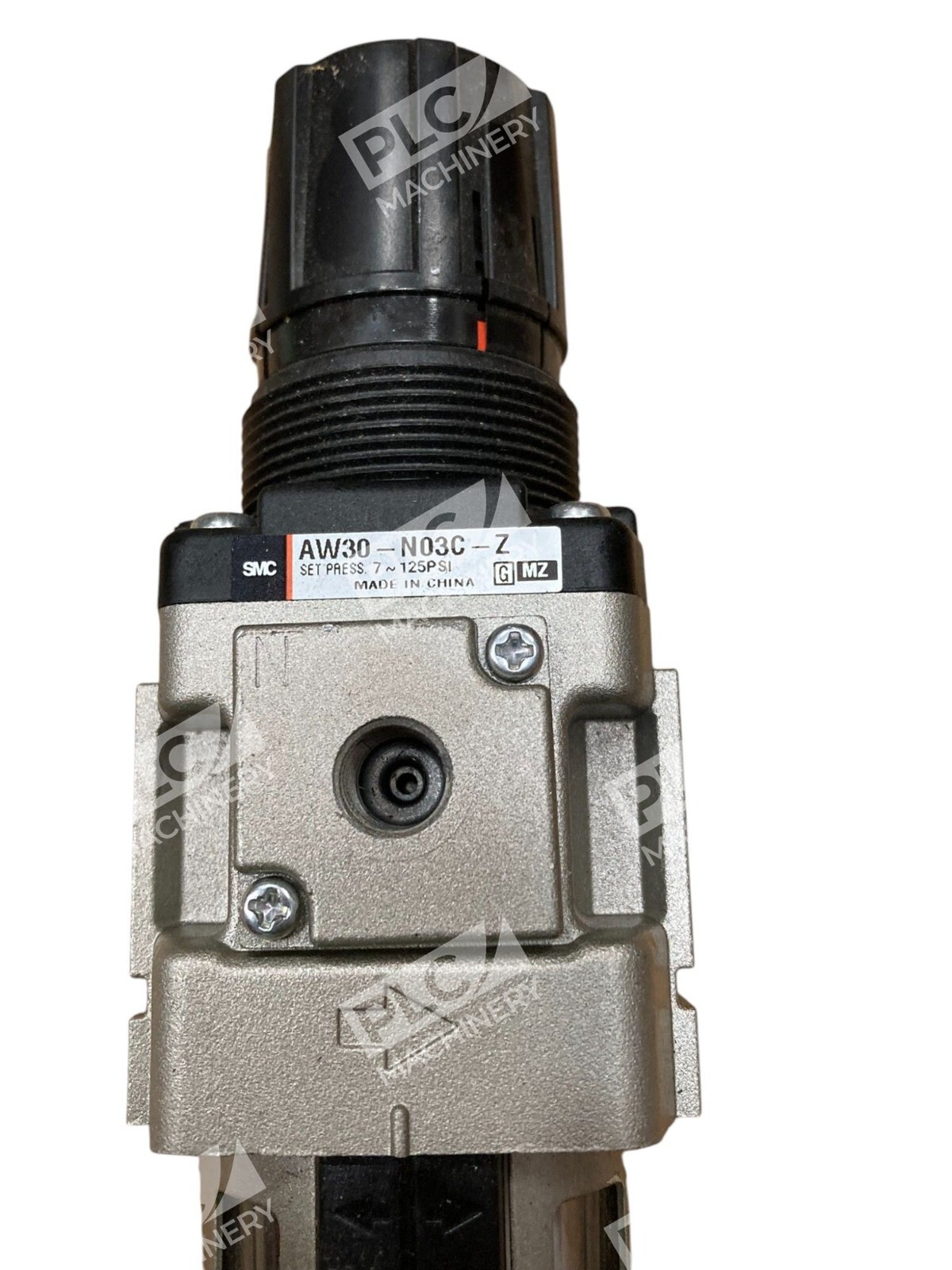

The SMC AW30-N03C-Z is a modular pneumatic filter regulator from SMC’s proven AW series. This integrated filter/regulator features size 30 construction with 3/8″ NPT port sizing and includes nameplate and caution plate markings in imperial units. As a used unit in working condition, it provides a cost-effective solution for pneumatic system maintenance or upgrades. The AW30 series is designed for flexible mounting and piping configuration in industrial automation and processing equipment.
Key Features
- Modular Construction – Part of SMC’s family of modular air preparation units, compatible with other similarly sized products for integrated systems.

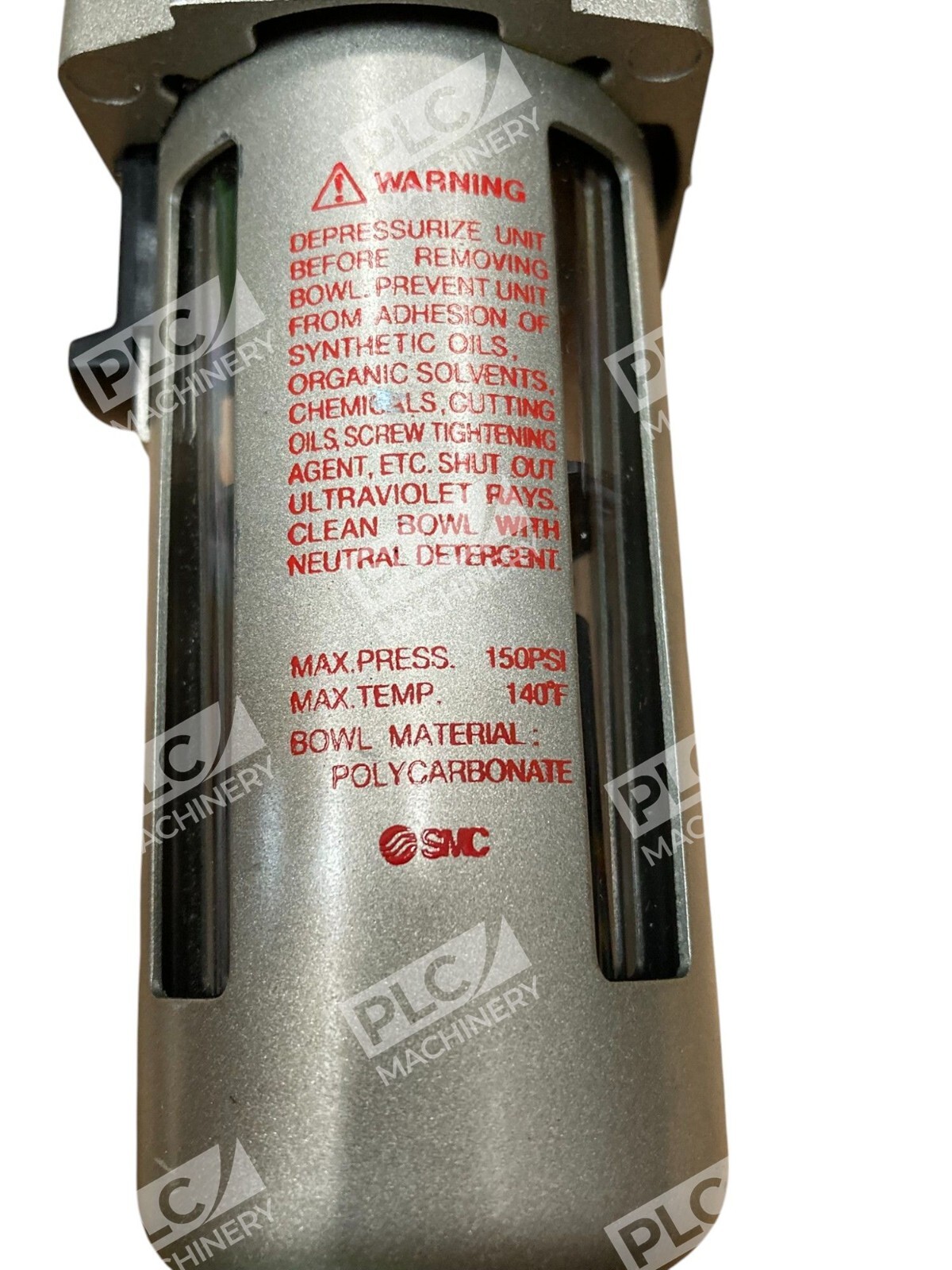

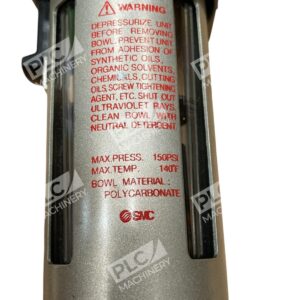

- Transparent Bowl Guard – Transparent bowl guard protects from environmental contamination while allowing 360-degree visibility of interior contents.
- NPT Thread Configuration – Standard 3/8″ NPT connections for North American piping systems.
- Integral Pressure Regulation – Combined filter and regulator function minimizes space and piping requirements.
- Wide Adjustment Range – Pressure setting capability for varied industrial applications.
Technical Specifications
The AW30-N03C-Z meets industrial pneumatic standards and is built for reliable, long-term service in compressed air systems:
Typical Applications
- Pneumatic tool and equipment air supply conditioning
- Manufacturing and assembly line automation
- Process control and instrumentation air systems
- Compressed air distribution networks in industrial facilities
- OEM equipment integration requiring modular FRL preparation
Compatibility & Replacements
Compatible With
- SMC modular air preparation components (AW series)
- Standard pneumatic actuators and valves
- Industrial compressed air systems operating in the 7–125 PSI range
- Equipment designed for 3/8″ NPT port connections
- North American pneumatic system standards
Replaces / Drop-In Replacement For
- The AW-B series maintains panel mounting interchangeability with previous AW models while offering advanced features.
- Direct equivalent to other AW30-N03C variants without gauge options
Works With
- ISO 4414 pneumatic fluid power systems
- Standard compressed air preparation circuits
- Modular FRL (Filter-Regulator-Lubricator) assemblies
- Any equipment using 3/8″ NPT pneumatic connections
