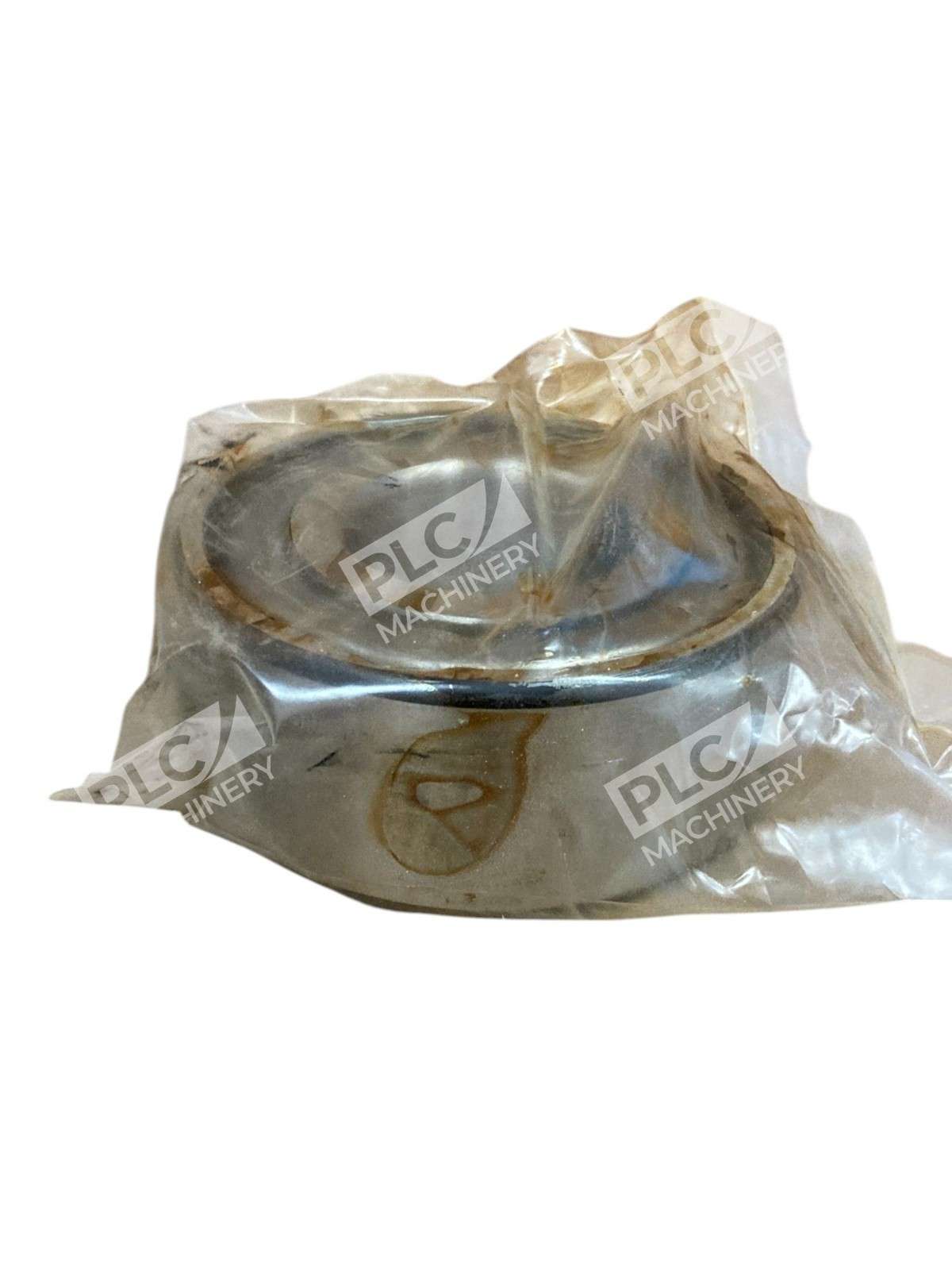

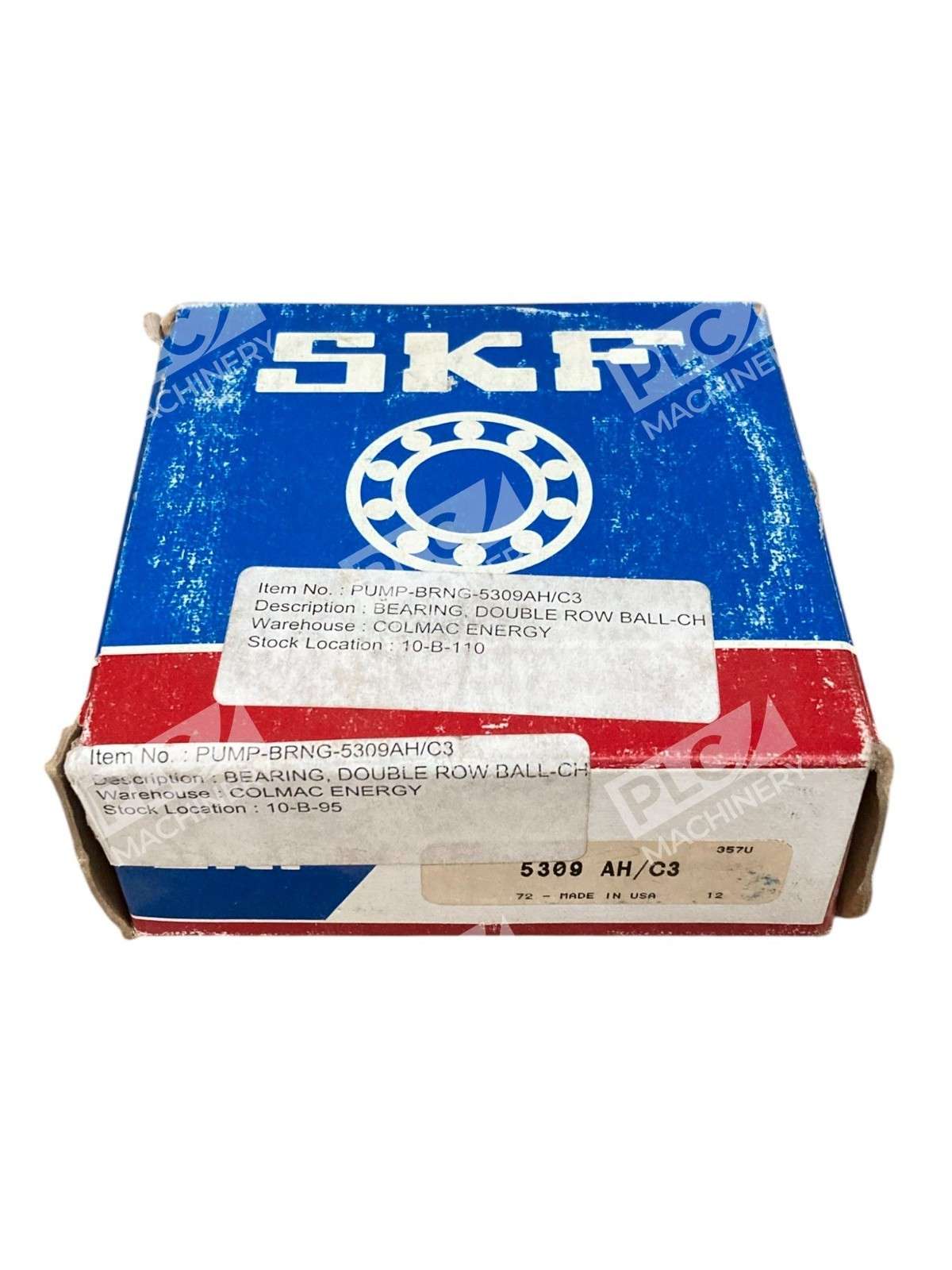

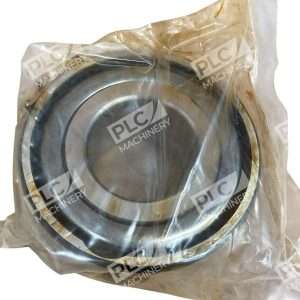

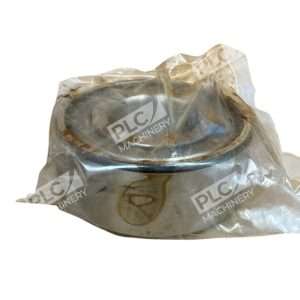

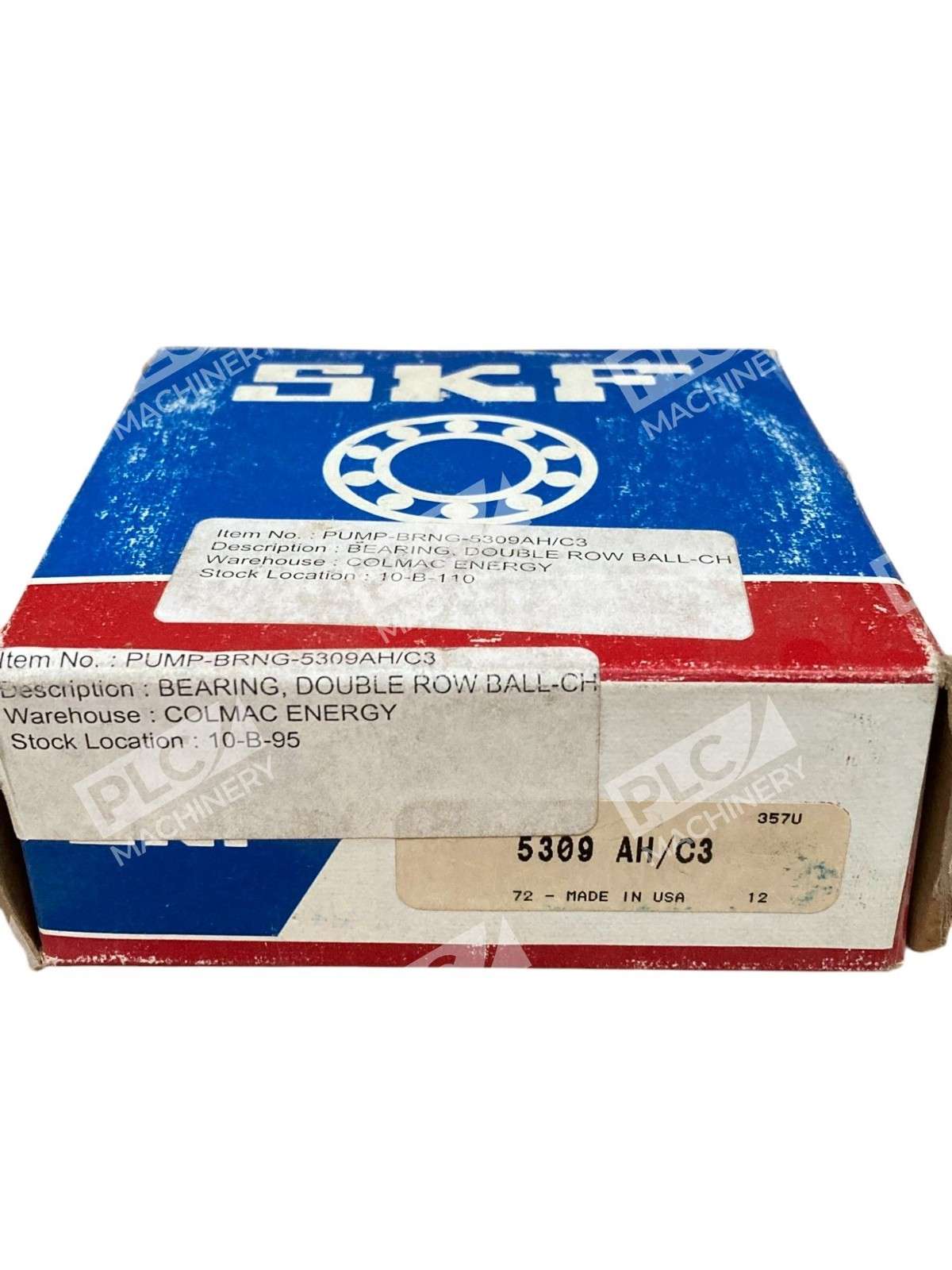

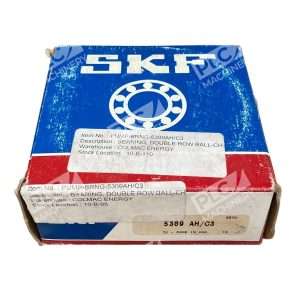

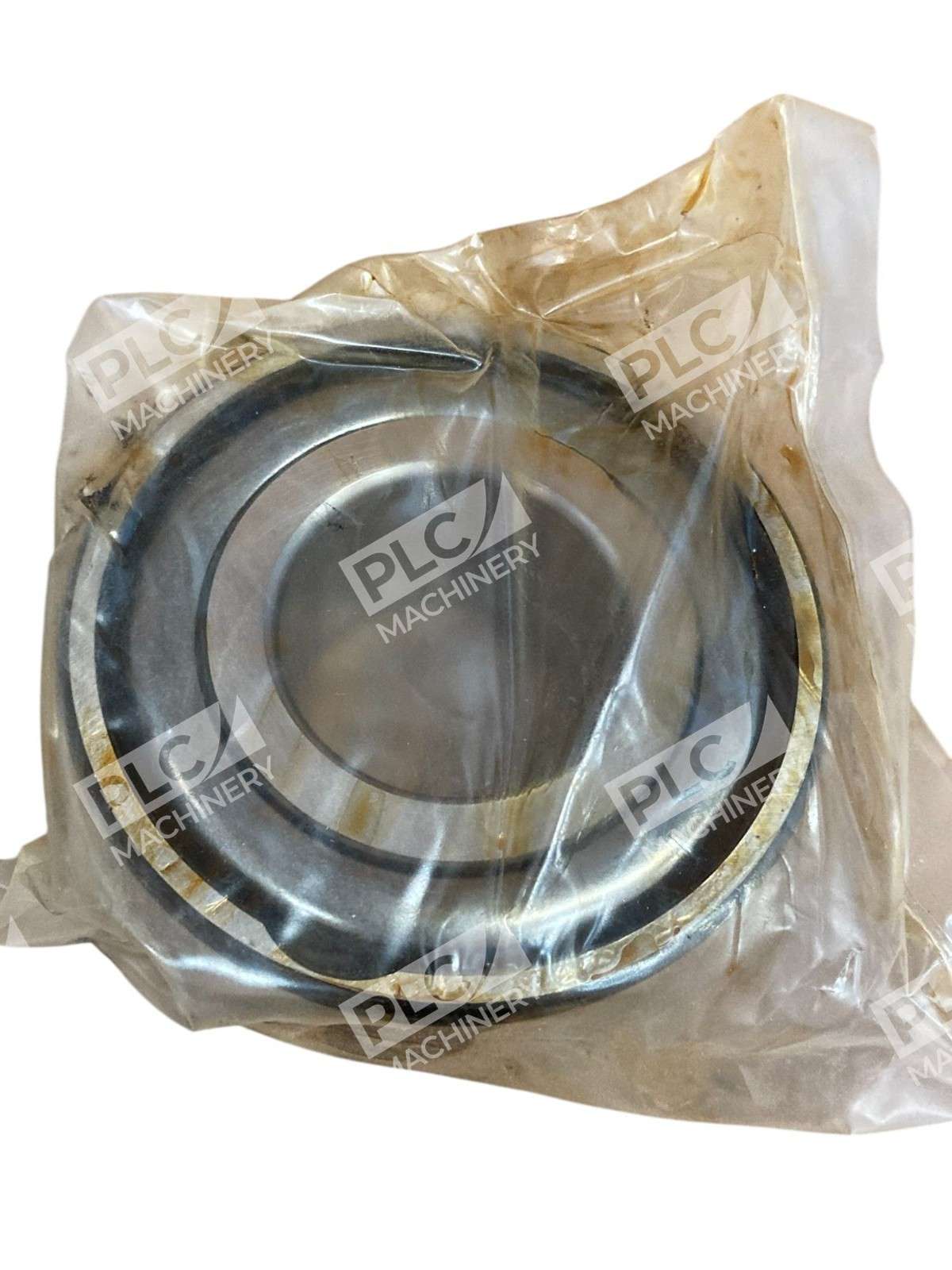

SKF 5309AH/C3 Double Row Angular Contact Ball Bearing
The SKF 5309AH/C3 is a precision-engineered double row angular contact ball bearing, designed to accommodate high radial and axial loads in both directions. Its robust construction and advanced design make it suitable for demanding industrial applications.
Key Features
- Double Row Design: Combines two single row angular contact ball bearings in a back-to-back arrangement, providing enhanced load-carrying capacity while occupying less axial space.
- High Load Capacity: Capable of supporting substantial radial forces and axial forces in both directions, making it ideal for applications requiring high load-bearing capabilities.
- Steel Cage (H Suffix): Equipped with a pressed snap-type steel cage, ensuring durability and reliable performance under varying operational conditions.
- Increased Internal Clearance (C3): Features a C3 internal clearance, providing greater than normal internal play, which is beneficial in applications involving thermal expansion or misalignment.
Technical Specifications
- Bore Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 39.7 mm
- Weight: Approximately 1.3 kg
- Contact Angle: 30 degrees
- Material: High carbon chrome steel
- Limiting Speed: 6,000 rpm
- Dynamic Load Rating: 75 kN
- Static Load Rating: 53 kN
Applications
The SKF 5309AH/C3 bearing is suitable for a wide range of industrial applications, including:
- Machine tool spindles
- Gearboxes
- Conveyors
- Pumps
- Compressors
Its ability to handle combined loads and operate at high speeds makes it a versatile choice for various mechanical systems.
Conclusion
The SKF 5309AH/C3 double row angular contact ball bearing offers a combination of high load capacity, durability, and precision. Its design ensures reliable performance in applications requiring the accommodation of both radial and axial loads, making it a valuable component in numerous industrial settings.
