Overview

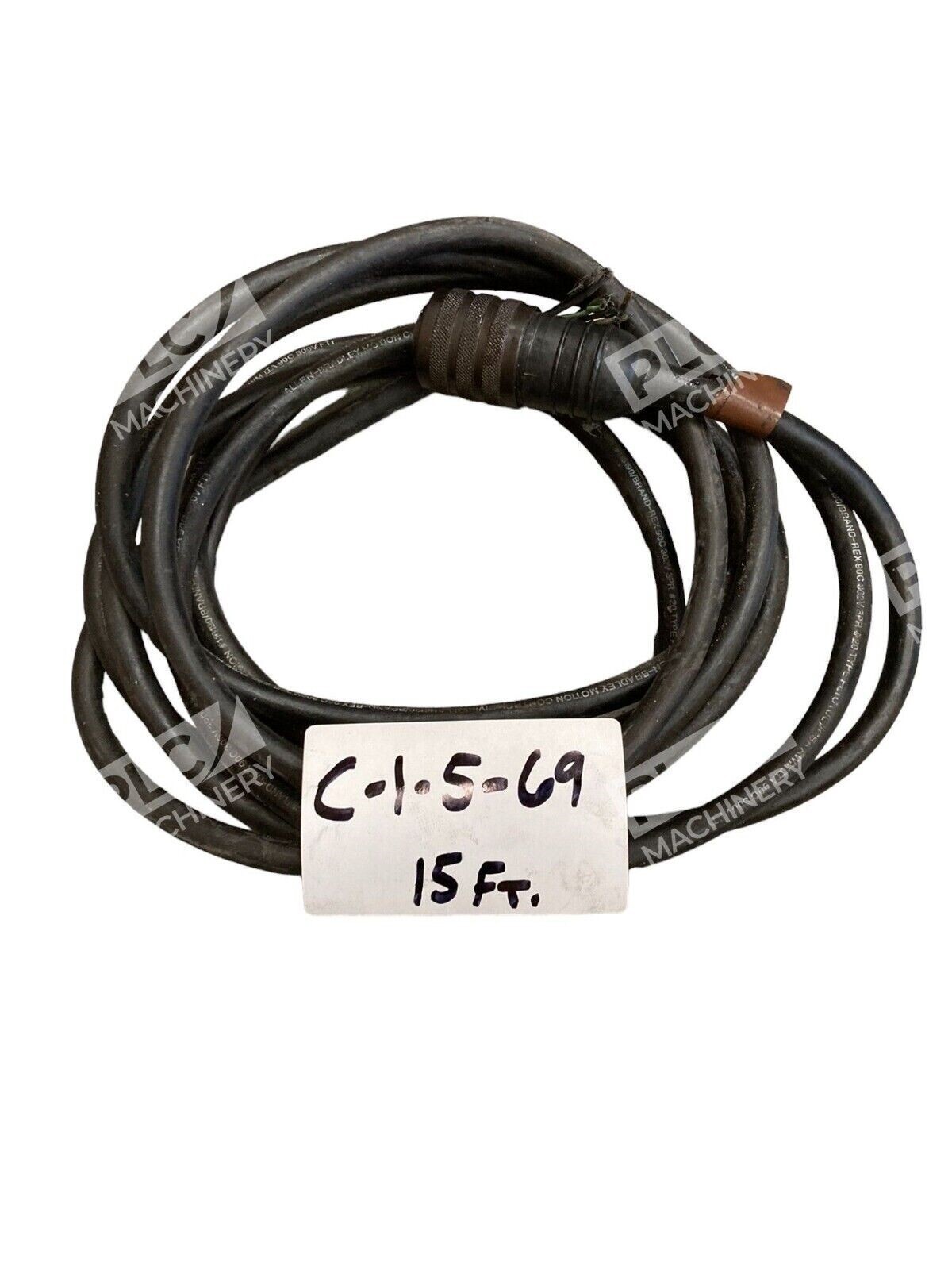

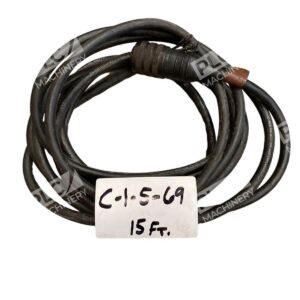

The Sine “Ulti-Max” KA-50420/E135238 is a professional-grade motion control cable engineered for industrial rotary and linear motion applications. Manufactured by Sine Company (now part of Amphenol), this cable is built to withstand the rigorous demands of manufacturing, packaging, assembly, and process automation environments. The 15-foot length makes it ideal for mid-range cable runs while maintaining signal integrity and mechanical durability.
Key Features
- Shielded construction for robust EMI/RFI protection in noisy industrial environments
- 600V rated insulation for motor drives and servo systems
- Heavy-duty TC (tray cable) jacket rated 90°C for thermal resilience
- Industry-standard connectors compatible with major motion control platforms
- Proven field performance in OEM equipment and retrofit installations
- 15-foot length suitable for standard machine and control cabinet distances
Technical Specifications
- Part Number: KA-50420/E135238
- Manufacturer: Sine Company (Amphenol)
- Cable Length: 15 feet
- Cable Type: Type TC Shielded Control Cable
- Voltage Rating: 600V
- Temperature Rating: 90°C
- Jacket Material: PVC
- Core Configuration: Multi-conductor shielded
- Application: Motion control, servo motors, drives, and rotary/linear actuators
Typical Applications
- Servo motor and brushless DC motor control in packaging machinery
- Stepper motor drives and motion controllers
- Linear actuator positioning systems
- Industrial conveyor and material handling equipment retrofit
- OEM machine tool wiring and control cabinet interconnects
- CNC router and automation platform cabling
Compatibility & Replacements
Compatible With
- Servo drives and brushless motor controllers from Yaskawa, Mitsubishi, and Siemens
- Stepper motor drives (Gecko, Leadshine, and similar brands)
- Allen-Bradley and Rockwell motion control systems
- Industrial PLC-based motion controllers
- Standard 600V rated motor and drive applications
Replaces / Drop-In Replacement For
- Sine Ulti-Max KA-50420 variants in different lengths (15Ft, 22Ft, 35Ft, 45Ft)
- Direct OEM replacement for Sine-branded motion control cables in legacy equipment
Works With
- EtherNet/IP enabled motion platforms
- PROFINET industrial networks
- CANopen drive communication
- Studio 5000 (RA) motion projects
- TIA Portal and STEP 7 motion libraries
