Overview

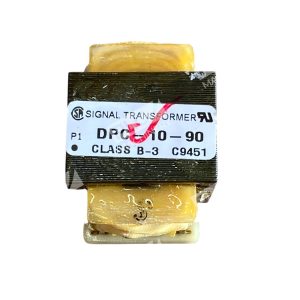

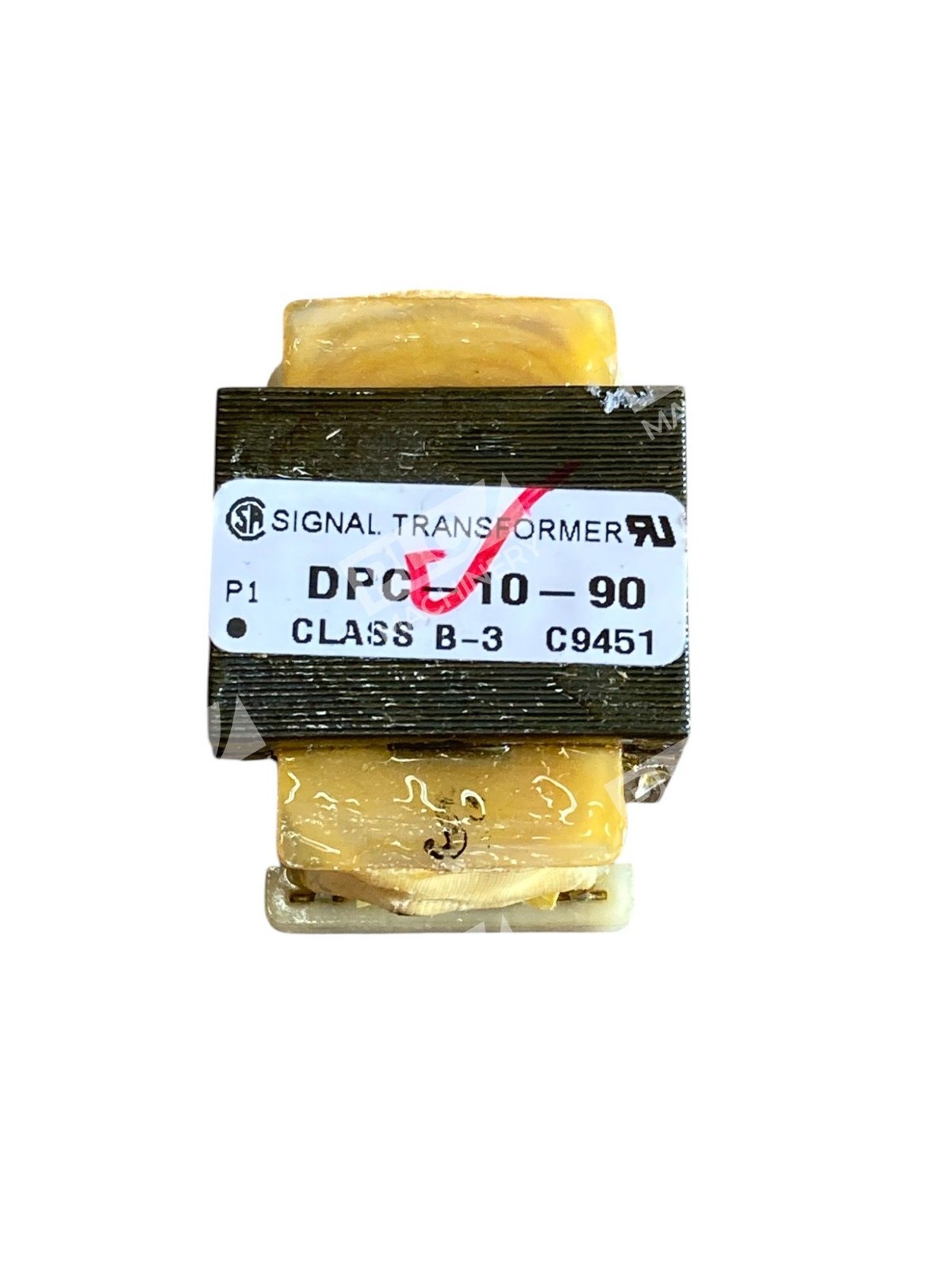

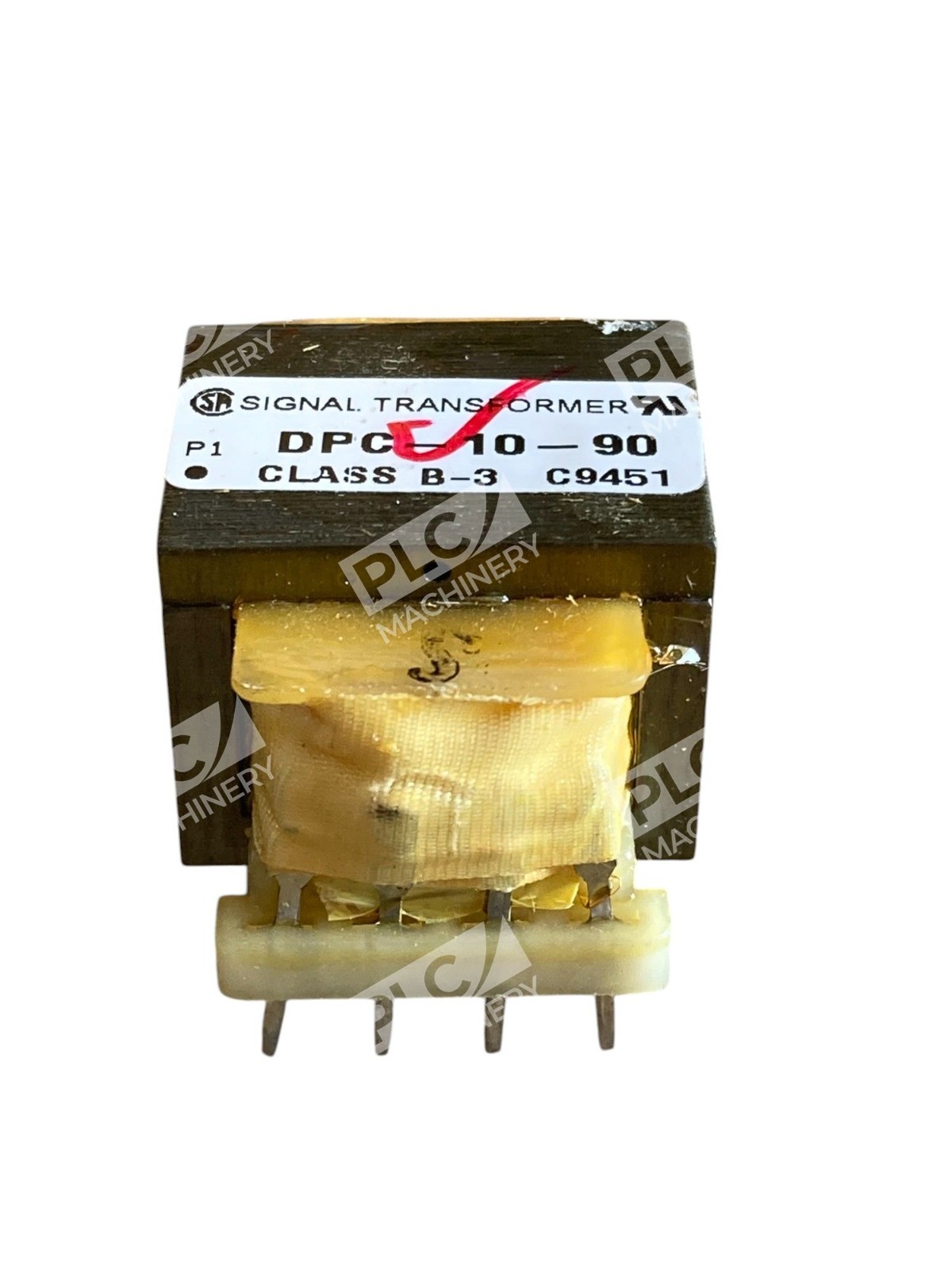

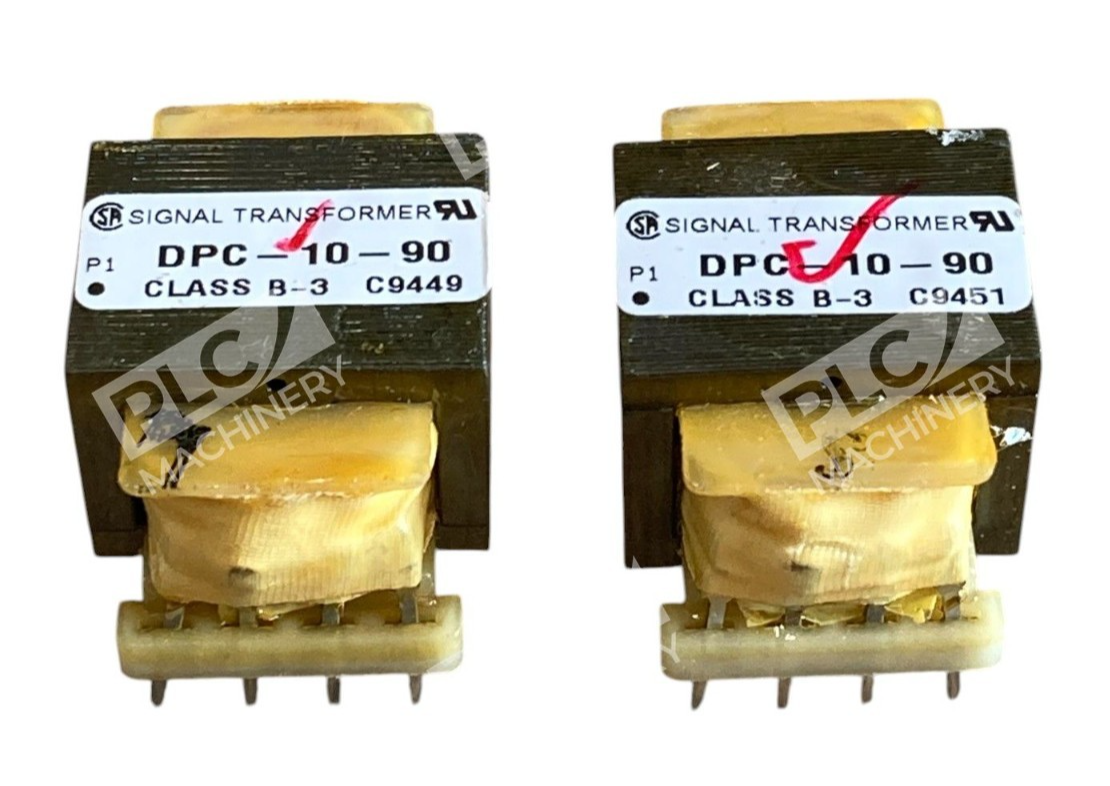

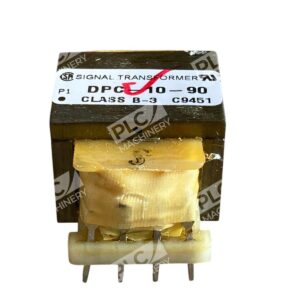

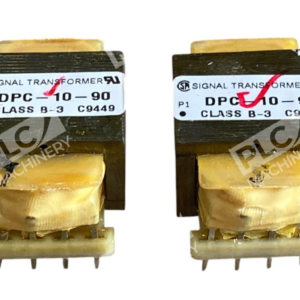

The Signal Transformer DPC-10-90 Class B-3 is a miniature laminated core power transformer designed for industrial control, instrumentation, and general-purpose power supply applications. This model features dual primary configurations (115V/230V parallel) and dual secondary windings (5V parallel or 10V series), making it versatile for various input voltage requirements. The 1VA power rating and compact through-hole PCB mounting make it suitable for control panels, alarm systems, and low-power industrial equipment.
Key Features
- 1VA power rating with laminated core construction for minimal losses
- Dual primary voltages: 115V or 230V parallel configuration
- Dual secondary options: 5V (180mA) or 10V (90mA) series configuration
- 8-terminal through-hole PCB pin mounting for easy integration
- 1500V RMS dielectric strength rated for reliable isolation
- Class B-3 designation for industrial and OEM applications
Technical Specifications
Detailed specifications for proper selection and installation:
- Primary Voltage: 115V or 230V (parallel configuration)
- Secondary Voltage: 5V (parallel) or 10V (series)
- Secondary Current: 180mA (parallel) or 90mA (series)
- Power Rating: 1VA
- Dielectric Strength: 1500V RMS
- Core Type: Laminated core

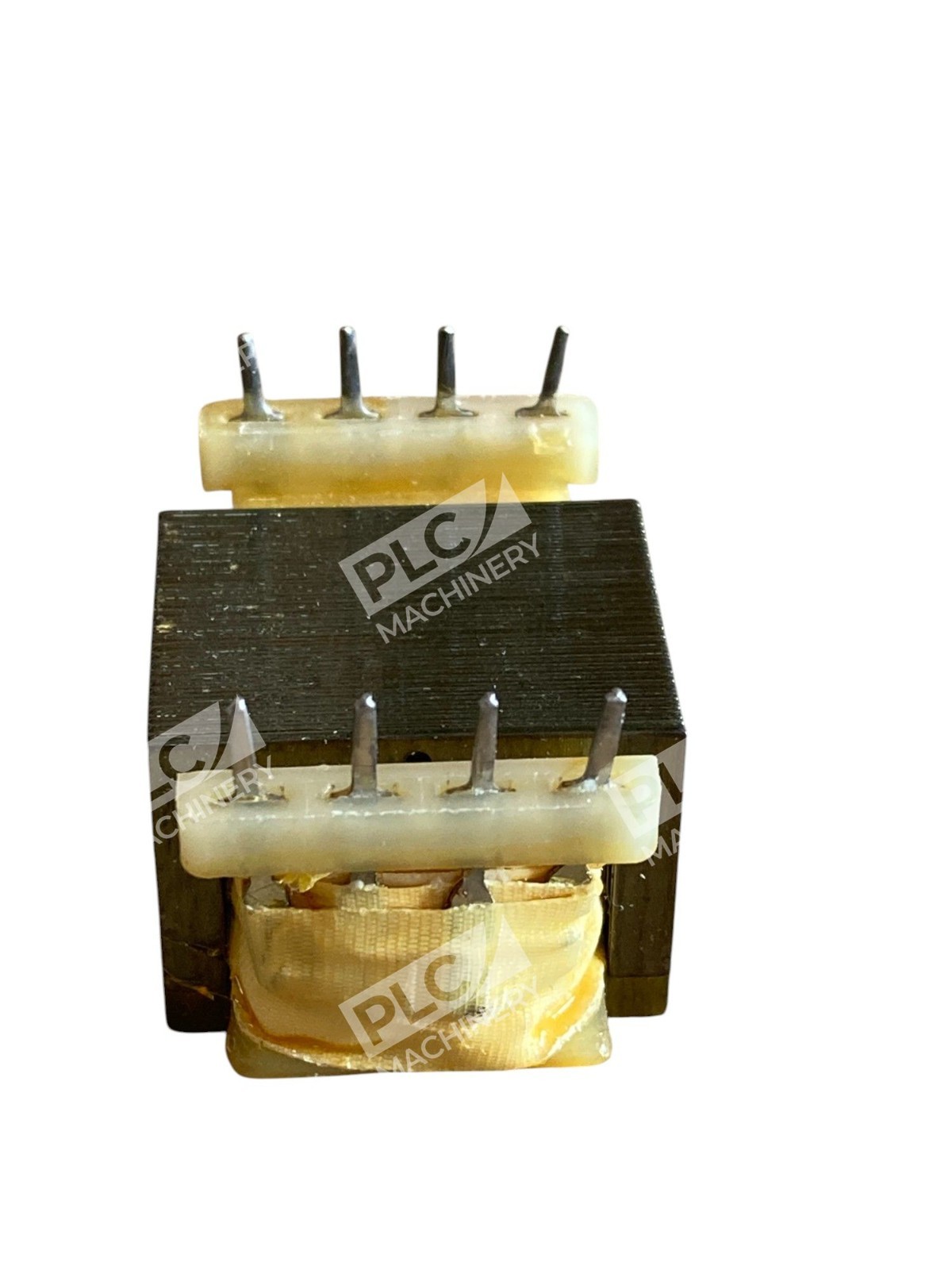

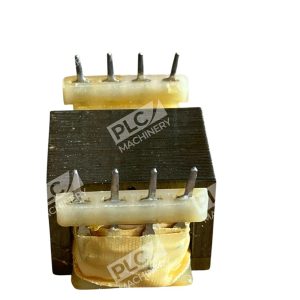

- Mounting: 8-terminal through-hole PCB pin
- Operating Frequency: 50/60 Hz
- Temperature Class: Class B-3
Typical Applications
The DPC-10-90 is commonly used in:
- Industrial control panels and relay circuits
- Alarm system power supplies and notification circuits
- Instrumentation and measurement equipment
- General-purpose PCB-mounted step-down transformers
- Low-voltage control circuit isolation and conversion
Compatibility & Replacements
Compatible With
- Industrial control systems and automation equipment
- PCB assemblies requiring through-hole component placement
- Standard 50/60 Hz power distribution systems
- OEM instrument panels and enclosures
- Legacy industrial control circuits
Replaces / Drop-In Replacement For
The Signal Transformer DPC-10-90 directly replaces other DPC-series variants with identical footprint and pinout. Verify compatibility with your system integrator before ordering to ensure voltage and current requirements match your application.
Works With
- Standard 50/60 Hz AC power sources
- Relay circuits and contactor coil supplies
- Low-voltage control wiring and panel layouts
- PCB-mounted industrial control designs
- Signal conditioning and isolation applications
