Overview
The Siemens SUAT317-0G meter socket is a ringless type overhead-fed service entrance device rated for 200A continuous operation at 600V single-phase. This meter socket delivers reliable power distribution for residential and light commercial applications. Built with durable materials and engineered to meet U.S. safety standards, the SUAT317-0G is UL-listed and approved for utility-grade metering installations.
Key Features
- Ringless Design: Streamlined appearance without cover ring; simplifies installation and maintenance

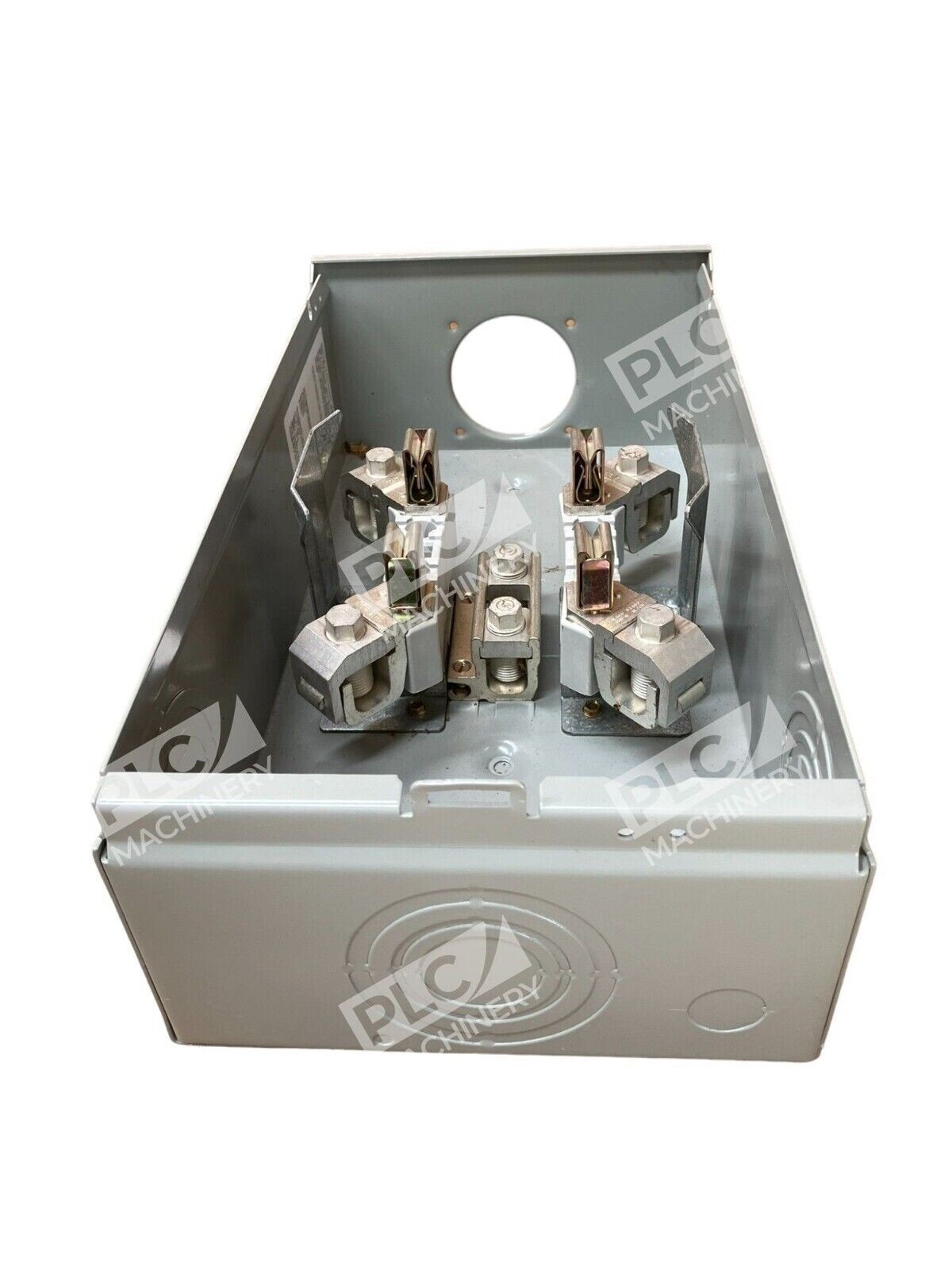

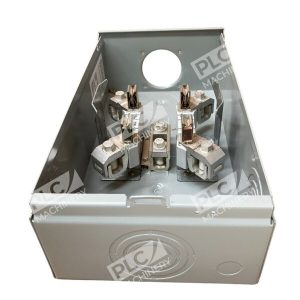

- 4-Jaw Configuration: Accepts four main service conductors with provision for 5th jaw and closure plate (no bypass)
- Premium Jaw Material: High-conductivity, tin-plated copper alloy jaws ensure excellent current transfer and corrosion resistance
- NEMA 3R Enclosure: Galvanized steel construction rated for outdoor exposure and weather resistance
- Overhead Feed Only: Optimized for overhead cable entry installations
- Safety Guides: Integrated safety features reduce accidental contact risk and properly align meters in the socket

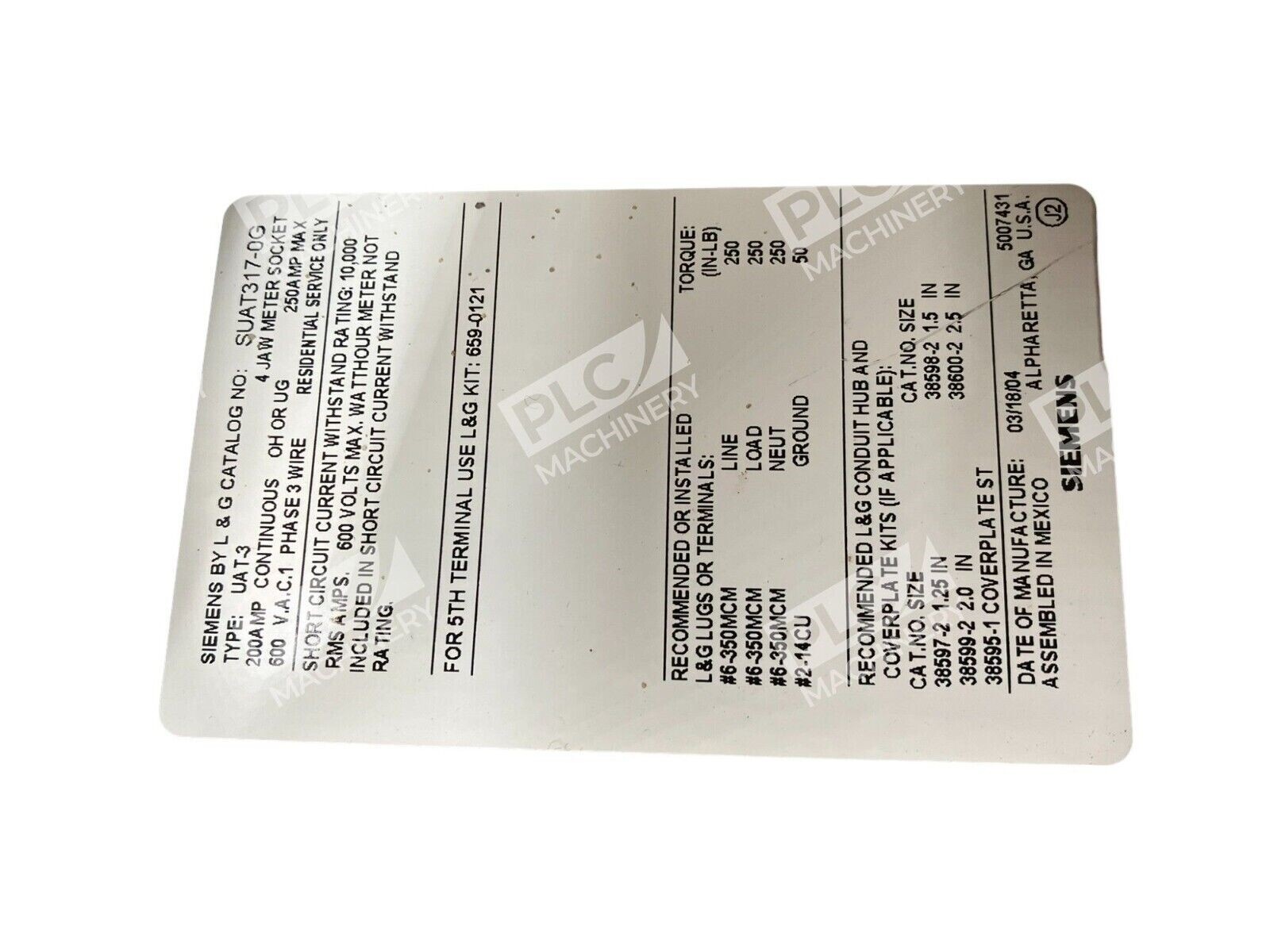

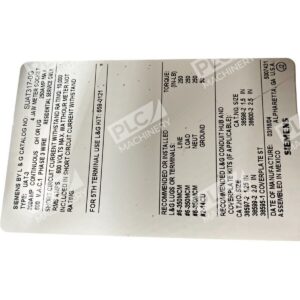

Technical Specifications
- Jaw Material: Insulating jaw support blocks of high-impact, non-tracking thermoset polyester
- Maximum Lug Rating: #6–350 kcmil conductors
- Ground/Neutral Lugs: 4 lugs provided
- Hub Type: RX-style (hub not included)
- No Bypass Configuration: Provision for optional 5th jaw and closure plate
- Certifications: UL-listed; meets NEC requirements for residential service entrance
Typical Applications
The SUAT317-0G is commonly specified for:
- Residential service entrance metering (single-phase, 200A)
- Outdoor meter installations requiring NEMA 3R weather protection
- Utility-approved overhead feed configurations
- Retrofit installations where meter socket replacement is needed
Compatibility & Replacements
The Siemens SUAT317-0G is a direct replacement for legacy ringless meter sockets in the same amperage class. When planning replacement or retrofit work, confirm utility approval before installation, as utility requirements may vary by service territory. The unit uses industry-standard RX hubs and accepts standard conductor lugs rated #6–350 kcmil, ensuring broad compatibility with common service entrance wiring practices.
