Overview

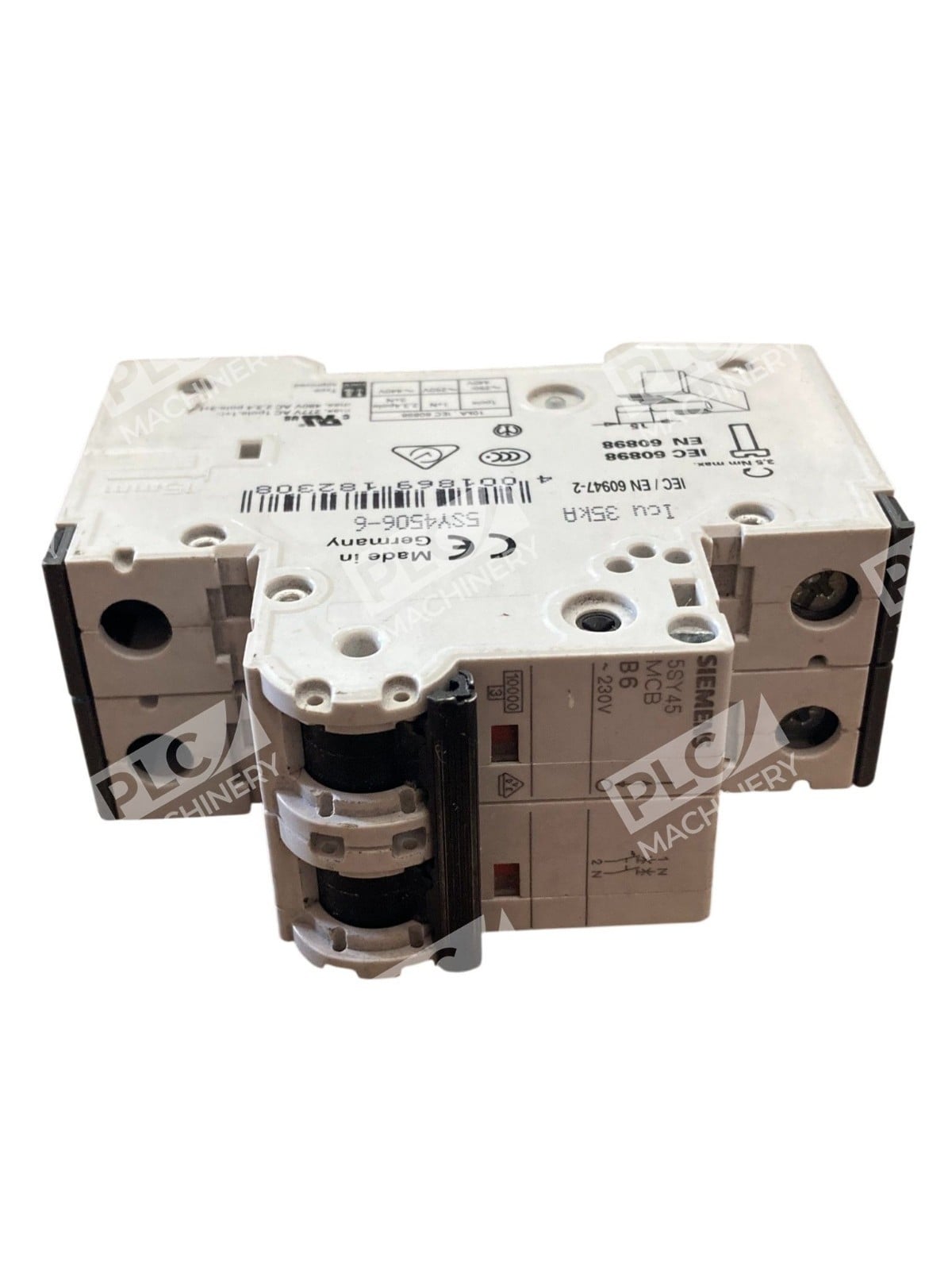

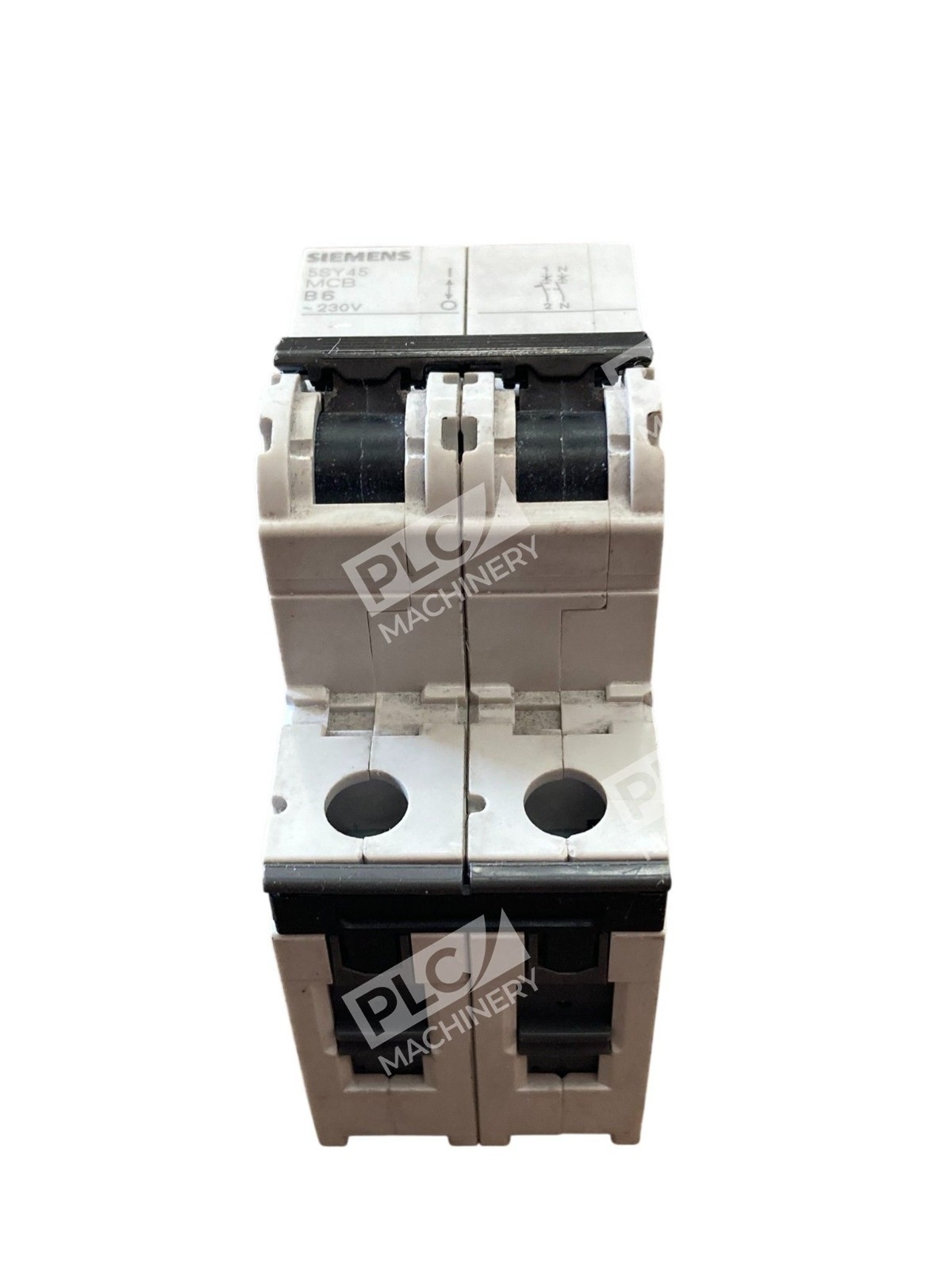

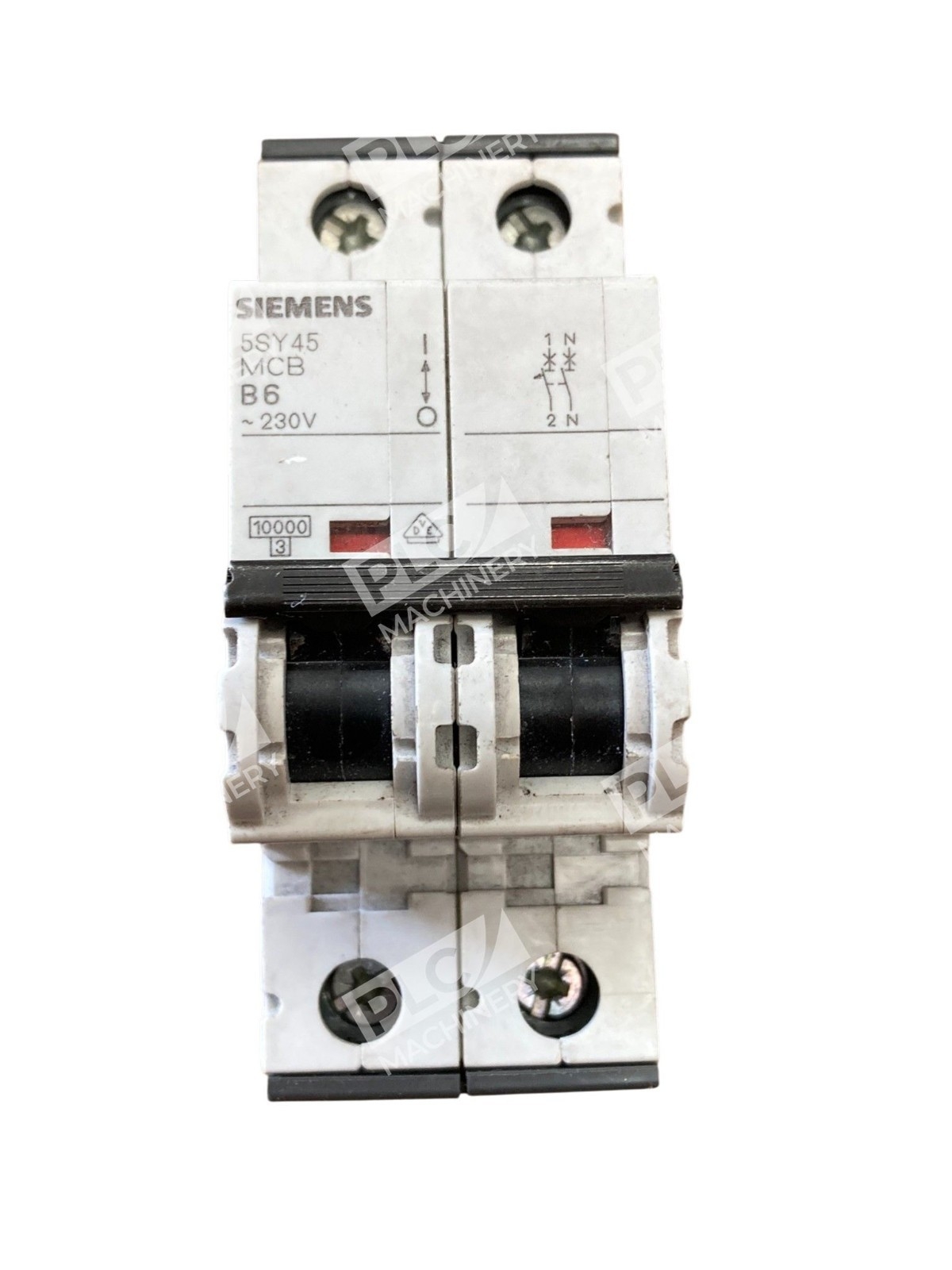

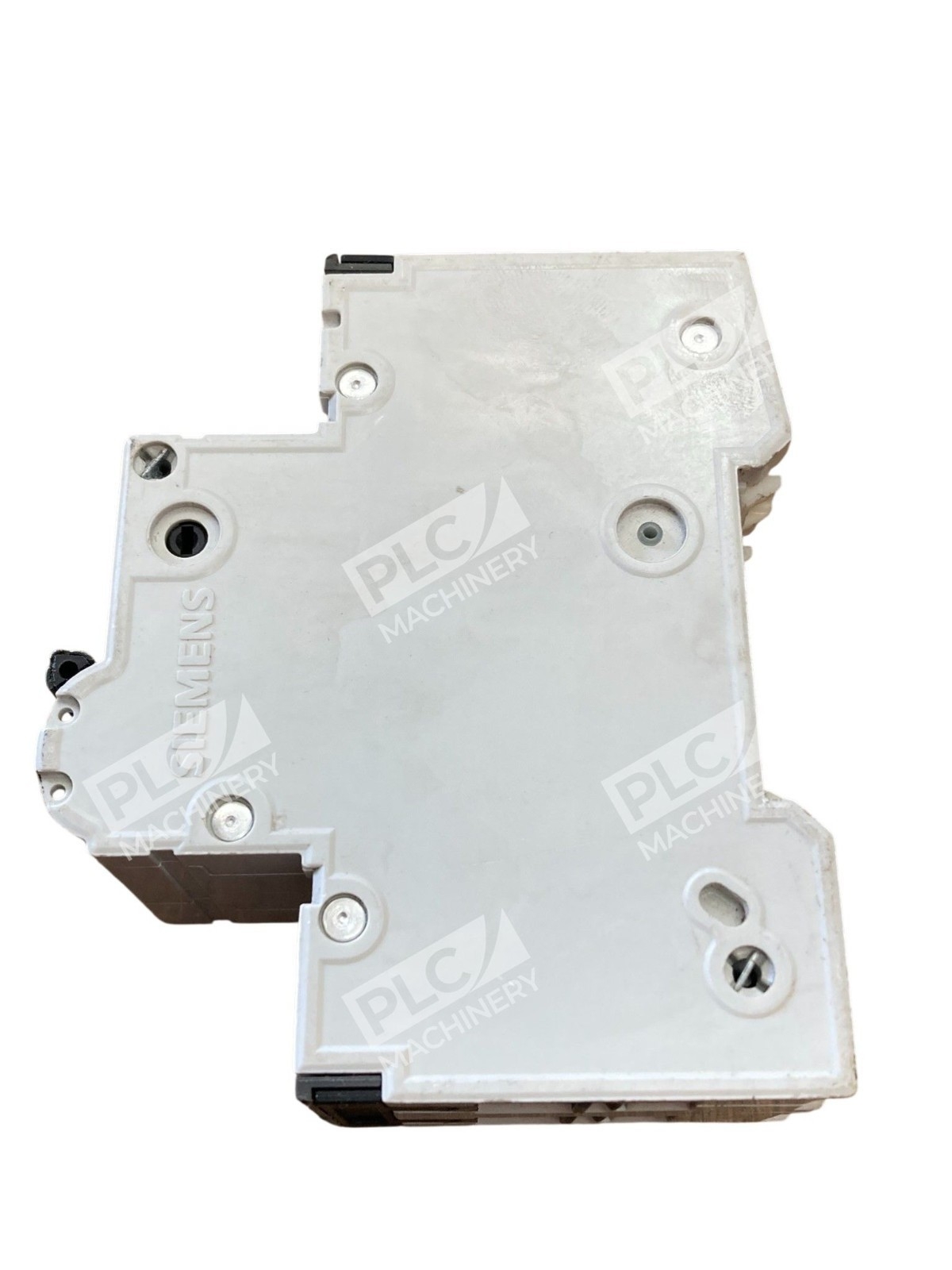

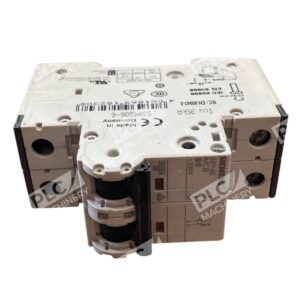

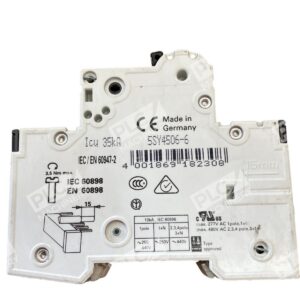

The Siemens 5SY4506-6 is a single-pole plus neutral (1P+N) miniature circuit breaker engineered for low-voltage industrial and residential distribution systems. Rated at 230V AC with 6A nominal current and Type B tripping characteristic, this SENTRON-series breaker delivers 10kA breaking capacity to protect circuits from overloads and faults. The compact DIN rail design ensures quick, tool-free installation.
Key Features
- 1P+N configuration: Single-pole protection with neutral continuity for split-phase or single-phase circuits
- Type B tripping: Trips at 3–5 times rated current; ideal for circuits with moderate inrush current such as resistive loads and long cable runs
- 10kA breaking capacity: Rated short-circuit protection per IEC 60898 industrial standards
- DIN rail mount: 18 mm top-hat rail mounting; 70 mm depth for compact panel layouts
- Tool-free removal: Slide-hand operation for fast disconnect from busbar or rail assembly

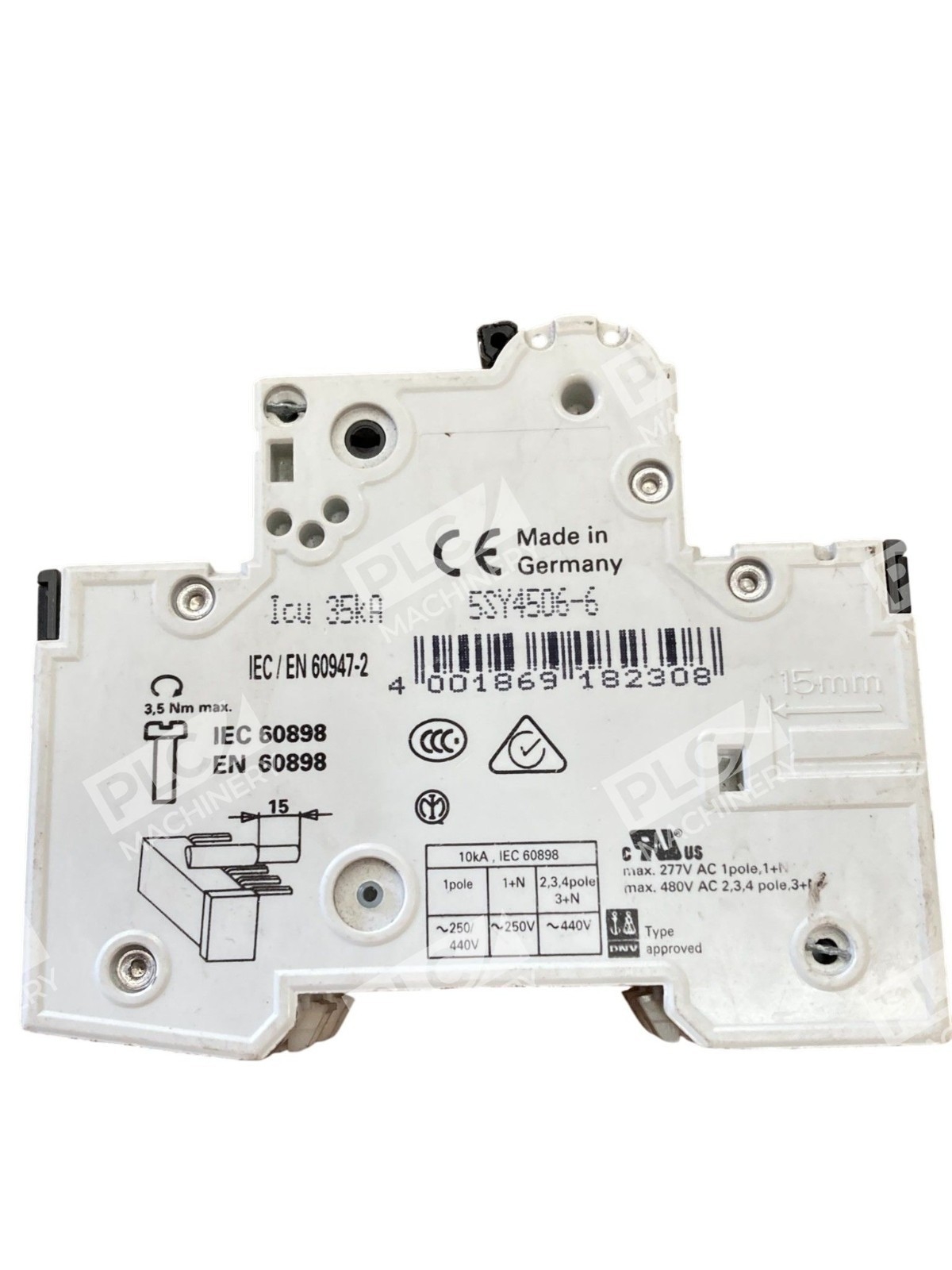

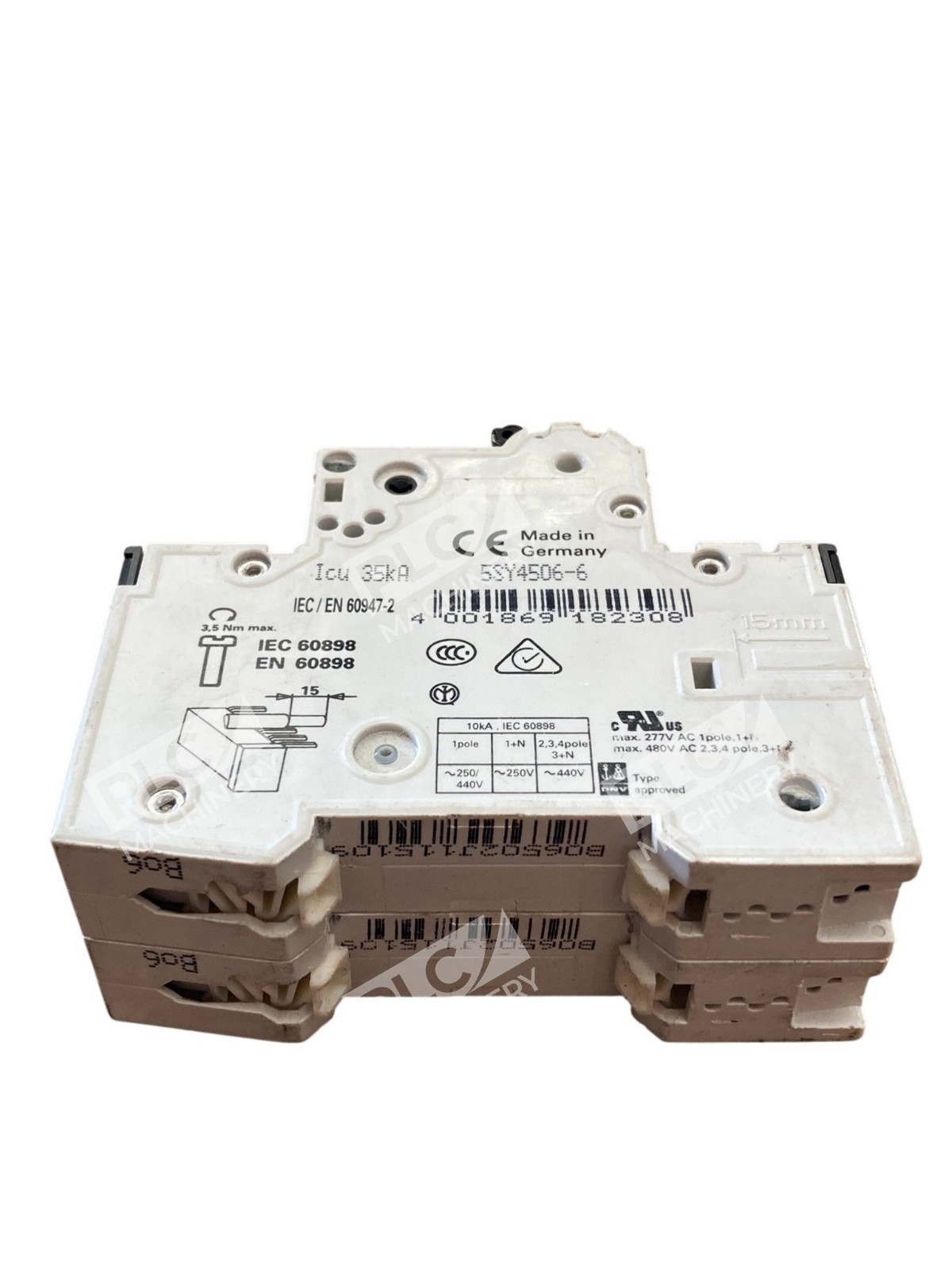

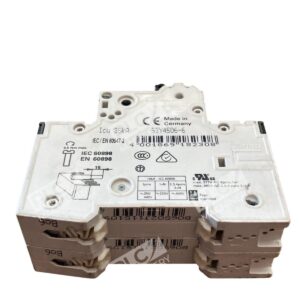

- Status indicator: Clearly visible switch position (ON/OFF) and data matrix code for quick identification
Technical Specifications
- Rated voltage (AC): 230V (Rated insulation voltage Ui: 250V)
- Current rating: 6A nominal
- Tripping characteristic: Type B
- Breaking capacity: 10 kA at rated voltage
- Number of poles: 1P+N (2 total poles, 1 fused)
- Overvoltage category: Category 3
- Protection class: IP20 (with connected conductors)
- Mechanical life: 20,000 switching cycles
- Mounting: DIN Rail (18 mm), length 90 mm, width 36 mm, depth 76 mm
- Certifications: IEC 60898-1, EN 60898-1
Typical Applications
- Industrial automation control panels and PLC enclosures
- Low-voltage distribution systems in factories and manufacturing facilities
- HVAC and facility-level motor circuit protection
- Building management systems and emergency lighting circuits
- Single-phase residential and light commercial branch protection
- Protection of long-run cable circuits with moderate inrush (Type B curve benefits)
Compatibility & Replacements
Compatible With
- Standard 18 mm DIN rail mounting systems (EN 60715)
- Siemens SENTRON switchgear and distribution boards
- Standard low-voltage electrical panel cabinets (230V single-phase systems)
- Supplementary Siemens protective components: auxiliary contacts, shunt releases, undervoltage releases
- IEC 60898-1 compliant electrical installations (industrial, commercial, residential)
Replaces / Drop-In Replacement For
- Siemens 5SY4506-5 (same form factor, alternative Type A tripping curve)
- Legacy single-pole miniature breakers with equivalent 6A/10kA ratings and DIN rail form factor
- Verify legacy equipment compatibility and tripping curves with your system integrator before substitution
Works With
- IEC 60898-1 compliant industrial and residential wiring standards
- Siemens SENTRON series protective device ecosystems
- Standard low-voltage panelboards and switchgear assemblies
- DIN rail automation and control system layouts
- Building and industrial electrical infrastructure management systems
