Overview

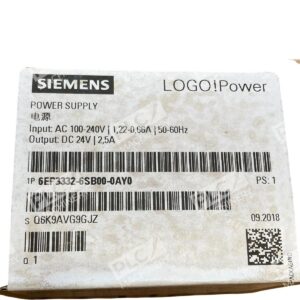

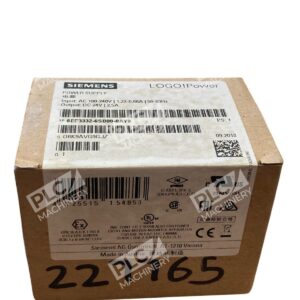

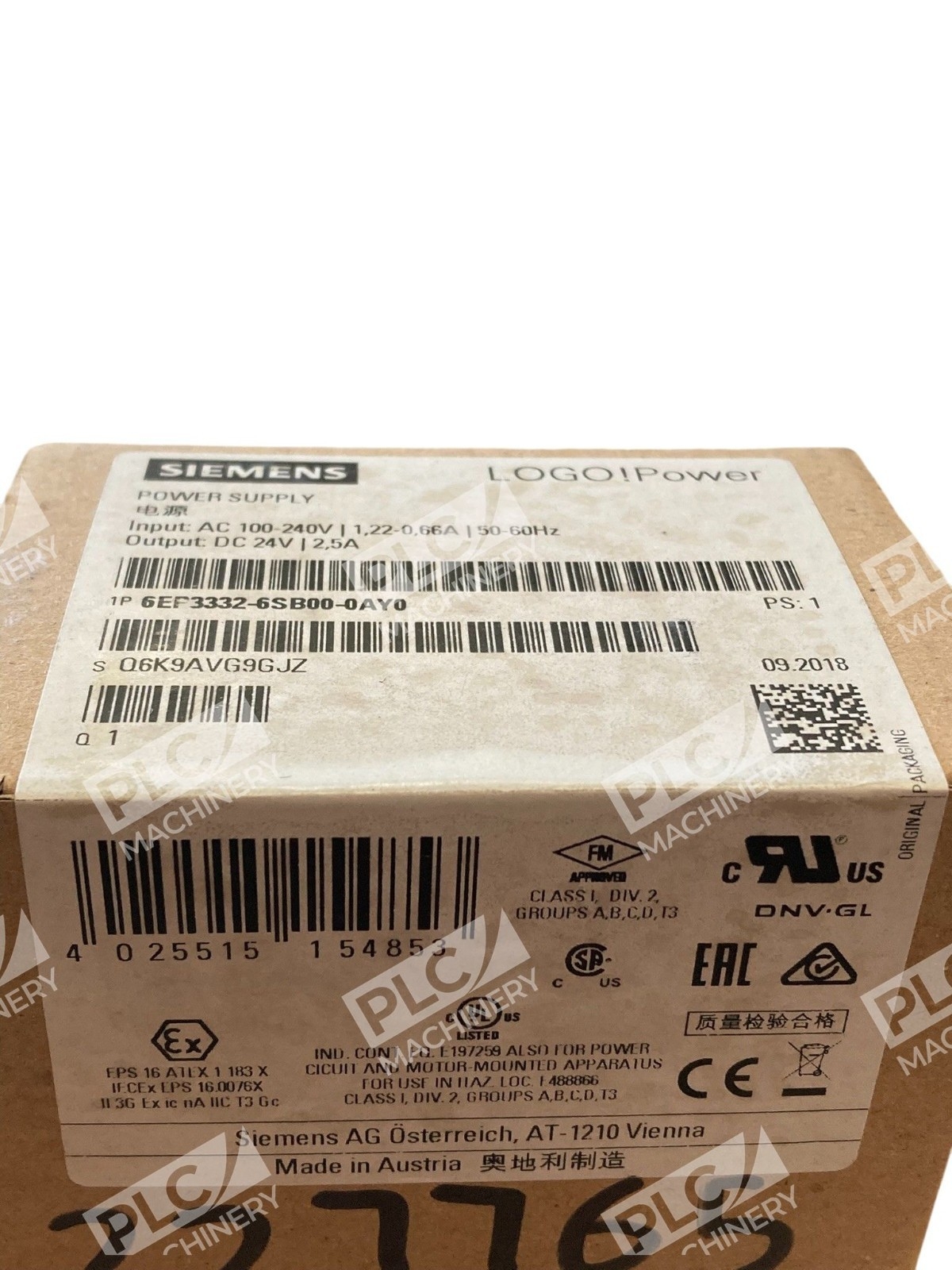

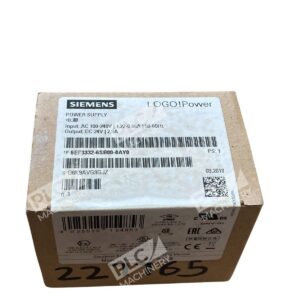

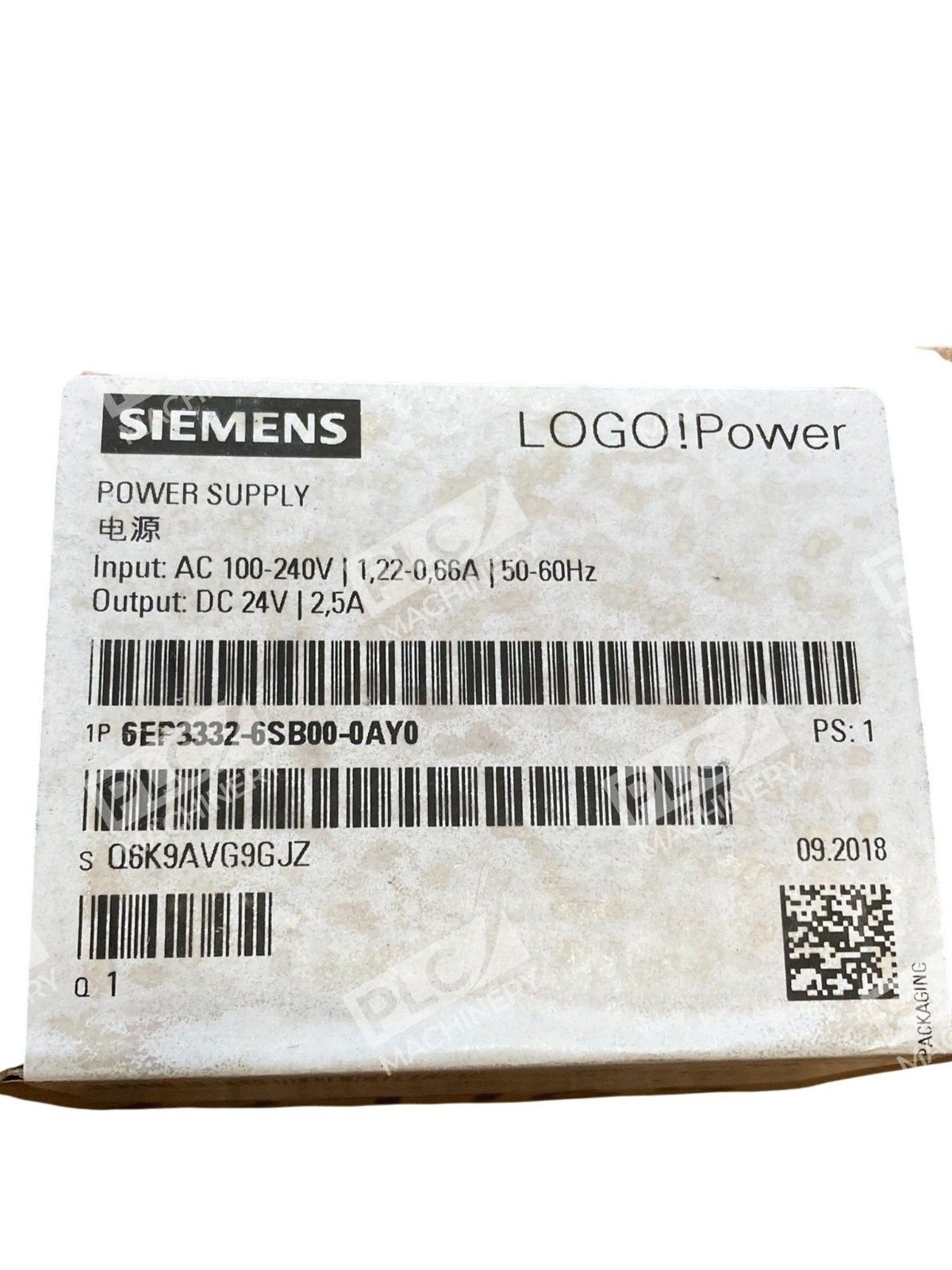

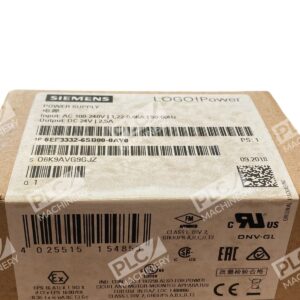

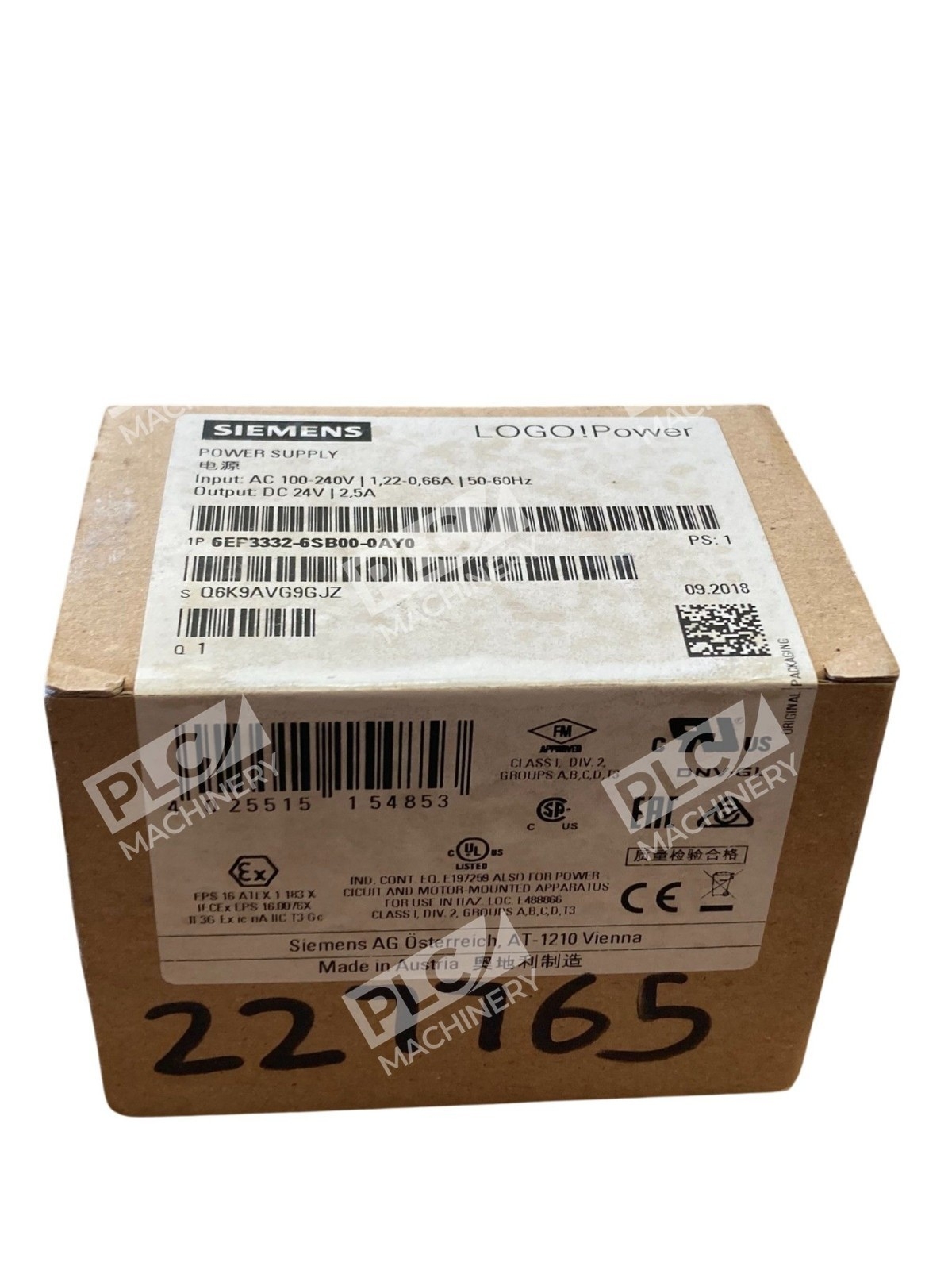

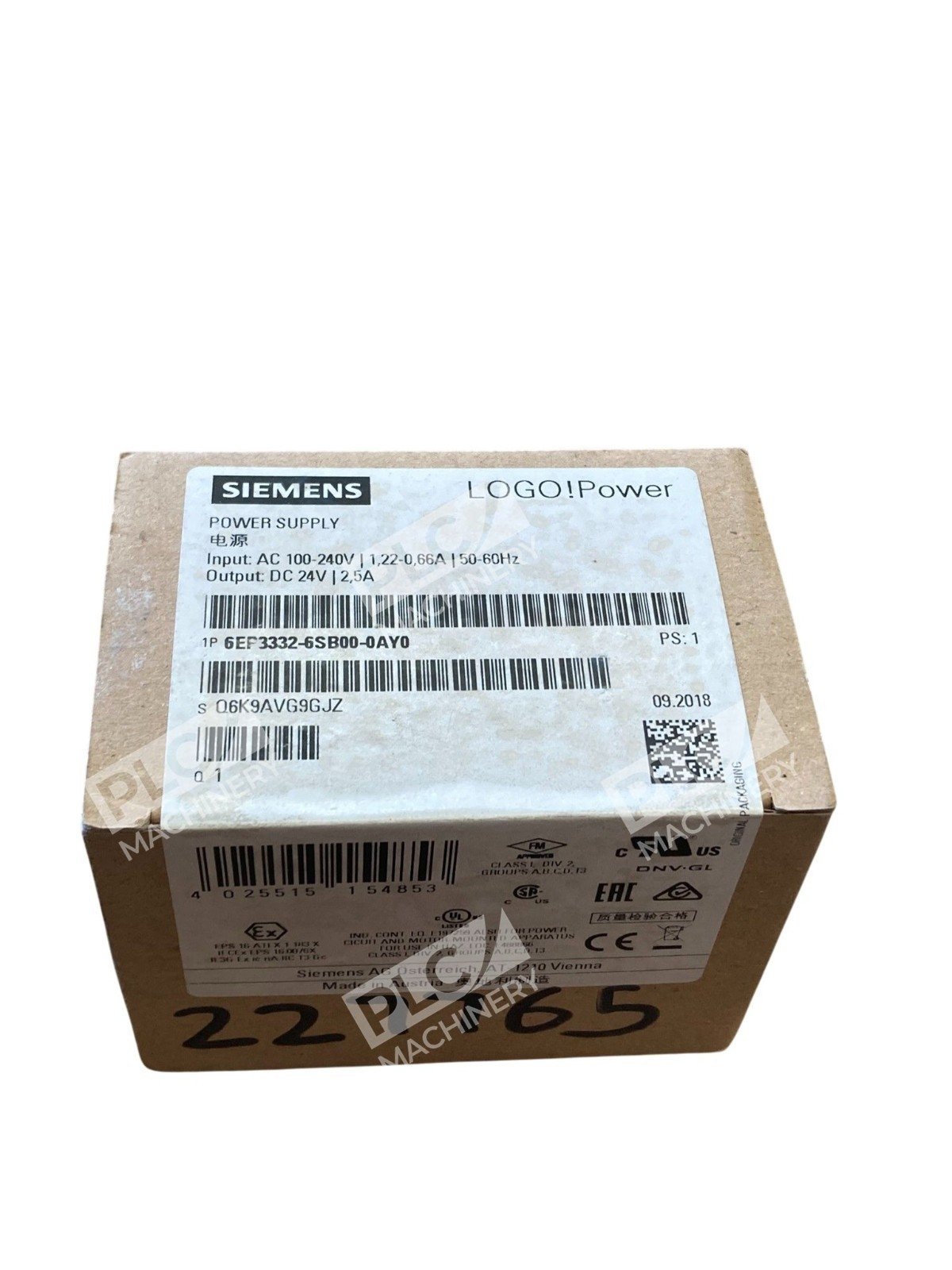

The Siemens 6EP3332-6SB00-0AY0 is a LOGO!Power DIN-rail mounted switched-mode power supply designed for industrial control and automation applications. This compact unit provides a regulated 24V DC output at 2.5A from a universal 100–240V AC input, making it ideal for powering Siemens LOGO! programmable logic controllers, distributed I/O modules, and other 24V DC automation devices in control cabinets and small industrial machines.
Key Features
- Stabilized 24V DC / 2.5A output (60W rated power)
- Wide input range: 100–240V AC (85–264V AC full range), 47–63 Hz single-phase
- Also accepts 110–300V DC input
- Compact DIN rail mounting (54 mm width × 90 mm height × 53 mm depth)
- Green LED indicator for DC output status verification
- Short-circuit protection and overload capability with adjustable output voltage
- High efficiency across full load range with low no-load power loss
- Screw-clamp terminal connections for secure wiring
Technical Specifications
- Output Voltage: 24V DC nominal (22.2–26.4V DC operating range)
- Output Current: 2.5A maximum
- Output Power: 60W
- Input Voltage (AC): 100–240V AC (85–264V AC range), single-phase, 47–63 Hz
- Input Voltage (DC): 110–300V DC
- Input Current: 1.22A @ 120V AC / 0.66A @ 240V AC
- Mounting: DIN rail (35 mm standard)
- Width: 54 mm
- Depth: 53 mm
- Height: 90 mm
- Weight: Approximately 0.2 kg
- Terminals: Screw-clamp connections
- Status Indicator: Green LED (DC output OK)
- Certifications: CB, CE, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus, UL 508, UL 60950, NEC Class 2, SEMI F47
Typical Applications
- Powering Siemens LOGO! and LOGO!8 microcontrollers
- Control cabinet and panel-mounted 24V DC power distribution
- Industrial automation, process control, and discrete manufacturing systems
- Retrofit and modernization of legacy automation systems
- Distributed I/O modules and sensors requiring stabilized 24V DC
- Small machinery and equipment control with reliable power reserves for capacitive load switching
Compatibility & Replacements
Compatible With
- Siemens LOGO! microcontroller systems (all generations)
- Siemens LOGO!8 control modules
- Siemens KTP (touch panels) and HMI devices requiring 24V DC
- Distributed I/O modules and sensor/actuator networks
- Standard 35 mm DIN rail control cabinets
- Single-phase AC networks worldwide (100–240V AC)
Replaces / Drop-In Replacement For
- Siemens 6EP1332-1SH43 (legacy LOGO!Power predecessor)
Works With
- Siemens LOGO!Soft Comfort software (programming and configuration)
- Siemens TIA Portal (integration and system design)
- Standard industrial PLC networks and communication protocols
- All LOGO! family automation controllers and modules
