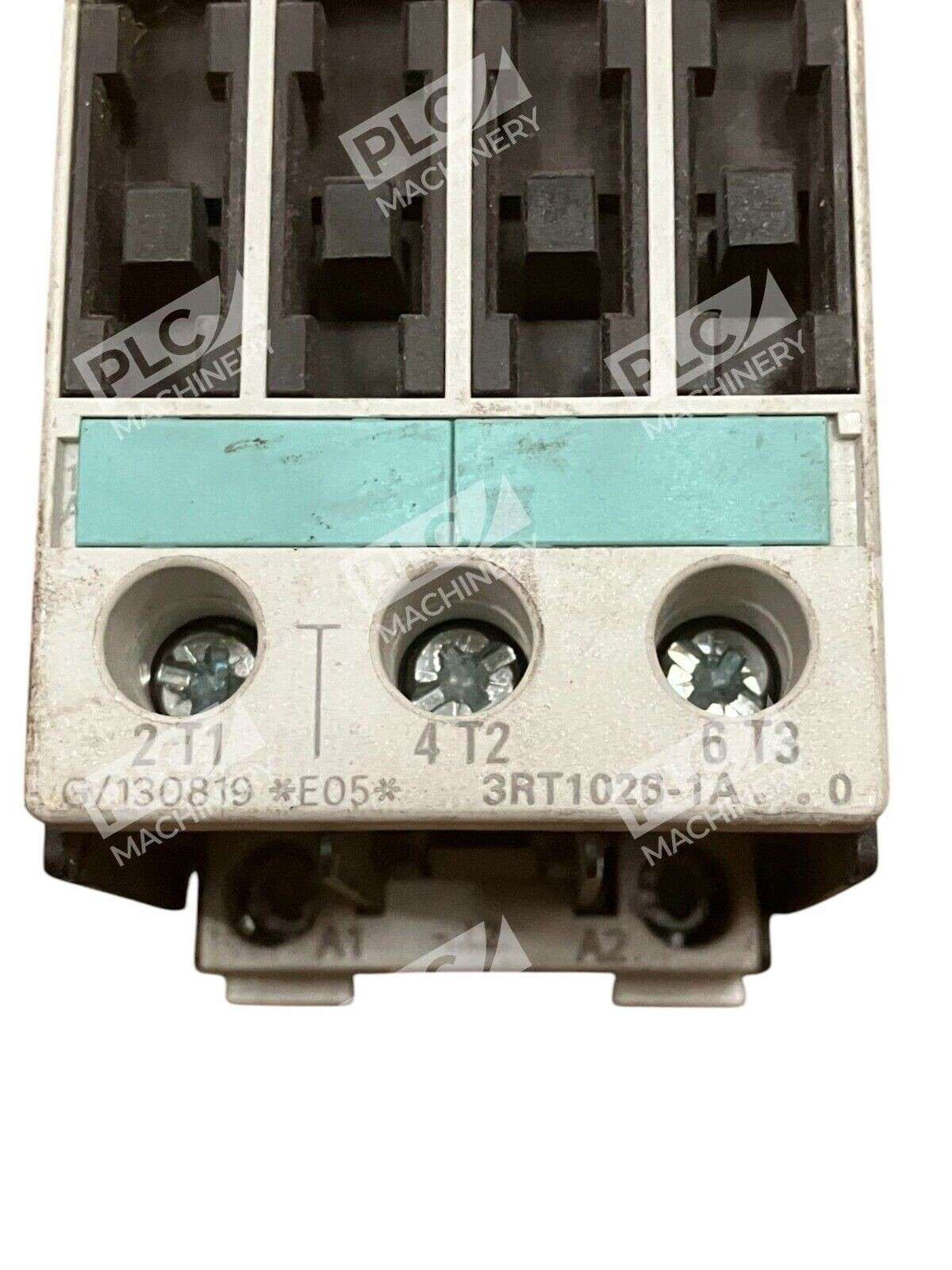

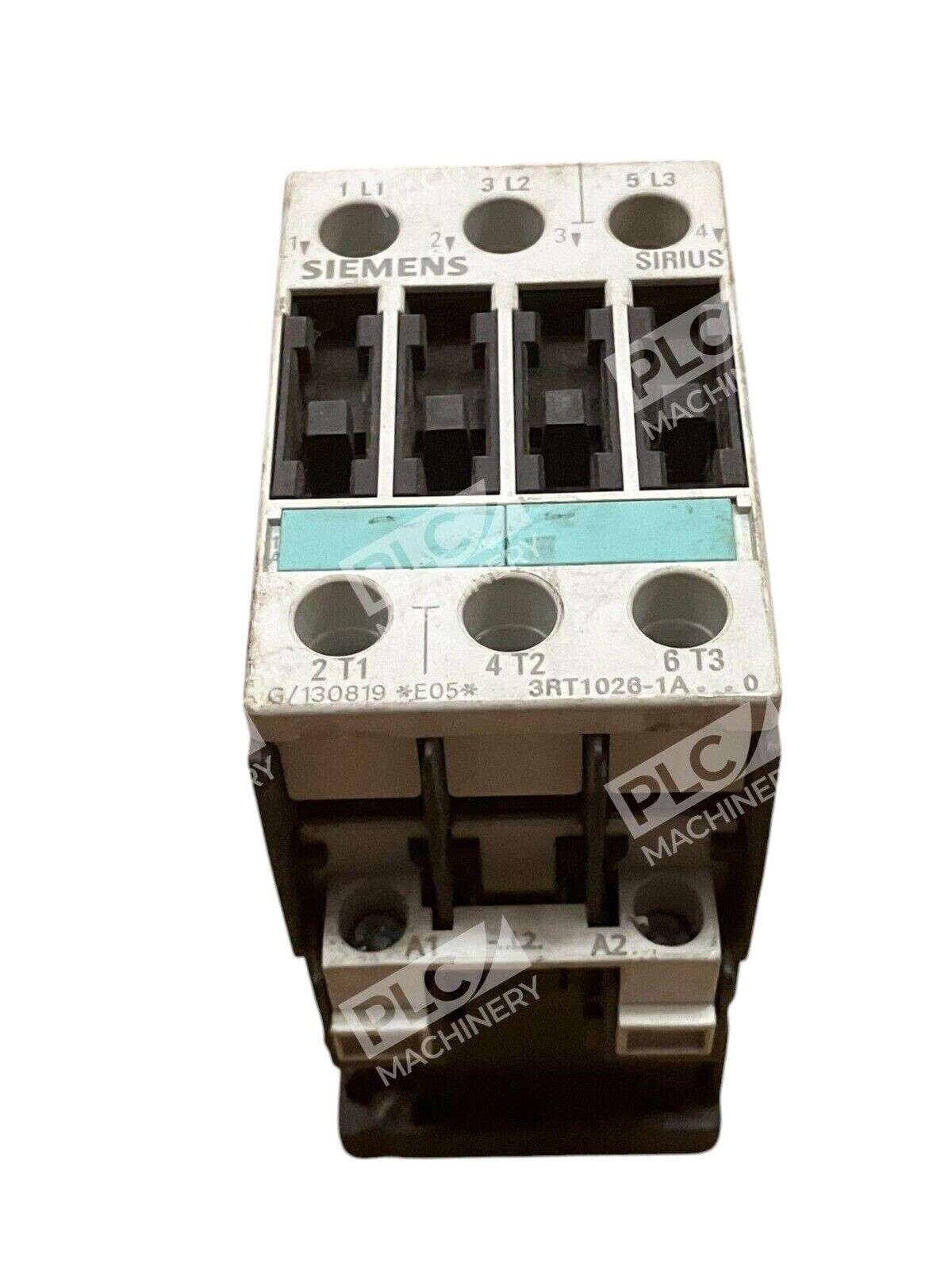

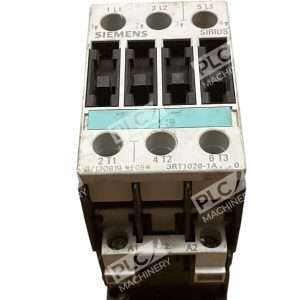

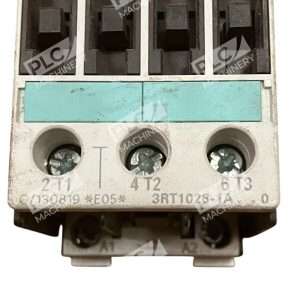

Siemens G/130819 E05 Sirius Overload Relay Contactor 3RT1026-1A

Siemens G/130819 E05 Sirius Overload Relay Contactor 3RT1026-1A

The Siemens G/130819 E05 Sirius Overload Relay Contactor 3RT1026-1A is a high-performance 3-phase IEC-rated contactor designed for the efficient control of electric motors. This device is engineered to meet the rigorous demands of industrial applications, ensuring reliable operation and longevity.

Key Features

• Motor Control Capability: Capable of handling motors up to 7.5 HP at 230V and 15 HP at 460V, making it suitable for a wide range of industrial machinery.
• Compliance: Conforms to IEC 60946 standards, ensuring adherence to international safety and performance regulations.
• Design: Features a compact Size S0 frame with screw terminals for secure and straightforward wiring.
• Mounting Options: Equipped with track-mounting clips for standard 35mm DIN-rail installation, facilitating easy integration into control panels.

Technical Specifications

• Current Ratings: 25 A (AC-3), 40 A (AC-1).
• Coil Voltage Options: Available in various AC coil voltages, including 24V, 120V, 208V, 240V, and 480V, to accommodate different control circuit requirements.
• Power Consumption: Inrush: 69 VA; Sealed: 7.5 VA.
• Wire Size Compatibility: Supports up to 2 x 10 AWG or 1 x 8 AWG wires, providing flexibility in wiring configurations.

Accessories and Expansion

• Auxiliary Contact Blocks: Front-mounted auxiliary contacts can add an extra 49mm to the depth, while side-mounted contacts add an extra 10mm per block, allowing for customization based on signaling needs.
• Overload Relays: Compatible with 3RU1126 Thermal Overload Relays and 3RB2026 Electronic Overload Relays, offering enhanced motor protection options.
• Additional Accessories: Supports surge suppressors and mechanical interlocks to enhance functionality and safety.

The Siemens G/130819 E05 Sirius Overload Relay Contactor 3RT1026-1A is a versatile and reliable solution for motor control applications, offering a range of features and accessories to meet diverse industrial requirements.
