Overview

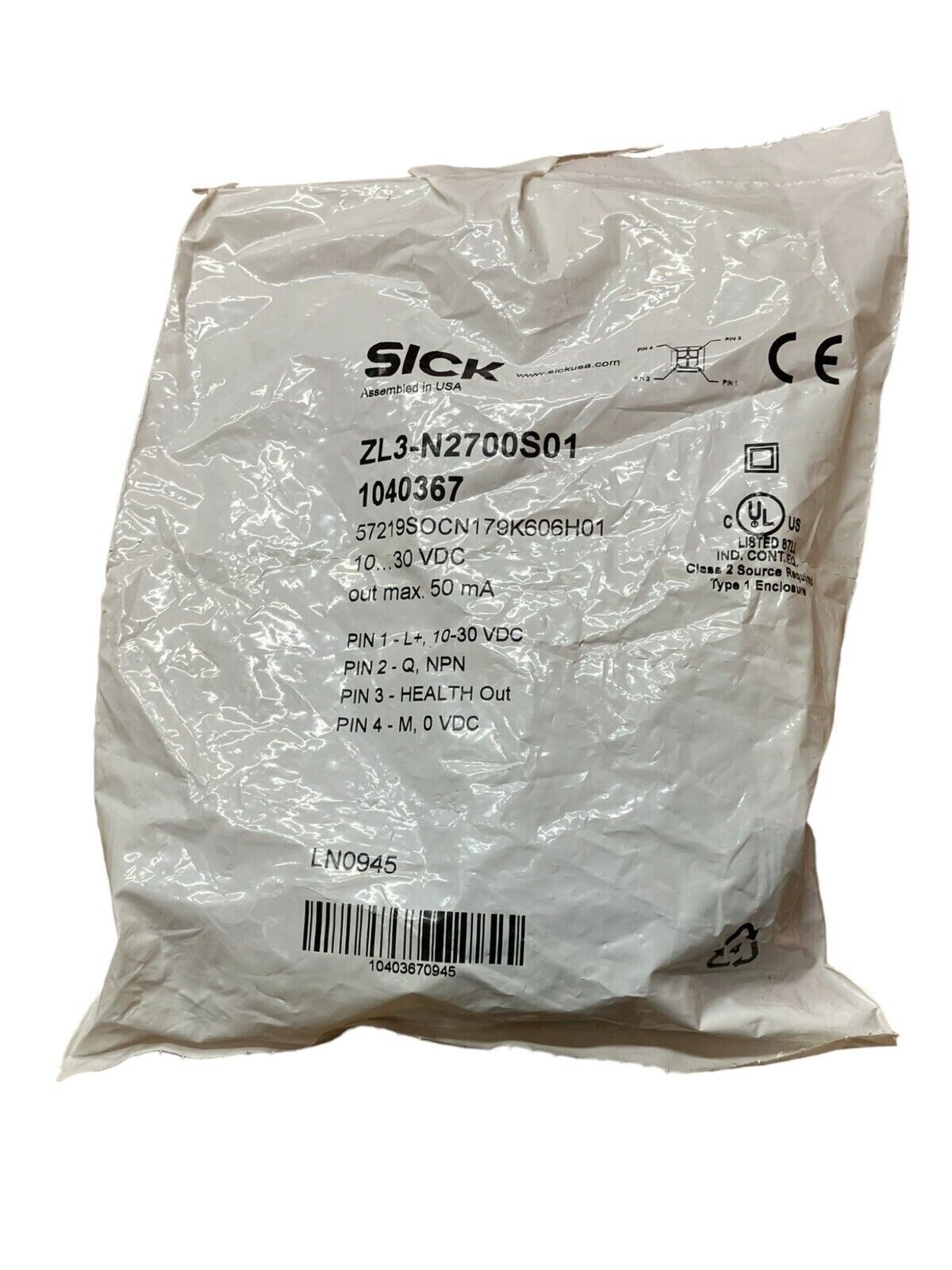

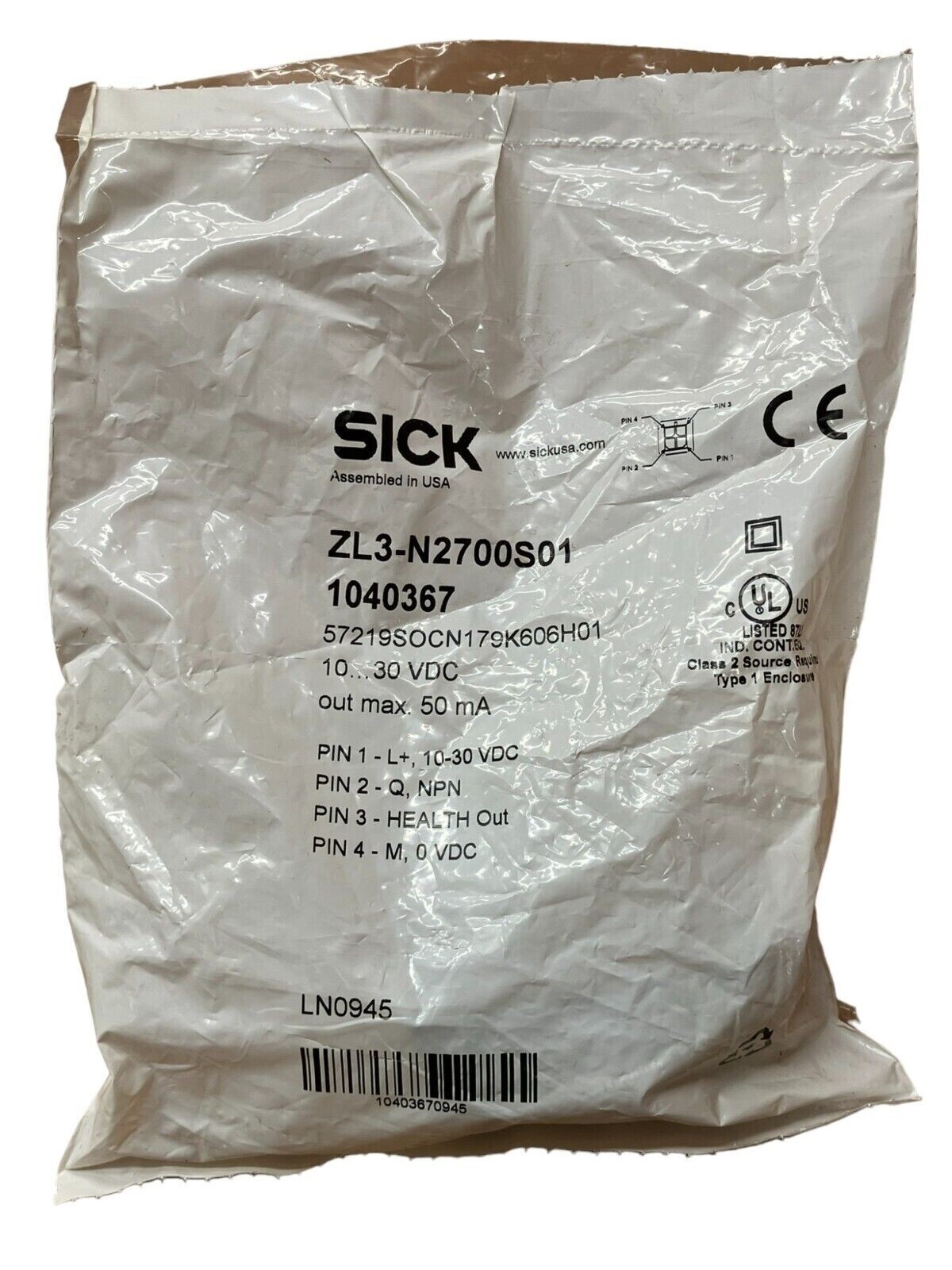

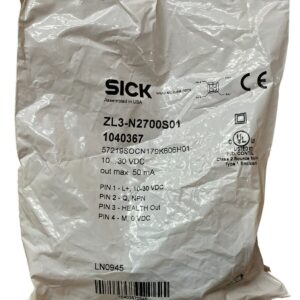

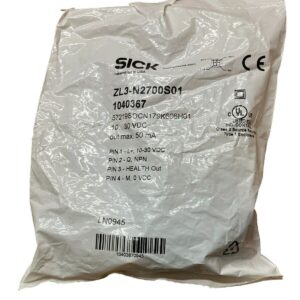

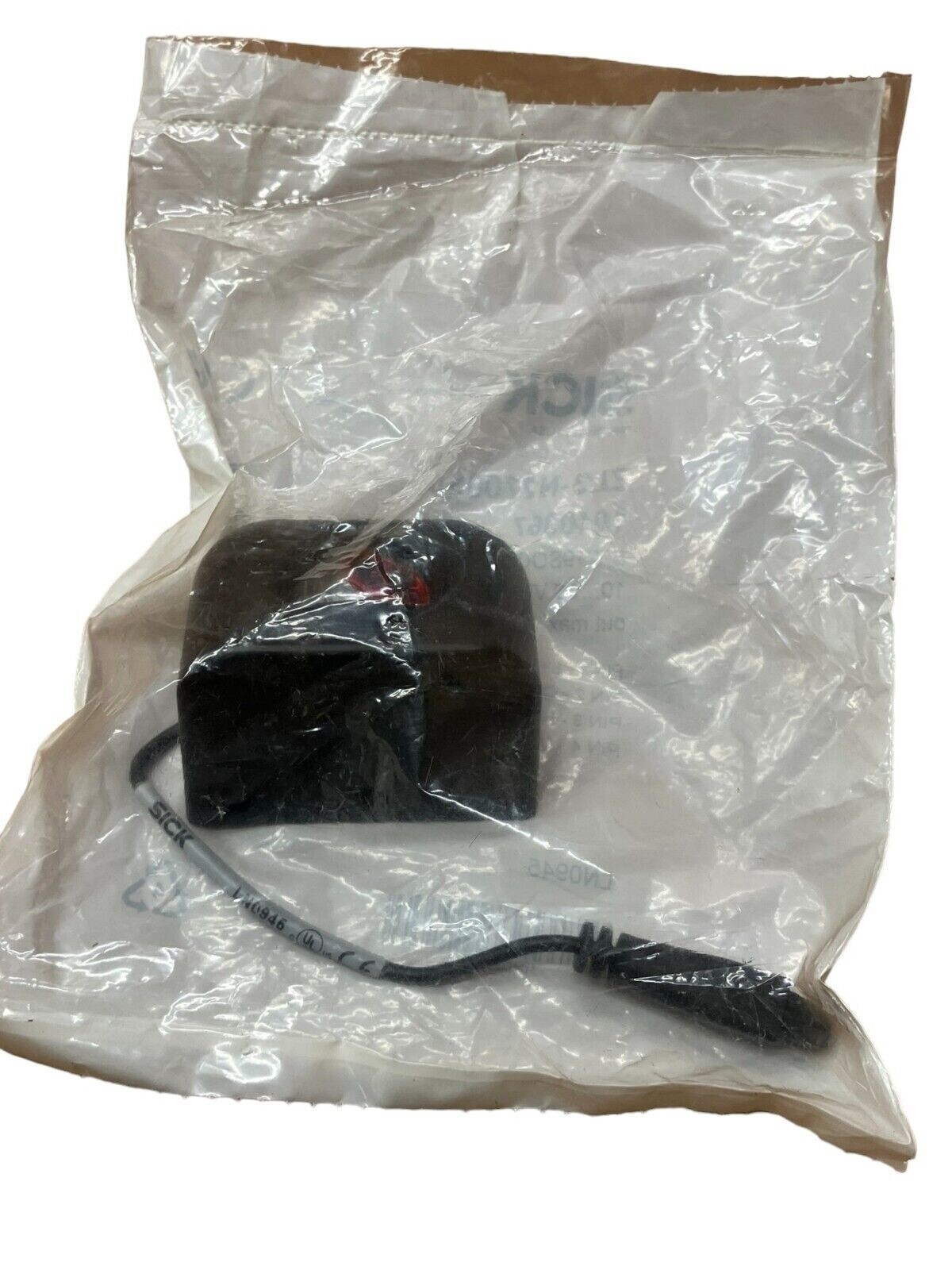

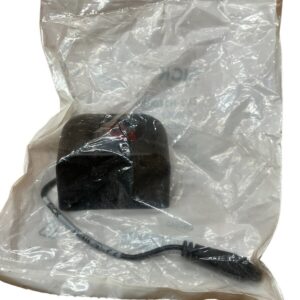

The Sick ZL3-N2700S01 is a compact reflective photoelectric sensor part of Sick’s ZL3 Z-Sensor family. This unit is designed for detecting the presence of objects using reflected light, making it suitable for a wide range of industrial automation and motion control applications. The sensor operates with standard 3-wire connection and is commonly integrated into production lines, assembly systems, and automated machinery where reliable object sensing is required.
Key Features
- Reflective (retroreflective) detection mode for long-range sensing
- Compact form factor ideal for space-constrained installations
- Standard 3-wire PNP or NPN output configuration
- Wide voltage supply range suitable for 12–24 VDC industrial systems
- Compatible with standard reflectors and reflective tape for flexible mounting
- CE-marked for industrial environments
Technical Specifications
The following specifications apply to this Sick Z-Sensor model:
- Manufacturer: Sick AG
- Part Number: ZL3-N2700S01
- EAN / Order Code: 1040367
- Series: Sick ZL3 Z-Sensor
- Detection Type: Reflective (retroreflective)
- Output: Digital switching output
- Supply Voltage: 10–30 VDC
- Output Type: PNP or NPN (contact factory or distributor for wiring confirmation)
- Response Time: Typical microsecond range (consult datasheet)
- Operating Temperature: –25 to +70 °C
- Ingress Protection: IP65 or IP67 (verify with distributor)
- Certification: CE
Typical Applications
The Sick ZL3-N2700S01 is used across multiple industries for object detection tasks:
- Automated assembly lines and conveyor systems
- Packaging and labeling equipment
- Material sorting and presence detection
- Machine guarding and safety interlocks
- Part counting and production monitoring
- Robotic pick-and-place operations
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and Micro850 controllers with standard 24 VDC I/O modules
- Siemens S7-1200, S7-1500, and LOGO! control systems
- Mitsubishi FX, Q-series, and iQ-R PLCs
- Omron CP-series, CJ-series, and NX-series programmable controllers
- Schneider Electric Modicon M200, M241, and M251 controllers
- Generic 24 VDC industrial automation systems with standard digital inputs
- Sick IO-Link masters and gateways (if equipped with IO-Link variant)
Replaces / Drop-In Replacement For
Verify with your system integrator before ordering to confirm cross-compatibility. Known similar part numbers in the Sick ZL series include ZL1 and ZL2 models, though wiring and sensing range may differ. Contact Sick technical support or your authorized distributor with your existing part number for precise replacement verification.
Works With
- Standard 3-wire digital I/O wiring harnesses
- Sick reflectors: PL20A, PL40A, PL80A, and P250
- Sick reflective tape REF-Plus for flexible mounting surfaces
- IO-Link communication protocol (if applicable to this variant)
- Standard industrial control software: Studio 5000, TIA Portal, Automation Studio, GX Developer, EasyBuilder
