Overview

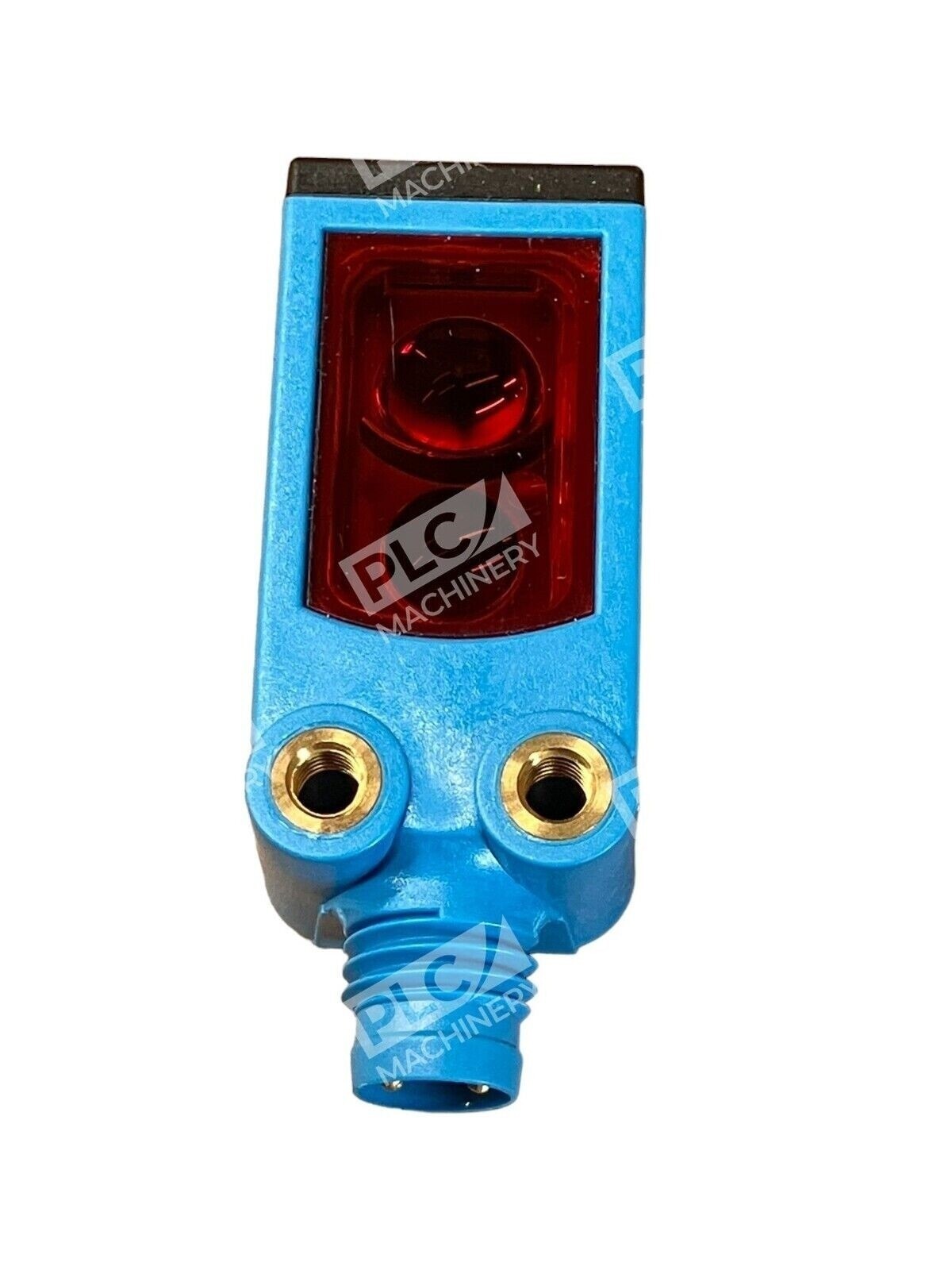

The Sick WTB4-3P2262S41 is a compact photoelectric proximity sensor from Sick’s W4 series, engineered for reliable object detection in industrial automation applications. This sensor uses ASIC and PinPoint LED technologies to provide reliable object detection of transparent and glossy objects like blisters, e-cards and aluminum cans. With optical axes on the flat side, it enables simple, space-saving integration in machine environments—even without mounting brackets.
Key Features
- Best background suppression sensor in its class with laser-like light spot for precise detection tasks

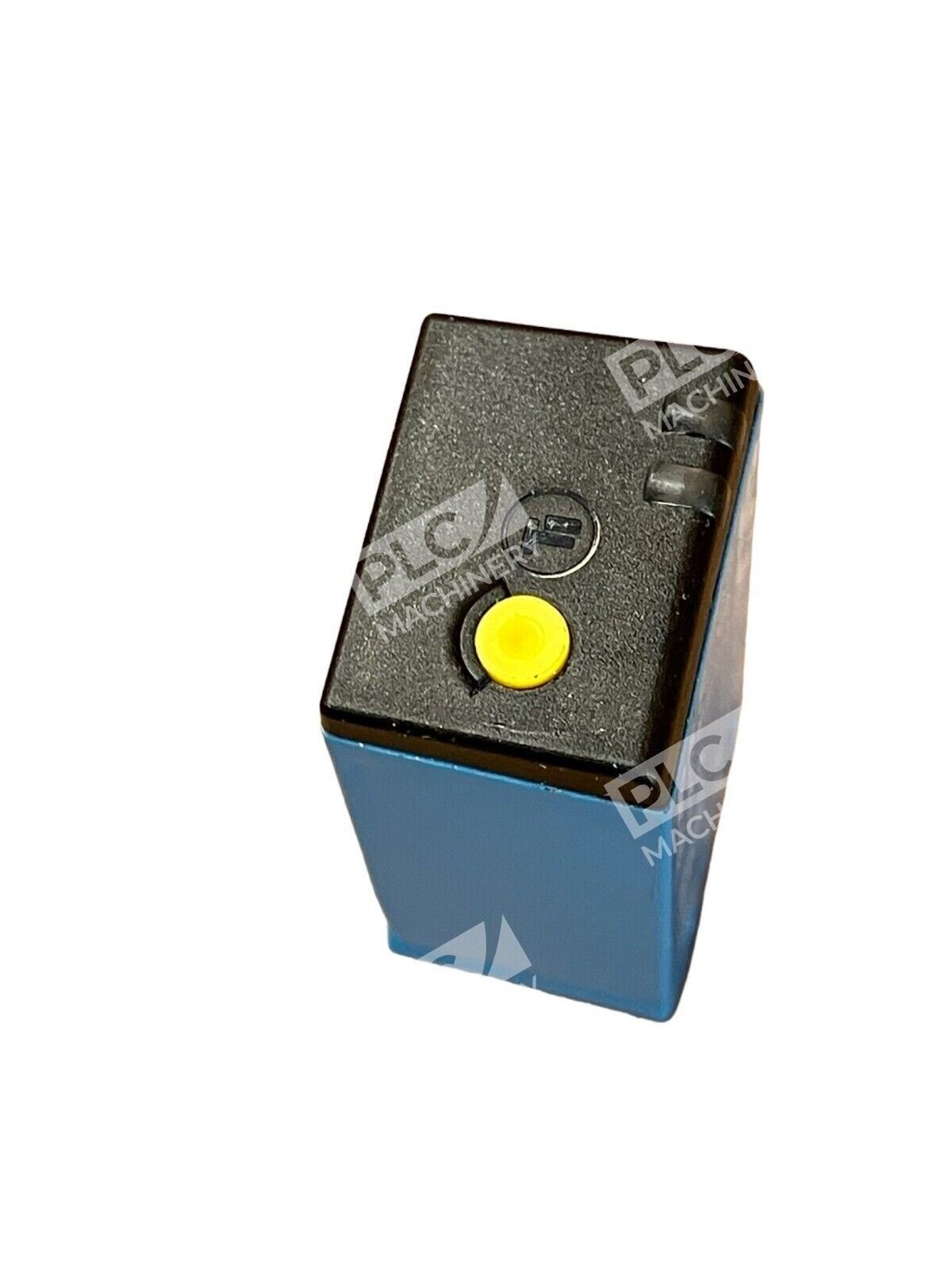

- PinPoint LED technology with flexible sensor settings via 5-turn potentiometer, teach-in button, or IO-Link
- Miniature rectangular housing (16 × 39.5 × 12 mm) for tight installation spaces
- PNP digital output with complementary output function, response time <0.5 ms, and 1,000 Hz switching frequency
- Maximum output current ≤100 mA with circuit protection features

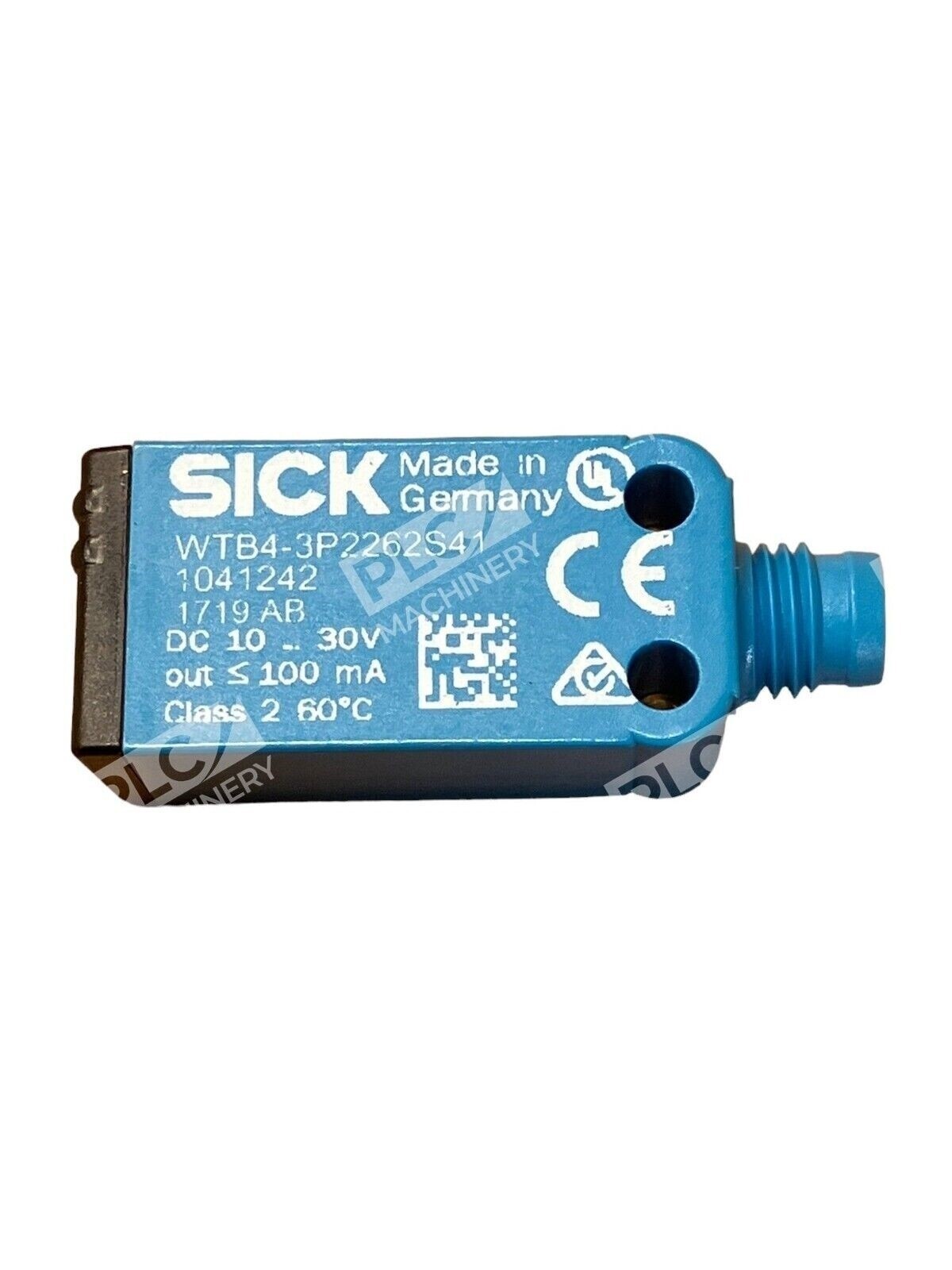

Technical Specifications
- Sensor Type: Photoelectric background suppression (BGS)
- Light Source: PinPoint LED, 650 nm visible red light
- Sensing range: 15–150 mm (adjustable)
- Supply Voltage: 10–30 VDC
- Current Consumption: 20 mA
- Output Type: PNP
- Max Output Current: ≤100 mA
- Response Time: <0.5 ms
- Switching Frequency: 1,000 Hz
- Enclosure Rating: IP67
- Housing: ABS plastic, rectangular design

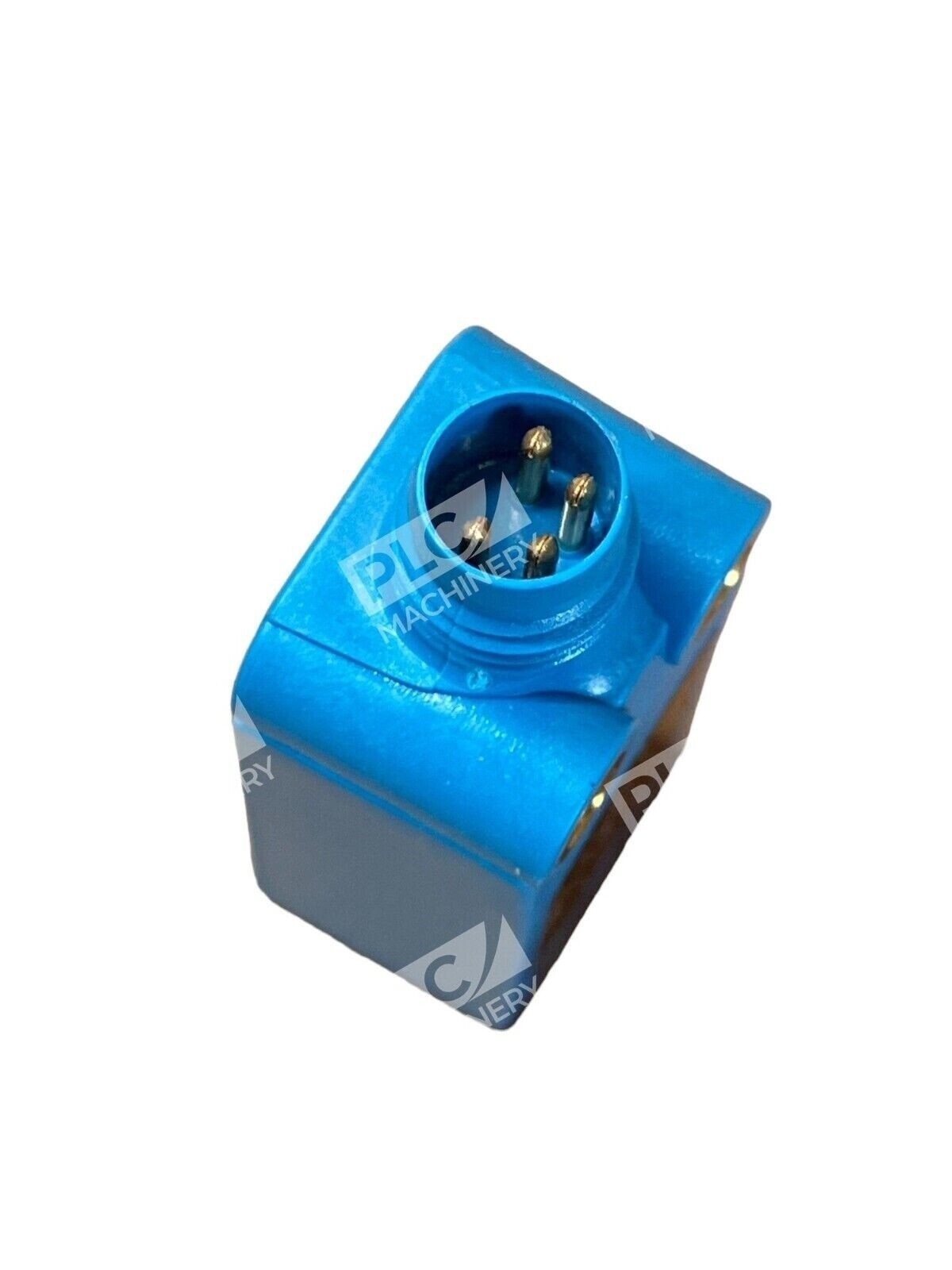

- Connection: M8, 3-pin connector (note: suffix S41 indicates specific configuration)
- Dimensions: 16 × 39.5 × 12 mm (W × H × D)
Typical Applications
The WTB4-3P2262S41 is suited for detecting transparent and glossy objects such as blisters, e-cards, and aluminum cans. Common uses include:
- Packaging and labeling equipment
- Pharmaceutical assembly and inspection
- Food and beverage production
- Automotive component detection
- High-speed sorting and quality assurance systems
Compatibility & Replacements
Compatible With
- Standard PLC systems supporting 10–30 VDC digital inputs (24 VDC logic)
- Automation controllers with PNP input modules
- Sick IO-Link enabled systems and gateways
- Industrial edge devices and motion control systems
Replaces / Drop-In Replacement For
The WTB4-3P2262S41 is a specific variant of the Sick WTB4-3P2262 series. This model is discontinued by the manufacturer, but it may serve as a replacement or upgrade for other WTB4-3 series sensors depending on your application requirements. Verify pin configuration and sensing characteristics with your system integrator before installation.
Works With
- Sick IO-Link diagnostic and configuration tools
- EtherNet/IP and PROFINET gateways (via IO-Link connectivity)
- Standard 24 VDC industrial control systems
- PLC programming software with digital I/O modules
- Sick remote teach and monitoring software
