<h2>Overview</h2>
<p>The Sick MZT1-03VPS-KWOA01 is a magnetic cylinder sensor assembly engineered for precision position sensing in pneumatic cylinder applications. This dual-sensor configuration delivers redundant feedback for critical automation processes, making it ideal for safety-critical systems and high-reliability motion control. The sensor integrates two independent magnetic detection units into a single assembly, each with dedicated wiring terminated in a single 4-pin male connector interface.</p>
<h2>Key Features</h2>
<ul>
<li>Dual magnetic sensor design for redundant cylinder position detection</li>
<li>Compatible with T-slot profile cylinders for universal mounting</li>
<li>6 total sensor wires consolidated into 4-pin male connector</li>
<li>Extended 39-inch cable length for flexible installation</li>
<li>Sealed connector design for industrial environment protection</li>
<li>Proven Sick engineering for automotive, packaging, and material handling systems</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li>Operating Temperature Range: -25°C to 80°C</li>
<li>Rated Voltage: 300V</li>
<li>Sensor Configuration: Dual assembly (2 mounted sensors)</li>
<li>Cable Length: 39 inches (approximately 1 meter)</li>
<li>Connector Type: 4-pin male connector</li>
<li>Wiring: 3 wires per sensor (6 total)</li>
<li>Mounting: T-slot cylinder profile compatible</li>
<li>Manufacturer: Sick AG (Germany)</li>

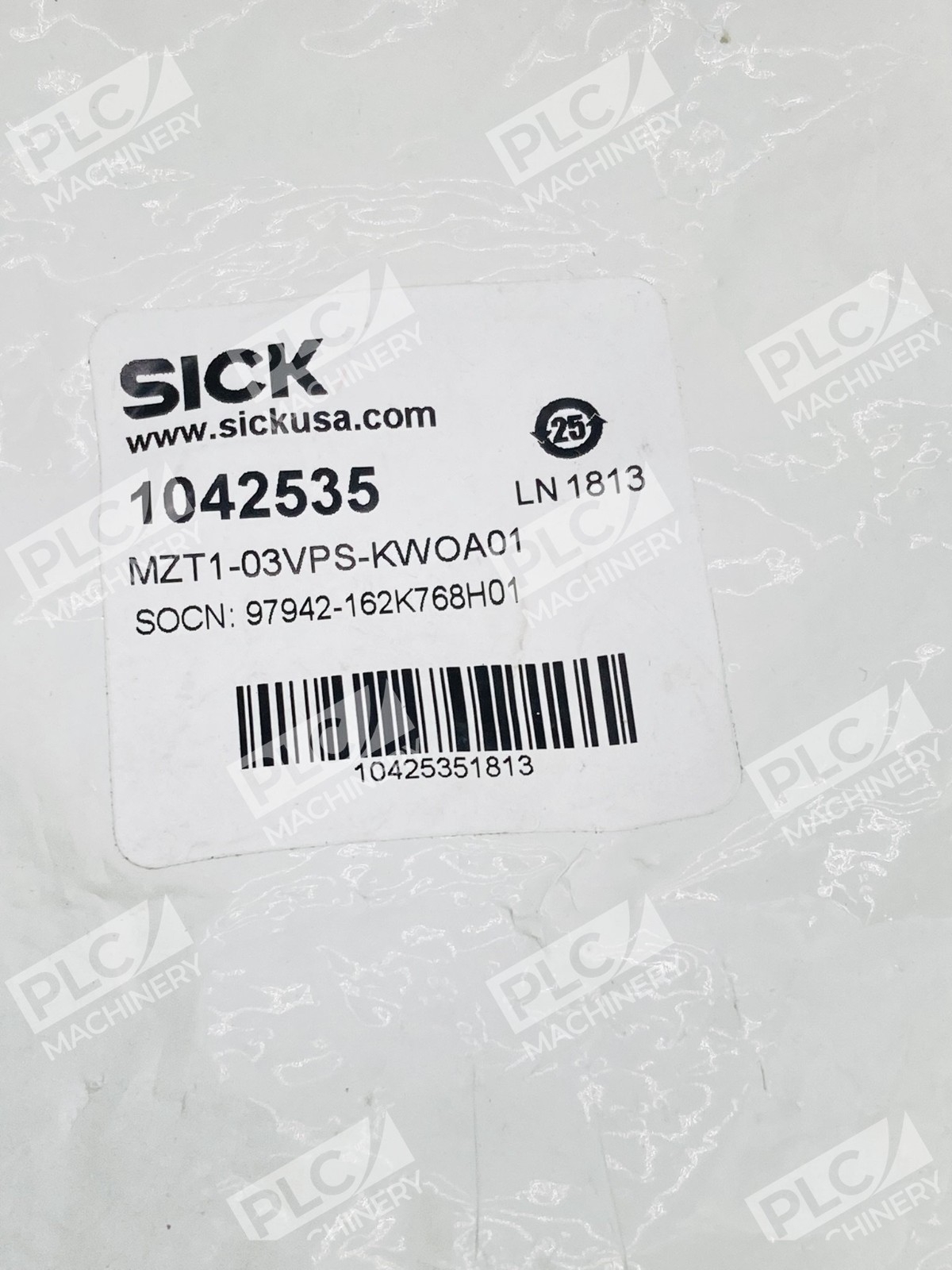

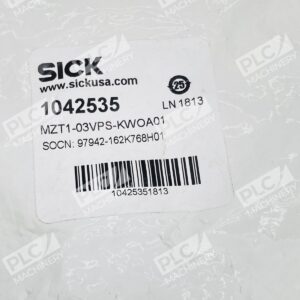

<li>Part Number: MZT1-03VPS-KWOA01</li>
<li>SICK Reference Number: 1042535</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Pneumatic cylinder end-of-stroke detection in automated assembly lines</li>
<li>Pick-and-place machine position feedback and synchronization</li>
<li>Material handling conveyor systems with pneumatic actuators</li>
<li>Packaging machinery requiring dual-channel position monitoring</li>
<li>Safety-critical applications demanding redundant sensor feedback</li>
<li>Automotive production tooling and press automation</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Festo DSBC, DNCB, and ISO 6432 T-slot cylinders</li>
<li>SMC CQ series and CQ-P series T-slot profile cylinders</li>
<li>Parker D1MP and D1FP T-slot cylinders</li>
<li>Bosch Rexroth Mecman series T-slot profile actuators</li>
<li>Most standard industrial PLC and motion controller systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Previous Sick MZT1-03VPS sensor assembly configurations</li>
<li>Refurbished or end-of-life dual sensor position detection modules</li>
<li>Verify compatibility with your specific cylinder and control system before ordering.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Analog and digital input modules on Allen-Bradley, Siemens, and Mitsubishi PLCs</li>
<li>Direct wiring to pneumatic valve manifold electronics</li>
<li>Standard relay logic and programmable controller I/O</li>
<li>24 VDC sensor power supply systems</li>
</ul>
