Overview
The Sick CDM410-0001 (part number 1025361) is a modular connection module engineered to integrate CLV41x code readers with PLC systems, CAN scanner networks, or host computers. This connection device simplifies sensor connectivity while maintaining rugged industrial reliability.
Key Features
- Modular design accommodates optional CMP power supply modules for expanded functionality
- IP65 polycarbonate housing protects against dust and water ingress in harsh environments
- 15-pin D-Sub HD female scanner connector with internal 9-pin service plug interface
- Compact footprint: 192 mm × 167 mm × 70 mm for flexible mounting in control cabinets
- Serial communication support (RS-232, RS-422, RS-485) for multiple network topologies
- Minimal power overhead—adds only 0.5 W to sensor power consumption
Technical Specifications

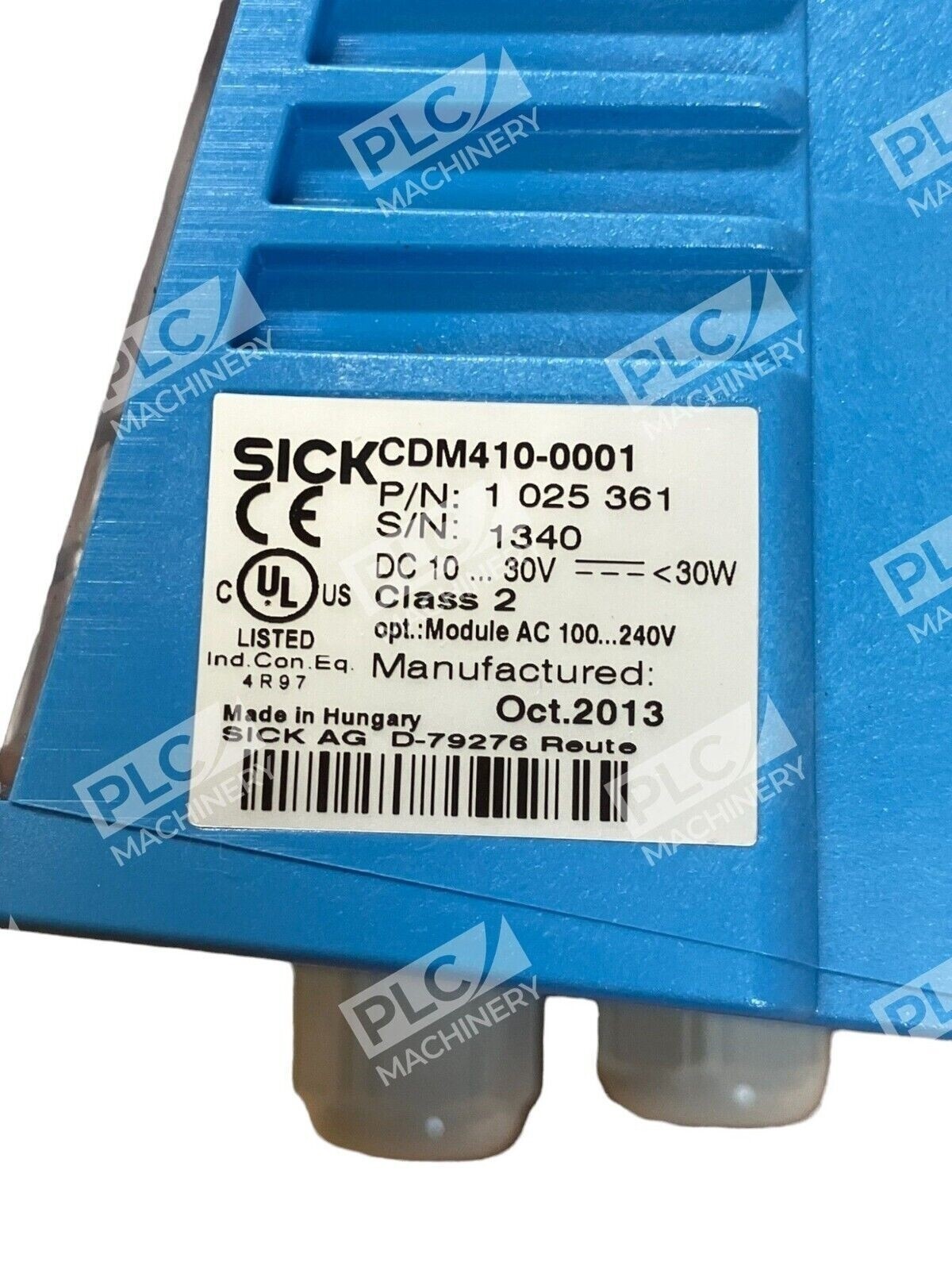

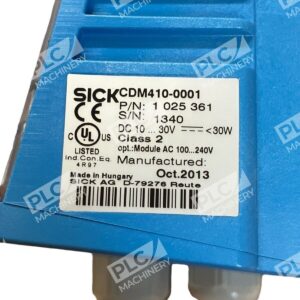

- Model: CDM410-0001 (1025361)
- Supported Devices: CLV41x barcode scanners
- Enclosure Rating: IP65 (DIN 40050)
- Housing Material: Polycarbonate
- Protection Class: III

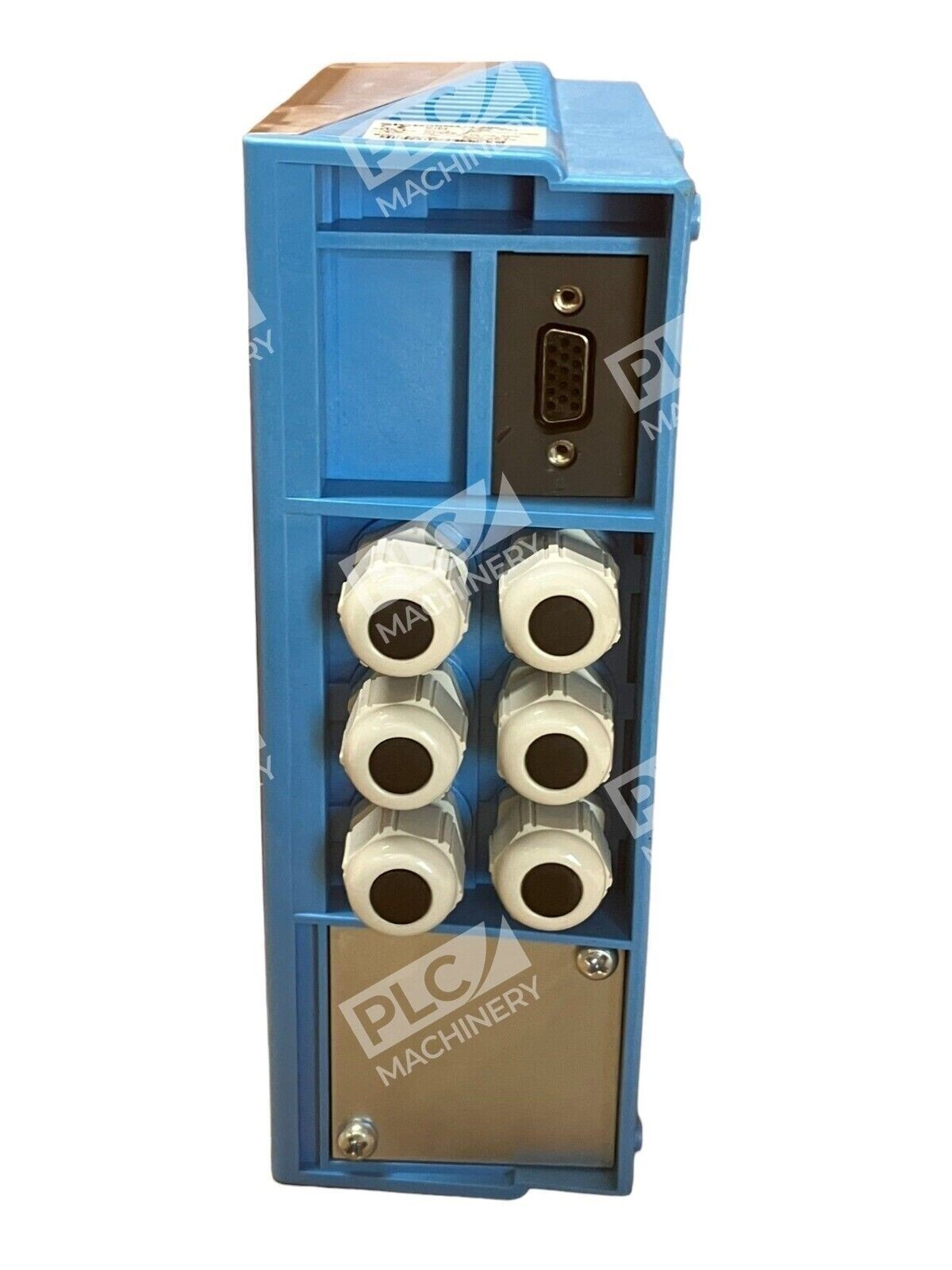

- Scanner Connection: 15-pin D-Sub HD female connector
- Service Interface: 9-pin D-Sub plug (internal)
- Power Consumption: 0.5 W (plus connected sensor)
- Dimensions (L × W × H): 192 mm × 167 mm × 70 mm
- Weight: 800 g
- Serial Interfaces: RS-232, RS-422, RS-485

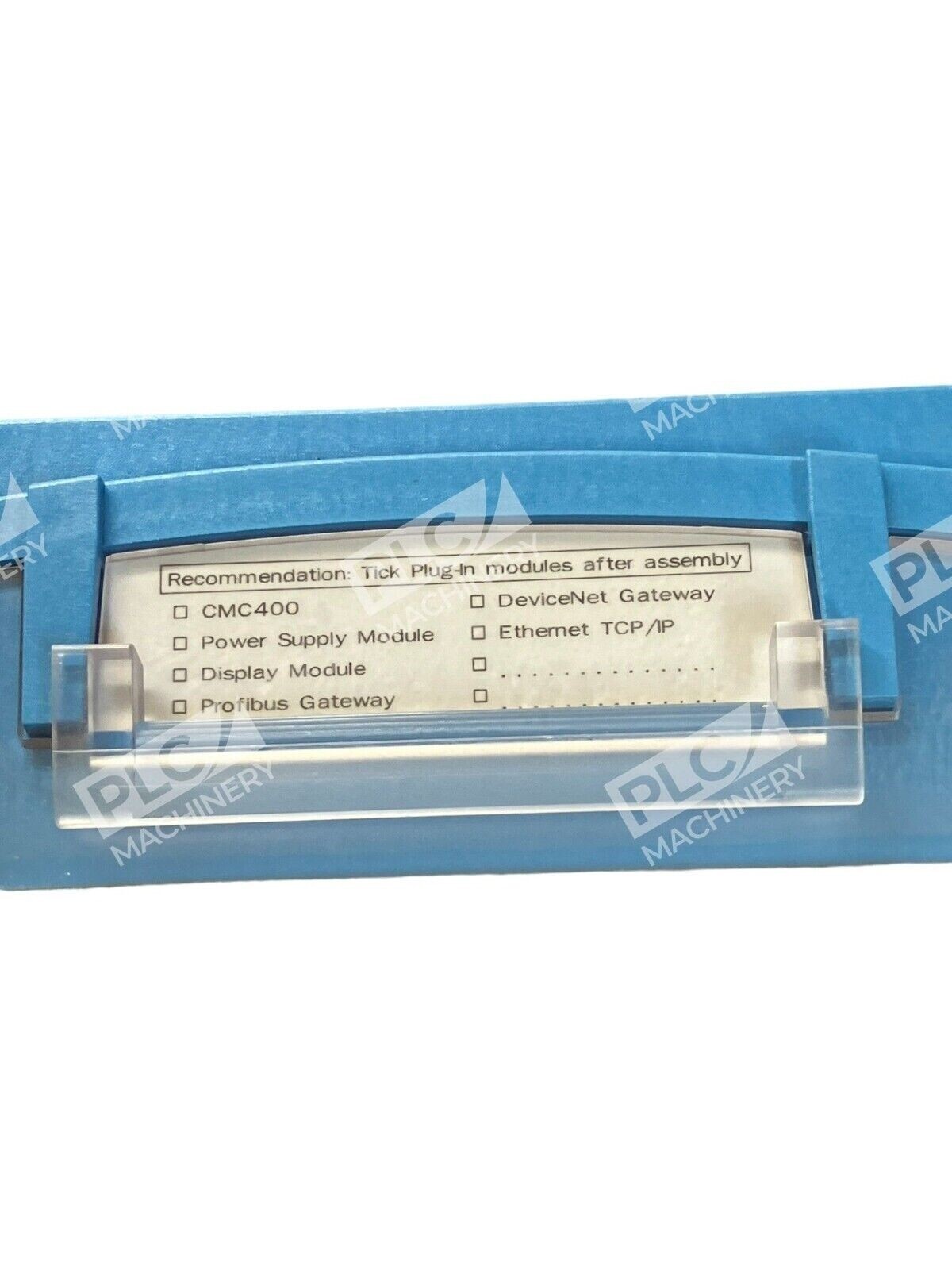

- Module Support: CMP power supply modules (optional)
- Standards Compliance: EN 61140, EN 60529
Typical Applications
The CDM410-0001 is ideal for factory automation, supply chain operations, and inventory management systems requiring reliable barcode or RFID data capture. Common deployments include:
- Assembly line code reader integration with PLC control systems
- Warehouse sorting and shipping verification stations
- Machine tool identification and traceability
- Production line part tracking and genealogy
- Logistics hub package handling and routing
Compatibility & Replacements
Compatible With
- CLV41x barcode scanner family
- PLC systems supporting serial communication protocols (RS-232, RS-422, RS-485)
- CAN scanner networks via direct host interface
- Host computers with standard serial or USB-to-serial adapters
- CMP power supply modules for extended functionality
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CDM410-0001 is designed specifically for CLV41x scanner families; do not assume interchangeability with CDM420, CDM490, or other CDM series modules without consulting Sick technical documentation.
Works With
- SICK SCANware configuration software
- Industrial Ethernet (via optional fieldbus gateway modules)
- Serial communication over RS-232, RS-422, RS-485
- Modular power supply systems (CMP400, CMP490)
- SICK sensor integration platforms and PLC automation software
