Overview

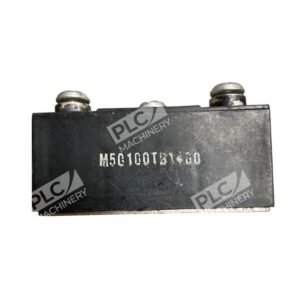

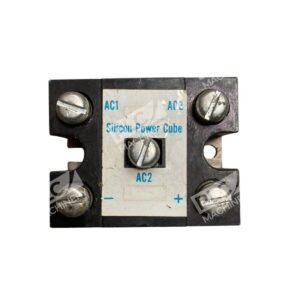

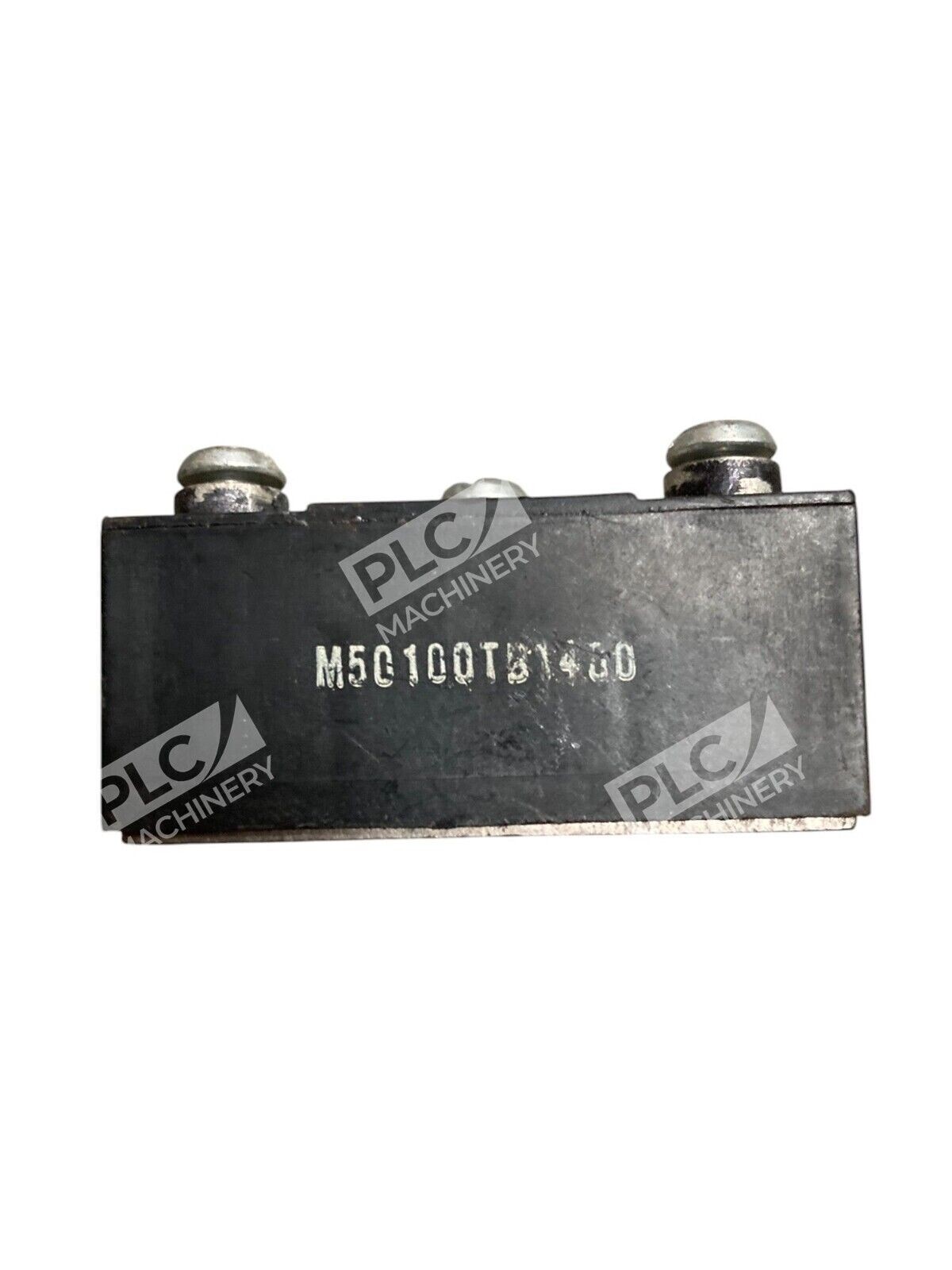

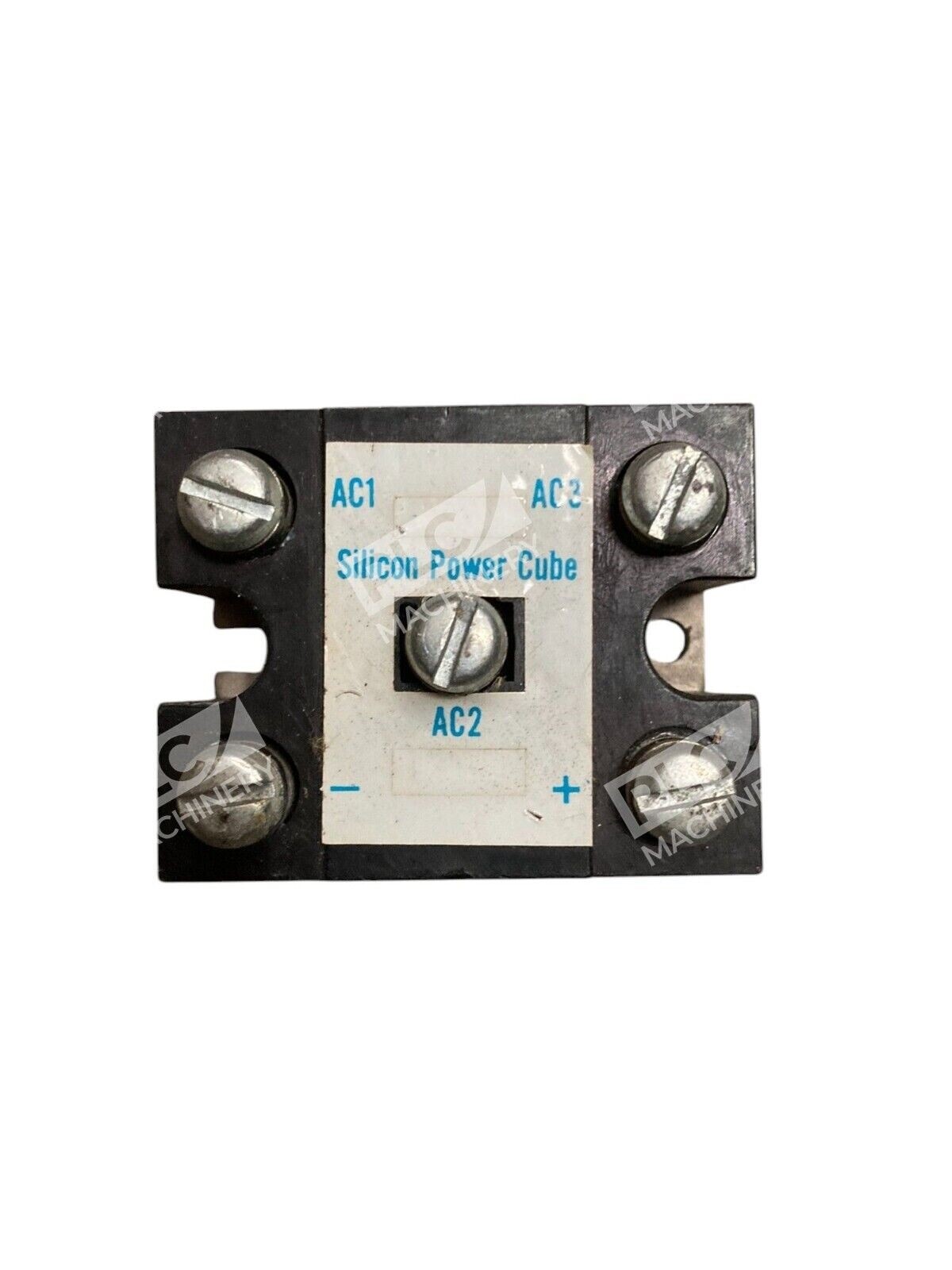

The Sensata M50100TB1400 is a high-capacity power diode module engineered for demanding industrial applications. As part of the M50 Diode Series, this three-phase bridge rectifier delivers robust rectification performance with ratings up to 100 Amps and 1400V capability. The module employs silicon-based power semiconductor technology optimized for motor control, industrial power supplies, and high-current rectification systems.
Key Features
- 100 Amp maximum load current rating
- Three-phase bridge rectifier configuration
- 1400V voltage capability
- Efficient thermal management for extended service life
- High surge current capability for transient protection
- Screw-mount terminal connection for industrial installations
- Silicon-based power semiconductor technology
Technical Specifications
The M50100TB1400 is optimized for applications requiring reliable three-phase AC to DC rectification. Sensata’s M50 Series modules are recognized for high surge capability, compact design, and dependable performance in electrical power conversion systems. The module features screw-mount construction for secure installation in control cabinets and industrial equipment.
Typical Applications
- Industrial motor control circuits
- High-power DC power supplies
- Three-phase rectification systems
- Heavy-duty industrial power electronics
- OEM equipment rectifier modules
Compatibility & Replacements
Compatible With
- Industrial AC power systems (three-phase)
- Motor control and drive circuits
- DC power supply designs requiring high current rectification
- Industrial control cabinets and switchgear
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manufacturer before ordering. The M50 Series includes multiple voltage configurations (M50100TB1200, M50100TB1600) for different application requirements.
Works With
- Three-phase AC input systems
- Industrial PLC and motion control systems
- Power distribution and protection schemes
- UL-recognized industrial equipment designs
