Overview

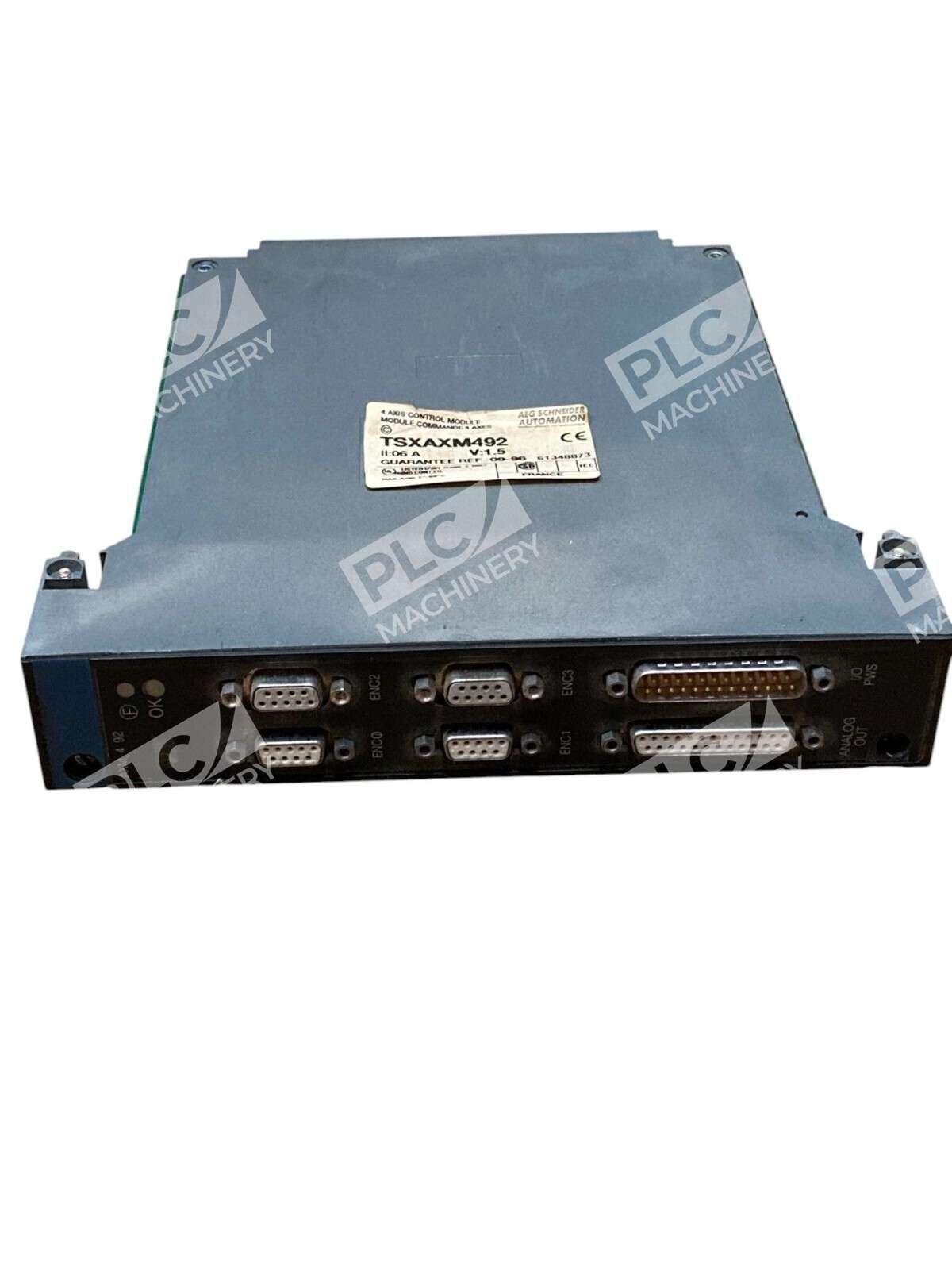

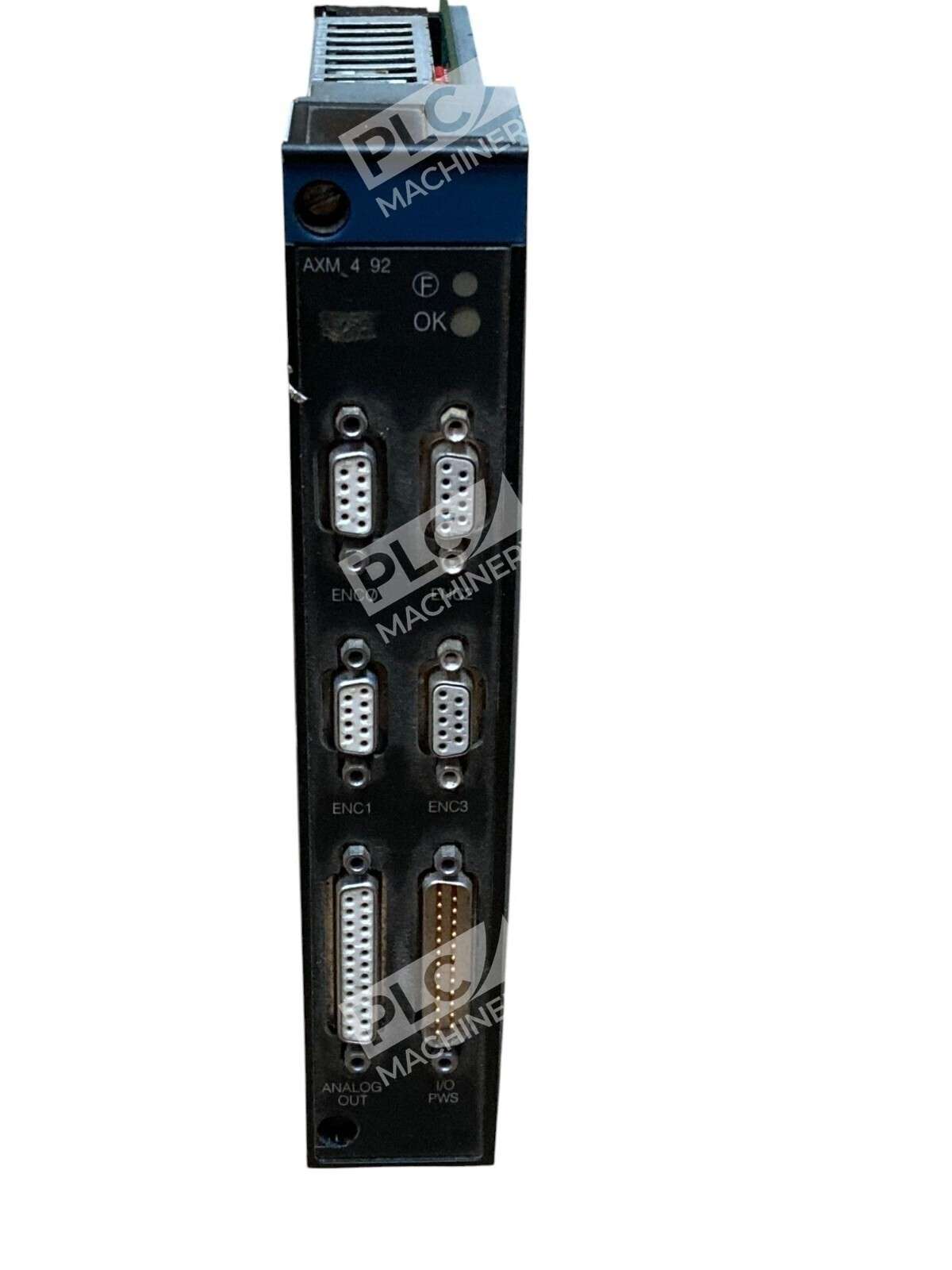

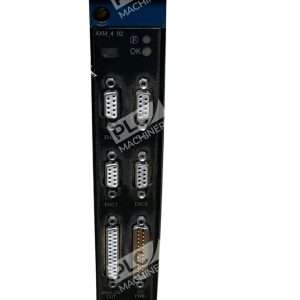

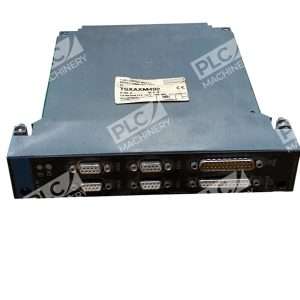

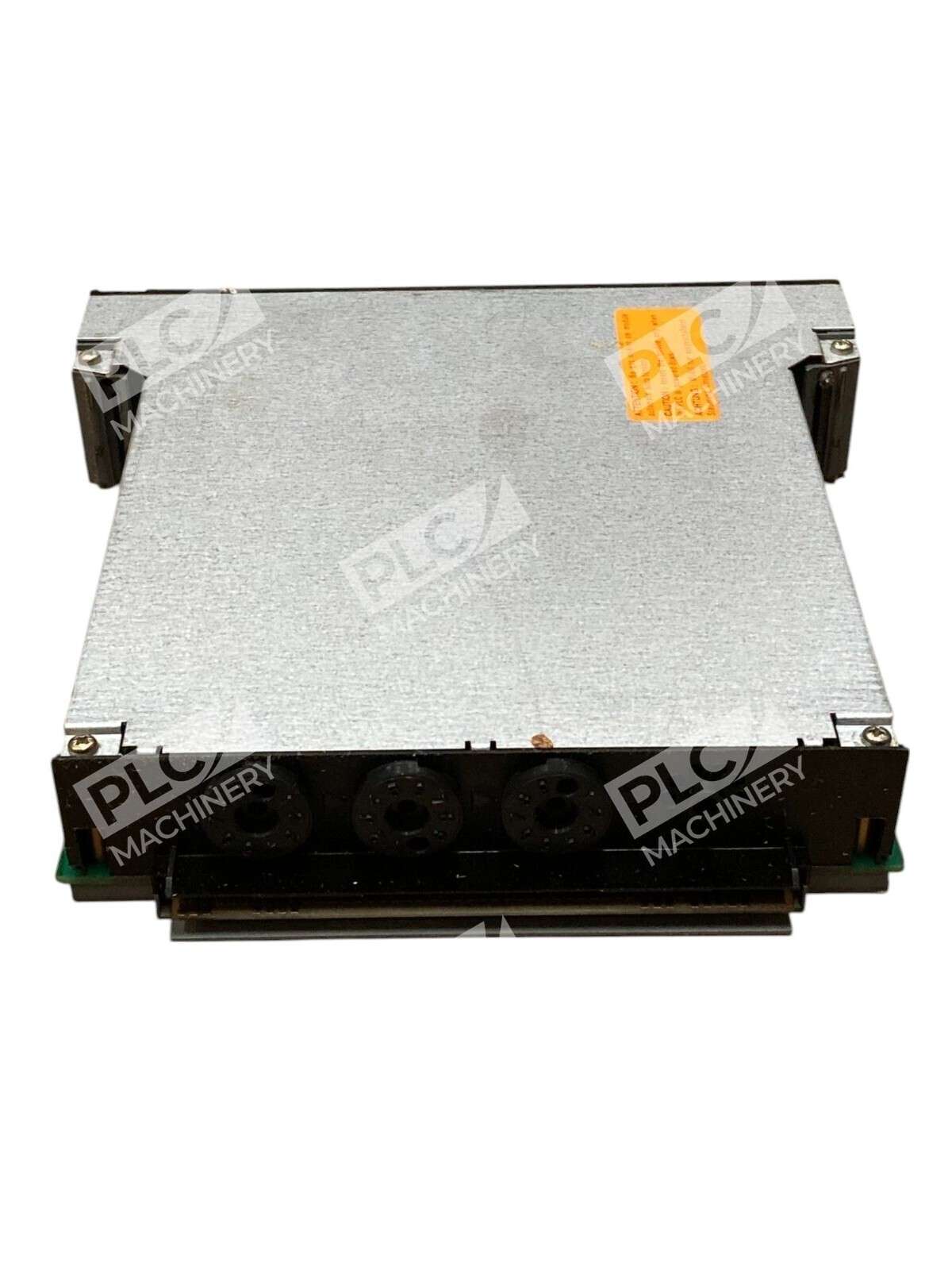

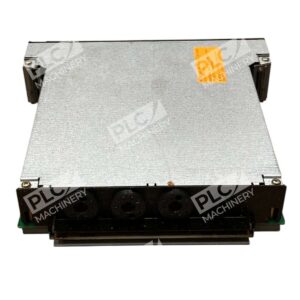

The Schneider TSXAXM492 is a specialized 4-axis control module engineered for integration with Modicon Premium Series programmable logic controllers. This motion control expansion module delivers precise command of multiple axes, making it ideal for complex motion control applications in packaging, material handling, and textile machinery. The module communicates via Modbus Plus with Modicon PLCs, ensuring reliable data exchange and simplified programming integration.
Key Features
- 4-axis synchronized and independent motion control with advanced positioning profiles including electronic camming and linear interpolation
- Analog inputs (0–5V DC) and analog outputs (±10V DC) for seamless sensor and actuator integration
- Relay outputs for discrete control signaling and coordinated multi-axis applications
- 14-bit resolution for accurate and precise motion parameter control
- Modbus Plus network communication for robust integration into existing Modicon systems
- Drop-in compatibility with TSX7 series and Modicon Premium PLC platforms
Technical Specifications
- Module Type: 4-Axis Motion Control Expansion Module
- Analog Input Range: 0–5V DC
- Analog Output Range: ±10V DC
- Output Configuration: Relay Outputs
- Resolution: 14-bit
- Communication Protocol: Modbus Plus
- Compatible Series: Modicon TSX / Modicon Premium
- Weight: 3.2 lbs
- Status: Discontinued by Manufacturer
Typical Applications
- Packaging Machinery: Multi-axis positioning and synchronized control for labeling, sealing, and wrapping operations requiring coordinated motion
- Material Handling Systems: Conveyor synchronization, robotic arm coordination, and pick-and-place automation with precise feedback control
- Textile Machinery: Spindle and tension control, pattern generation, and automated fabric processing with real-time axis monitoring
- Industrial Process Automation: Any application requiring smooth, interpolated multi-axis coordination with analog sensor feedback
Compatibility & Replacements
Compatible With
- Modicon TSX7 series PLCs
- Modicon Premium Series controllers
- Modbus Plus fieldbus networks
- Systems using encoder feedback for position monitoring
- DIN rail-mounted Modicon rack configurations
Replaces / Drop-In Replacement For
The TSXAXM492 is a standalone 4-axis motion module for Modicon systems. Verify compatibility with your system integrator before ordering if replacing a different axis control module. This unit is no longer manufactured; used inventory represents the primary available source.
Works With
- Modicon programming software and IEC 61131-3 compatible tools
- Modbus Plus network communication
- PLC expansion rack systems and DIN rail mounting
- 0–5V DC and ±10V DC analog I/O systems
- Relay-based control logic and discrete signaling
