Overview

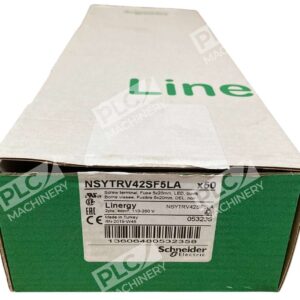

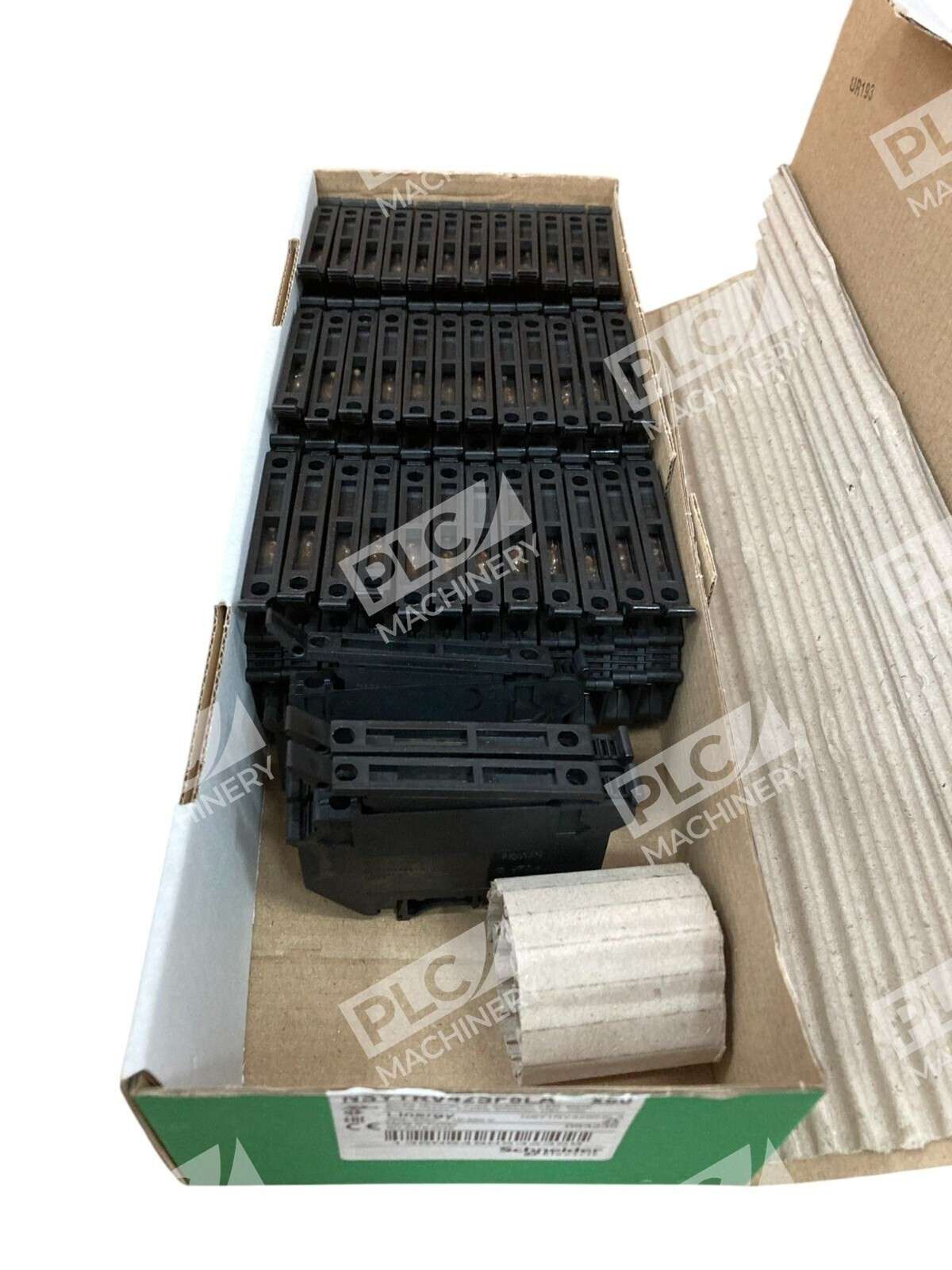

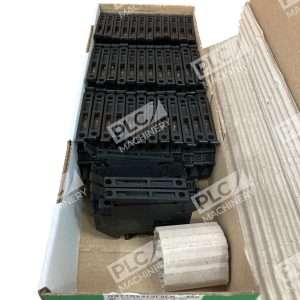

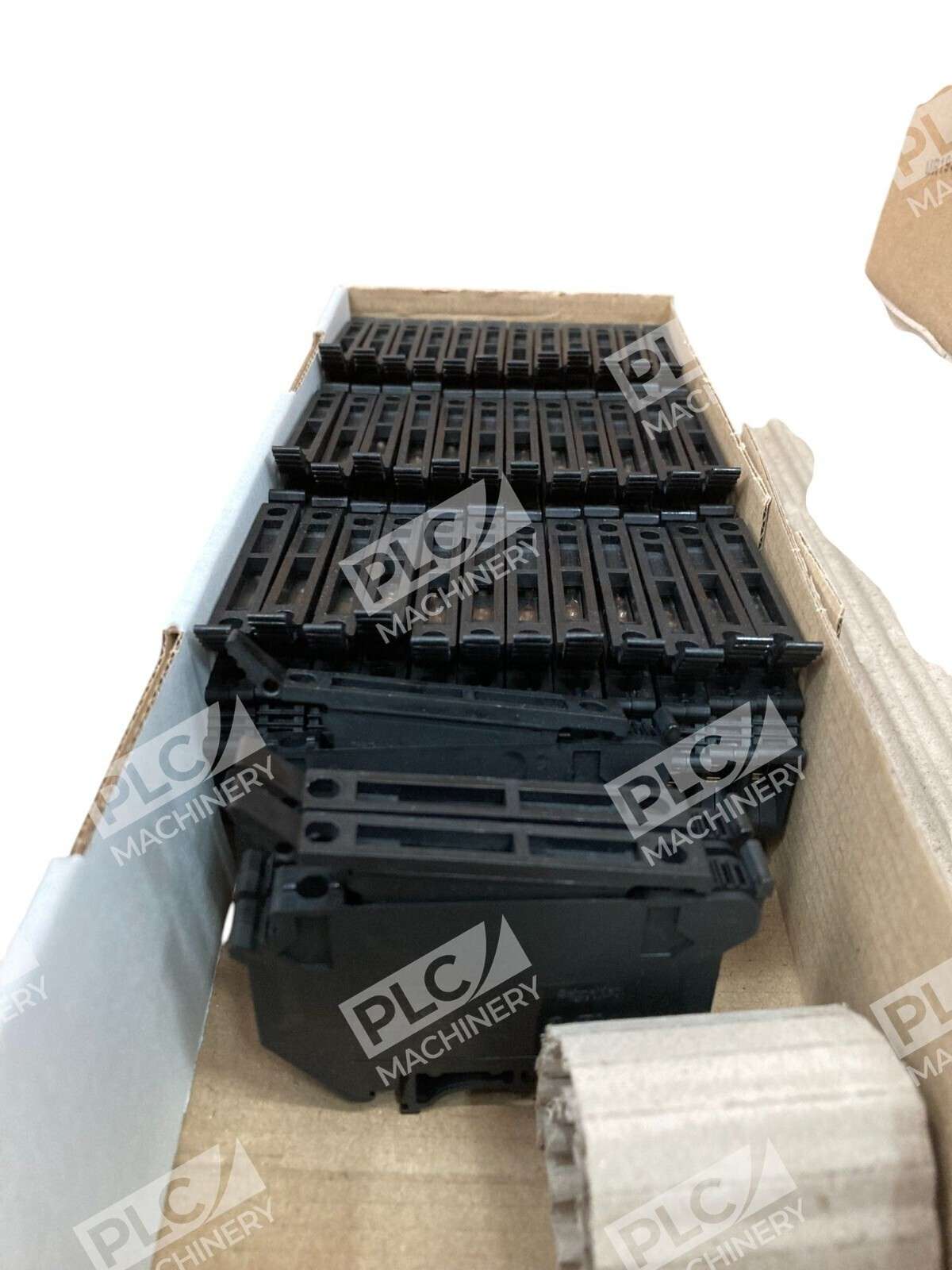

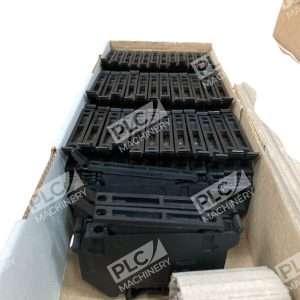

The Schneider NSYTRV42SF5LA is a fused terminal block from the Linergy TR series, engineered for safe fuse disconnect applications in industrial electrical panels and control systems. This single-pole, two-point block provides screw termination with integrated protection and visual fault indication, making it essential for reliable circuit protection in modern control cabinets.
Key Features
- Accepts 5x20mm, 5x25mm, or 5x30mm fuses with UL rating of 12A at 600 volts
- Two-point screw termination for secure wire connections
- Compatible with 26 AWG to 10 AWG wire sizes
- 110 to 250 VAC/DC blown fuse indicator light for fast troubleshooting
- DIN rail mount capability with screwdriver installation
- UL component recognized, CSA certified, and meets IEC requirements
Technical Specifications
- Voltage Rating: 500/600 VAC
- Current Capacity: 6.3A / 12A
- Fuse Size: 5x20mm, 5x25mm, 5x30mm (G-fuse cartridge)
- Number of Poles: 1
- Number of Positions: 2
- Wire Size Range: 2 to 4 sq-mm
- Torque Specification: 0.5 to 0.8 N-m
- Mounting: Clip-On / DIN rail
- Dimensions: 2.22 inches (H) × 0.32 inches (W) × 2.85 inches (D)
- Weight: 0.71 oz per block
- LED Indicator: 110–250 VAC/DC
- Material: Black Polyamide 6.6
- Operating Temperature: -40 to 266°F (-40 to 130°C)
- Certifications: UL, CSA, IEC
Typical Applications
The NSYTRV42SF5LA is widely used in:
- Industrial control panels and motor starter enclosures
- Machinery automation and PLC systems
- Power distribution and circuit protection
- LED lighting control circuits
- Equipment installations requiring fuse disconnect protection
Compatibility & Replacements
Compatible With
- 5x20mm, 5x25mm, 5x30mm G-type fuse cartridges
- Standard 35mm DIN rail systems
- Industrial control cabinets and electrical enclosures
- Linergy TR series terminal block accessories
Replaces / Drop-In Replacement For
The NSYTRV42SF5LA is part of the Linergy TR fused block family. Related models in the same series include NSYTRV42SF5LD. For specific replacement compatibility, verify with system requirements before ordering.
Works With
- Linergy TR terminal block ecosystems
- Standard G-type fuse cartridges (IEC 60127)
- Industrial automation platforms requiring fuse disconnect terminals
- DIN rail mounting infrastructure
