Overview

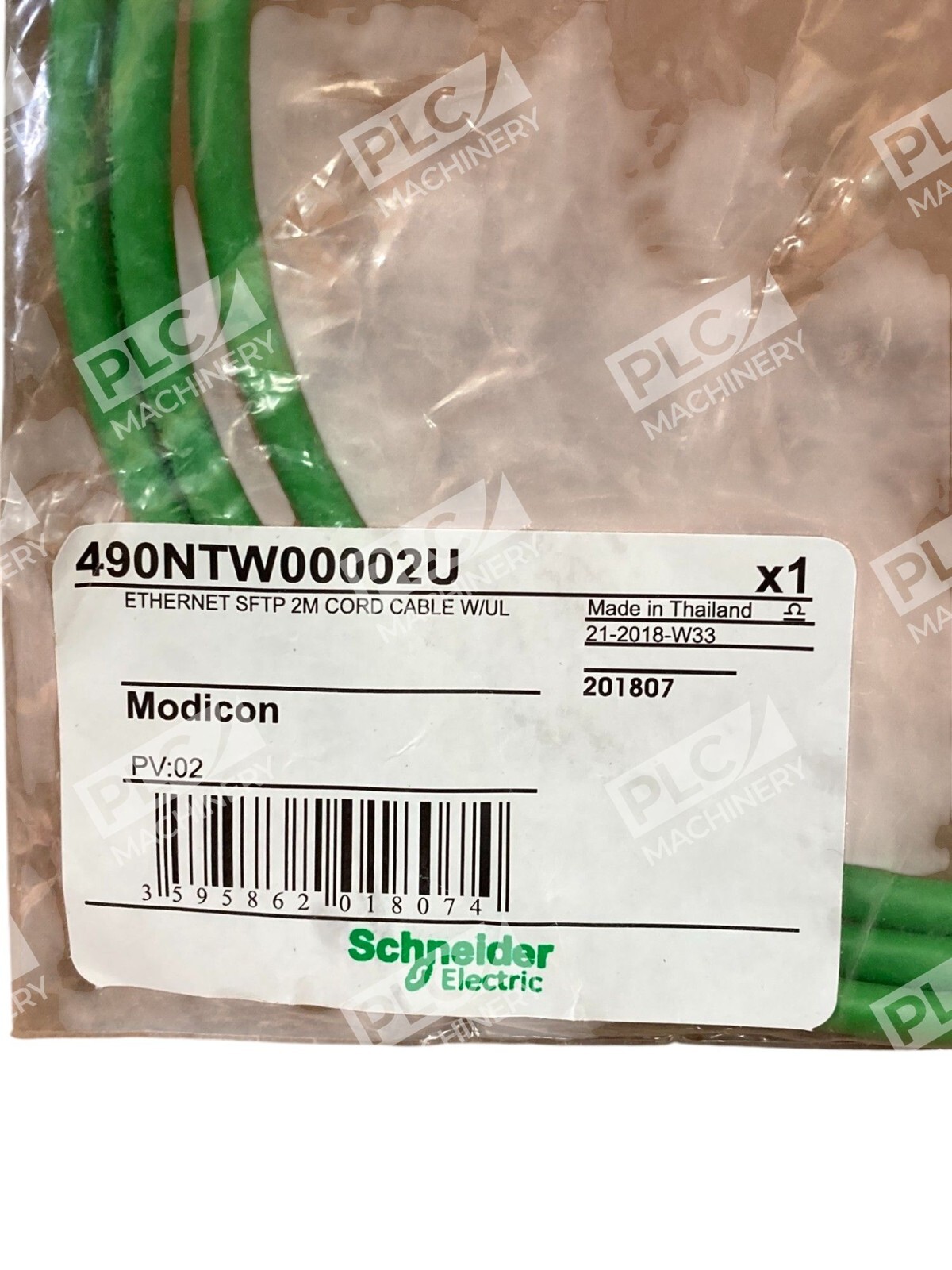

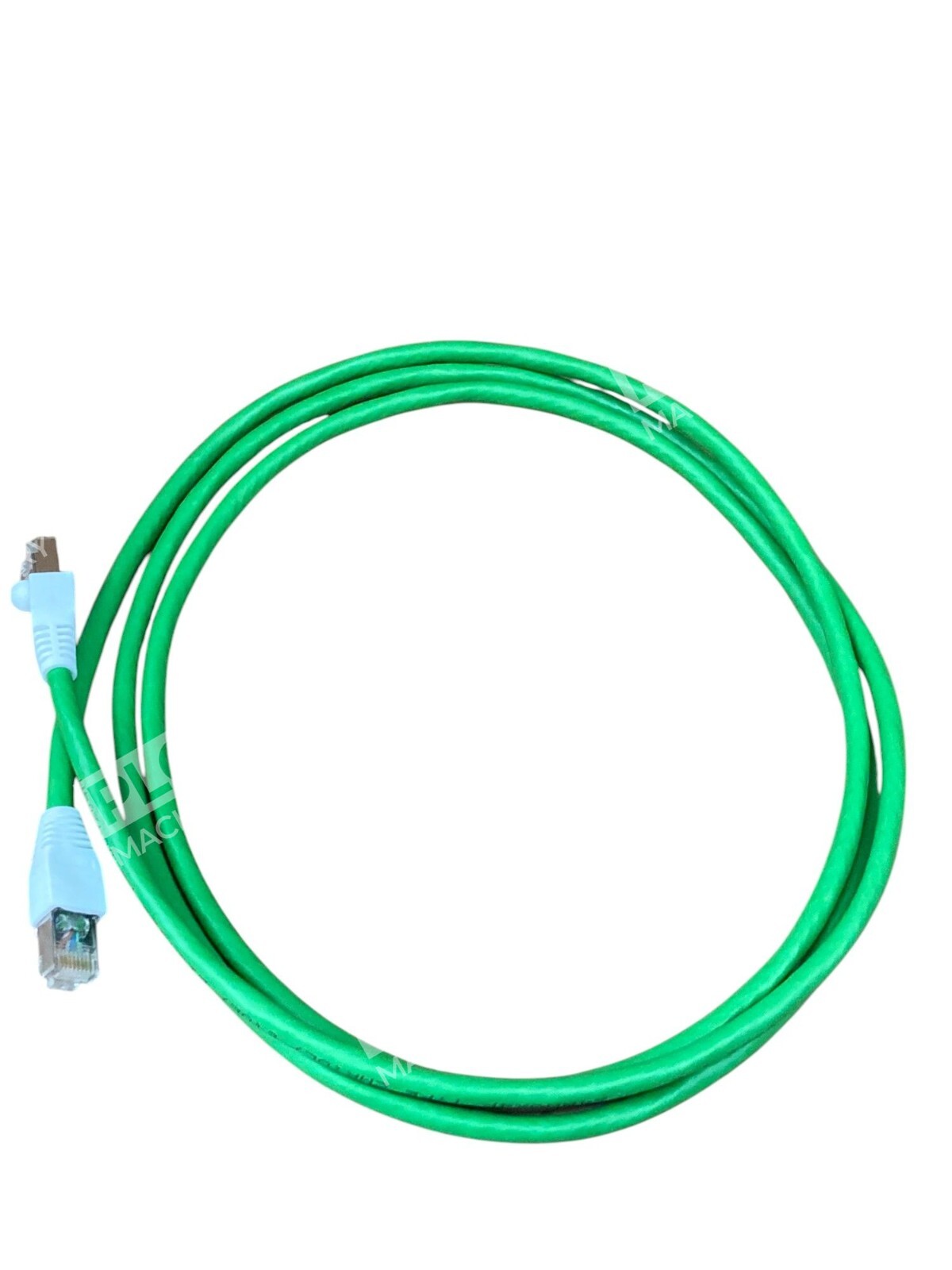

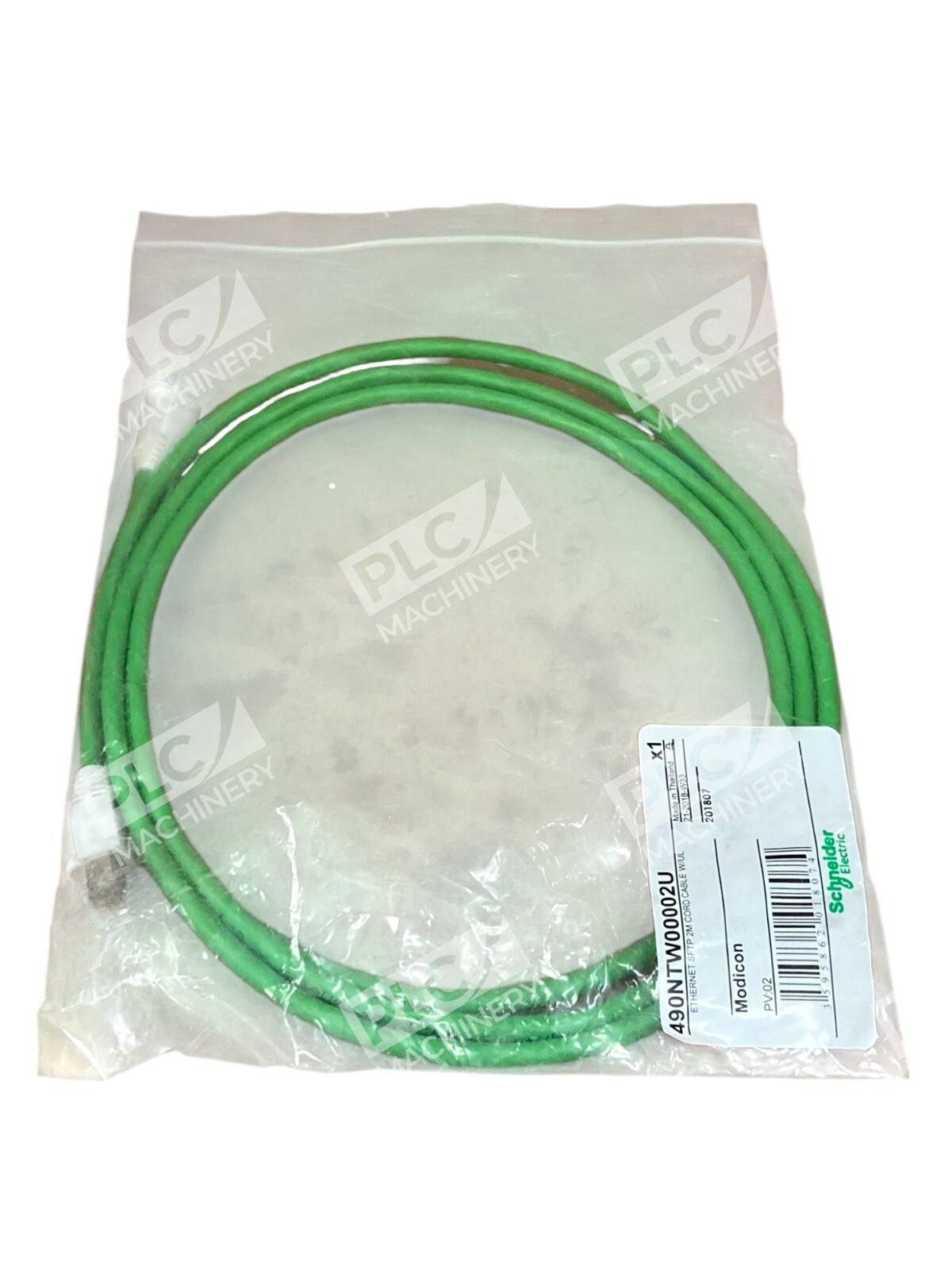

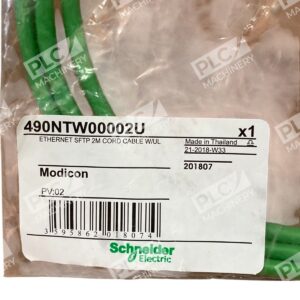

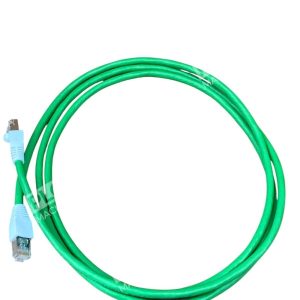

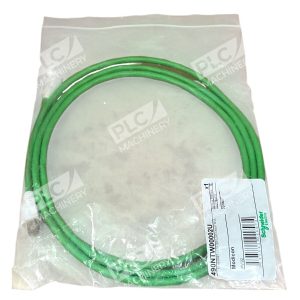

The Schneider Electric 490NTW00002U is an Ethernet ConneXium shielded twisted pair (SFTP) straight cable engineered for industrial automation control systems. With a 2-meter length and dual RJ45 connectors, this cable connects data terminal equipment and networking devices within Modicon Premium Automation platforms. The cable meets UL and CSA standards, making it compliant for North American installations.
Key Features
- Shielded twisted pair (SFTP) construction reduces electromagnetic interference and signal noise

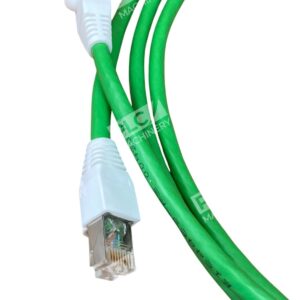

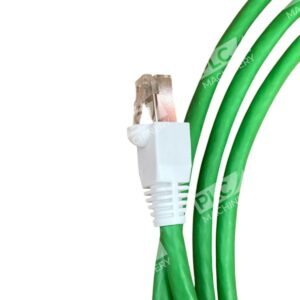

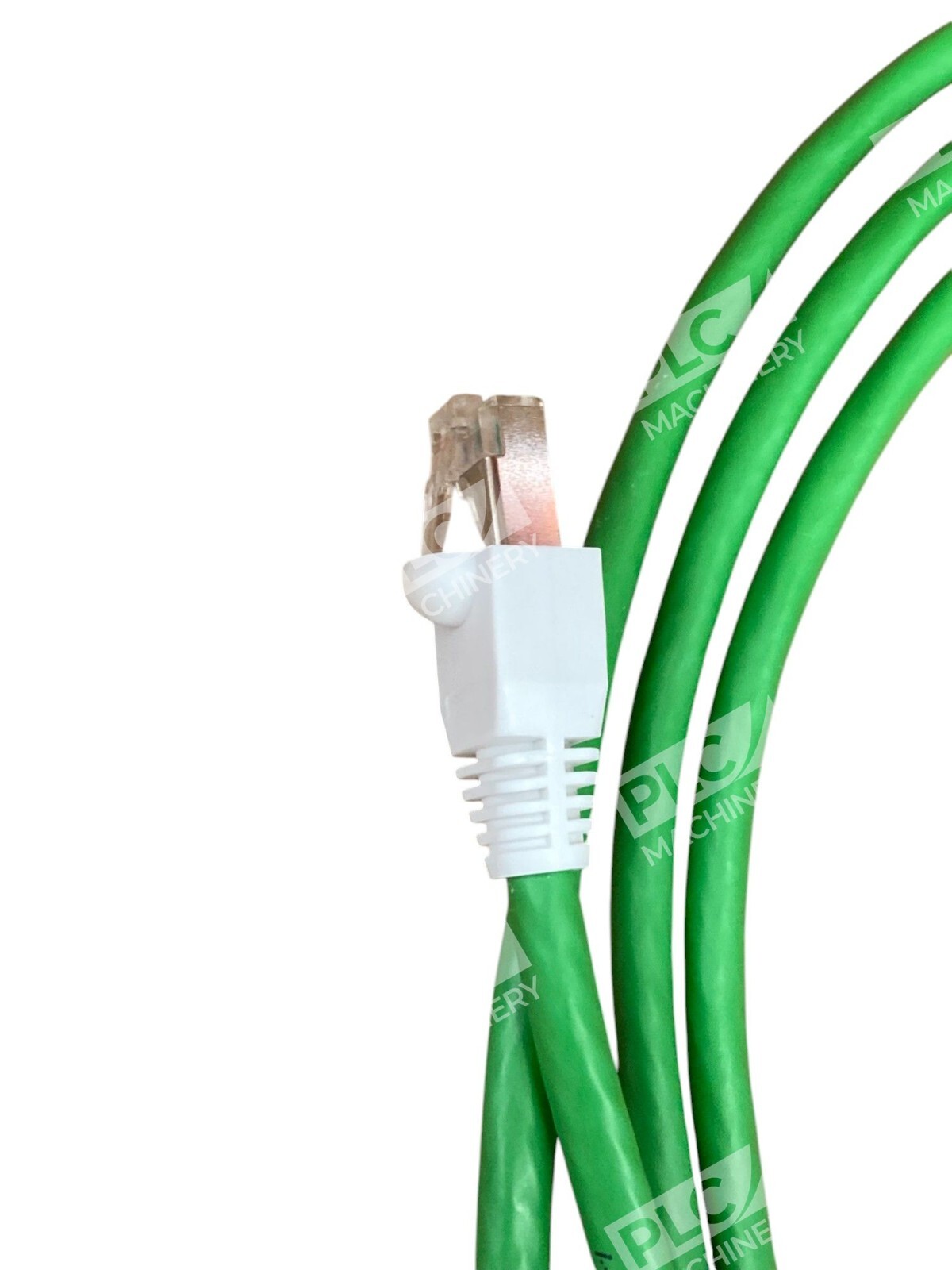

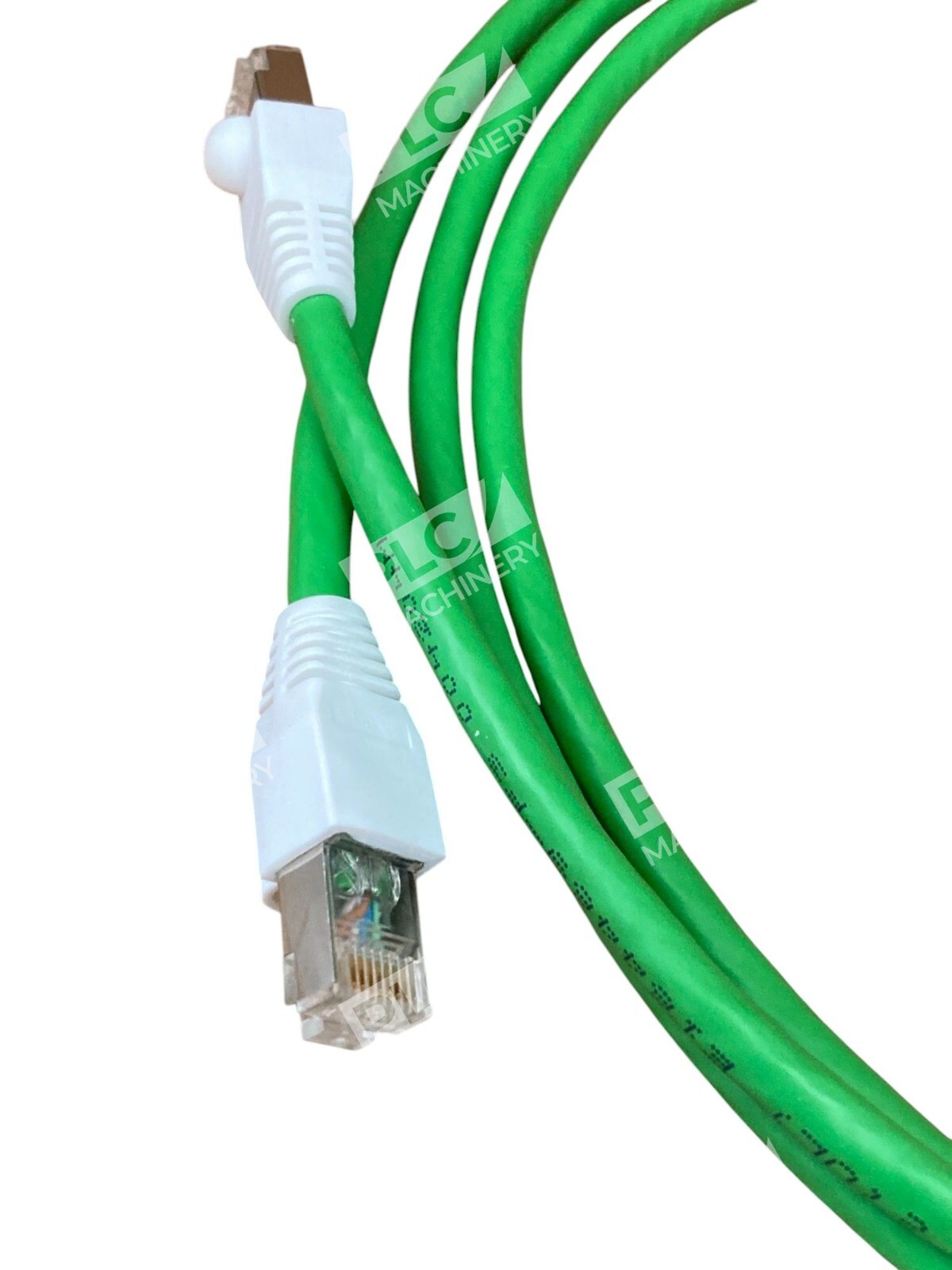

- Straight-pin RJ45 connectors on both ends for direct device-to-device connections
- 2-meter (6.56 feet) length suitable for medium-distance rack and panel installations
- UL and CSA certification for industrial and commercial use in North America
- Class C2 flame retardance rating (CEI 322/1 and NF C 32070-1 standards)
- Complies with TIA-568 Category 5 and IEC 11801 Class D specifications
Technical Specifications
- Cable Type: Shielded Twisted Pair (SFTP)
- Length: 2 meters (6.56 feet)
- Connector Type: RJ45 × 2
- Pin Configuration: Straight
- Standards: EN 50173 Class D, TIA-568 Cat 5, IEC 11801 Class D
- Certifications: UL, CSA 22-1
- Flame Rating: Class C2 CEI 322/1 / NF C 32070-1
- Bus Type: Ethernet
- Mercury Free: Yes
- Warranty: 18 months
Typical Applications
- Connecting Modicon M2xx and Modicon Premium controllers to Ethernet switches and gateways
- Linking industrial PCs and terminals to Modicon automation platforms
- Short-to-medium range Ethernet connections in control cabinets and distributed I/O networks
- Modbus TCP and EtherNet/IP communication in manufacturing and process automation
- Panel-mounted equipment connectivity with EMI/RFI immunity
Compatibility & Replacements
Compatible With
- Modicon Premium Automation platform controllers
- Modicon M2xx series logic controllers
- Modicon MCM (Modicon Communication Module) systems
- Industrial Ethernet switches and network devices
- Any device with standard RJ45 Ethernet port (Cat 5 or higher)
- EtherNet/IP and Modbus TCP networks
Replaces / Drop-In Replacement For
- Previous 2-meter ConneXium Ethernet cable configurations for Modicon platforms
- Generic shielded Cat 5 Ethernet cables in industrial environments requiring UL/CSA certification
Works With
- Schneider Electric EcoStruxure control platform
- Modicon Magelis HMI touch panels over Ethernet
- SCADA systems using Modbus TCP protocol
- Distributed I/O modules communicating via Ethernet
- Industrial Ethernet infrastructure (switches, bridges, routers)
