Overview

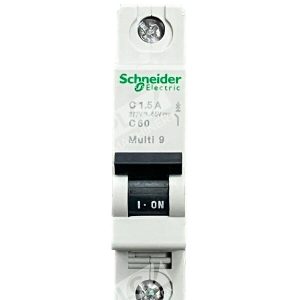

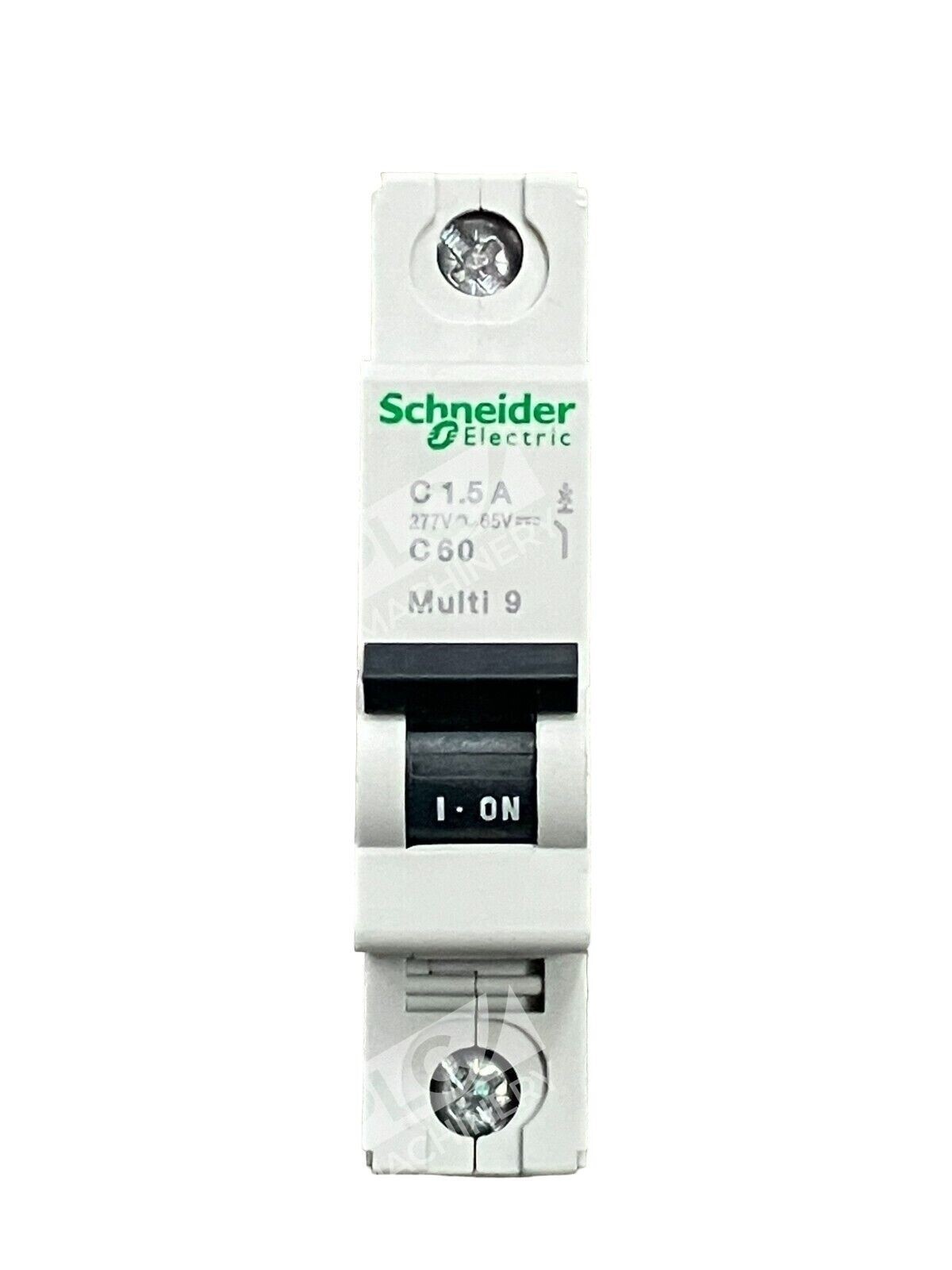

The Schneider Electric C1.5A C60 Multi 9 circuit breaker is a compact IEC 60947-2 and GB14048.2 compliant miniature circuit breaker designed for overcurrent protection in industrial and commercial equipment. This 1.5-amp rated device combines proven thermal-magnetic protection with a narrow 18 mm DIN rail footprint, making it ideal for space-constrained control panels and distribution boards. The C60 series delivers dependable performance across a wide range of applications requiring precise, fast-acting circuit protection.
Key Features
- Compact Design: Only 18 mm width per pole allows maximum circuit density on standard 35 mm DIN rails
- 1.5 Amp Rated Current: Precisely calibrated thermal-magnetic trip unit for reliable fault detection
- High Breaking Capacity: 6,000 A at 240 V and 10,000 A at 415 V under IEC standards
- Extended Life: 10,000+ mechanical operation cycles ensure long service life
- Dual Standard Certification: Meets IEC 60947-2 and Chinese GB14048.2 international safety standards
- Easy Connection: Serrated tunnel terminals with captive fasteners for secure, tool-less termination
Technical Specifications
| Specification | Value |
| Manufacturer | Schneider Electric |
| Model | C1.5A C60 Multi 9 |
| Rated Current | 1.5 A |
| Series | Multi 9 C60 |

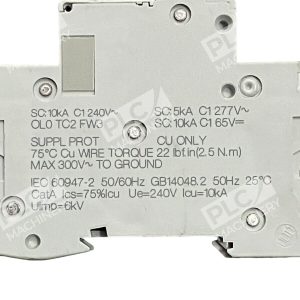

| Breaking Capacity | 6 kA @ 240 V AC; 10 kA @ 415 V AC |
| Certification Standards | IEC 60947-2, GB14048.2 |
| Trip Unit Type | Thermal-Magnetic |
| Mounting | 35 mm DIN Rail |
| Module Width | 18 mm (1 pole) |
| Operation Cycles | 10,000+ (O-C mechanical duty) |
| Contact Type | Serrated tunnel terminals with captive screws |
| Condition | New – No Box |
Typical Applications
The Schneider C1.5A C60 Multi 9 is specified for:
- Low-voltage distribution boards and control panels
- Equipment protection where branch circuit protection is required
- Industrial machinery and process control cabinets
- Export-market equipment requiring international IEC certification
- Supplementary protection in OEM appliances and factory automation systems
- Retrofit and upgrade projects for existing Multi 9 installations
Compatibility & Replacements
Compatible With
- All standard 35 mm symmetrical DIN rails (EN 60715)
- Schneider Multi 9 electrical auxiliaries: SD Alarm Switch, OF Auxiliary Switch, MX + OF Shunt Trip
- Comb bus bar systems for simplified multi-circuit installation
- Single-phase and three-phase distribution systems (AC networks)
- IEC 60947-2 rated control and monitoring accessories
Replaces / Drop-In Replacement For
- Other Schneider Multi 9 C60 1.5 A circuit breakers in IEC applications
- Verify compatibility with your system integrator before ordering for specific replacement applications
Works With
- Standards Compliance: IEC 60947-2 (International), GB14048.2 (China), EN 60947-2
- Communication: Compatible with circuit breaker monitoring systems using standard auxiliary contacts
- Integration: Works with Multi 9 ecosystem electrical auxiliaries and mechanical accessories for enhanced functionality
