Overview

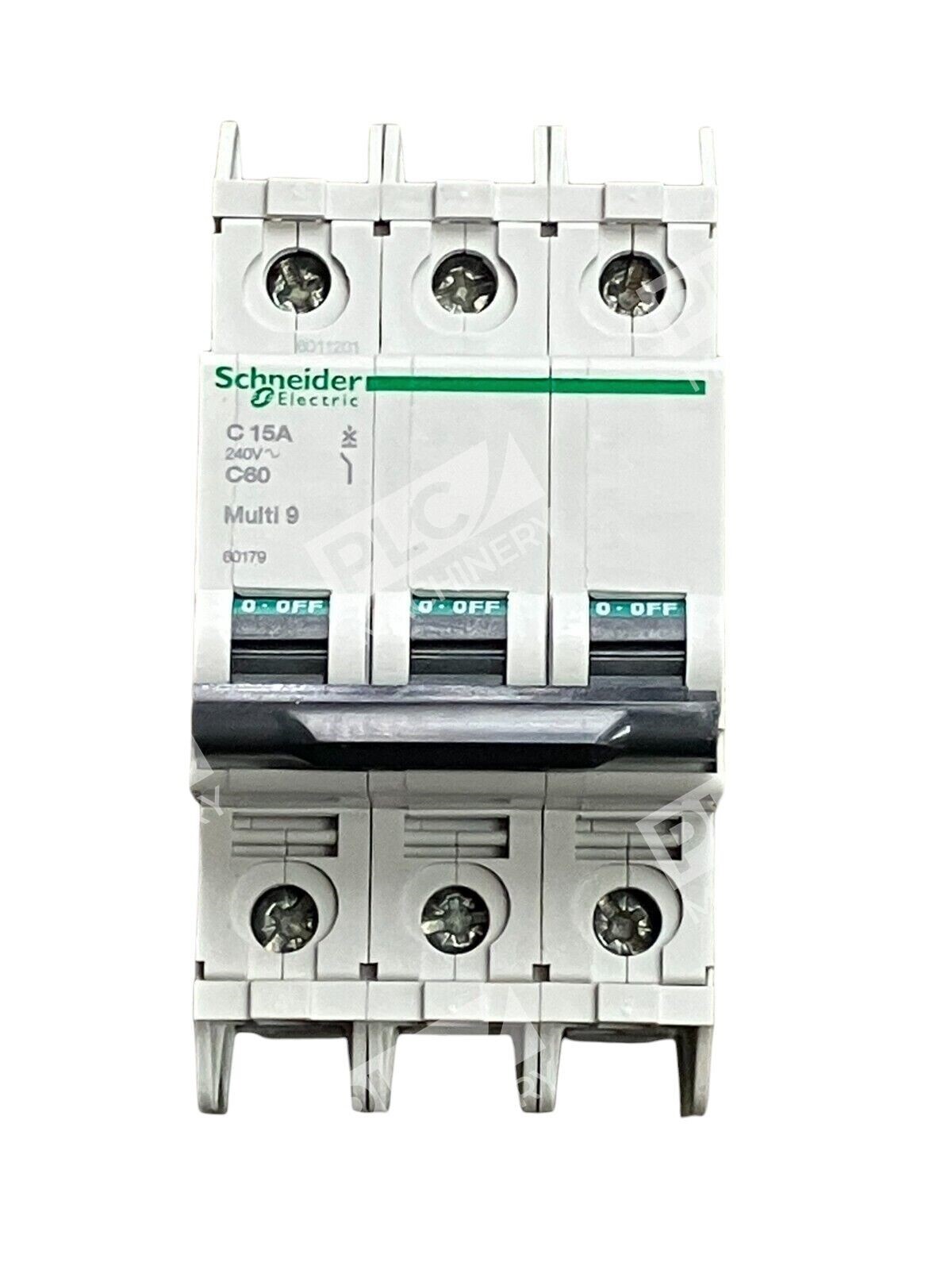

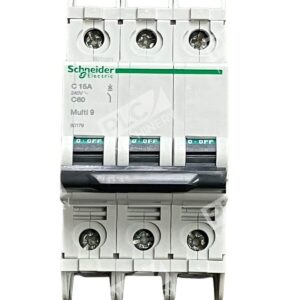

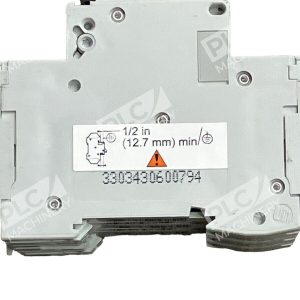

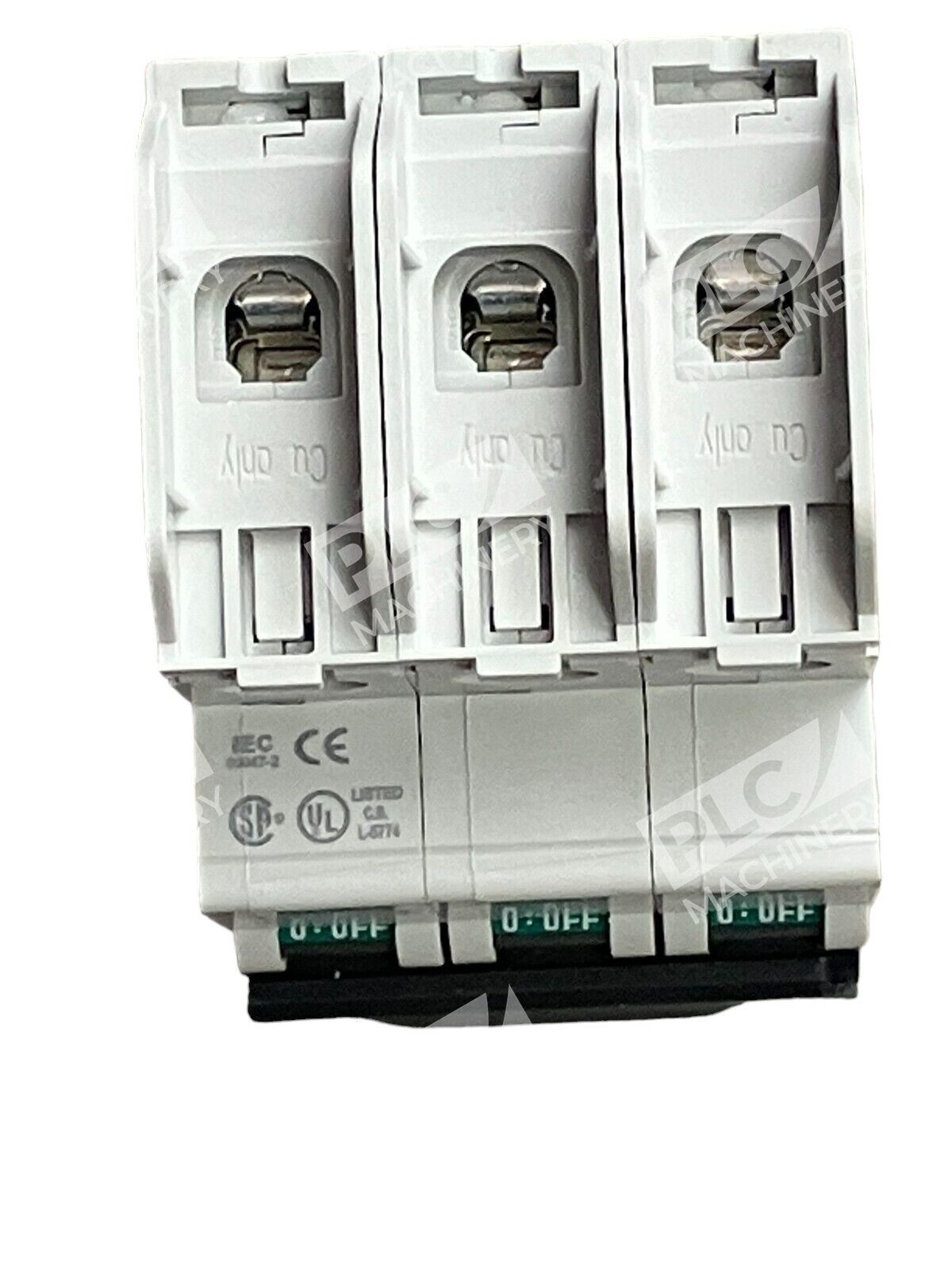

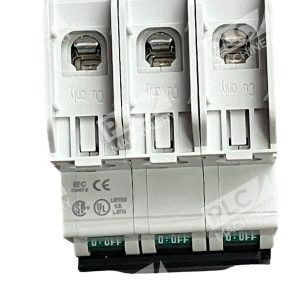

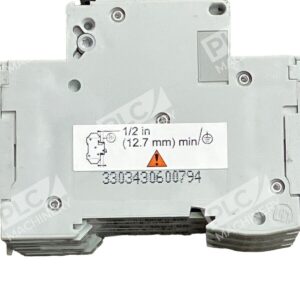

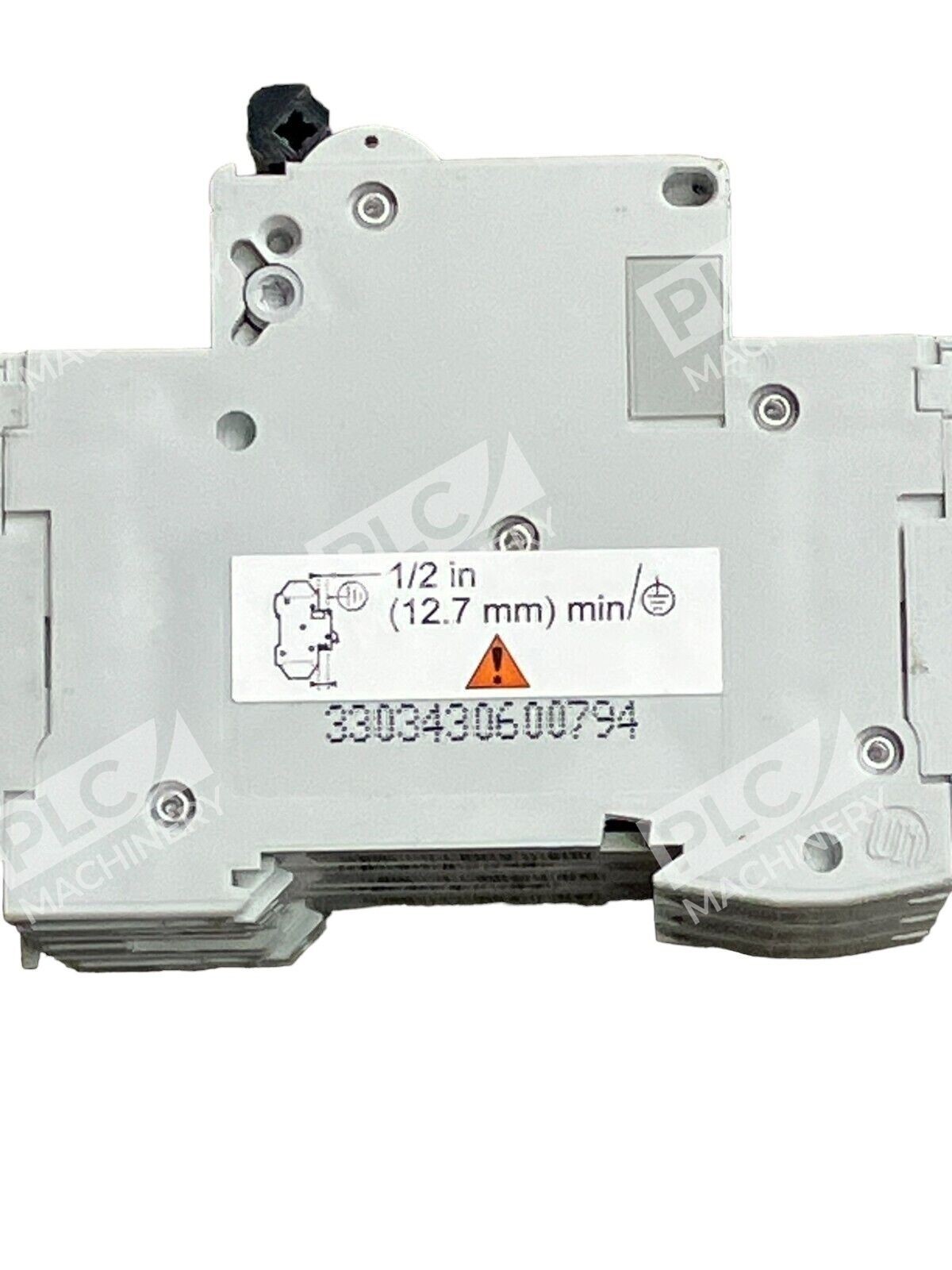

The Schneider Electric Multi 9 C60 C15 240V circuit breaker is a thermal-magnetic miniature circuit breaker (MCB) designed for branch circuit and equipment protection in low-voltage industrial applications. This miniature circuit breaker provides protection of equipment or especially sensitive circuits within equipment against electrical threats, including short circuits, overloads and earth leakages. The C-curve trip characteristic makes it ideal for general-purpose circuits with moderate inrush current tolerance.
Key Features
- Multi-standard compliance: Compact size, easy installation on DIN rails, limits let-thru current, resetability, more convenient than fuses, electrical auxiliaries for control and status information
- Thermal-magnetic protection: Combines thermal overload and magnetic short-circuit detection for reliable trip response
- C-curve characteristic: Optimal for general-purpose circuits; tolerates moderate inrush currents
- High electrical endurance: 10000 cycles electrical durability and 20000 cycles mechanical durability
- Modular DIN rail design: Space-saving installation with standard DIN rail compatibility
- Wide voltage compatibility: 240VAC 50/60Hz rated operational voltage

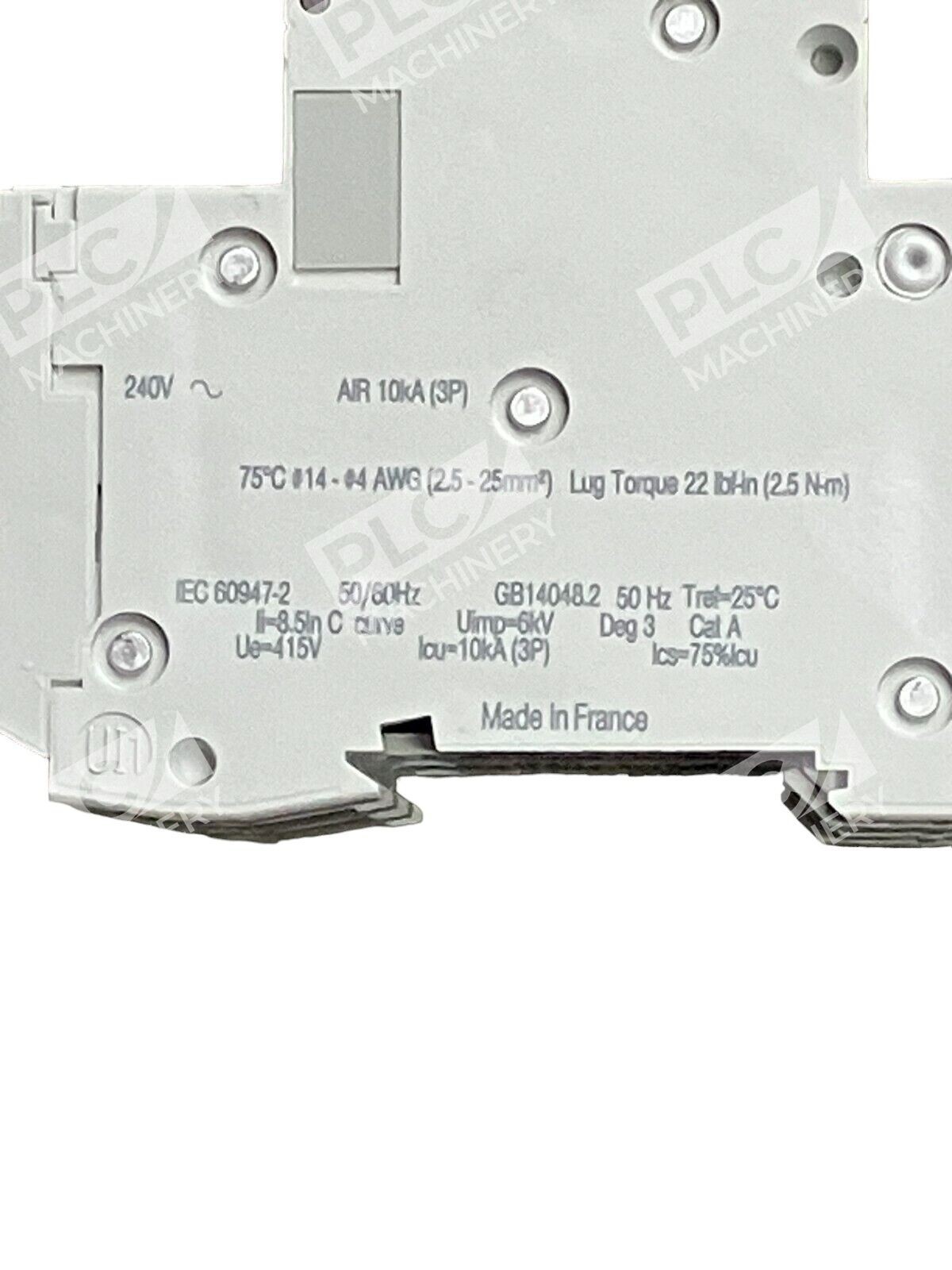

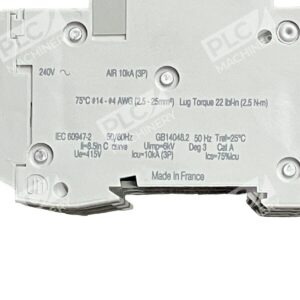

Technical Specifications
- Rated Current: 15 A
- Rated Voltage: 240 VAC, 50/60 Hz
- Trip Curve: C (C-curve, 5–10 × In)
- Breaking Capacity: 10 kA (UL 489)
- Insulation Voltage: 500 VAC
- Magnetic Trip Limit: 8.5–10.2 A (±20% AC)
- Series: Multi 9 C60
- Poles: Typically 1P or 2P configurations
- Mounting: DIN rail, clip-on
- Operating Temperature Range: −30 to 70°C
- Degree of Protection: IP20/IP40 (terminals)
- Standards: EN/IEC 60947-2, UL 489
Typical Applications
Semi-conductor machines, communication equipment, process control panels, computers, medical equipment, electronic controls, transformers, power supplies and other electrical equipment. The Multi 9 C60 is widely used in:
- Industrial control panels and machinery
- HVAC and process automation systems
- Distributed panel boards and switchgear
- OEM equipment protection
- General-purpose low-voltage distribution
Compatibility & Replacements
Compatible With
- Standard DIN rail systems (35 mm TH)
- Schneider Electric Multi 9 modular architecture accessories and signaling devices
- Industrial control panels rated 240 VAC
- Single-phase and three-phase distribution systems with neutral
Replaces / Drop-In Replacement For
The C60 C15 240V replaces earlier Schneider multi-standard MCB models in the same voltage and current class. Verify compatibility with your specific panel or system integrator before ordering to confirm mounting and terminal type (clip-on vs. tunnel terminal) match your installation.
Works With
- Schneider Electric Multi 9 C60 series modules and accessories
- DIN-rail mounted control systems
- IEC/EN 60898-1 and IEC/EN 60947-2 compliant panels
- UL 489 listed enclosures and switchgear
