Overview

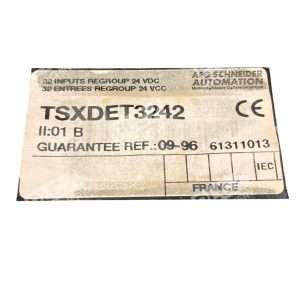

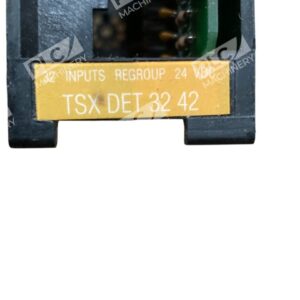

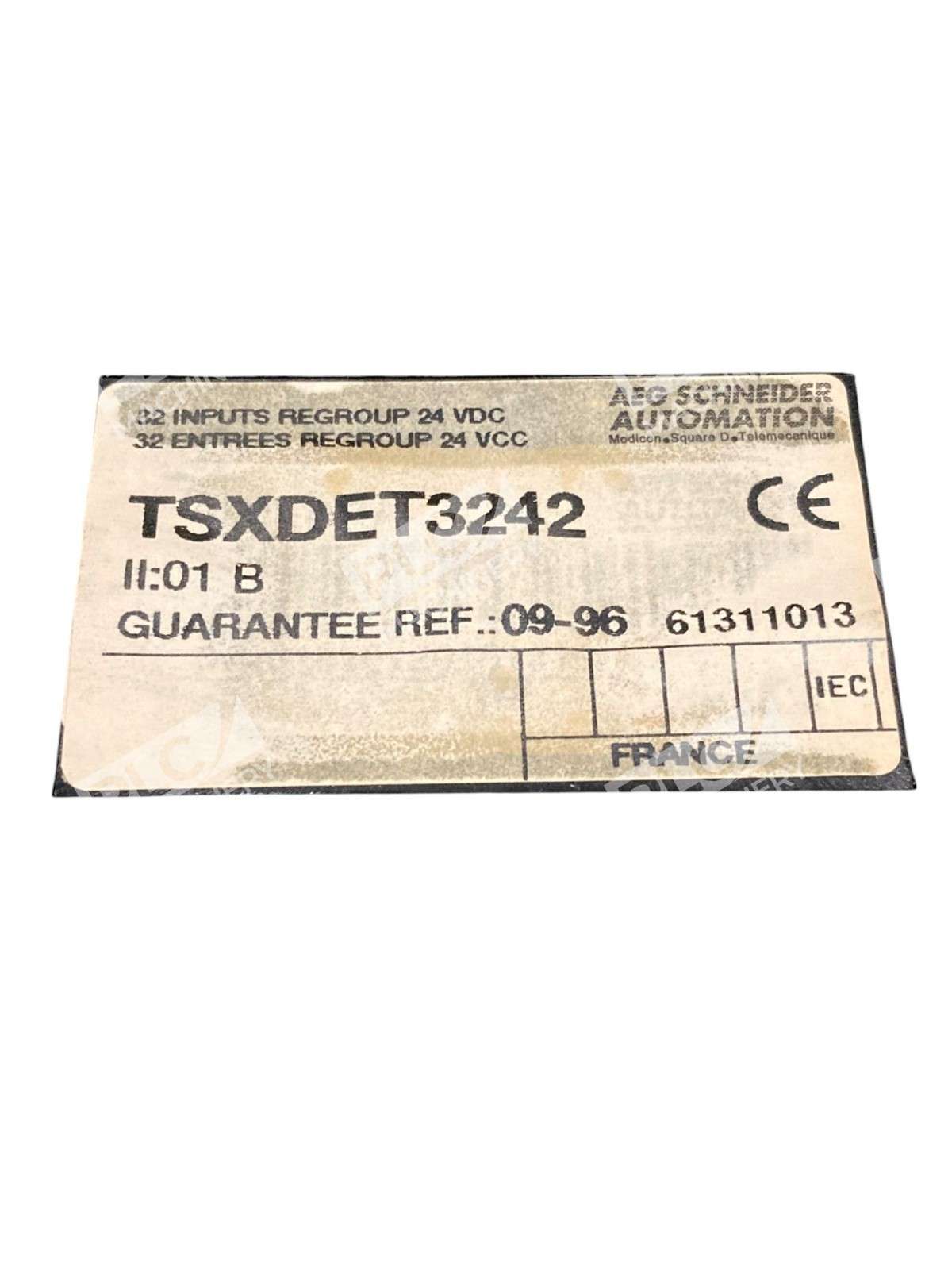

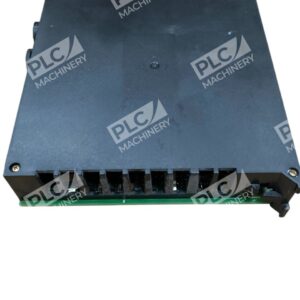

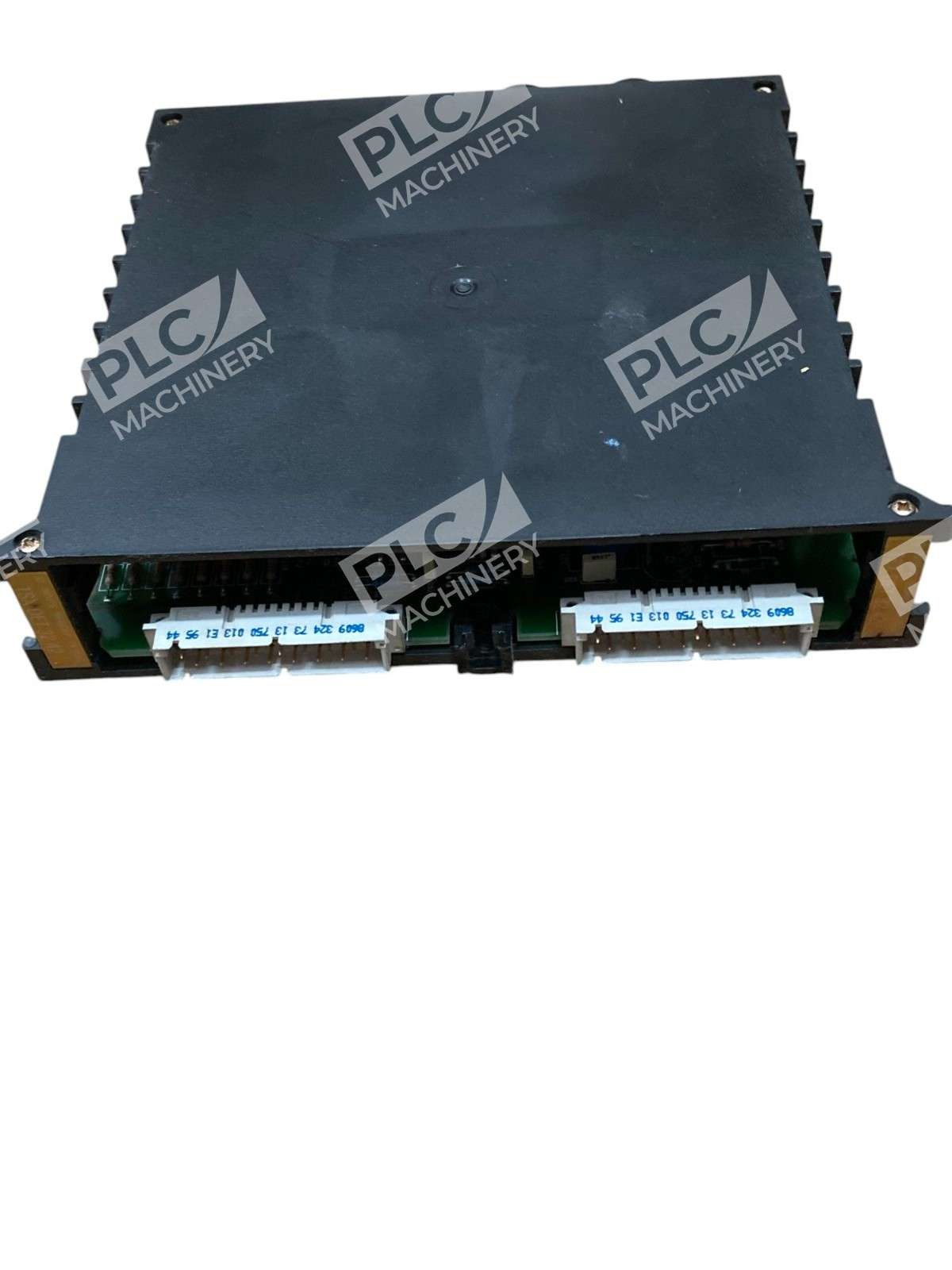

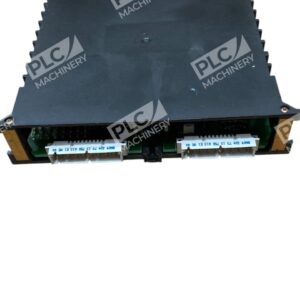

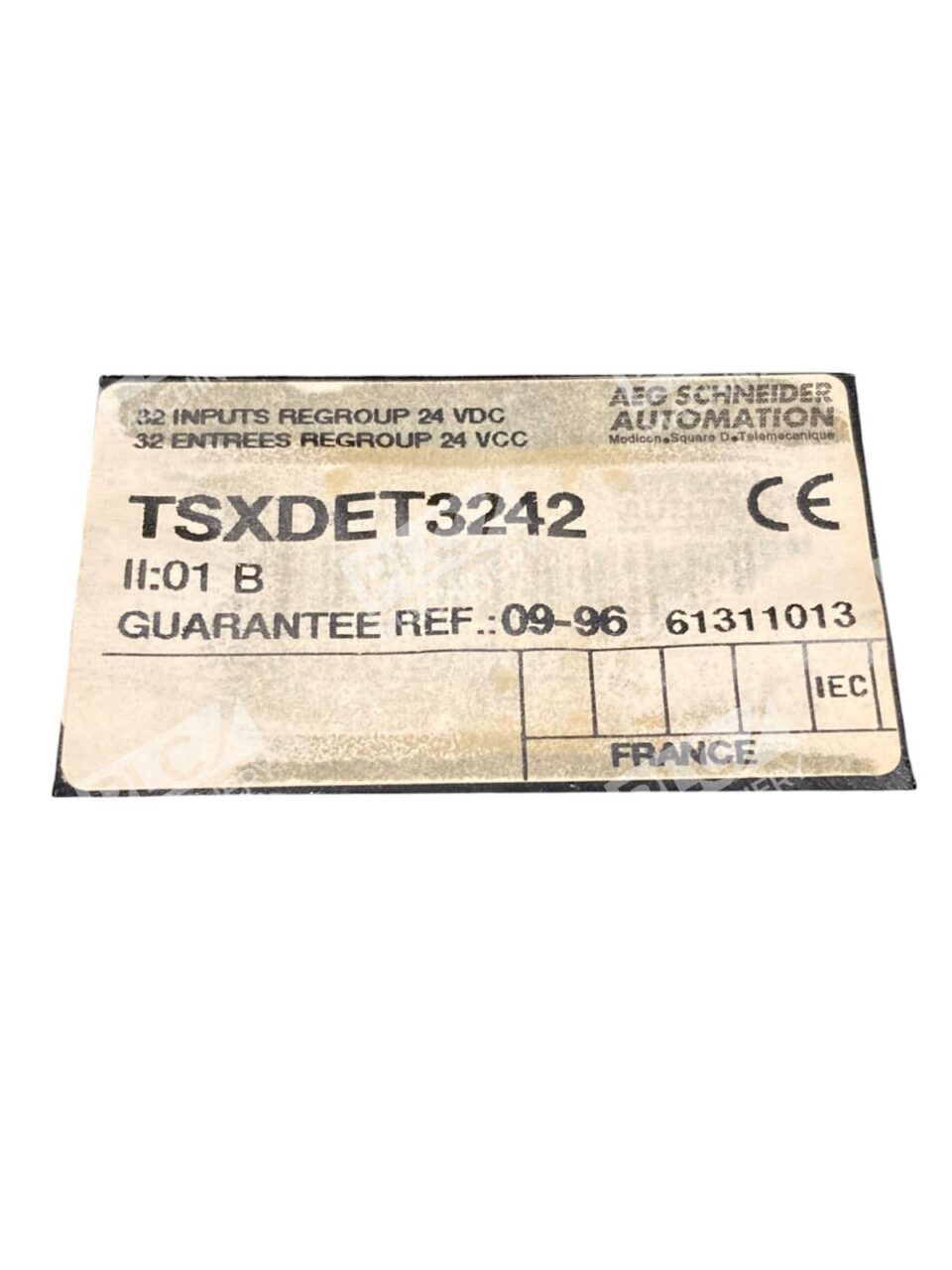

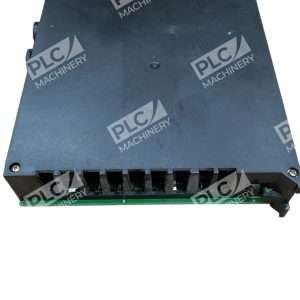

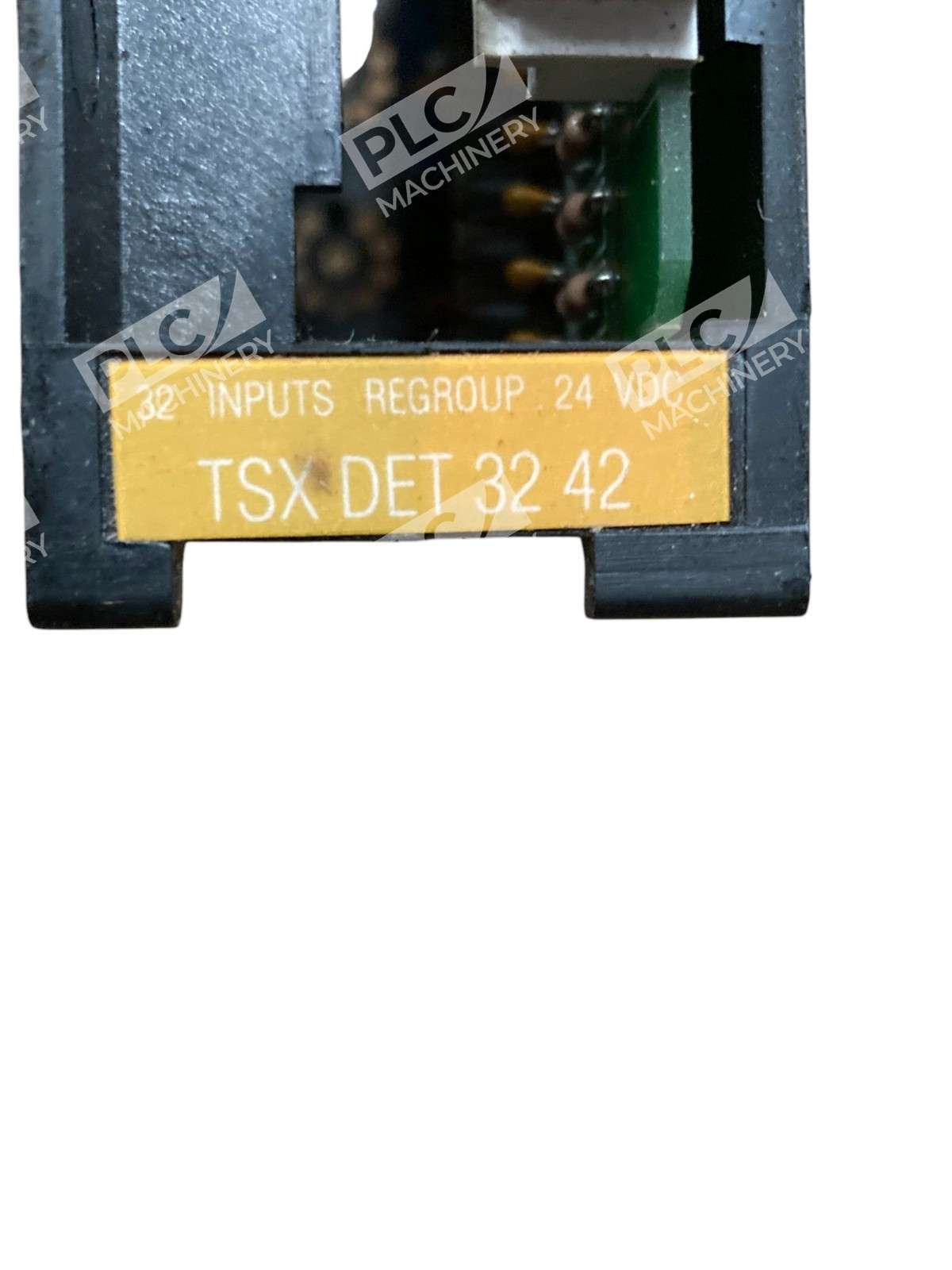

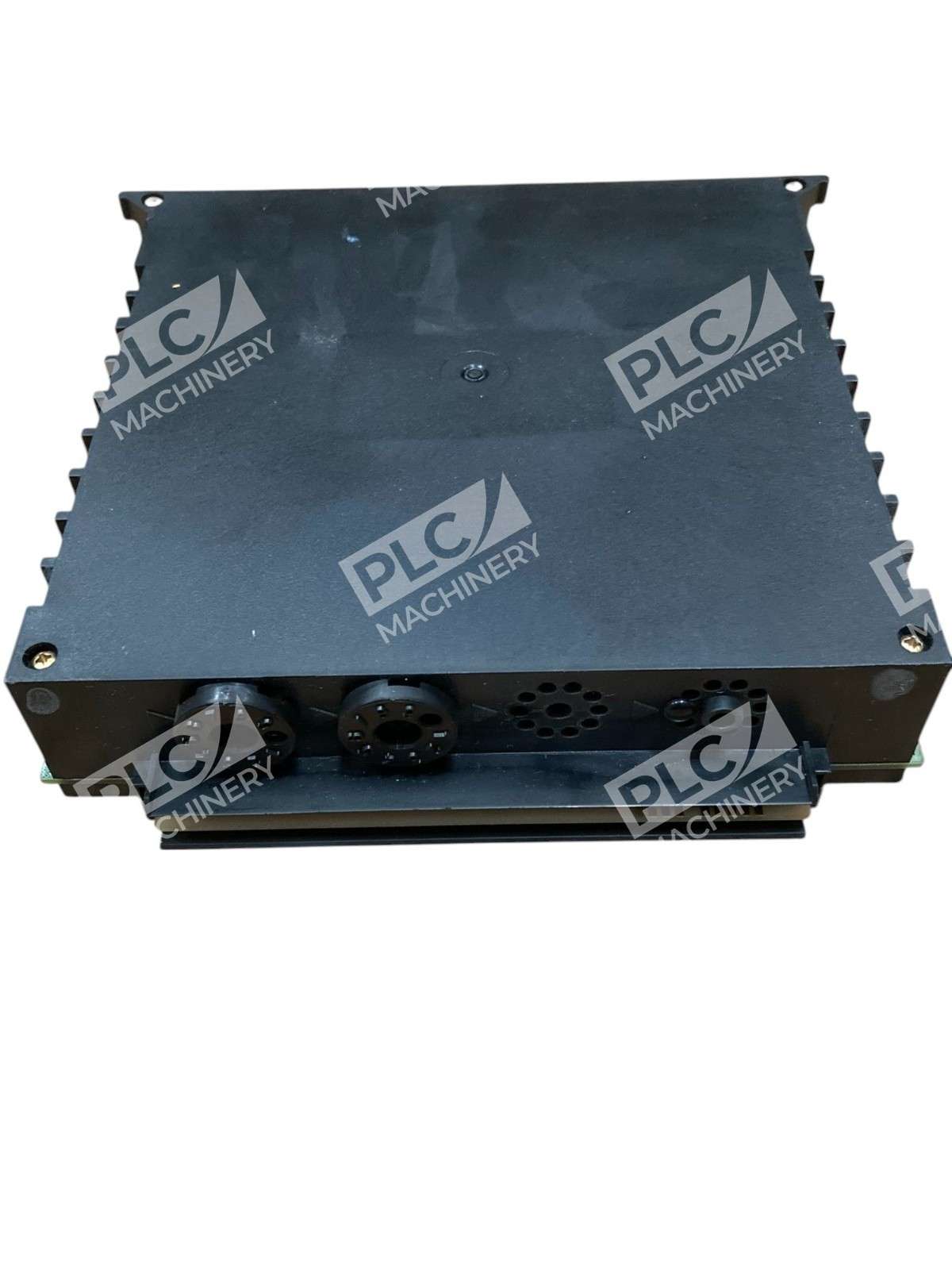

The Schneider TSXDET3242 is a 32-point 24VDC isolated input module engineered for the TSX Series 7 PLC platform. This discrete input module features 32 digital input channels, each designed to monitor the on/off status of external field devices, such as sensors, switches, and pushbuttons. The module operates on a 24V DC power supply, making it suitable for a wide range of industrial applications. This module is manufactured in France and is essential for expanding digital input capacity in Schneider control systems.
Key Features
- 32 Isolated Digital Input Channels — Monitor discrete field device states reliably
- 24VDC Input Specification — Industry-standard voltage range for sensor and switch monitoring
- TSX Series 7 Compatible — Direct integration with Schneider’s TSX PLC backplane architecture
- Compact Form Factor — Space-efficient design for control panel installations
- Industrial-Grade Construction — Built to withstand demanding factory environments
Technical Specifications
- Part Number: TSXDET3242
- Input Type: 24VDC Isolated Digital Inputs
- Number of Input Points: 32
- Power Supply: 24 VDC
- Power Consumption: 3.5 W
- Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Humidity: 0 to 95% non-condensing
- Dimensions: 90 × 72 × 25 mm (3.54 × 2.83 × 0.98 in)
- Weight: 250 g (8.82 oz)
- Country of Origin: France
- Module Type: Discrete Input / I/O Expansion Module
Typical Applications
The TSXDET3242 is widely used in manufacturing and process control environments where digital input expansion is required:
- Discrete sensor state monitoring (limit switches, proximity sensors, photoelectric switches)
- Emergency stop circuit input acquisition
- Production line status monitoring and interlocking
- HVAC and building automation control systems
- Bottling, packaging, and conveyors
- Machine tool and press control systems
Compatibility & Replacements
Compatible With
- Schneider Modicon TSX Series 7 programmable logic controllers
- Schneider Electric PLC systems with TSX rack mounting architecture
- TSX-compatible I/O rack backplane configurations
- Schneider automation software and engineering tools
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The TSXDET3242 is a legacy module; direct OEM replacements should be confirmed with Schneider Electric technical documentation.
Works With
- TSX Series 7 PLC CPU modules and racks
- Schneider Modicon software platforms
- Industrial Ethernet and Modbus networks (via compatible host PLCs)
- 24VDC field device networks and sensor arrays
