Overview

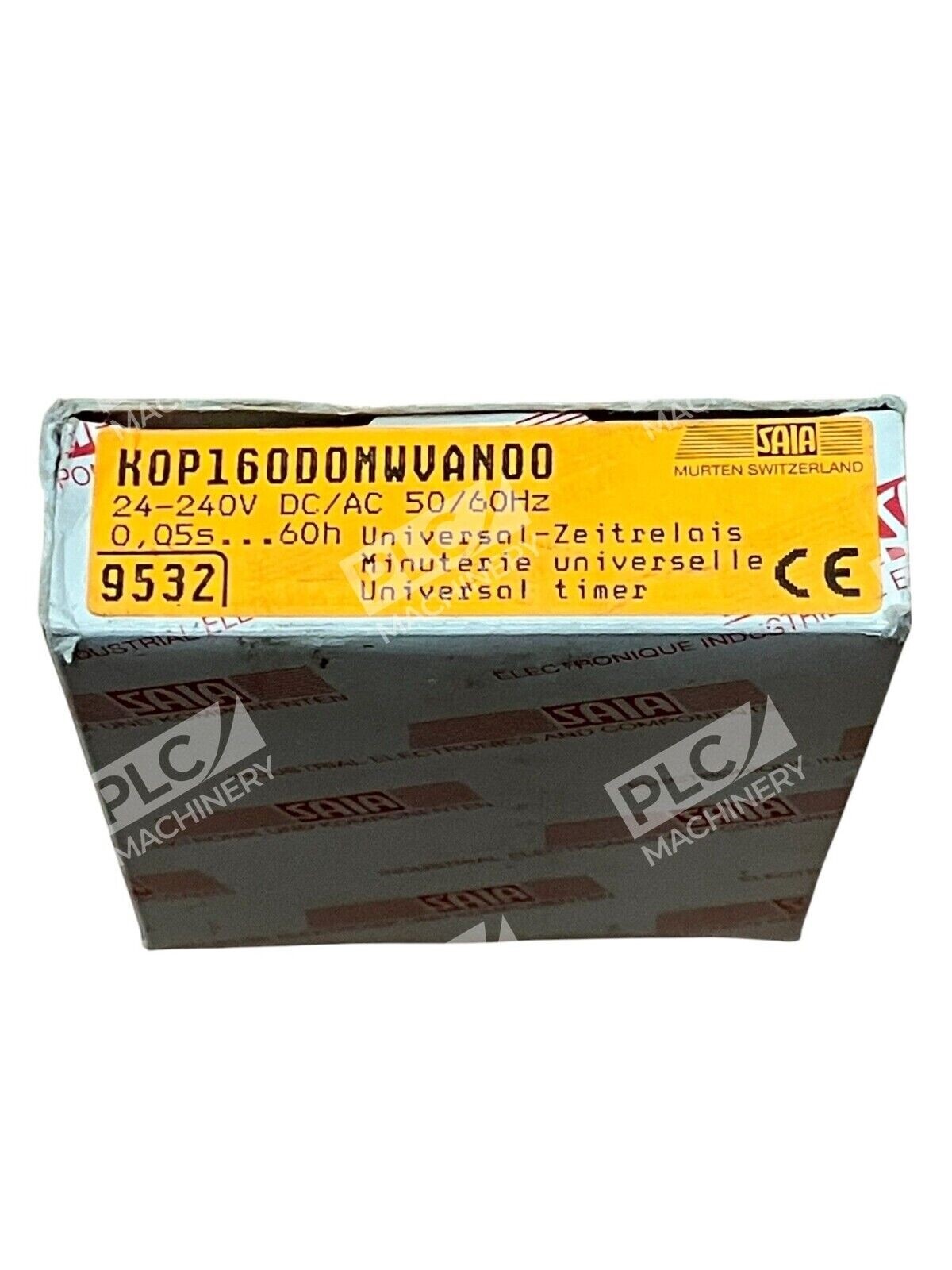

The SAIA KOP160DOMWVAN00 is an electronic universal timer manufactured by SAIA-BURGESS, engineered for flexible timing control in industrial automation systems. This analog timer operates across a wide voltage range from 24 to 240 VAC as well as 24 to 48 VDC, accommodating 50 or 60 Hz frequency standards. With time ranges spanning 0.05 seconds to 60 hours across 10 selectable ranges, the KOP160 delivers precise delay functionality for factory automation, machine control, process timing, and relay logic applications.
Key Features
- 10 time ranges from 0.05 seconds to 60 hours for flexible delay selection
- Operating voltage: 24–48 VDC and 24–240 VAC, 50/60 Hz compatible
- Single-pole, double-throw (SPDT) output with 250 VAC / 3 A contact rating
- Compact 22.5 mm DIN-rail mount form factor
- LED status indicator for output monitoring
- Eight programmable timing functions including delayed operation, delayed release, and pulse timing
- Setting accuracy: ±5% of selected time range; repeat accuracy ±0.2%
Technical Specifications
- Product Type: Electronic Universal Timer
- Manufacturer: SAIA-BURGESS
- Supply Voltage: 24–48 VDC; 24–240 VAC, 50/60 Hz
- Voltage Tolerance: DC ±20%, AC –15% to +10%
- Time Ranges: 0.05–1 s, 0.15–3 s, 0.5–10 s, 0.05–1 min, 0.15–3 min, 0.5–10 min, 0.05–1 h, 0.15–3 h, 0.5–10 h, 3–60 h
- Output Contact: 1 SPDT, 250 VAC / 3 A maximum
- Setting Accuracy: ±5% of time range final value
- Repeat Accuracy: ±0.2% of set value
- Power Consumption: 5.0 VA (AC), 0.5 W (DC)
- Mounting: DIN rail, 22.5 mm width
- Status Display: LED indicator
- Duty Cycle: 100%
Typical Applications
The SAIA KOP160DOMWVAN00 is ideal for time-delay control in:
- Machine startup and shutdown sequencing
- Conveyor and assembly line timing
- Motor soft-start and protective relay circuits
- Pump and compressor duty-cycle management
- Industrial process control and automation panels
- Heating and HVAC system time delays
- Solenoid valve and actuator control timing
Compatibility & Replacements
Compatible With
- DIN-rail mounted control systems and automation panels
- Industrial PLC logic systems requiring external timing relays
- Standard 24 VDC control voltage distribution in manufacturing facilities
- Alternating and direct current power supplies, 50/60 Hz
- Relay logic and hardwired control circuits
Replaces / Drop-In Replacement For
The KOP160 series replaces earlier SAIA analog timer models within the same form factor and voltage compatibility. Verify model compatibility with your system integrator before ordering, as specific part number variants (DOMWVAN, J7MWVPN, etc.) may have slight functional differences.
Works With
- DIN-rail mounted control enclosures and panel assemblies
- Direct-wired relay control logic without external PLC software
- Standard industrial 24 VDC control power supplies
- Legacy automation systems requiring modular timing components
