Overview

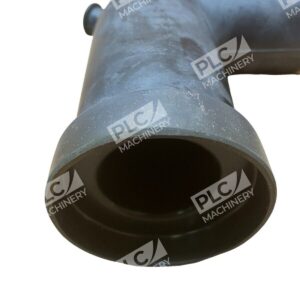

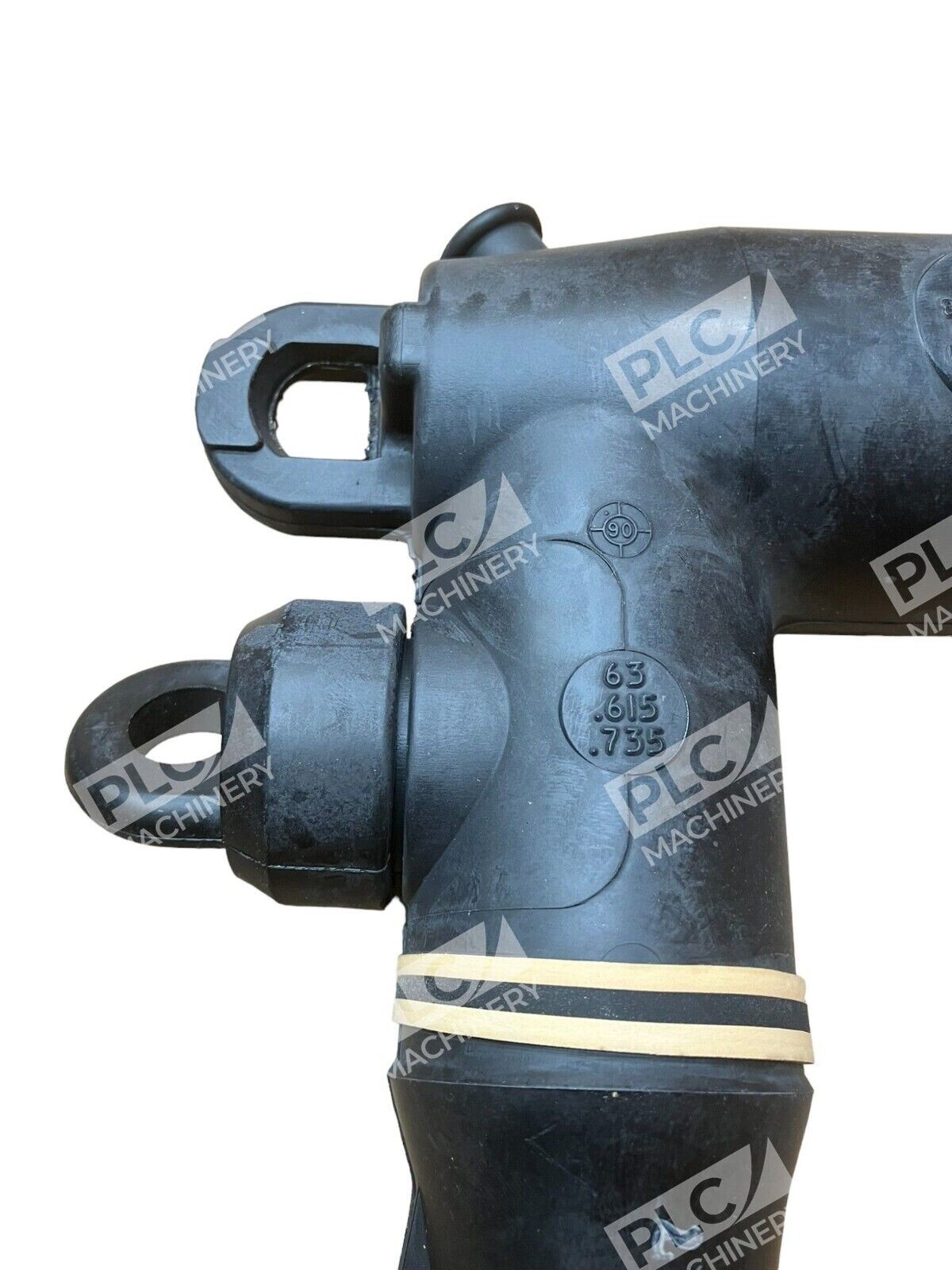

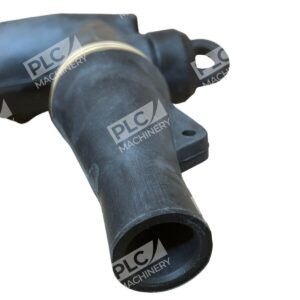

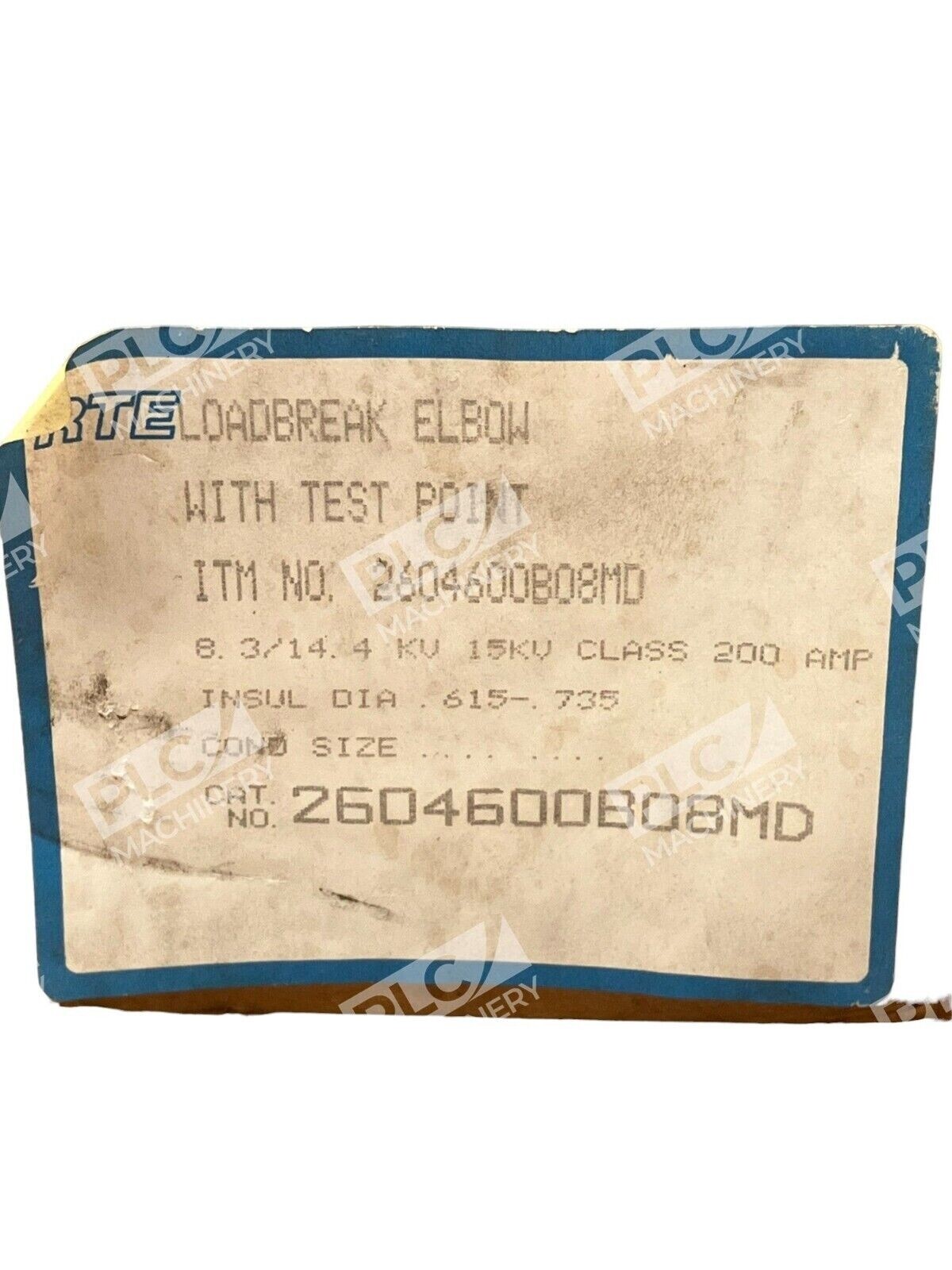

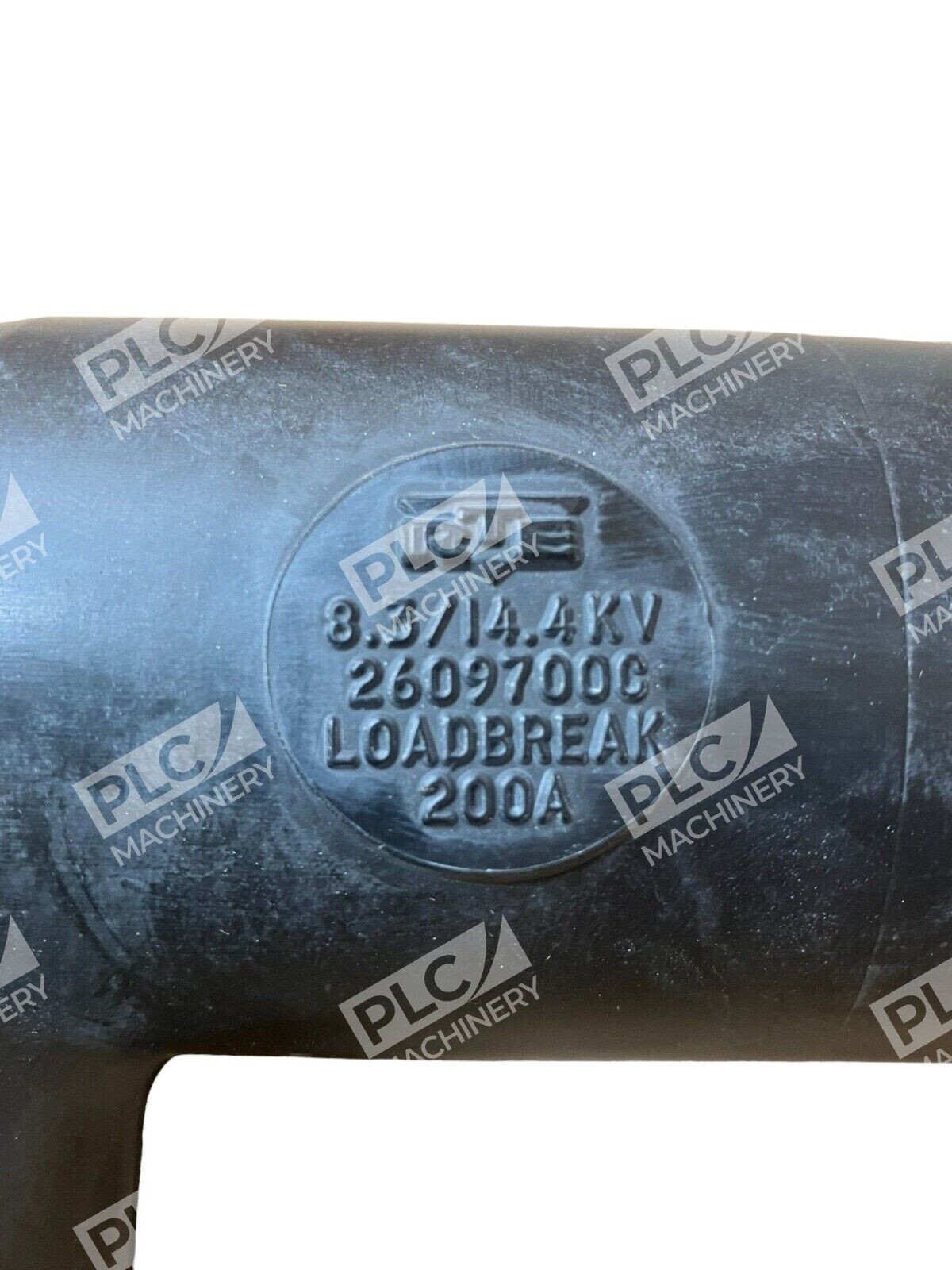

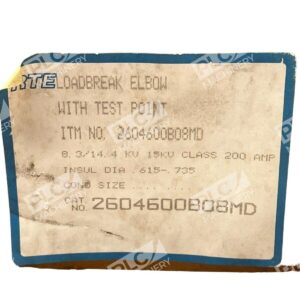

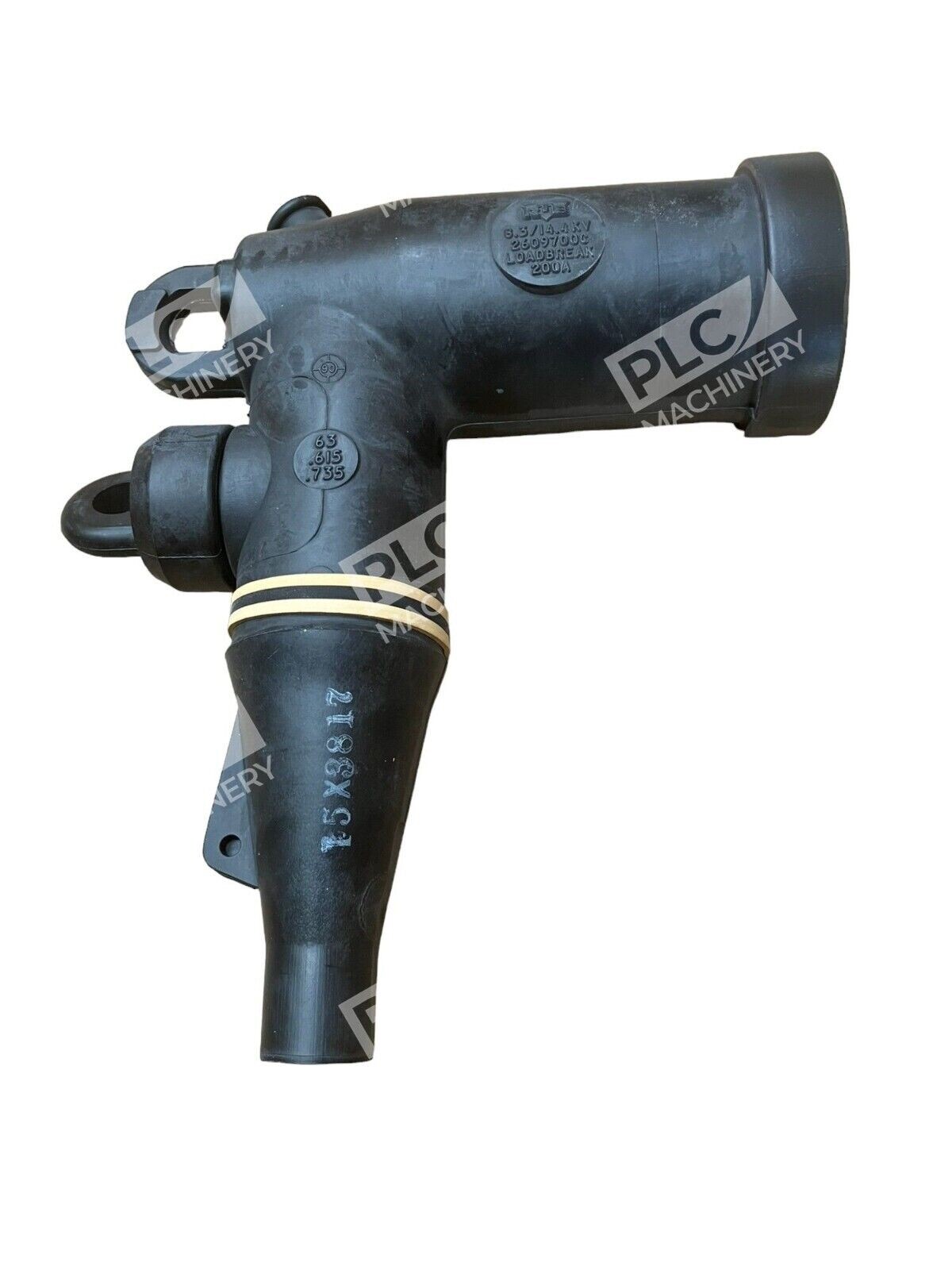

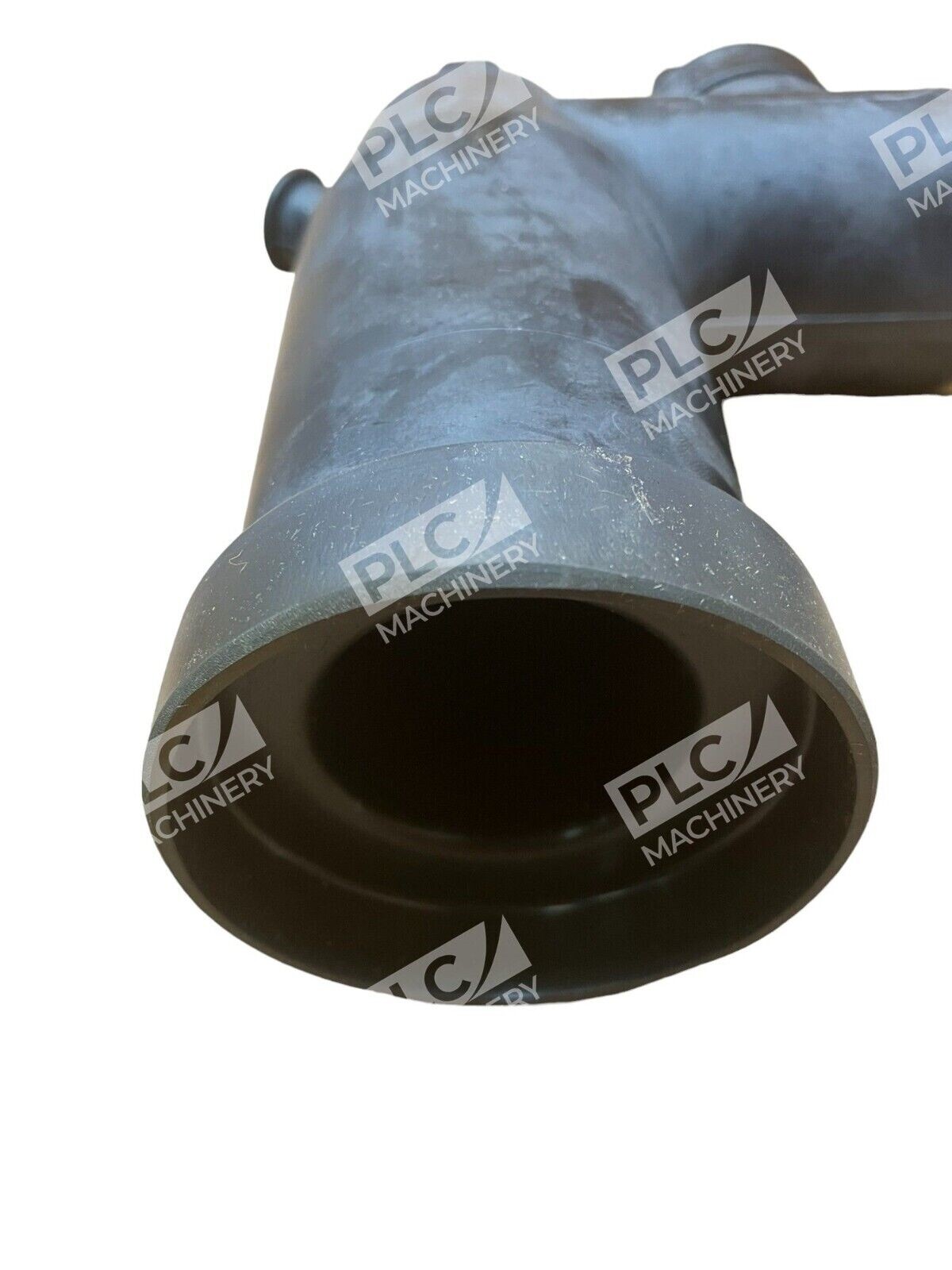

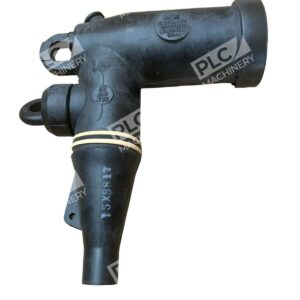

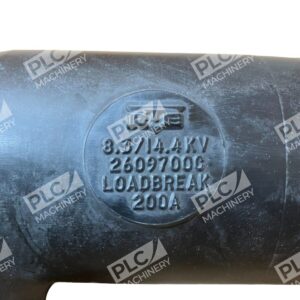

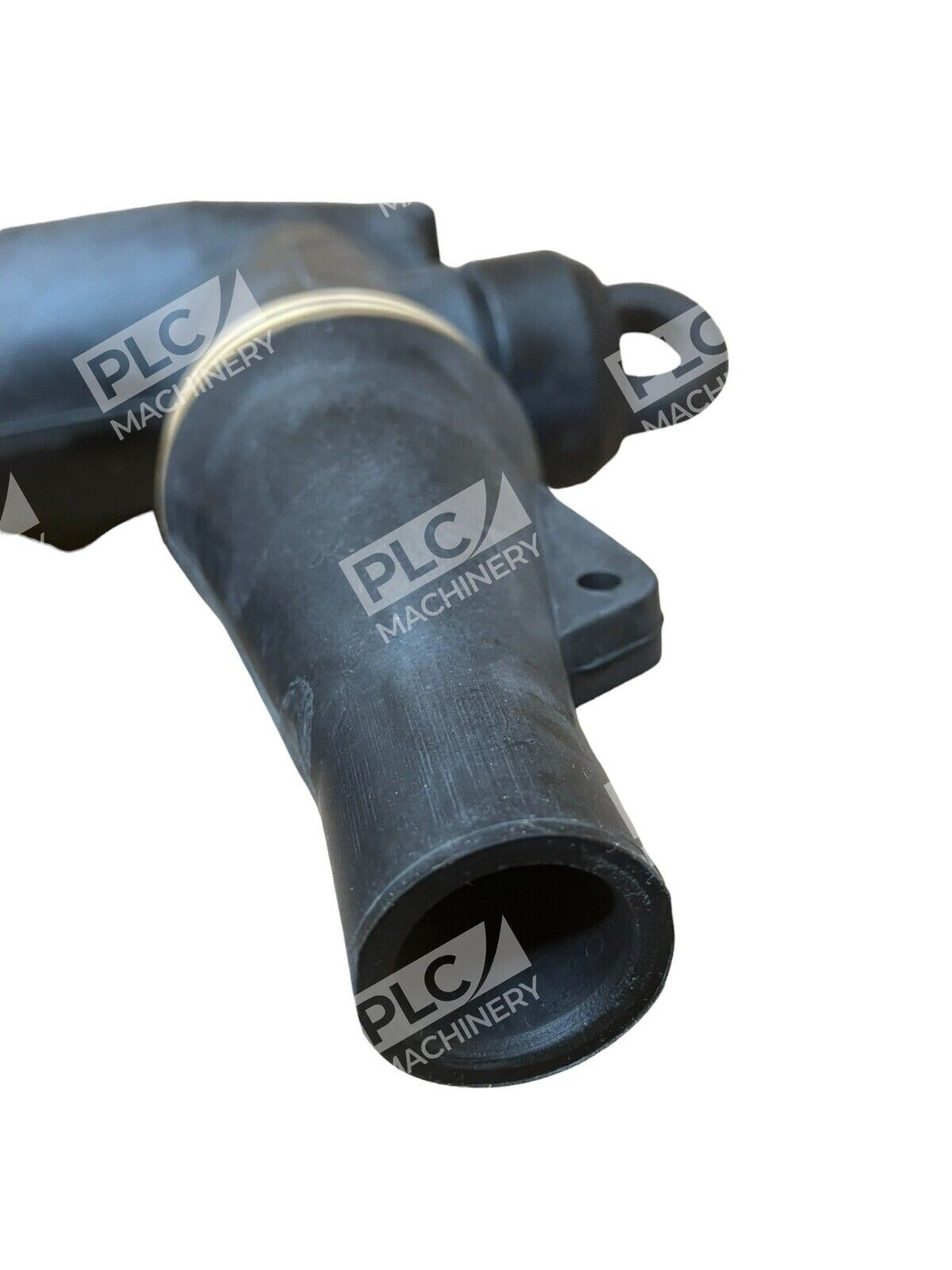

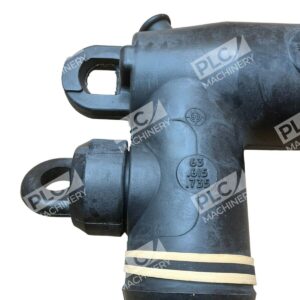

The RTE 2604600B08MD is a 200A, 15kV loadbreak elbow with test point, designed as a fully-shielded and insulated plug-in termination for connecting underground medium-voltage cables to transformers, switching cabinets, junctions, and other equipment equipped with loadbreak bushings. This elbow is an essential component in ANSI/IEEE-compliant loadbreak connections and supports safe, reliable electrical distribution in utility and industrial applications.
Key Features
- Fully shielded and insulated construction for maximum safety
- Integrated test point for safe, hot-stick-operable load-break/load-make operations
- 200A amperage rating at 15kV system voltage
- Suitable for cable insulation diameter range 0.750–1.080 inches (19.1–27.4 mm)
- EPDM rubber insulation molded using peroxide-cured materials for durability and reliability
- Submersible design for underground and wet environments
Technical Specifications
- Amperage Rating: 200A
- Voltage Rating: 15kV (Phase-to-Ground: 8.3kV maximum)
- BIL (Basic Impulse Level): 95kV
- AC Withstand (1 min): 34kV
- DC Withstand (15 min): 34kV
- Cable Insulation OD Range: 0.750–1.080 inches
- Test Point: Yes, standard probe interface
- Material: EPDM rubber (peroxide-cured)
- Insulation Class: Fully shielded
- Standards Compliance: IEEE Std. 386, IEEE Std. 592
Typical Applications
The RTE 2604600B08MD is commonly deployed in:
- Underground medium-voltage distribution systems (8.3kV–15kV)
- Utility substation connections and transformer terminations
- Switchgear and junction connections requiring safe load-break operations
- Cable-to-equipment interfaces in wet, submersible, or outdoor environments
- Hot-stick operable load-break/load-make operations without de-energizing
Compatibility & Replacements
Compatible With
- Loadbreak bushings rated 200A, 15kV
- Underground distribution cable (1/0 AWG and 2/0 AWG conductor sizes)
- Transformer bushing inserts rated for 15kV service
- Switchgear junction bushing connectors (IEEE 386-compliant)
- Standard hot-stick tools for safe load-break operations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The RTE 2604600B08MD is designed to interface with standard 200A, 15kV loadbreak bushings. Confirm bushing part numbers and insulation ranges prior to purchase.
Works With
- IEEE Std. 386 and IEEE Std. 592 compliant bushing systems
- Utility-grade underground distribution equipment and apparatus
- Standard hot-stick-operable test point interfaces
- Cable shielding and jacket seal adapter kits (ordered separately)
