Overview

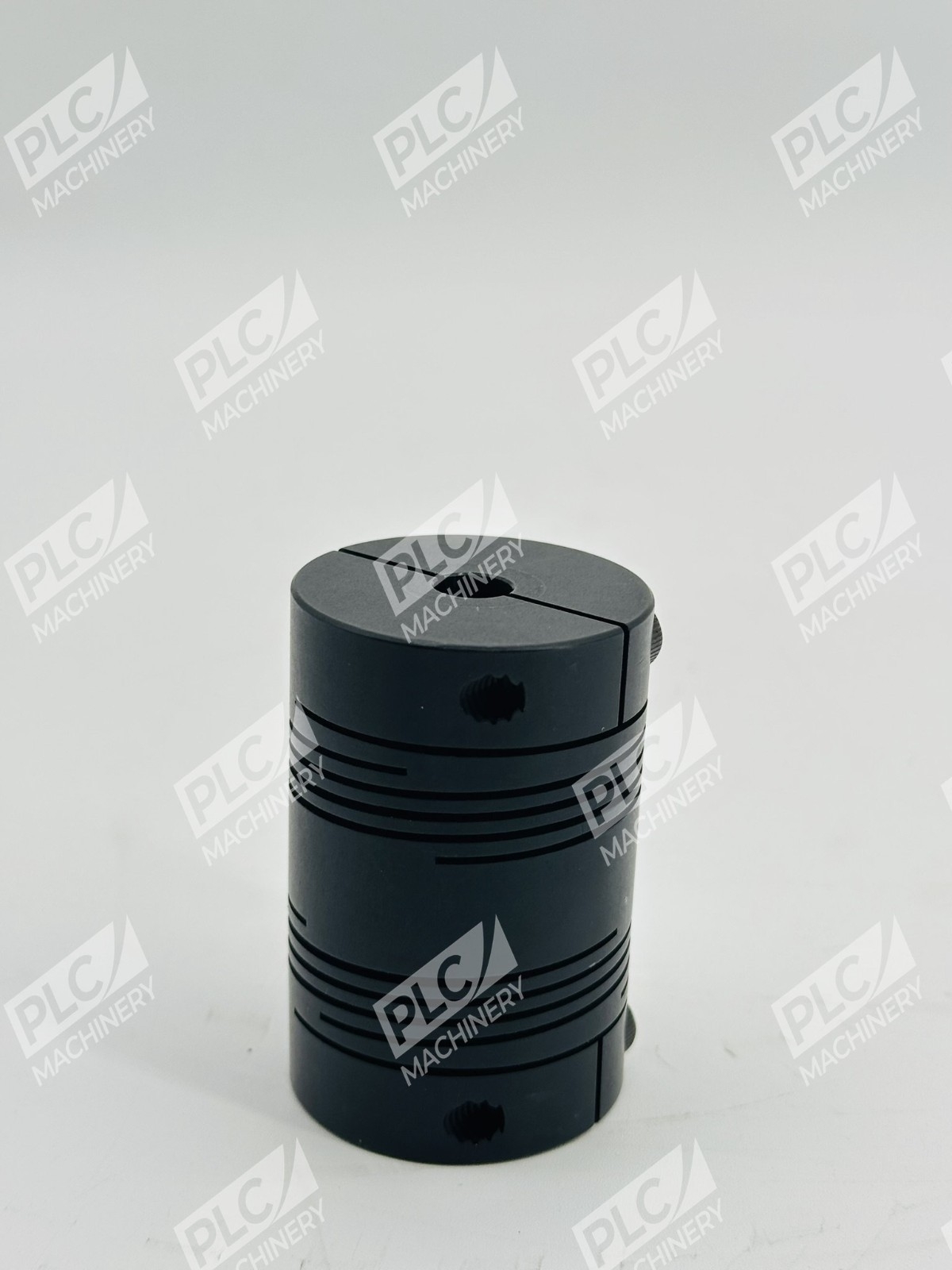

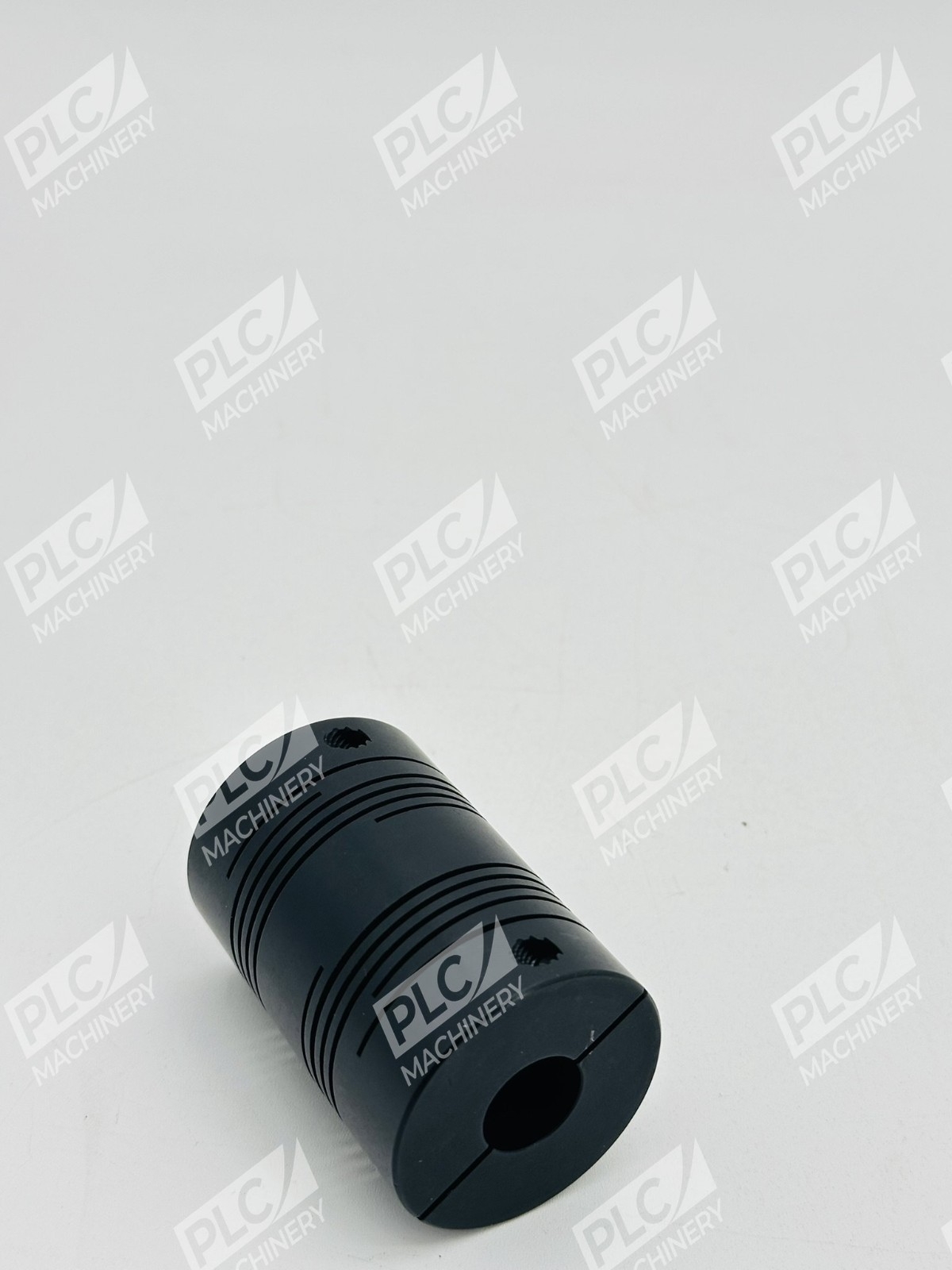

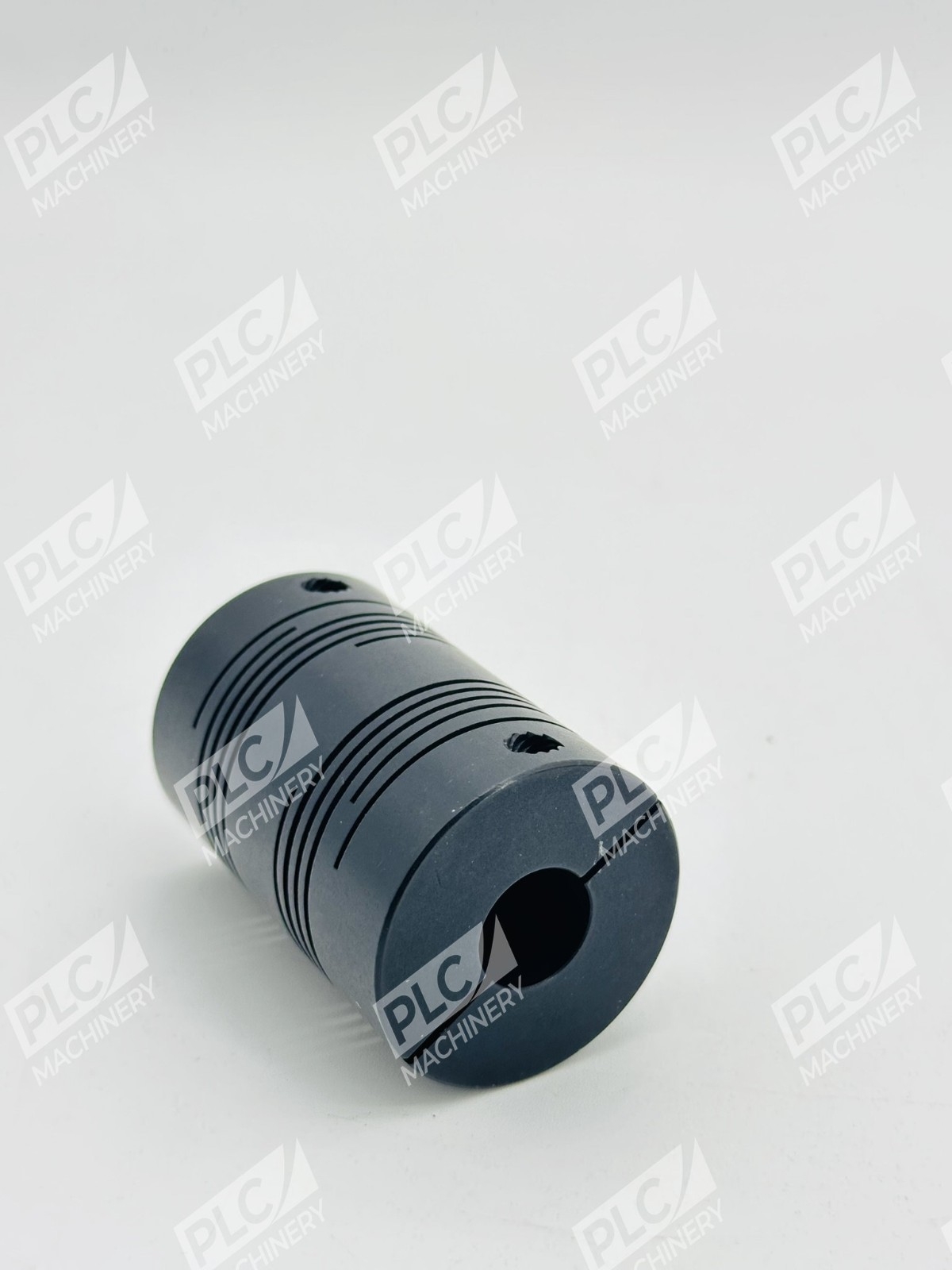

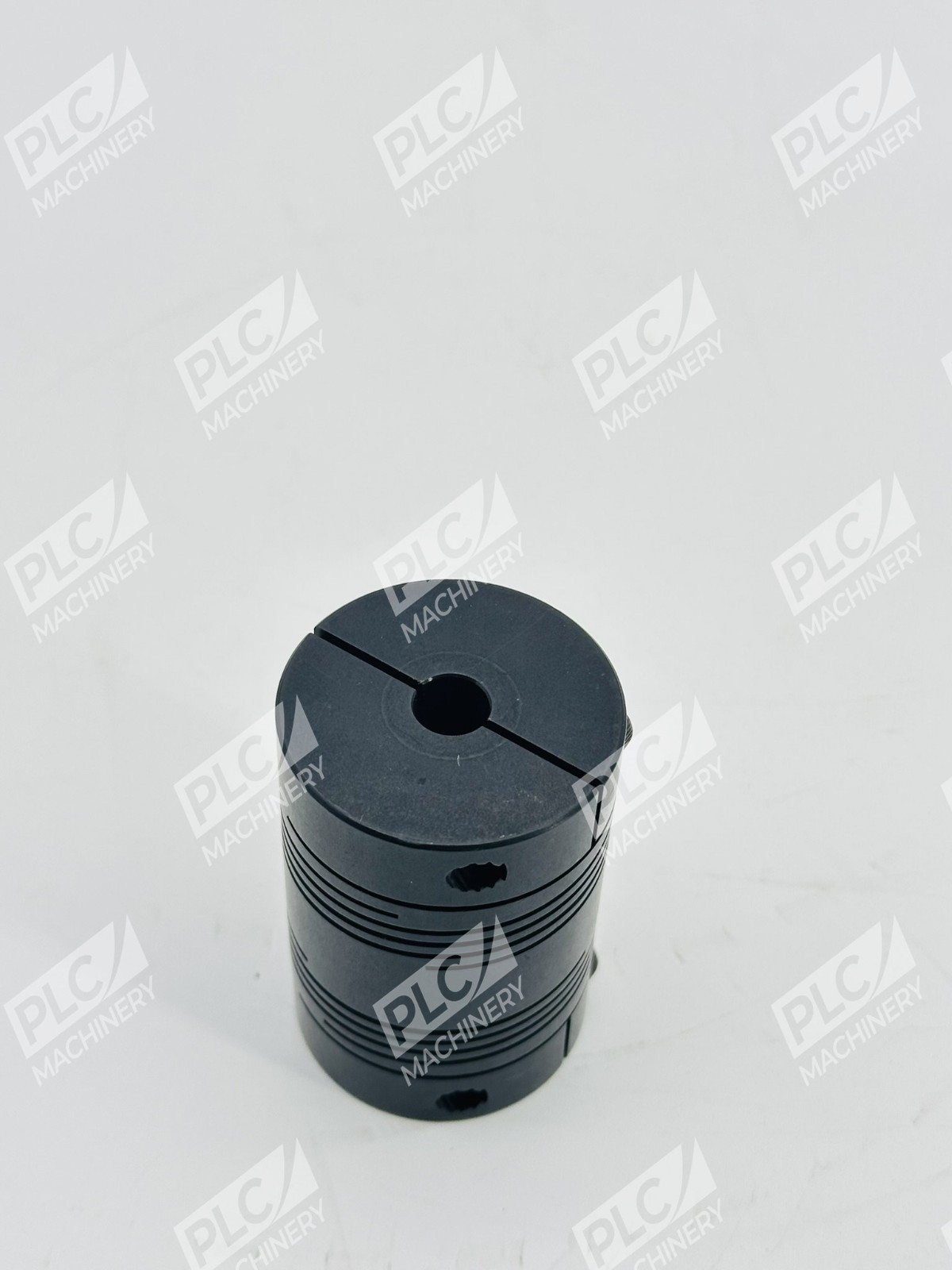

The RoCom AT000175-C16MM-C.375 flexible beam coupling is a precision motion control component engineered for industrial automation, medical device assembly, robotics, and precision machinery applications. RoCom’s one piece, double taper, multi overlapping, curved beam flexible coupling is the patented result of years of testing. This unit accommodates shaft diameters of 16mm on one end and 0.375″ (9.525mm) on the other, with integral clamp-style attachments for secure mounting.
Key Features
- Double-tapered beam design that is thick at the OD and thin at the ID, with thick sections at the hub end forcing flexing to the center of the beam lengths rather than at the ends where stress concentrates.
- Patented helical curved beam design result of years of testing.
- Beam spacing calculated and cut to allow flex without touching at maximum misalignment ratings.
- Inside diameter relief in the flexible area for thru-bore couplings to prevent shaft contact with beams.
- Clamp-style integral attachments for secure and repeatable shaft engagement.
- Zero-backlash design suitable for precision encoder, motor, and transducer coupling applications.
Technical Specifications
- Bore 1: 16mm
- Bore 2: 0.375″ (9.525mm)
- Attachment Type: Integral clamp
- Beam Configuration: Six short double-tapered curved beams (two sets of three)
- Material: Aluminum alloy (2024-T4 or equivalent)
- Misalignment Capability: Up to 5° radial (typical for standard series)
- Applications: Light to moderate duty motion control, precision machinery
- Certifications: ISO 9001 manufacturing
Typical Applications
Used in various industries from Industrial Automation to Medical to Robotics—anywhere where an affordable, reliable, high-performance coupling is needed. Common uses include:
- Servo motor and encoder coupling in CNC machines and motion control systems
- Medical device assembly and precision instrumentation
- Stepper motor drive couplings for automation equipment
- Robotics joint and actuator connections
- Precision measurement and inspection system coupling
Compatibility & Replacements
Compatible With
- Stepper motors and servo motors with 16mm and 0.375″ shaft diameters
- Encoders and rotary transducers
- Standard industrial gearboxes with compatible bore sizes
- Precision spindle systems and motion control applications
- Industrial automation and robotics platforms requiring flexible coupling
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. RoCom’s configuration tool at rocomcorp.com can assist in confirming direct replacement compatibility for your specific application.
Works With
- Allen-Bradley and other industrial motor/servo controllers
- Siemens, Mitsubishi, and Omron automation platforms
- EtherCAT and PROFINET motion control systems
- Standard industrial shaft mounting interfaces (clamp-based attachment)
- Any motion control application using 16mm and 0.375″ bore shafts
