Overview

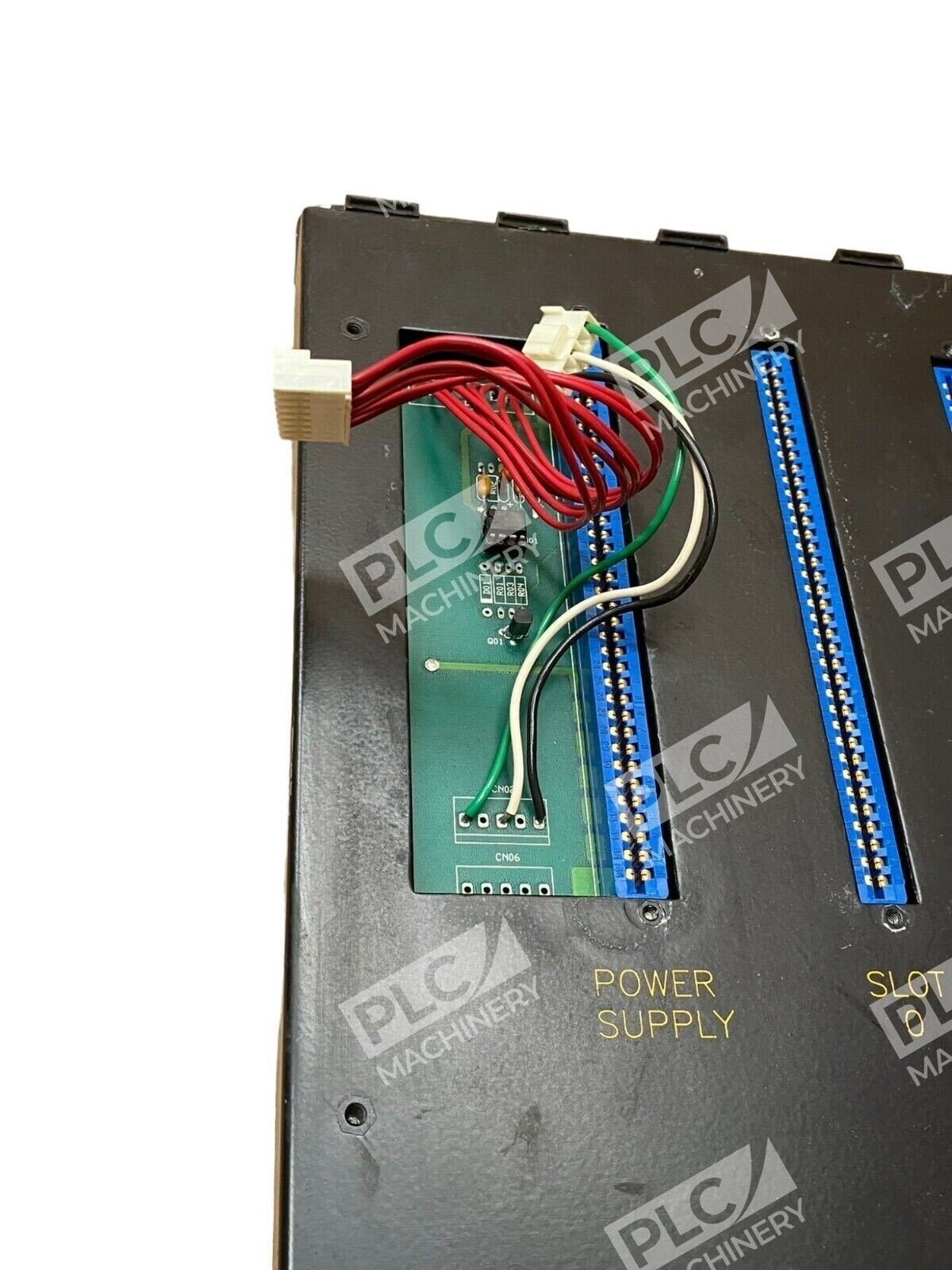

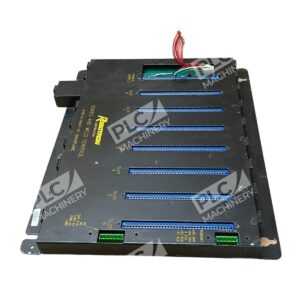

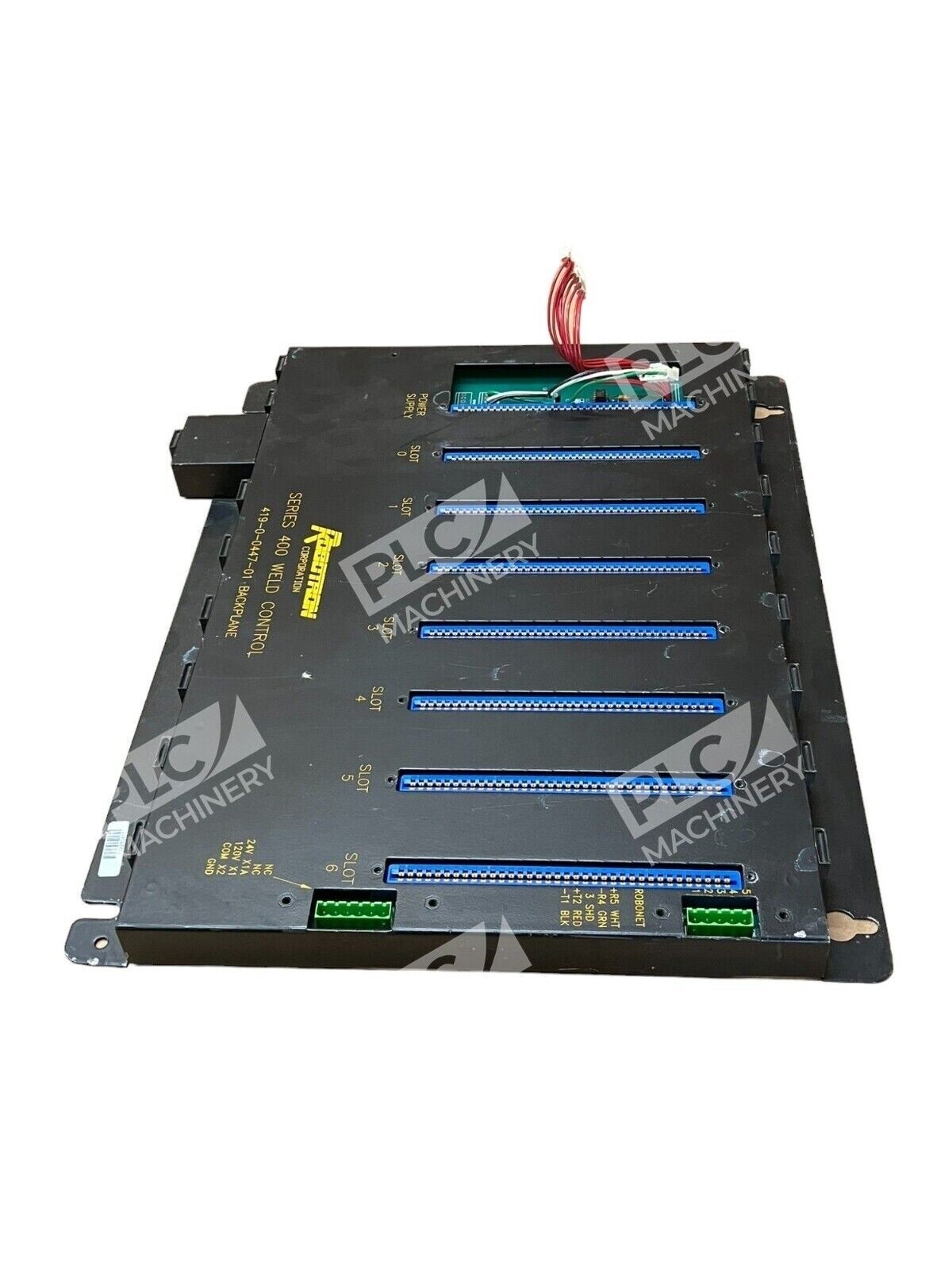

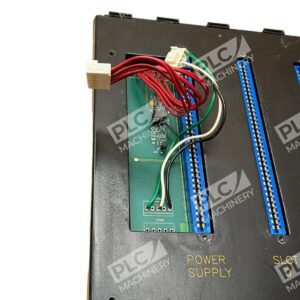

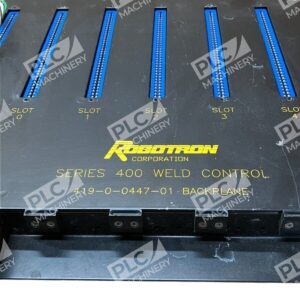

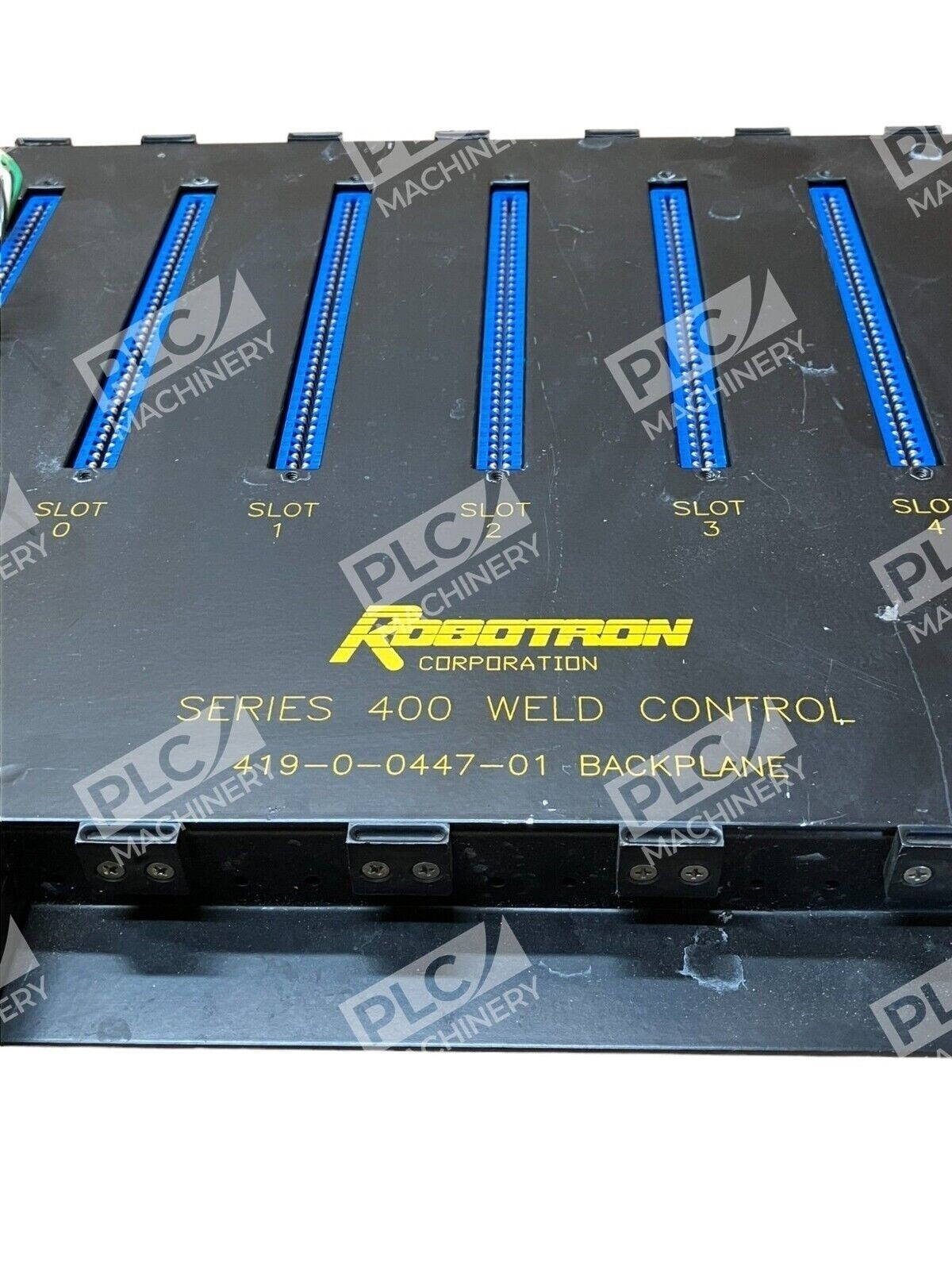

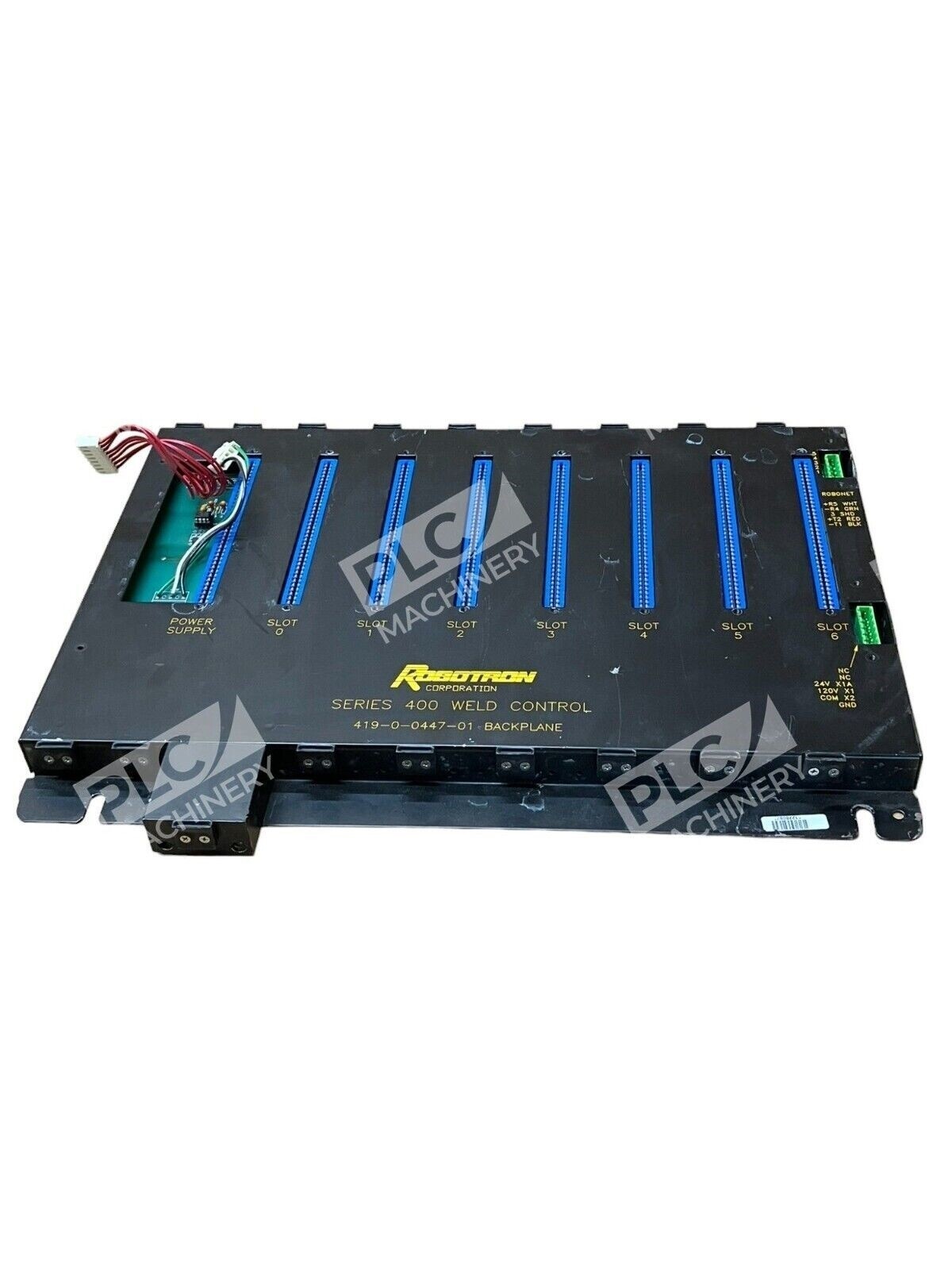

The Robotron 419-0-0447-01 is a Series 400 weld control backplane designed for multi-slot modular control configurations in industrial welding applications. This 7-slot backplane chassis integrates a 115-watt 24 VDC regulated power supply and serves as the central distribution point for welding sequence control modules, I/O boards, and peripheral logic modules. It is a direct replacement component for systems originally configured with related Robotron Series 400 platforms.
Key Features
- 7-slot modular backplane for Series 400 control card integration
- Integrated 115-watt regulated 24 VDC power supply

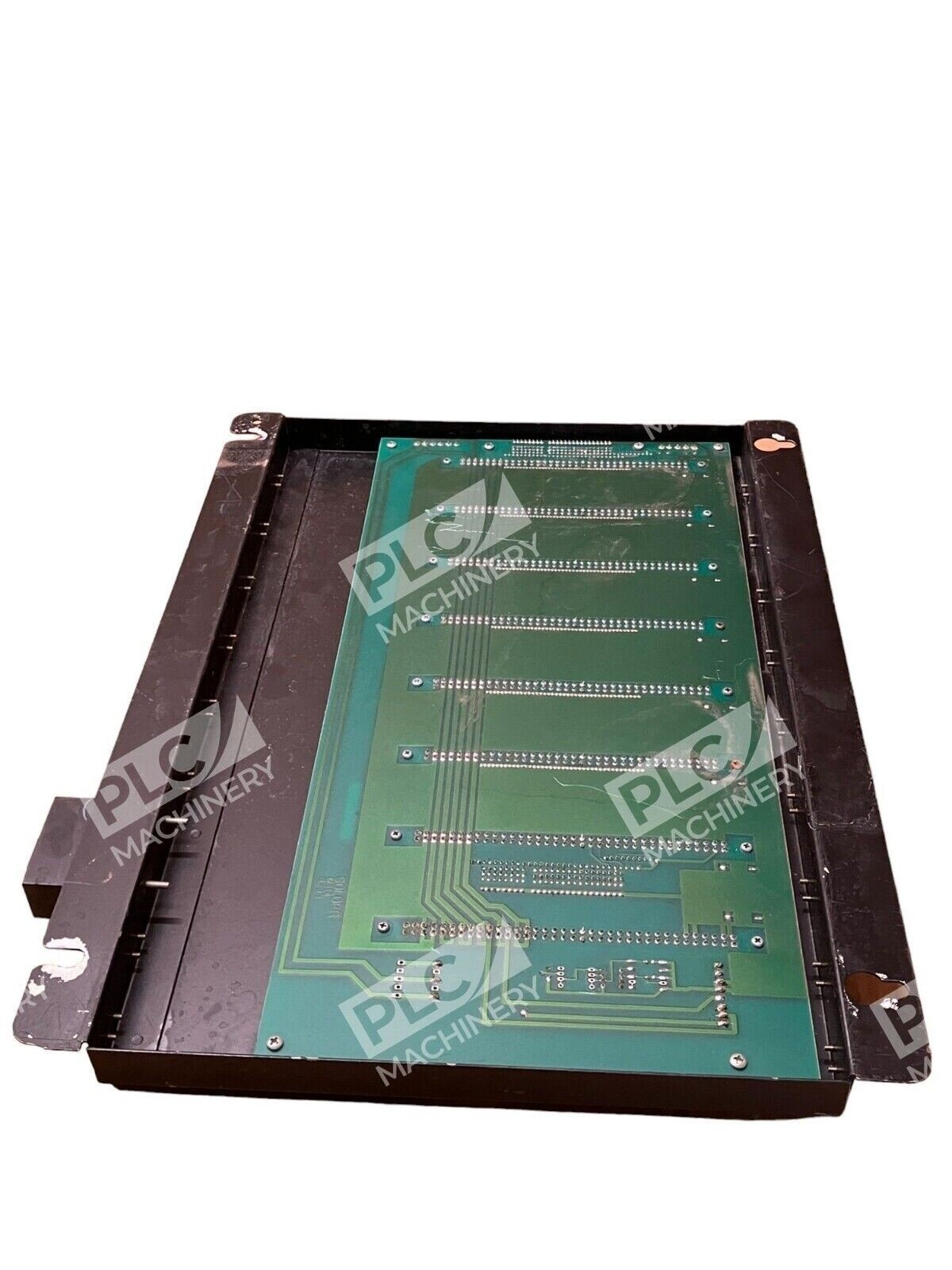

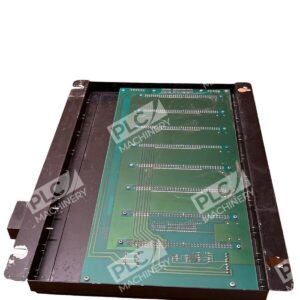

- Multi-layer PCB design for signal integrity and noise reduction
- Supports welding sequence controllers and machine logic modules
- Rack-mount compatible chassis construction
- Used, fully functional condition
Technical Specifications
- Model Number: 419-0-0447-01
- Manufacturer: Robotron Corporation
- Product Type: Weld Control Backplane
- Series: Series 400
- Slot Configuration: 7 slots
- Power Supply Output: 24 VDC, 115 watts
- Form Factor: Rack-mount chassis
- Condition: Used, fully functional
Typical Applications
- Resistance spot welding systems
- Seam welding control platforms
- Projection welding equipment
- Multi-station welding automation
- Legacy Robotron Series 400 system expansions and retrofits
- Industrial equipment repair and refurbishment
Compatibility & Replacements
Compatible With
- Robotron Series 400 weld control modules
- Robotron series welding sequence controllers
- Standard DIN rail-mount power supplies (replacement)
- Industrial rack-mount control cabinets
- Modular weld control architectures supporting 24 VDC logic
Replaces / Drop-In Replacement For
- Robotron 419-0-0444-01 (4-slot variant)
- Robotron 419-0-1444-01 (alternative configuration)
- Other Robotron Series 400 backplane editions
Works With
- Robotron Series 400 I/O modules
- Robotron welding control software platforms
- 24 VDC industrial control logic systems
- Standard modular backplane expansion cards
