Overview
The Rittal SV3078.000 is a robust 1-pole busbar holder engineered for industrial electrical distribution and protection applications. Designed to accommodate 30x10mm E-Cu (electrolytic copper) busbars, this holder delivers reliable support for busbar systems rated at 800A. The SV3078.000 is part of Rittal’s comprehensive line of busbar support components used in control panels, switchgear enclosures, and power distribution systems where mechanical stability and electrical continuity are critical.
Key Features
- 1-pole busbar support rated for 800A maximum current
- Compatible with 30x10mm E-Cu (copper) busbar profiles
- Durable construction for reliable mechanical mounting

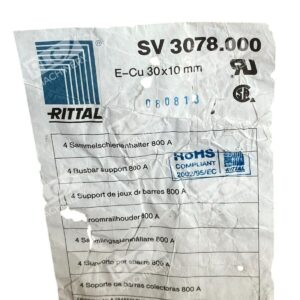

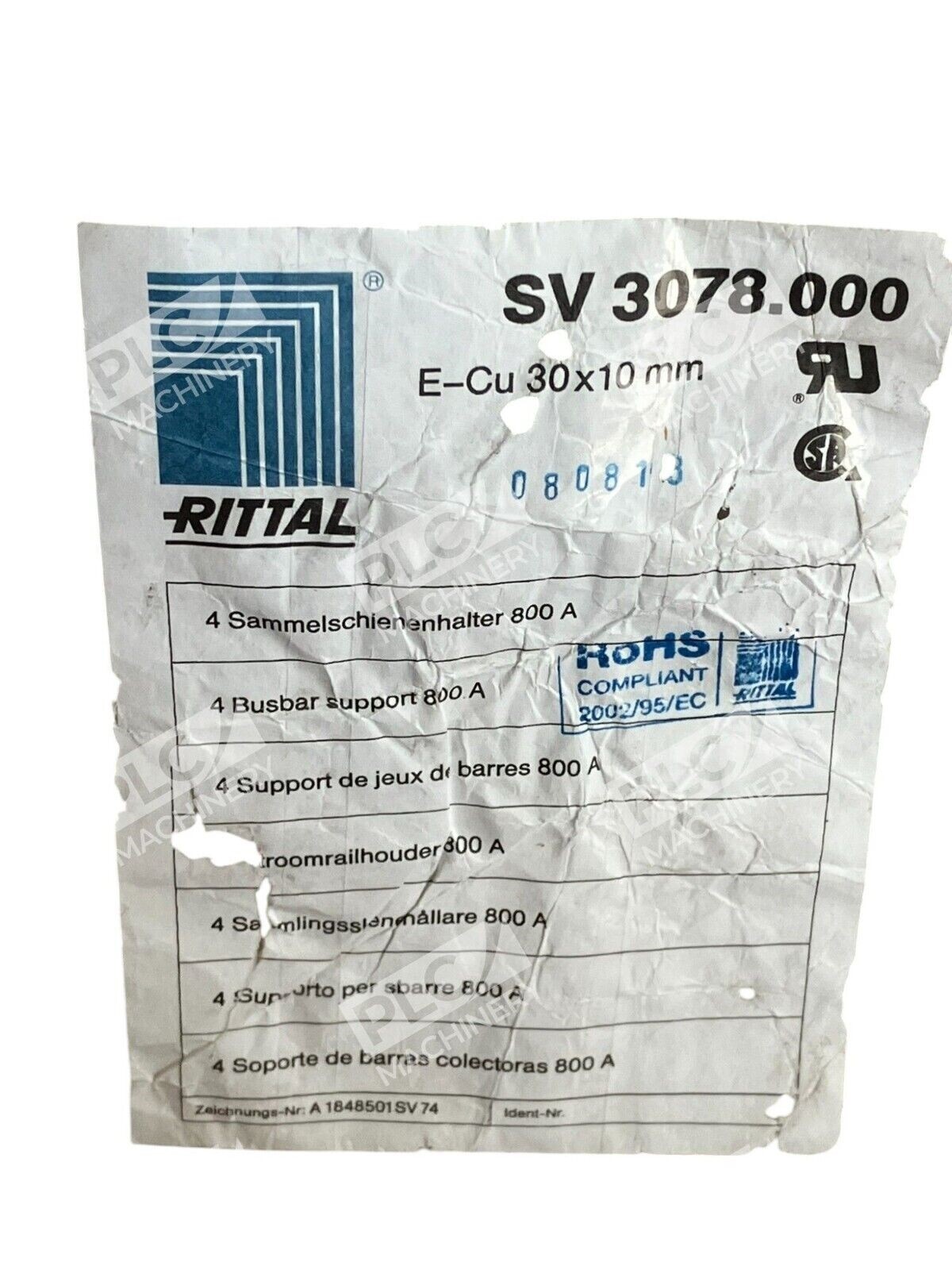

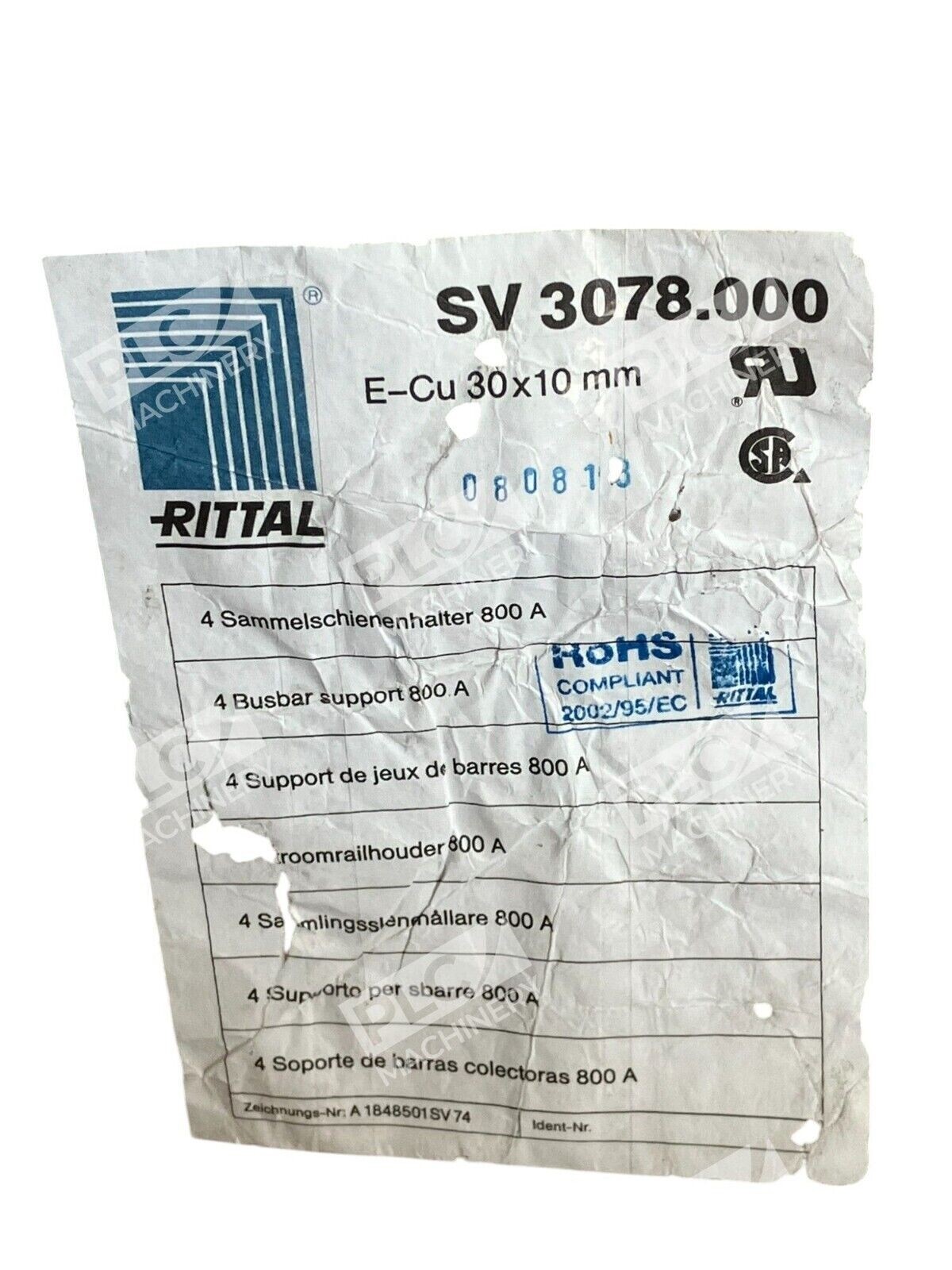

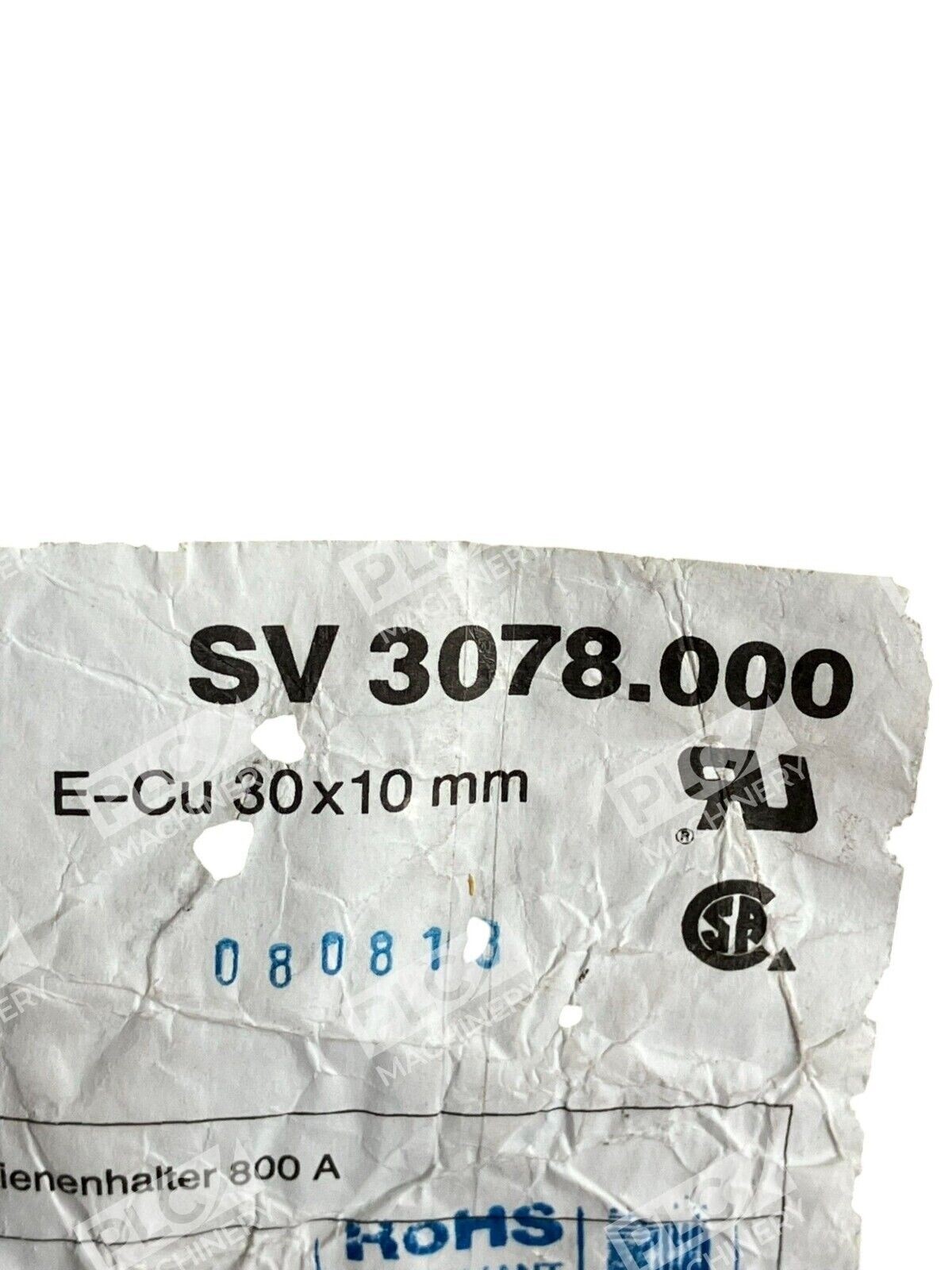

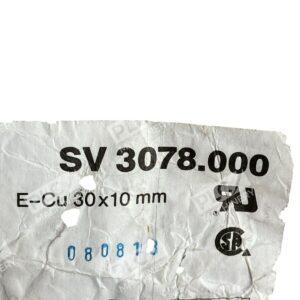

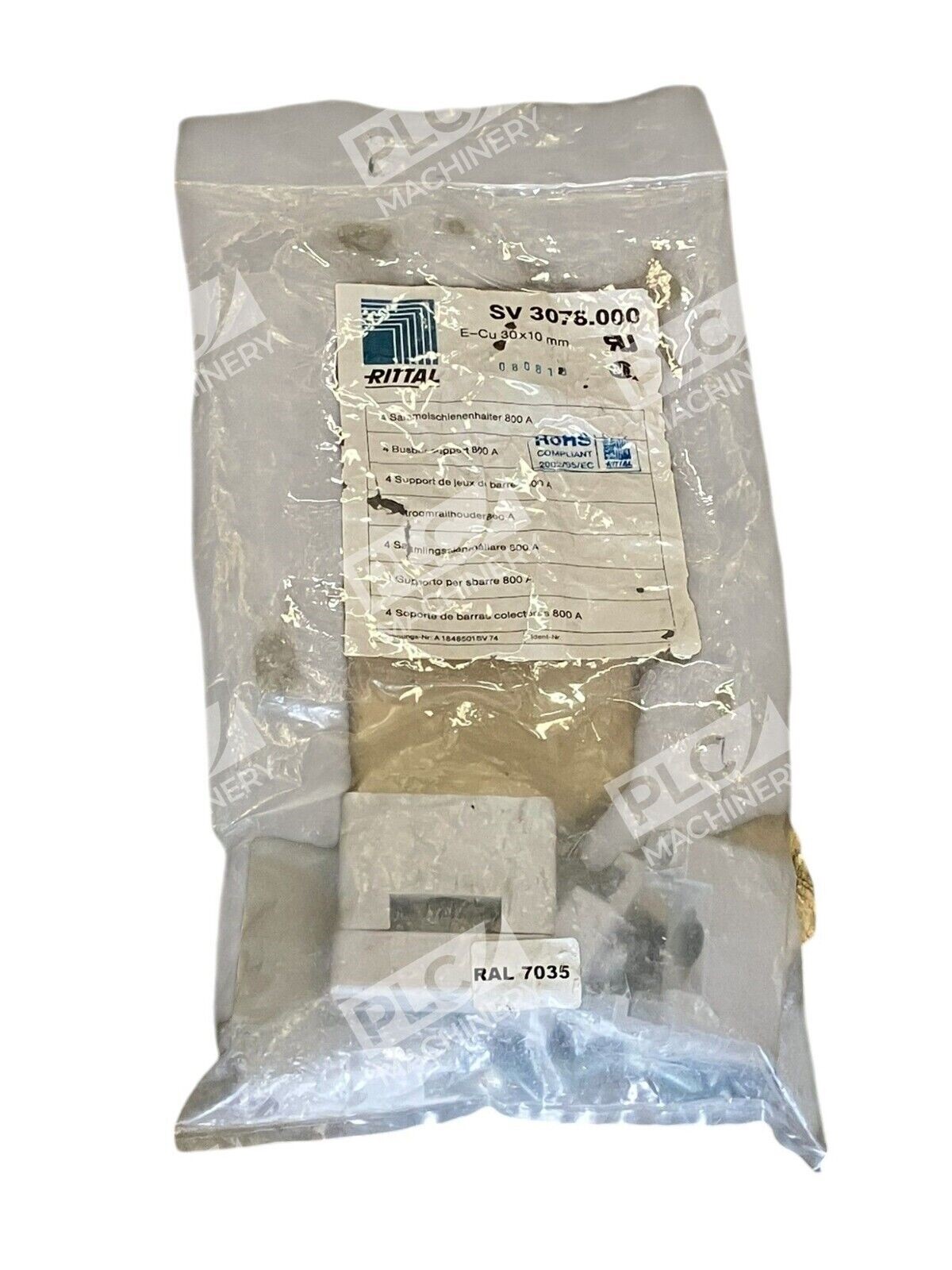

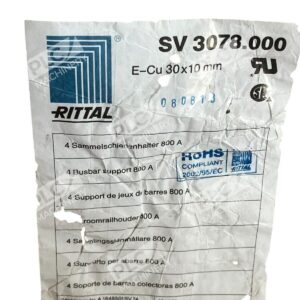

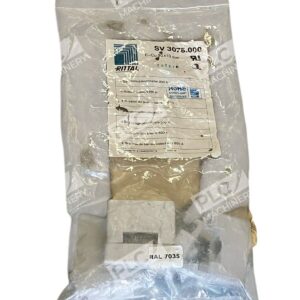

- Supplied in a convenient bag of 4 holders
- Ideal for industrial control panels, switchgear, and distribution systems
- Meets European electrical standards for busbar support systems
Technical Specifications
| Specification | Value |
| Manufacturer | Rittal GmbH & Co. KG |
| Part Number | SV3078.000 / SV-3078.000 |
| Product Type | 1-Pole Busbar Holder |
| Busbar Profile Size | 30x10mm |
| Busbar Material | E-Cu (Electrolytic Copper) |
| Rated Current | 800A (1-pole) |
| Quantity per Package | 4 Units |
| Application Category | Electrical Distribution & Protection |
Typical Applications
The Rittal SV3078.000 busbar holder is widely used in:
- Industrial control panel assembly and switchgear enclosures
- Main power distribution systems in manufacturing facilities
- Electrical cabinets and compact distribution units
- 3-phase power systems with single-phase busbar runs
- Building automation and facility power distribution
- OEM equipment requiring modular busbar support architecture
Compatibility & Replacements
Compatible With
- 30x10mm E-Cu (electrolytic copper) busbar profiles
- Rittal busbar trunk systems and power distribution frameworks
- Industrial control enclosures and switchgear cabinets
- 3-phase busbar systems rated for 800A and below
- Standard DIN rail and panel-mounted busbar installations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to ensure this part number matches your existing busbar support architecture. Related Rittal busbar support models include SV 3073.000, SV 3074.000, and SV 3079.000, which are designed for different busbar dimensions and current ratings.
Works With
- Rittal busbar trunk and power distribution systems
- Industrial electrical enclosure standards (IEC 61947)
- Copper busbar systems in accordance with EN 50304
- Standard electrical distribution and control panel architectures
- 3-pole and multi-pole busbar configurations
