Overview

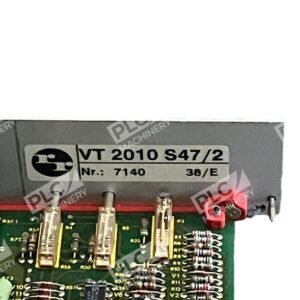

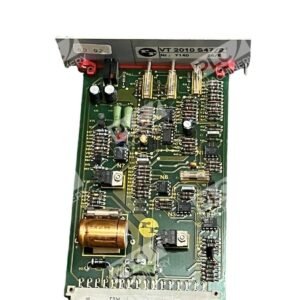

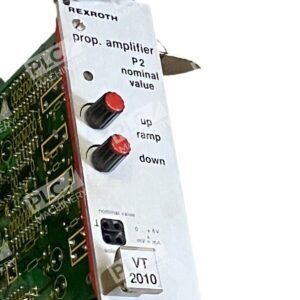

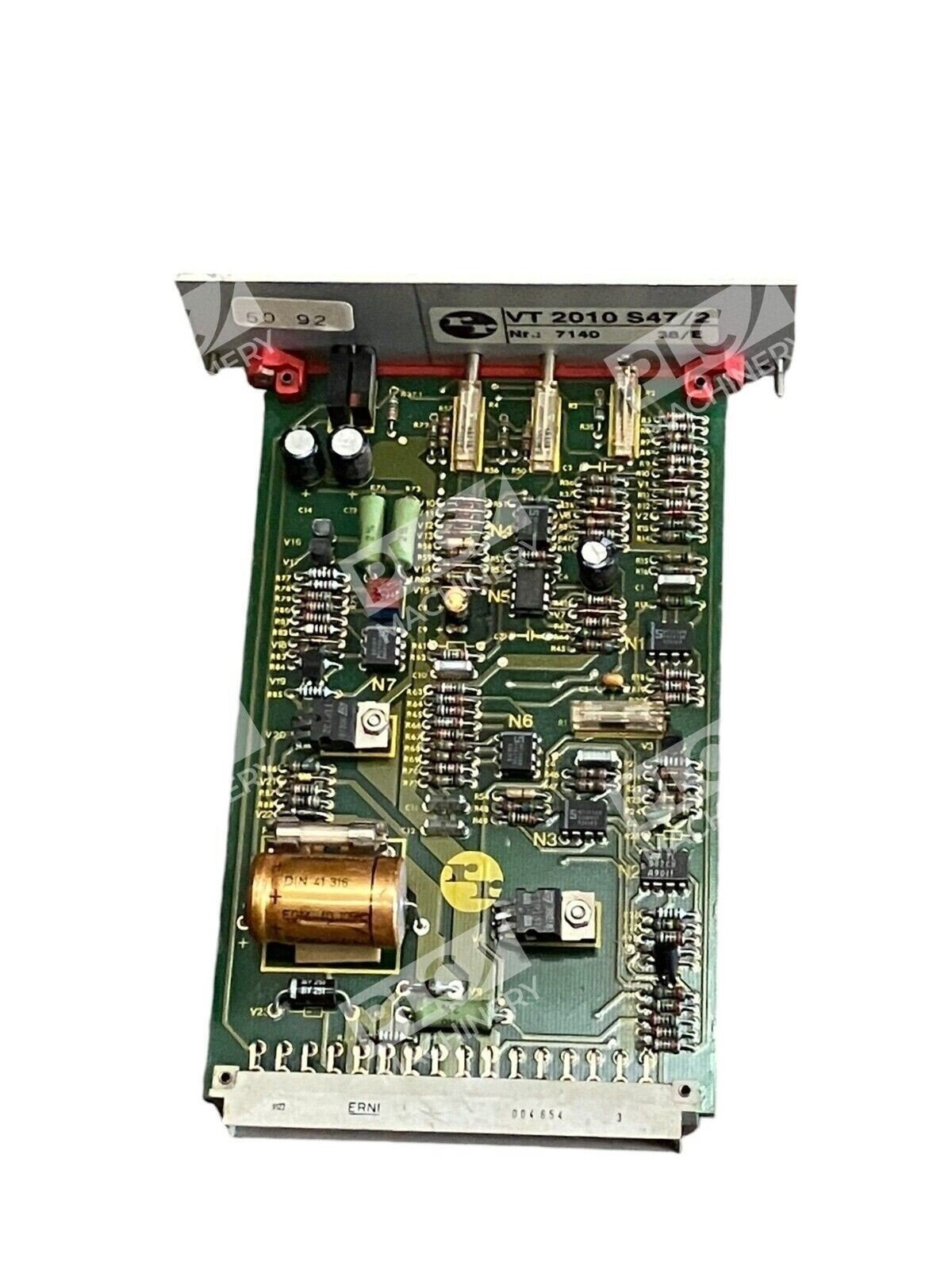

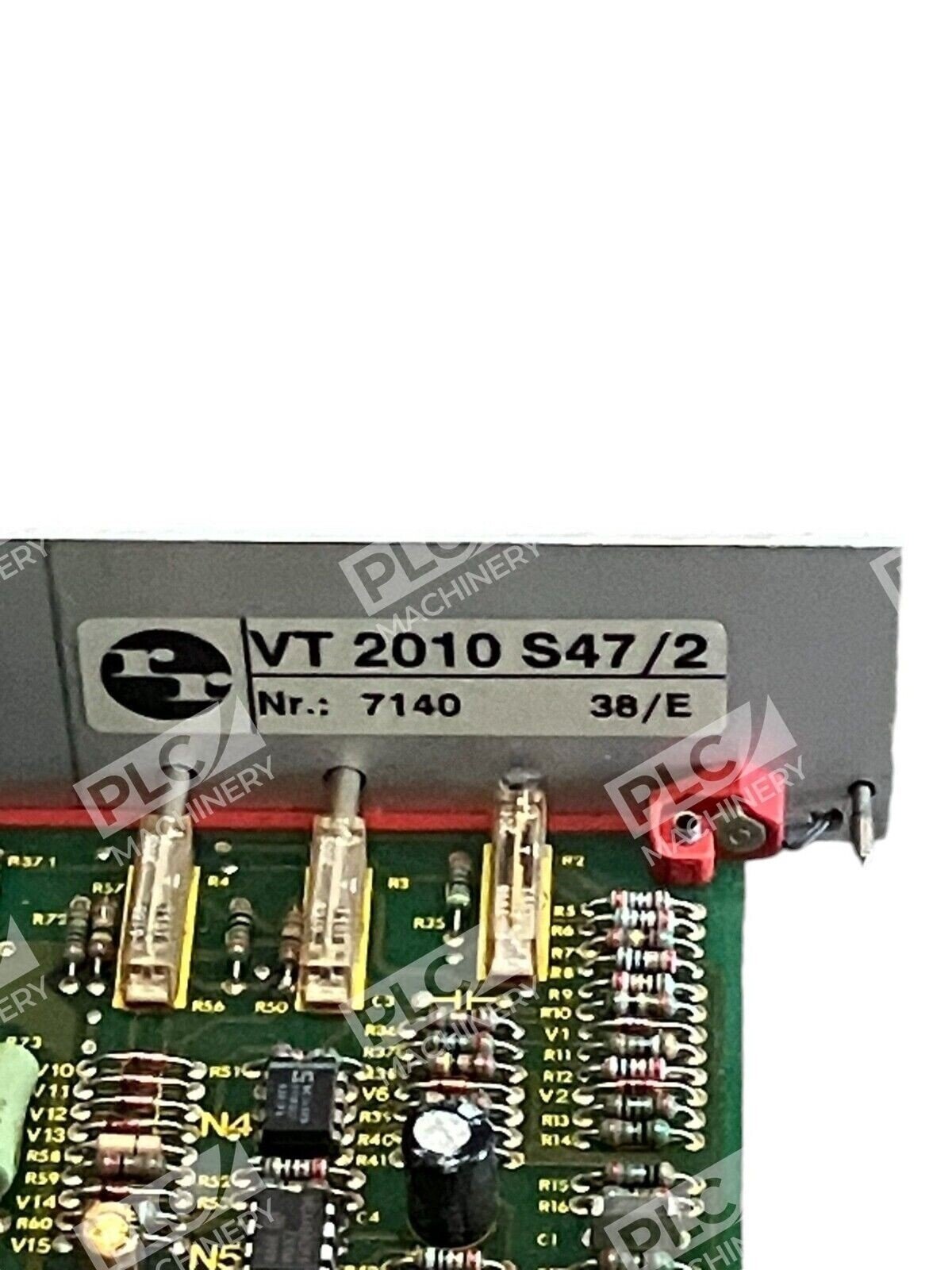

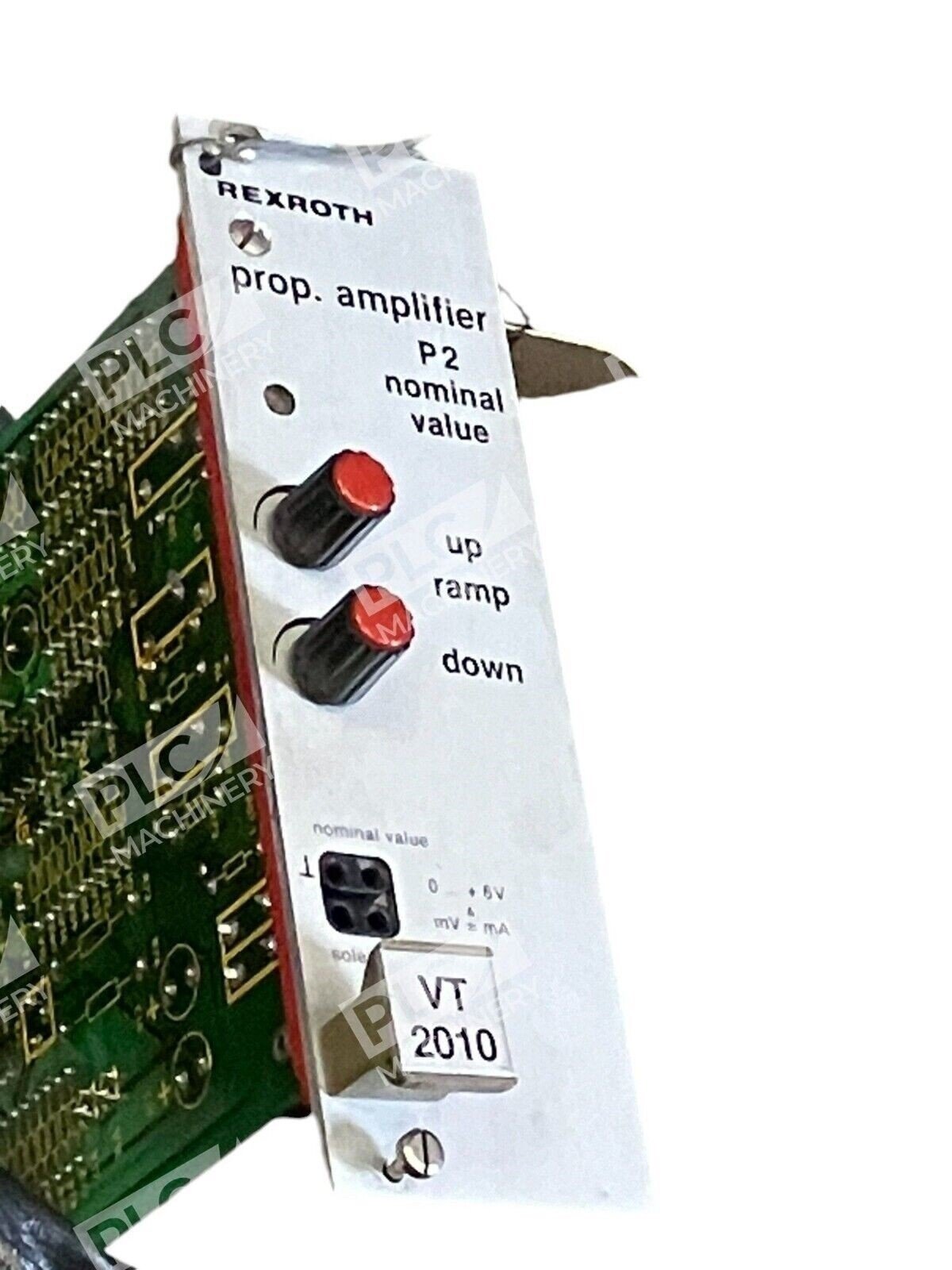

The Rexroth VT 2010 S47/2 is a proportional amplifier card manufactured by Bosch Rexroth Indramat, part of the VT 2000 series. This electronic amplifier delivers precise control for single solenoid pressure control valves in industrial hydraulic systems. The unit features differential analog input, adjustable ramp generation, and integrated voltage stabilization for reliable performance in motion control and proportional valve applications.
Key Features
- Proportional control card with differential input design
- 24 VDC input voltage with 4-20 mA control signal range
- Adjustable ramp generator for controlled pressure increase/decrease
- Built-in voltage stabilizer for consistent performance
- DIN rail-mountable configuration
- Low power consumption (less than 10 W)
- LED diagnostic indicators for real-time fault detection
Technical Specifications
- Input Voltage: 24 VDC
- Control Signal Range: 4-20 mA
- Power Consumption: Less than 10 W
- Operating Temperature: -10°C to +55°C
- Weight: Approximately 1.5 kg
- Series: VT 2000 Proportional Amplifiers
- Mounting: DIN rail
- Manufacturer: Bosch Rexroth Indramat
- Condition: Used, tested & fully functional
Typical Applications
- Single solenoid pressure control valve systems
- Proportional hydraulic actuator drives
- Servo and motion control loops
- Industrial automation with pressure/flow regulation
- Machine tool hydraulic systems
- Printing and packaging machinery
Compatibility & Replacements
Compatible With
- VT 2000 series proportional amplifier chassis and card holders
- Rexroth VT 3002 card holders
- Single solenoid proportional pressure control valves
- 28 VDC and 30 VAC differential input systems
- Industrial hydraulic control systems with 24 VDC logic
Replaces / Drop-In Replacement For
- VT 2000 S47/2
- VT 2010 S47 (previous variant)
Works With
- Proportional pressure control valve applications
- 4-20 mA analog control systems
- DIN rail-mounted hydraulic control systems
- Industrial automation platforms with 24 VDC control logic
