Overview
The Rexroth R-IB IL TEMP 2 UTH-PAC is a high-quality signal acquisition module designed for precise temperature measurement and monitoring applications. This inline temperature module integrates directly into Bosch Rexroth’s modular Inline I/O system architecture, enabling straightforward incorporation into distributed PLC and control cabinet designs. The module’s ability to handle both thermocouple and millivolt inputs makes it an indispensable component in systems where precise temperature control and monitoring are critical.
Key Features
- Two analog UTH inputs for thermocouples or linear voltage, 2-conductor connection technology, 500 kbps transmission speed on the local bus
- Supports 13 different types of thermocouples according to DIN EN 60584-1 and DIN 43710, as well as linear voltage input of -15 mV to +85 mV
- Compact equipment configuration offering maximum flexibility for cost-effective implementation of individual machine concepts
- Robust design and mechanics, easy to use, quick reaction time and quick to install – both in control cabinet and field
- IP20 protection rating, includes Inline connector and labeling field
- Designed for use within an Inline station, capable of acquiring signals from standard thermocouples
Technical Specifications
- Analog Inputs: 2 channels (thermocouple or linear voltage)
- Thermocouple Support: 13 DIN EN 60584-1 and DIN 43710 types
- Linear Voltage Range: -15 mV to +85 mV
- Connection Technology: 2-conductor
- Transmission Speed: 500 kbps on local bus
- Protection Rating: IP20
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +85 °C
- Humidity (Operating): 10% to 95% per DIN EN 61131-2
- Dimensions (W×H×D): 12.2 mm × 136.8 mm × 71.5 mm
- Weight: 100.1 g
- Manufacturer Part Number: R911170431
Typical Applications
- Manufacturing process temperature monitoring and control
- Furnace and oven temperature acquisition
- Thermocouple signal conditioning in distributed automation systems
- HVAC and thermal management systems
- Food processing and pharmaceutical temperature tracking
- Industrial machinery thermal diagnostics
Compatibility & Replacements
Compatible With
- Bosch Rexroth Inline I/O platforms and stations
- Rexroth R-IB IL series modular I/O architecture
- Industrial Ethernet over Inline local bus networks
- Standard DIN EN thermocouple types (K, J, T, E, N, R, S, B, etc.)
- PLC control systems using analog signal acquisition
Replaces / Drop-In Replacement For
- Legacy Rexroth temperature modules requiring identical inline connector footprint
- Standard 2-channel thermocouple input modules in distributed architectures
Works With
- Bosch Rexroth IndraWorks Engineering Suite
- Rexroth Inline communication protocol (500 kbps bus)
- Industrial Ethernet / PROFINET via Inline gateways
- EtherCAT integrated architectures (via appropriate coupler modules)
- Standard thermocouple and analog input simulation software

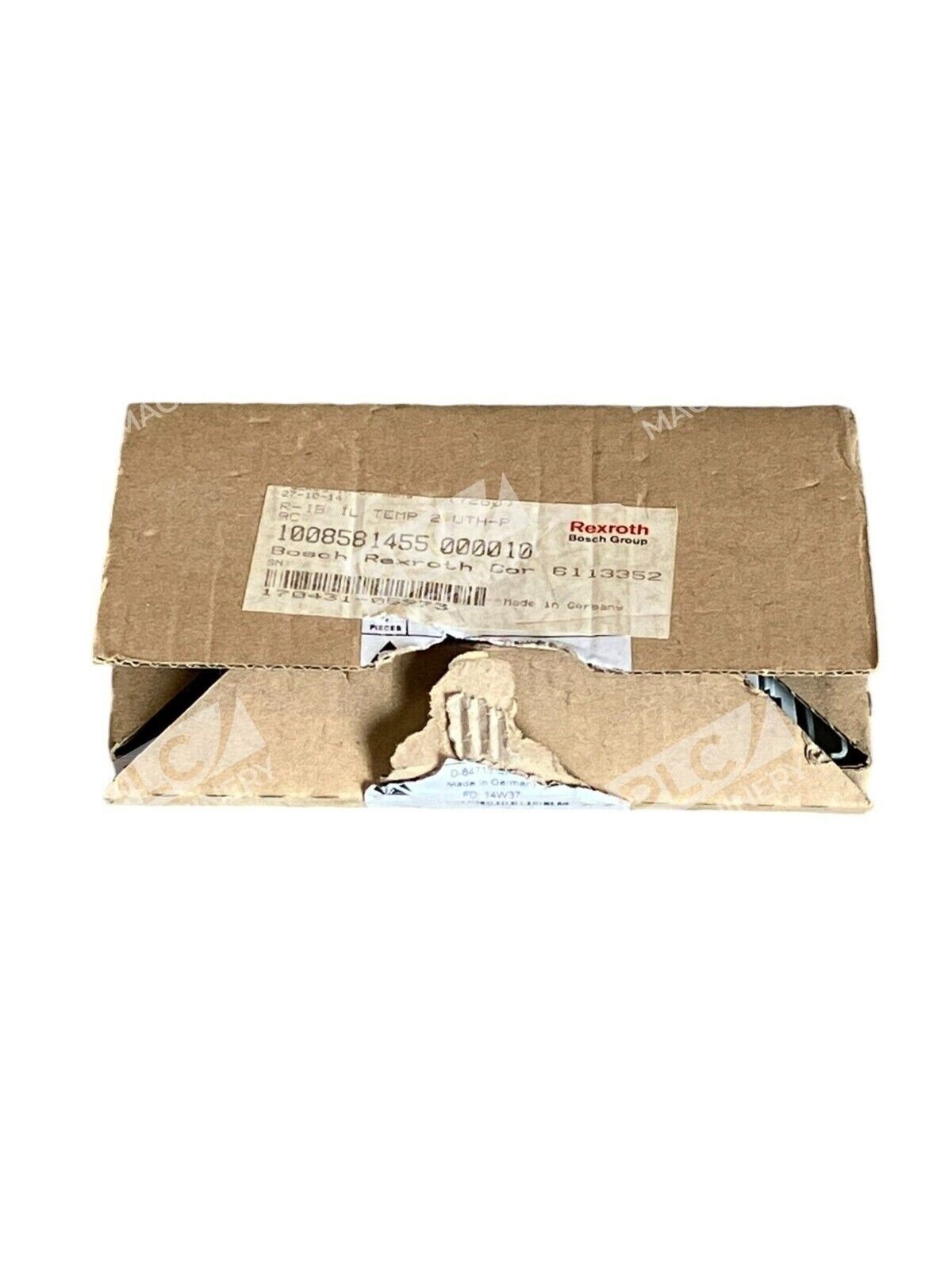

[“Two thermocouple/millivolt analog inputs with 13 thermocouple type support per DIN EN 60584-1”, “Compact 12.2 mm inline module design fits distributed cabinet and field installation”, “Cold-junction compensation and -15 to +85 mV linear voltage signal conditioning”, “IP20 rated with robust mechanics, 500 kbps Inline bus integration”, “Operating range -25 to +55 °C, supports critical temperature monitoring applications”, “New in box condition, drop-in compatible with Rexroth Inline I/O architecture”]
