Overview
The Redington 6320-2500-0000 (Trumeter Model 63) is a panel-mount electronic hour meter designed for mission-critical industrial automation and equipment monitoring. This self-powered electronic hour meter features an 8-digit LCD with 0.32-inch (8mm) digits and seven icons, enabling operators to instantly verify running hours without external software. Housed in rugged plastic with NEMA 4/4X rating when properly installed using the supplied gasket, it suits harsh factory, utility, and process control environments.
Key Features
- Hour Meter displays hours in resolution of hours and tenths (0.1h increments)
- 8-digit LCD display with time range 0 to 9999999.9 hours
- Manual reset, remote reset, and non-reset functions available; manual reset enable input option provided
- Operating temperature range -40°F to 185°F (-40°C to 85°C)
- Compliant with CE EMC standards EN61326:2001, UL recognized for U.S. and Canadian safety, and RoHS/WEEE compliant
- Self-powered with 15-year lithium battery for data retention during power loss
Technical Specifications
- Input Voltage: 10–300VDC or 20–300VAC
- Display: LCD, 8 digits, hours/tenths
- Display Resolution: 0.1 hours (6 minutes)
- Bezel face size: 2.00 in × 1.10 in (rectangular, flush mount)
- Panel cutout: 1.79 in × 0.89 in
- Frequency: 50/60 Hz
- NEMA Rating: 4, 4X, 12
- Weight: 2 oz (57g)

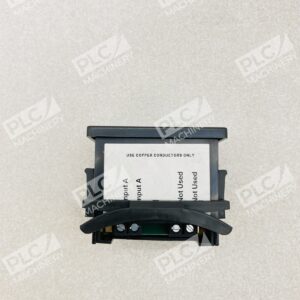

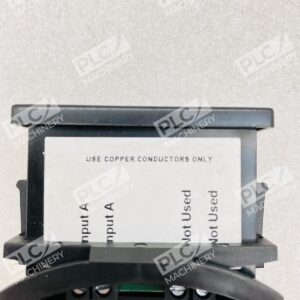

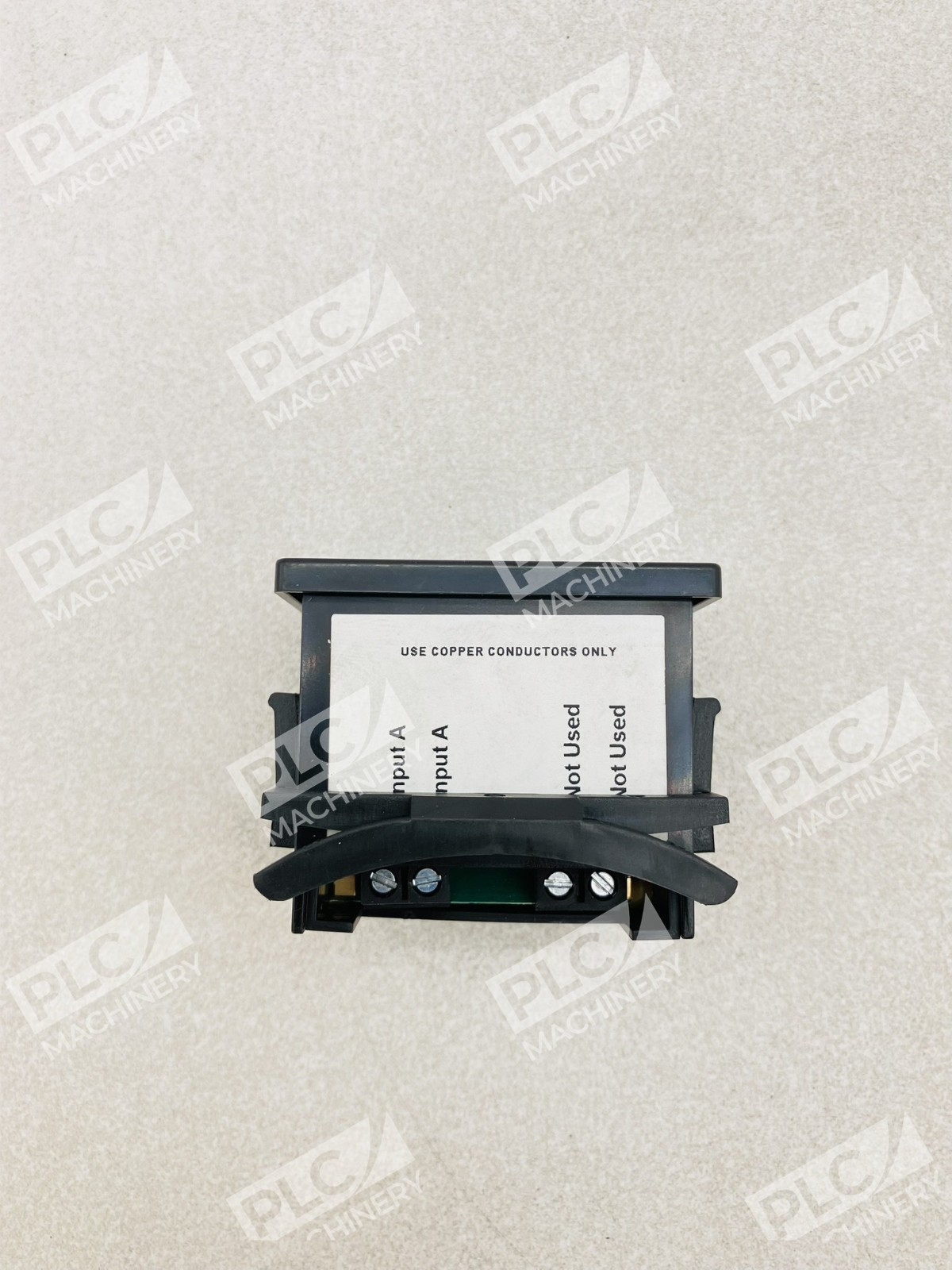

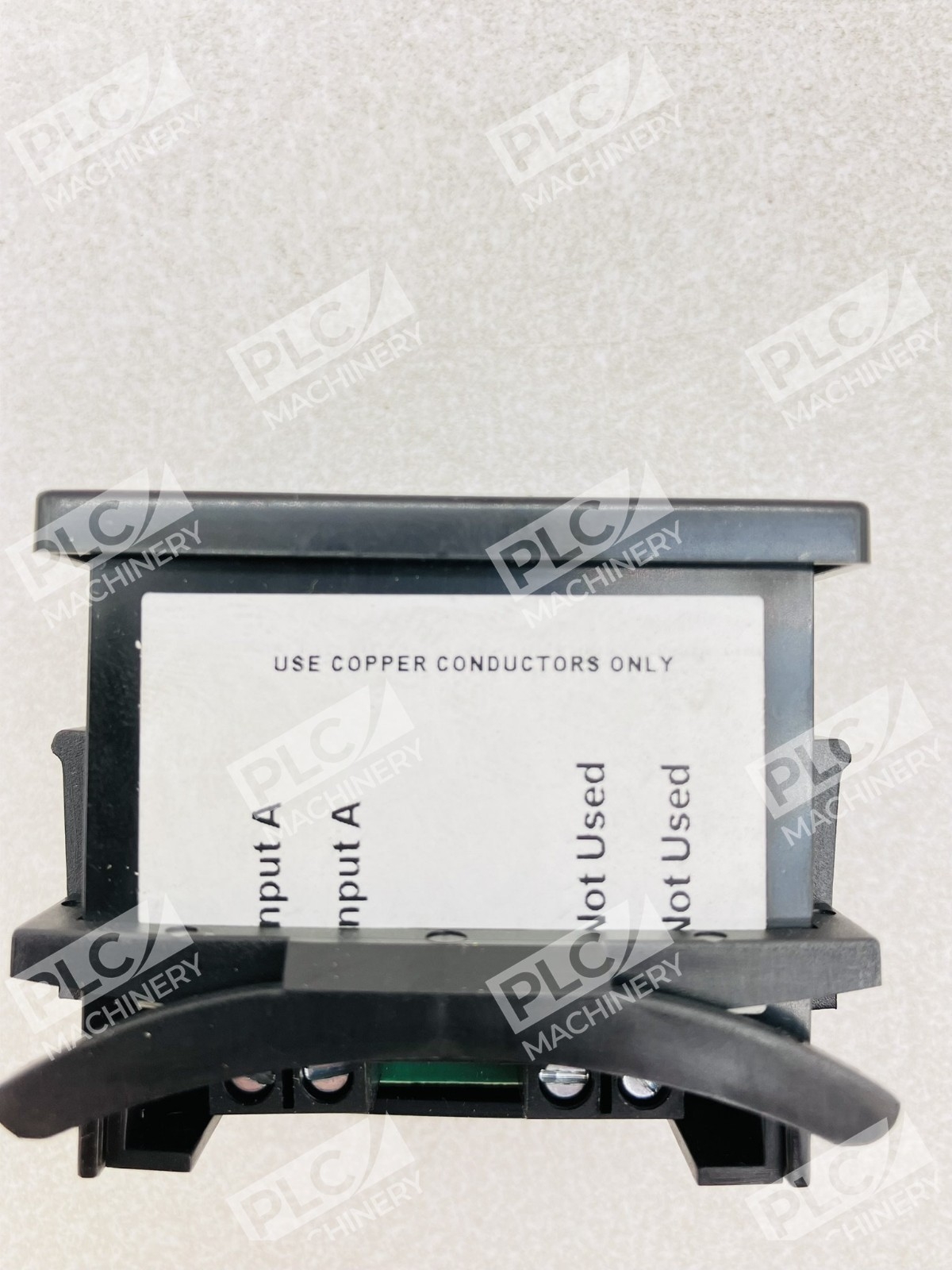

- Four screw terminals for I/O on high-voltage models
- Input Type: High Voltage DC or AC (factory-set)
Typical Applications
The Redington 6320-2500-0000 is widely used in:
- Industrial motor and equipment runtime monitoring
- HVAC system operating hour tracking
- Pump and compressor maintenance scheduling
- Manufacturing machine uptime logging
- Generator and power system operation hours
- Preventive maintenance trigger automation
Compatibility & Replacements
Compatible With
- PLC systems and industrial controllers with 10–300VDC or 20–300VAC I/O
- Standard panel cutout installations (1.79″ × 0.89″)
- Dry contact, low voltage DC, and high voltage DC/AC sensor inputs
- Manual and remote reset control interfaces
- 50/60 Hz power systems worldwide
Replaces / Drop-In Replacement For
- Other Redington Model 63 series variants (6320-0000-0000, 6320-0500-0000, 6320-1000-0000, etc.)
- Legacy mechanical hour meters with equivalent panel cutout dimensions
- Verify OEM compatibility before replacement
Works With
- Standard industrial automation platforms (Allen-Bradley, Siemens, Mitsubishi, Omron)
- EtherNet/IP and PROFINET networks (when integrated via I/O modules)
- Manual front-panel programming and reset
- Dry contact sensors and solid-state relay interfaces
