Overview

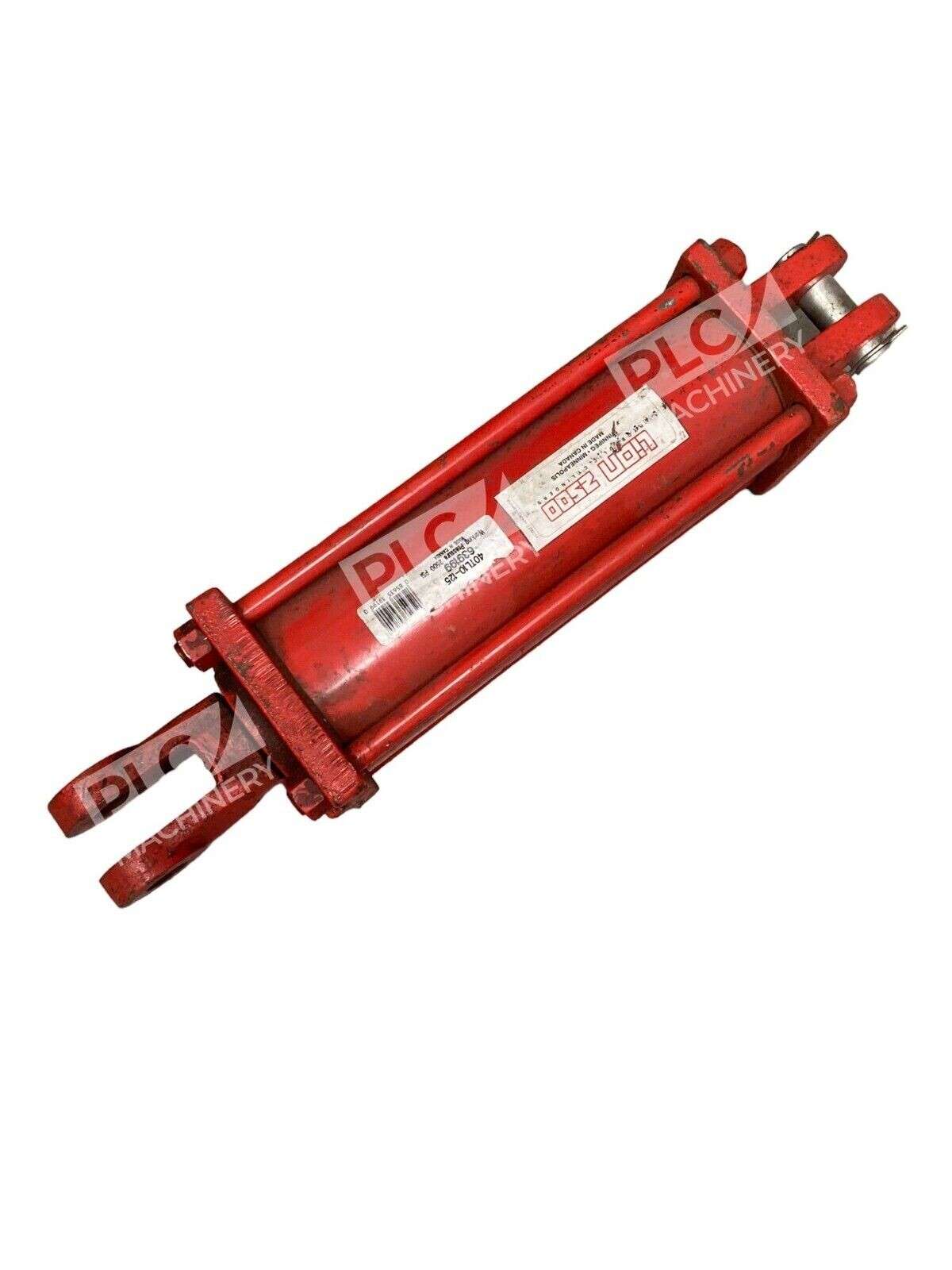

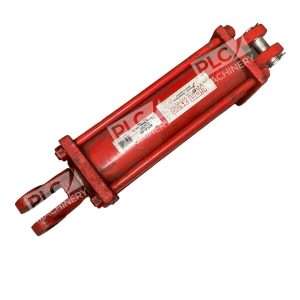

The Red Lion 40TL10-125 is a tie-rod hydraulic cylinder from the proven Lion Hydraulics TL series, engineered for high-pressure mobile and stationary equipment. With a rated working pressure of 2500 PSI, this cylinder delivers consistent force output in agricultural implements, construction machinery, and industrial hydraulic systems. The hard chrome-plated rod resists corrosion and wear, extending service life in harsh field conditions.
Key Features
- 2500 PSI maximum working pressure — suitable for demanding mobile and industrial hydraulic circuits
- Tie-rod construction — proven design that balances strength and serviceability
- Hard chrome-plated rod — extends cylinder life and promotes dry sealing in contaminated environments
- ASAE/SAE compatibility — standard cavity and port configurations simplify integration into existing systems
- New, no-box condition — fully functional unit at a competitive price point
Technical Specifications

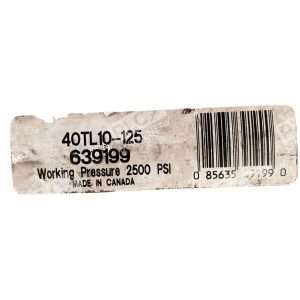

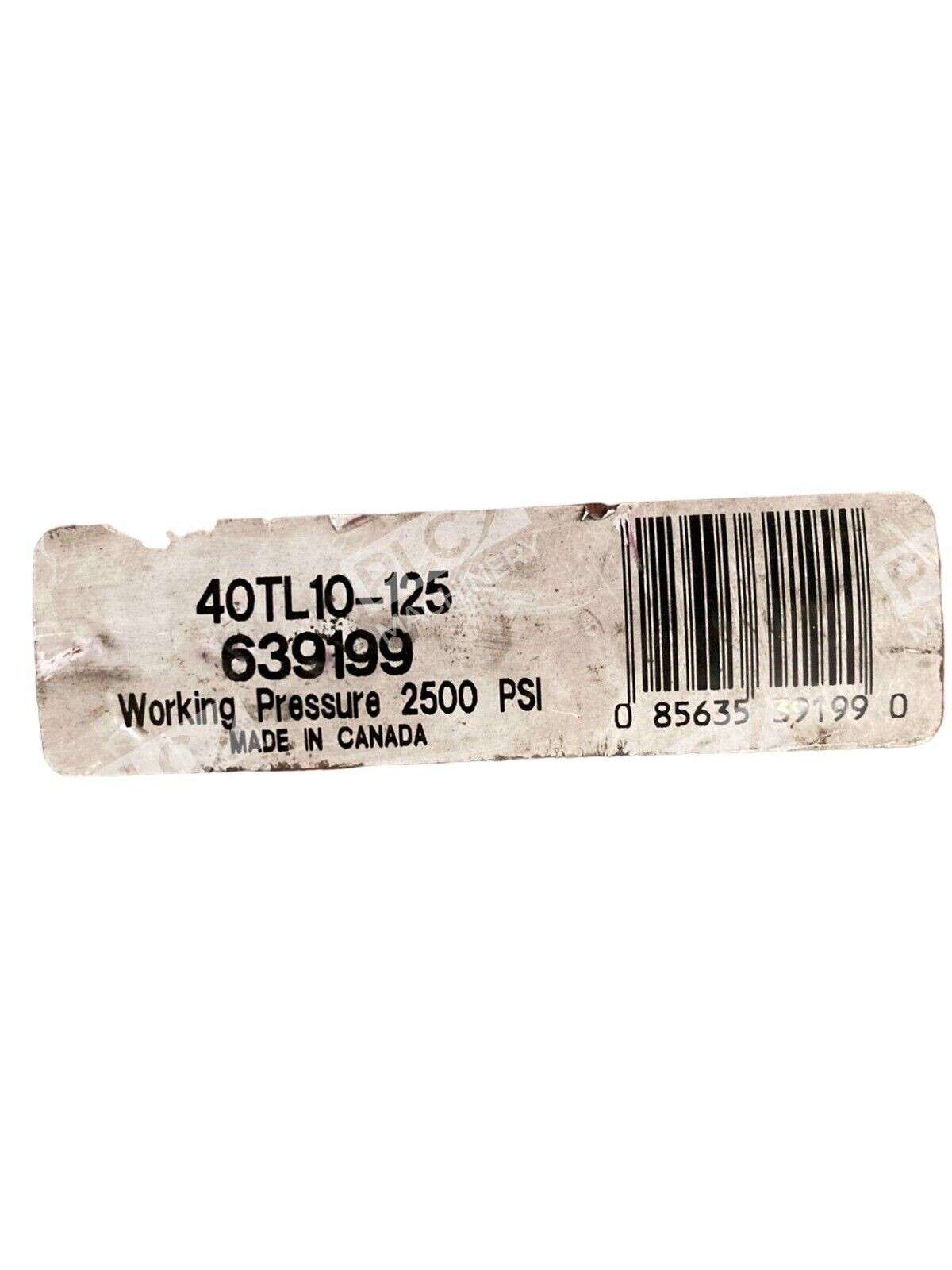

Red Lion TL series cylinders follow industry-standard nomenclature. The 40TL10-125 designation indicates: 4-inch bore, 10-inch stroke, and 1.25-inch rod diameter. Pin-to-pin retracted length is approximately 20.25 inches, with extended length near 30.25 inches (exact dimensions vary by configuration). Weight is approximately 115–130 pounds depending on final assembly details.
Typical Applications
- Agricultural equipment — combines harvesters, grain carts, hay balers, and planter implement hydraulics
- Construction machinery — loader arms, grader blades, compactor cylinders
- Industrial equipment — press frames, punch machines, material handling systems
- Mobile equipment — dump truck beds, refuse haulers, aerial lift platforms
Compatibility & Replacements
Compatible With
- Standard SAE/ASAE cavity and port configurations for drop-in integration
- Hydraulic systems rated for 2500 PSI working pressure
- Chief, Prince, Cross, and equivalent tie-rod cylinders in similar bore/stroke combinations
- Mobile and agricultural equipment originally equipped with Lion TL series cylinders
Replaces / Drop-In Replacement For
The Red Lion 40TL10-125 directly replaces other Red Lion TL series 4-inch bore, 10-inch stroke cylinders with 1.25-inch rod and 2500 PSI rating. Verify pin and cavity configurations match your original equipment before installation. Equivalent models from Chief, Prince, and Cross may share similar bores and strokes but should be confirmed by your system integrator.
Works With
- Standard ISO 1219 hydraulic system diagrams and symbols
- SAE flange and cavity mounting standards
- ASAE pto and implement hydraulic circuit protocols
- Mobile equipment CAN-bus and pneumatic control logic
