Overview
The NetBurner SB72EX-100CR is a serial-to-Ethernet gateway engineered for Allen-Bradley ControlLogix and SLC 5/05 platforms. This industrial-grade device enables secure remote access and monitoring by converting dual serial ports to Ethernet connectivity with SSL and SSH encryption. The SB72EX-100CR is often referenced as the RTA Automation 435NBS ASCII ControlLogix variant, making it a critical component in legacy and modern automation networks requiring serial protocol bridging.
Key Features
- Dual Serial Ports: Two independent serial channels for simultaneous device communication
- Ethernet Connectivity: Full TCP/IP integration for remote access and monitoring
- SSL/SSH Protection: Secure encrypted communication for data integrity
- Web Configuration Interface: Intuitive browser-based setup and diagnostics
- Industrial Temperature Range: -40°C to 85°C operating environment
- Compact Form Factor: DIN-rail mountable for integration into control cabinets
Technical Specifications

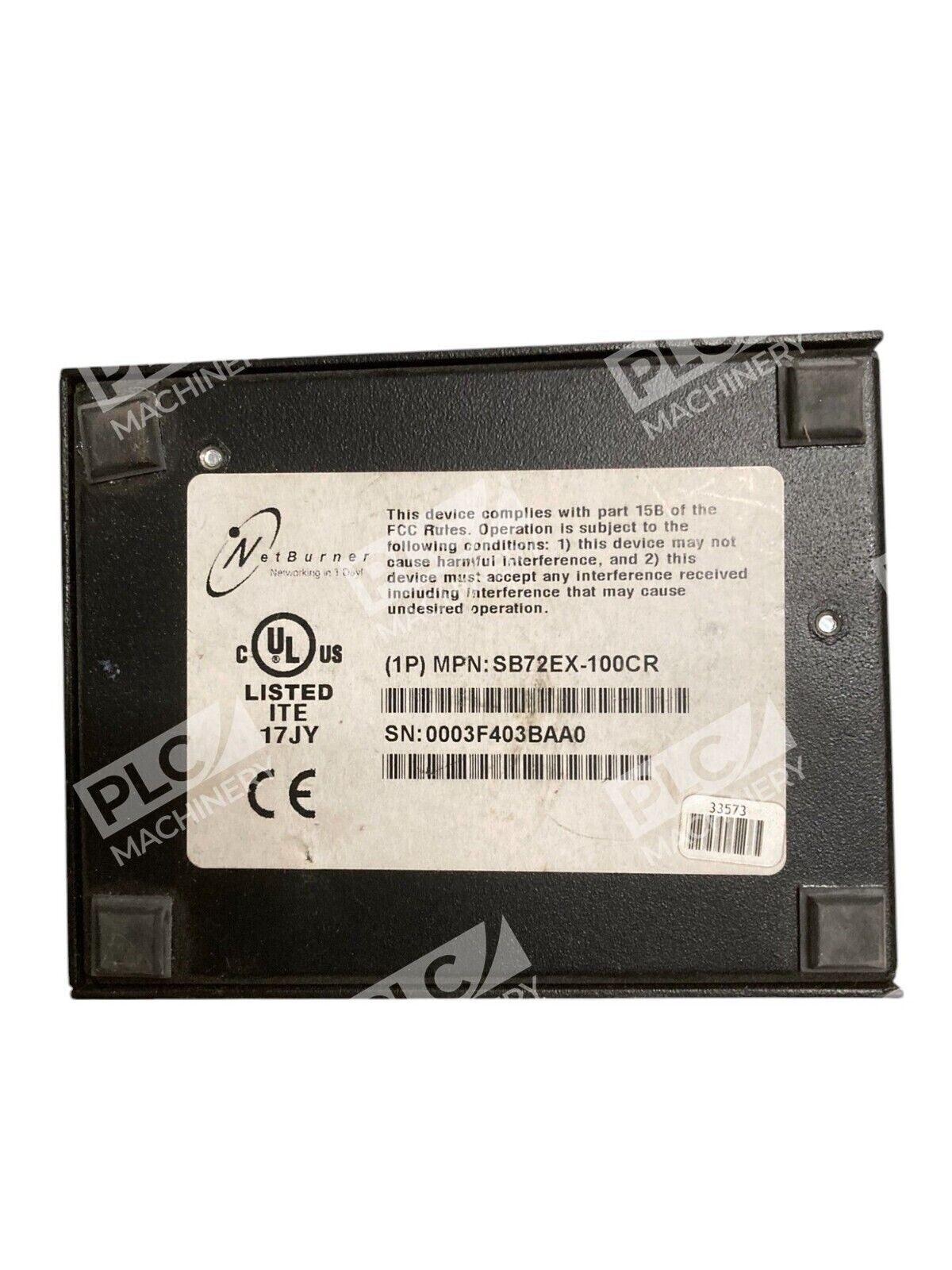

- Model: SB72EX-100CR / 435NBS
- Serial Ports: 2 (RS-232/RS-485 configurable)
- Ethernet: 10/100 Mbps RJ45
- Operating Temperature: -40°C to +85°C
- Power Supply: 24 VDC (industrial standard)
- Communication Protocols: Modbus RTU, ASCII, ControlLogix native protocol support
- Certifications: UL/CE marked for industrial automation
- Dimensions: DIN-rail profile for standard 35mm rail mounting
Typical Applications
- Serial device gateway for legacy SLC 5/05 controllers requiring Ethernet access
- Remote data collection and SCADA integration in manufacturing environments
- Barcode scanner and serial instrument connectivity to ControlLogix networks
- Legacy system modernization without controller replacement
- Multi-site automation networks with distributed I/O and monitoring nodes
Compatibility & Replacements
Compatible With
- Allen-Bradley SLC 5/05 processors
- Allen-Bradley ControlLogix systems
- ASCII serial protocols and Modbus RTU devices
- Standard industrial Ethernet networks (10/100 Mbps)
- EtherNet/IP enabled control systems
Replaces / Drop-In Replacement For
- Real Time Automation 435NBS (RTA Automation variant)
- Legacy serial gateway modules in SLC 5/05 cabinets
- Earlier NetBurner serial-to-Ethernet models
Works With
- Allen-Bradley Studio 5000 Logix Designer
- RSLinx and RSLinx Classic communication platforms
- Standard Ethernet/IP industrial networks
- SCADA and data logging software via Modbus gateway mode
- Web browsers for local configuration and status monitoring
