Overview

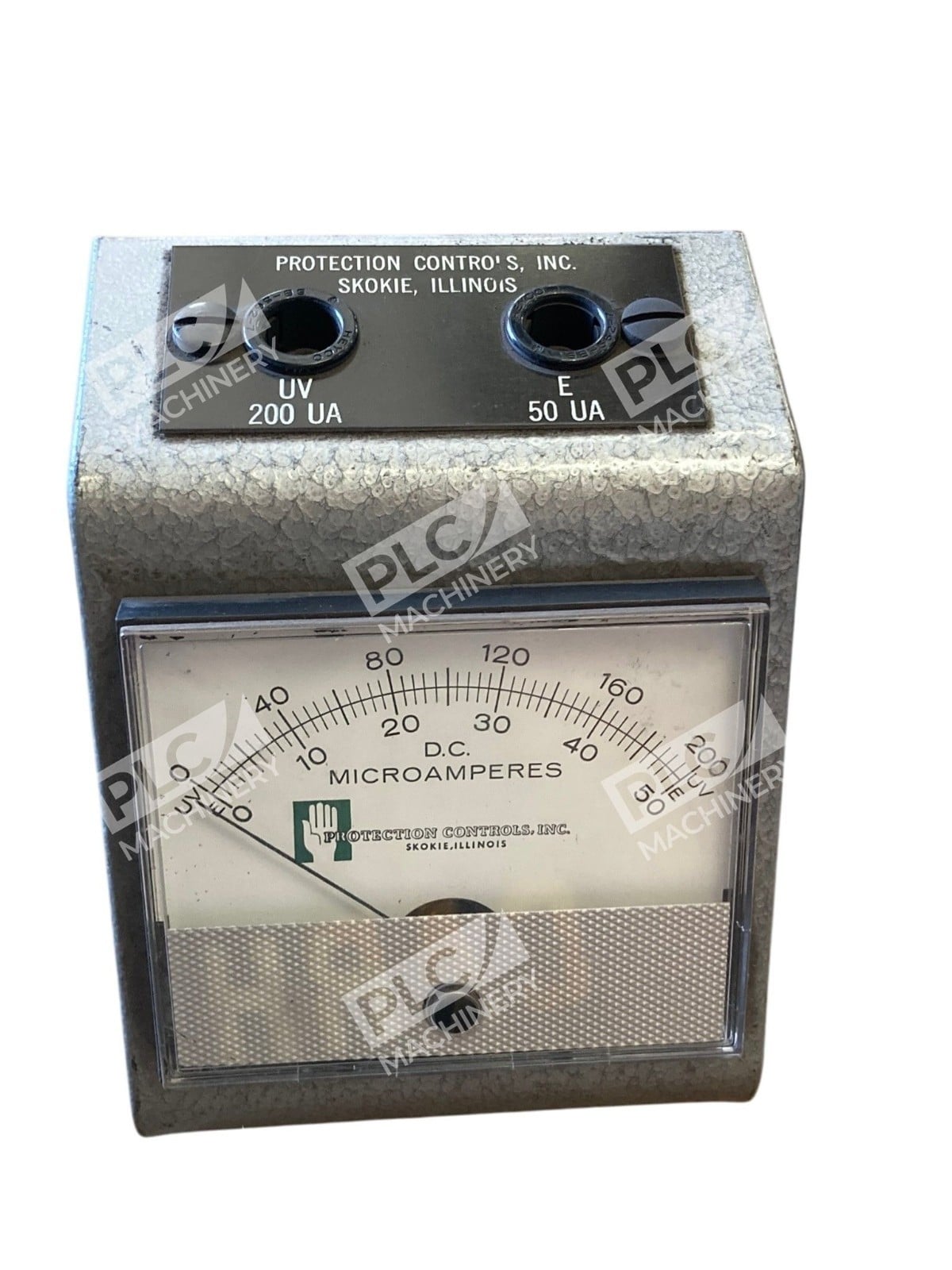

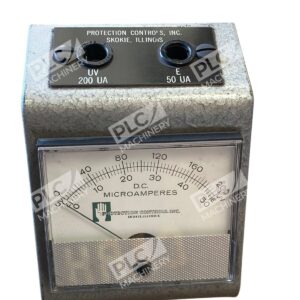

The Protection Controls DC microammeter is a precision test instrument designed for flame safeguard control systems and combustion safety applications. This meter enables technicians to measure and verify flame signal strength from both UV (ultraviolet) flame detectors and flame rod sensors, ensuring safe and reliable burner operation across pilot and main flame applications.
Key Features
- Measures DC microampere output from flame detectors and sensors
- Compatible with ultraviolet scanners and flame rod detection systems
- Enables flame signal strength optimization and sensor positioning
- Supports predictive maintenance and flame safeguard troubleshooting
- Compact portable design for field service and commissioning work
Technical Specifications
The Protection Controls DC microammeter operates across the microampere range typical for flame detection circuits, allowing field technicians to diagnose flame detection faults and verify proper sensor output before flame safeguard control unit activation. The meter is used in conjunction with standard flame safeguard controls to verify flame current and signal integrity.
Typical Applications
- Burner flame detection system commissioning and startup
- Flame safeguard control troubleshooting and diagnostics
- UV detector and flame rod sensor testing and validation
- Combustion system maintenance and performance verification
- Industrial boiler, furnace, and process heating applications
Compatibility & Replacements
Compatible With
- Protection Controls flame safeguard controls and detectors
- Honeywell flame safeguard primary controls (R4795, RA890 series)
- Ultraviolet (UV) flame detector assemblies
- Flame rod and ionization-based flame sensors
- Standard combustion control systems using flame detection
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The C-4-7-432 is designed as a functional test meter for flame safeguard applications. Contact Protection Controls or your combustion control equipment supplier to confirm interchangeability with your specific flame detection hardware.
Works With
- UV flame detection circuits and assemblies
- DC flame rod sensor circuits
- Flame safeguard purge timer sequences
- Burner management and ignition control systems
- Industrial process heating and combustion safety equipment
