Overview
The Promise Technology VTSATAMUX4P VTrak SATA AA-Mux Adapter is a critical connectivity component for enterprise storage arrays. This adapter is suitable for use with VTrak dual controller/module configurations, and enables a single ported SATA drive to communicate with dual controllers. The 4-pack design ensures you have ample adapters for large deployments or future expansion within your storage infrastructure.
Key Features

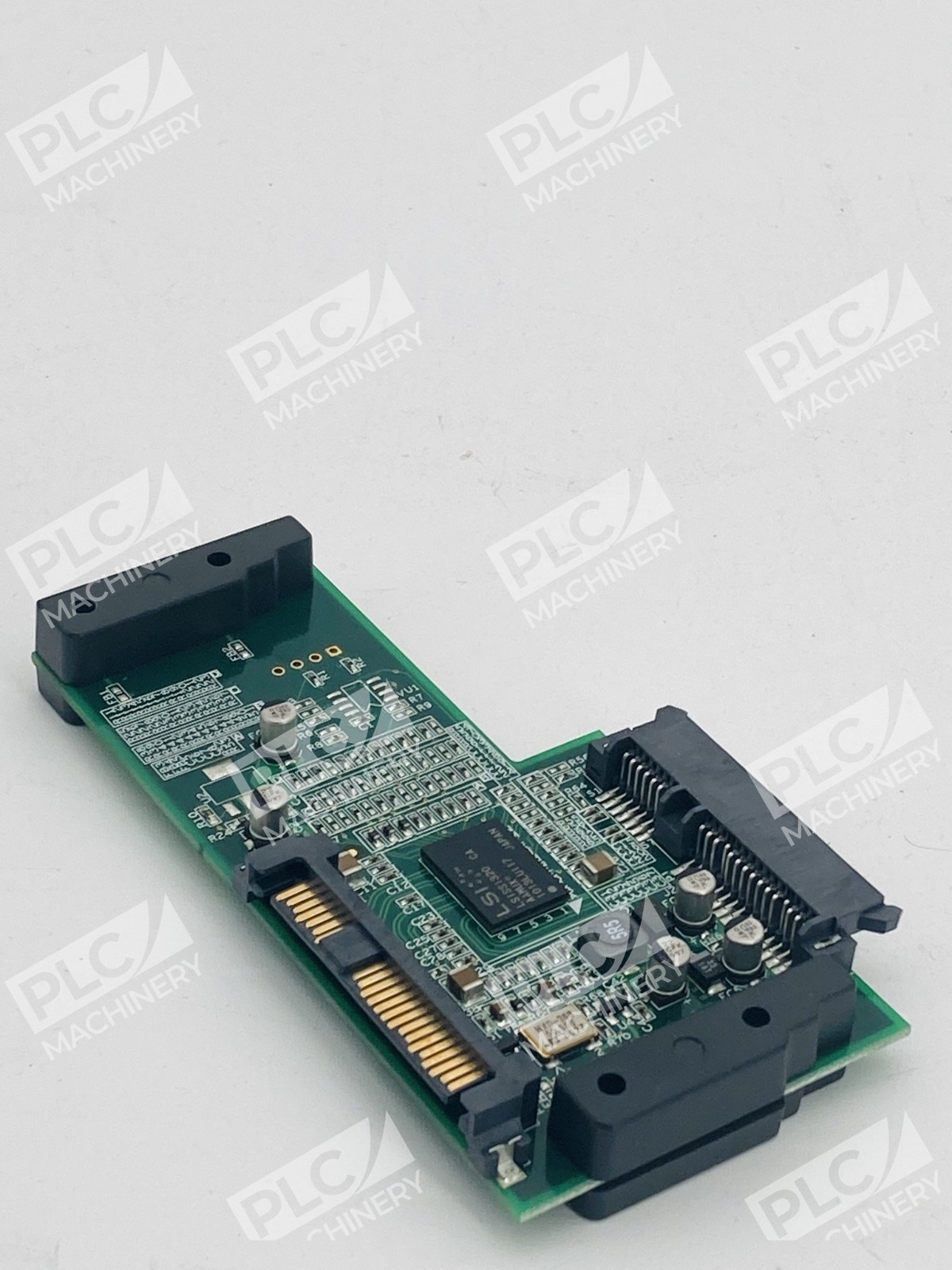

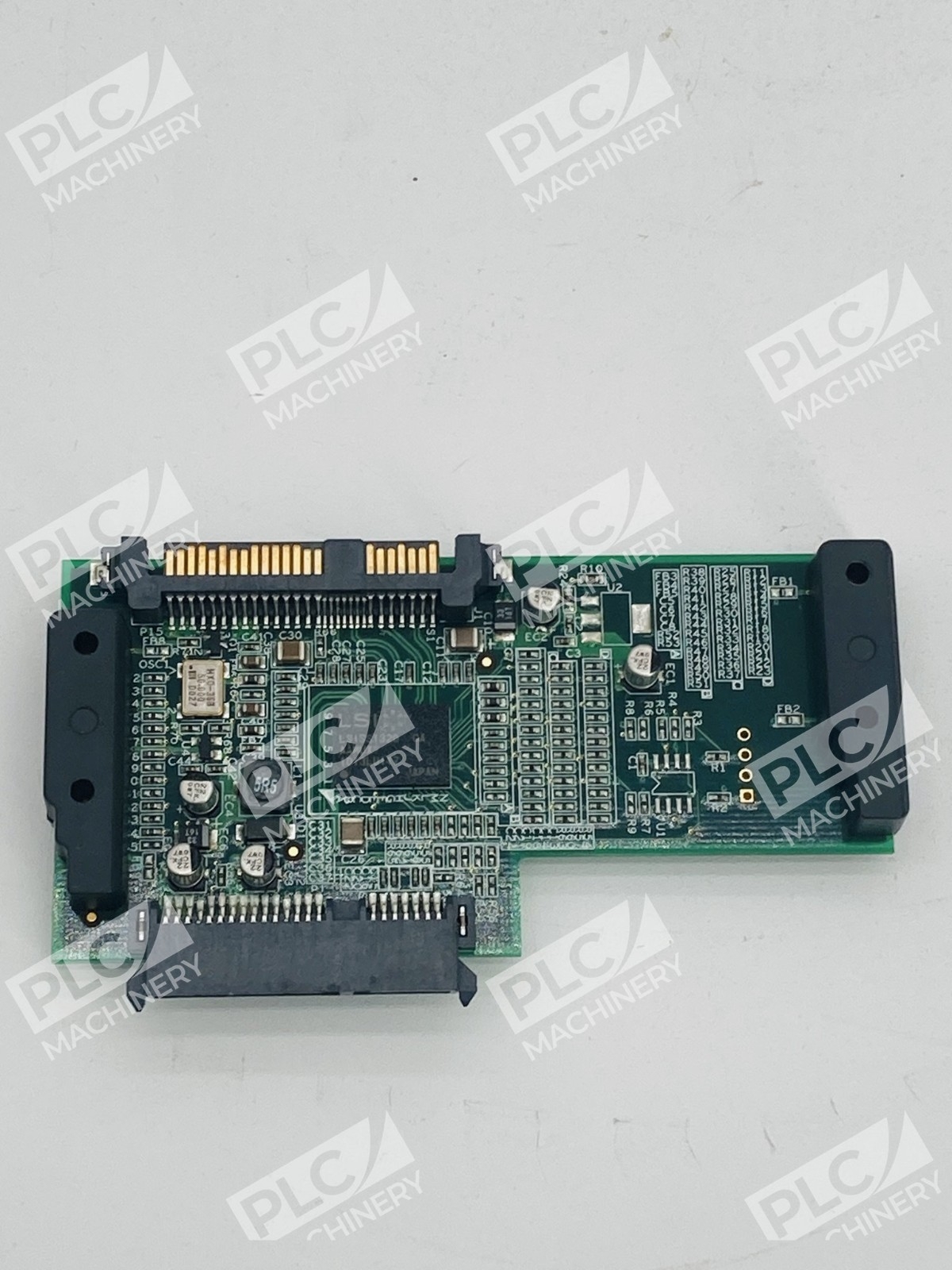

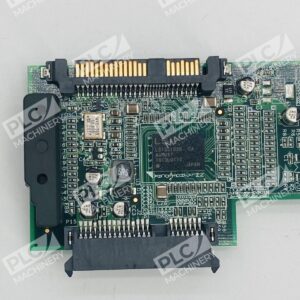

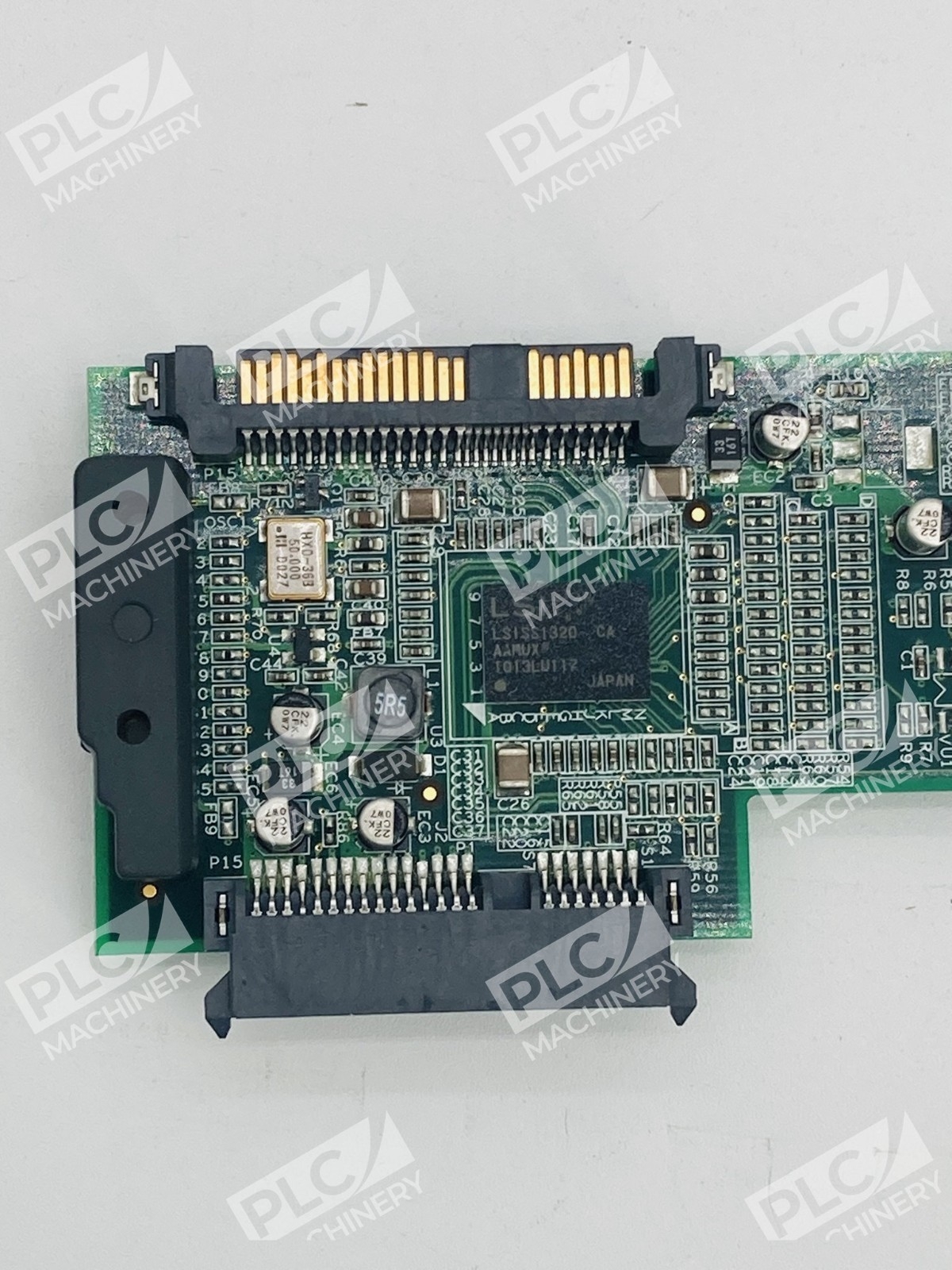

- 1 x 7-pin SATA input connector; 2 x 7-pin SATA output connectors for dual-controller architecture
- 3 Gb/s SAS interface speed for reliable data throughput
- Compatible with all dual controller E-class subsystems when used with SATA drives

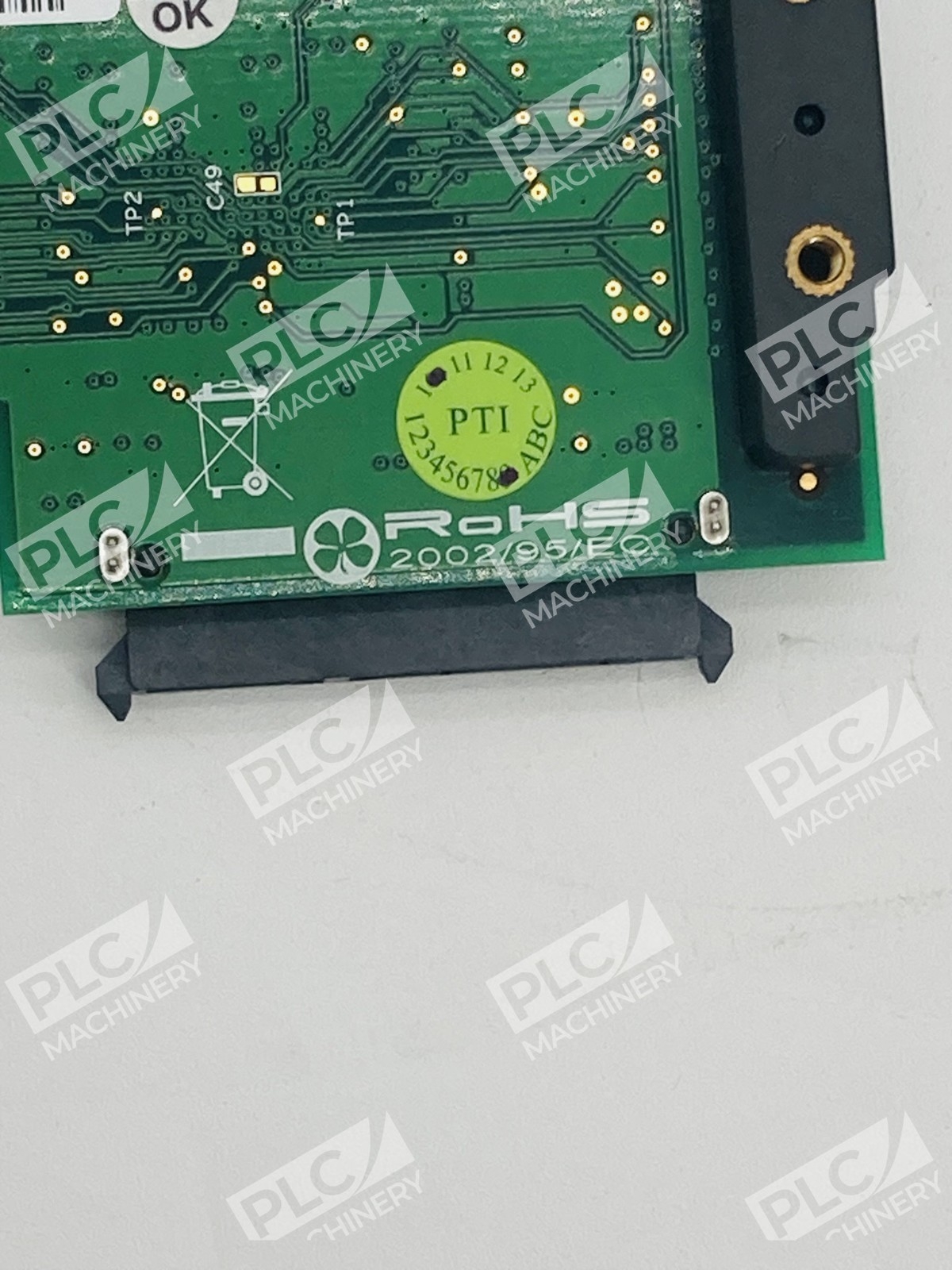

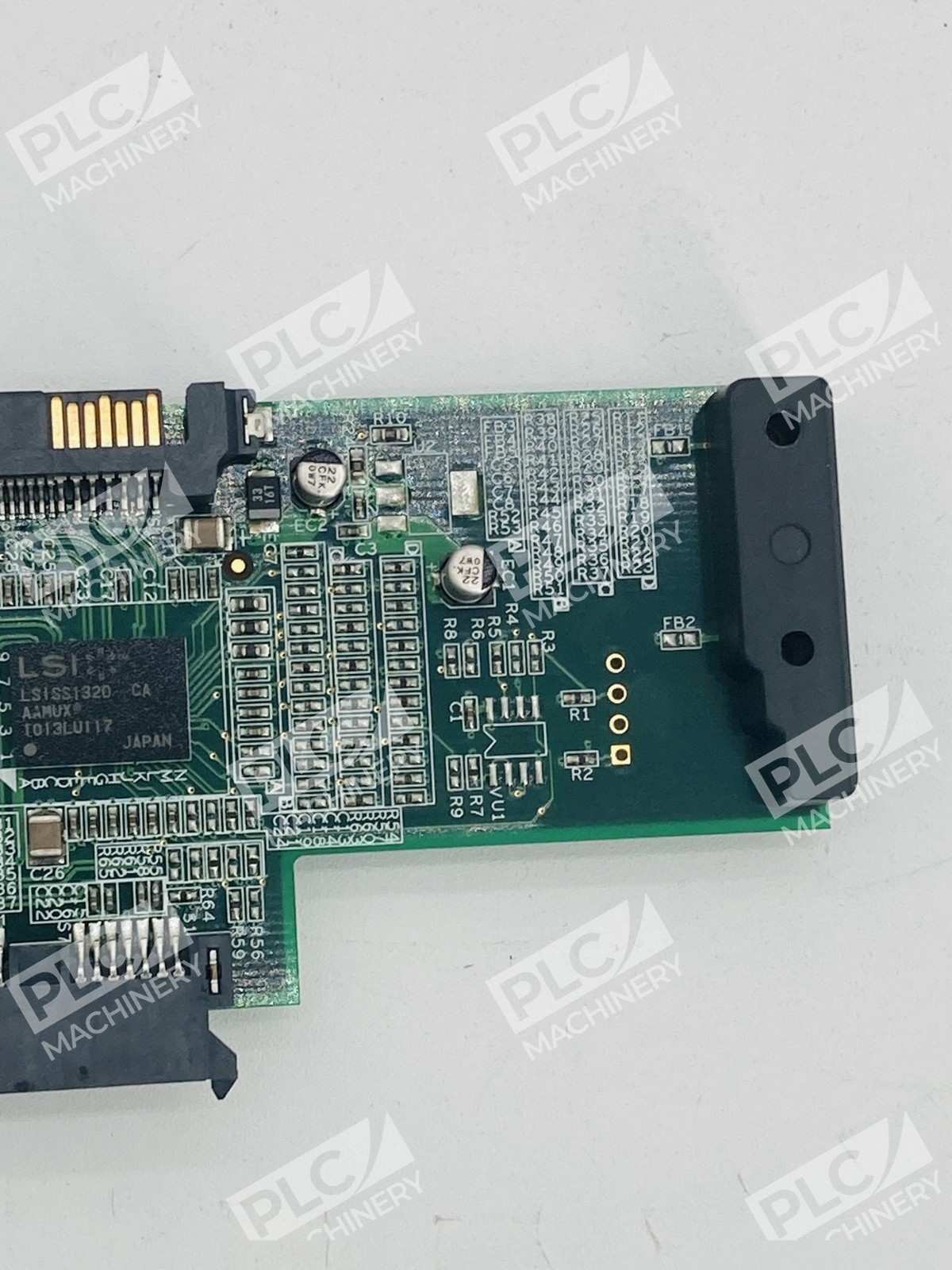

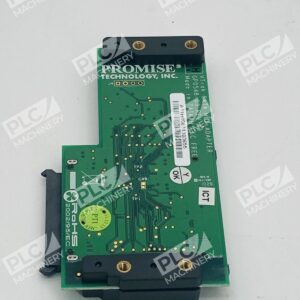

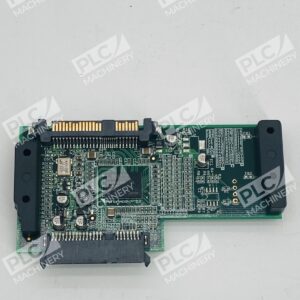

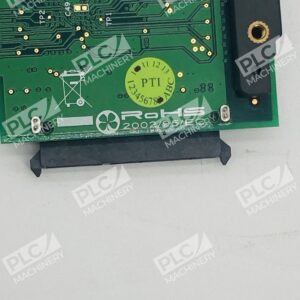

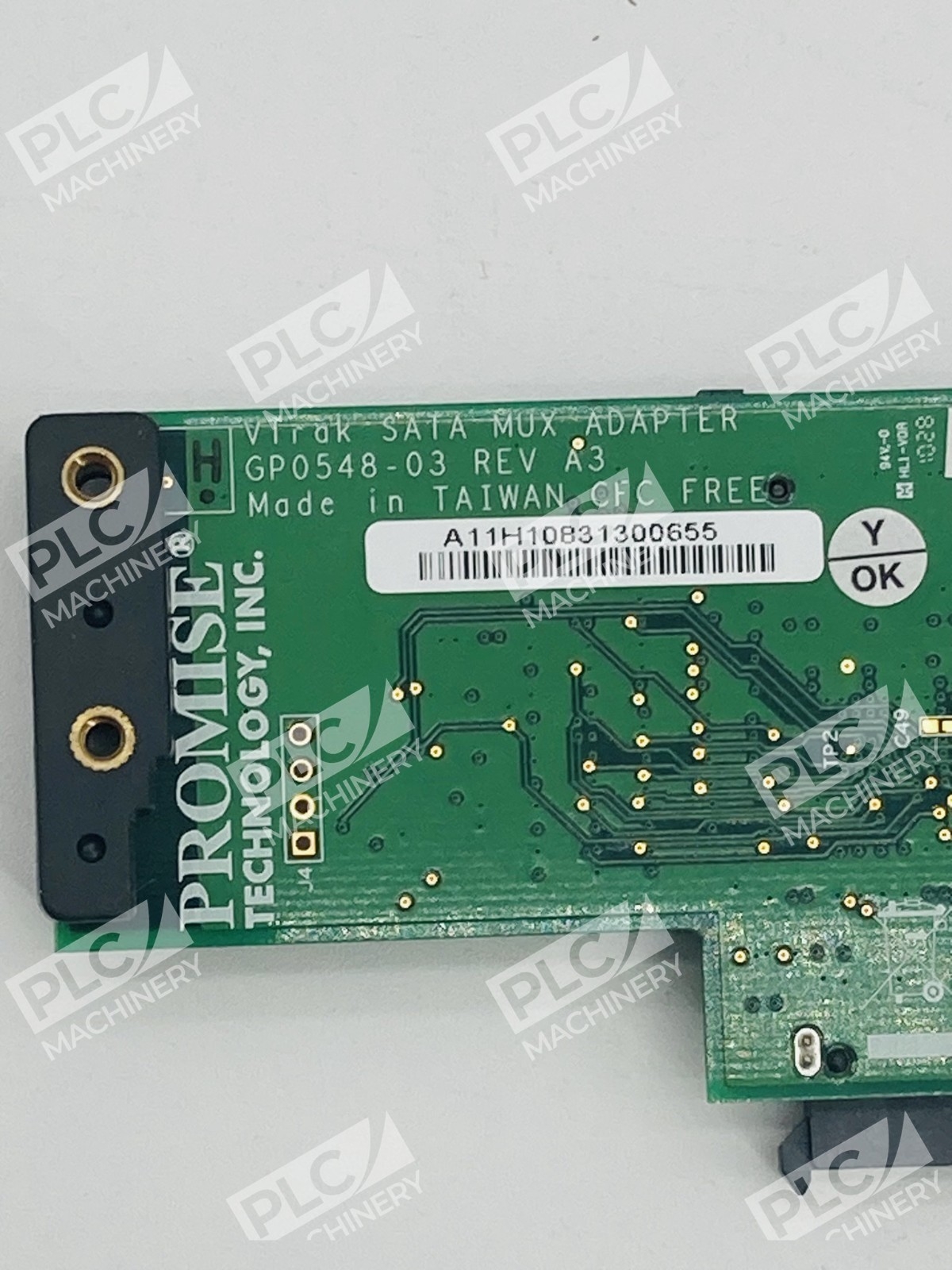

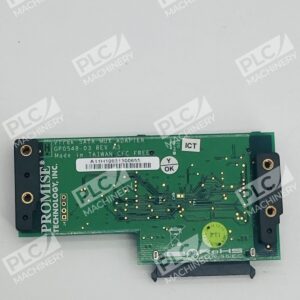

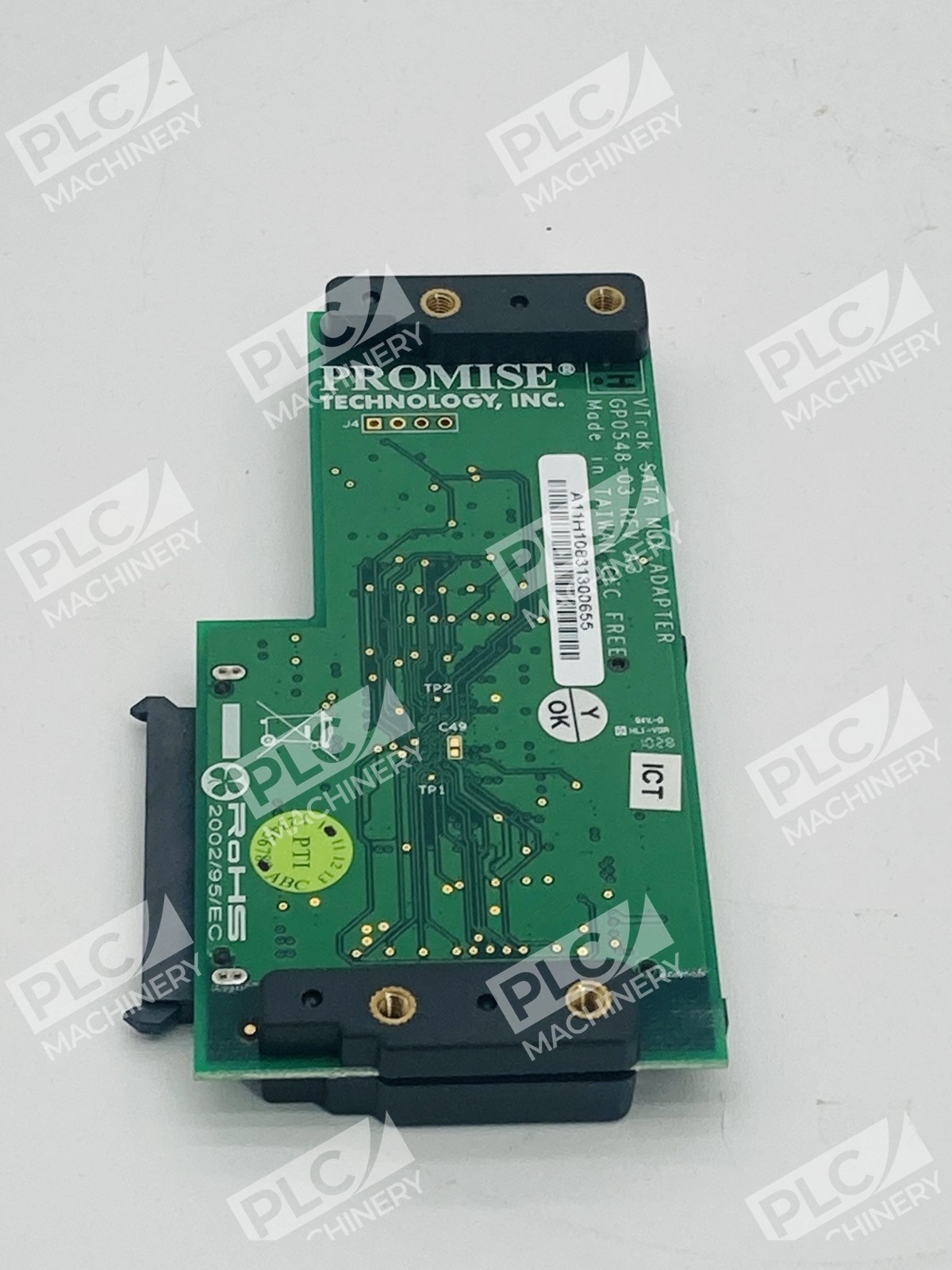

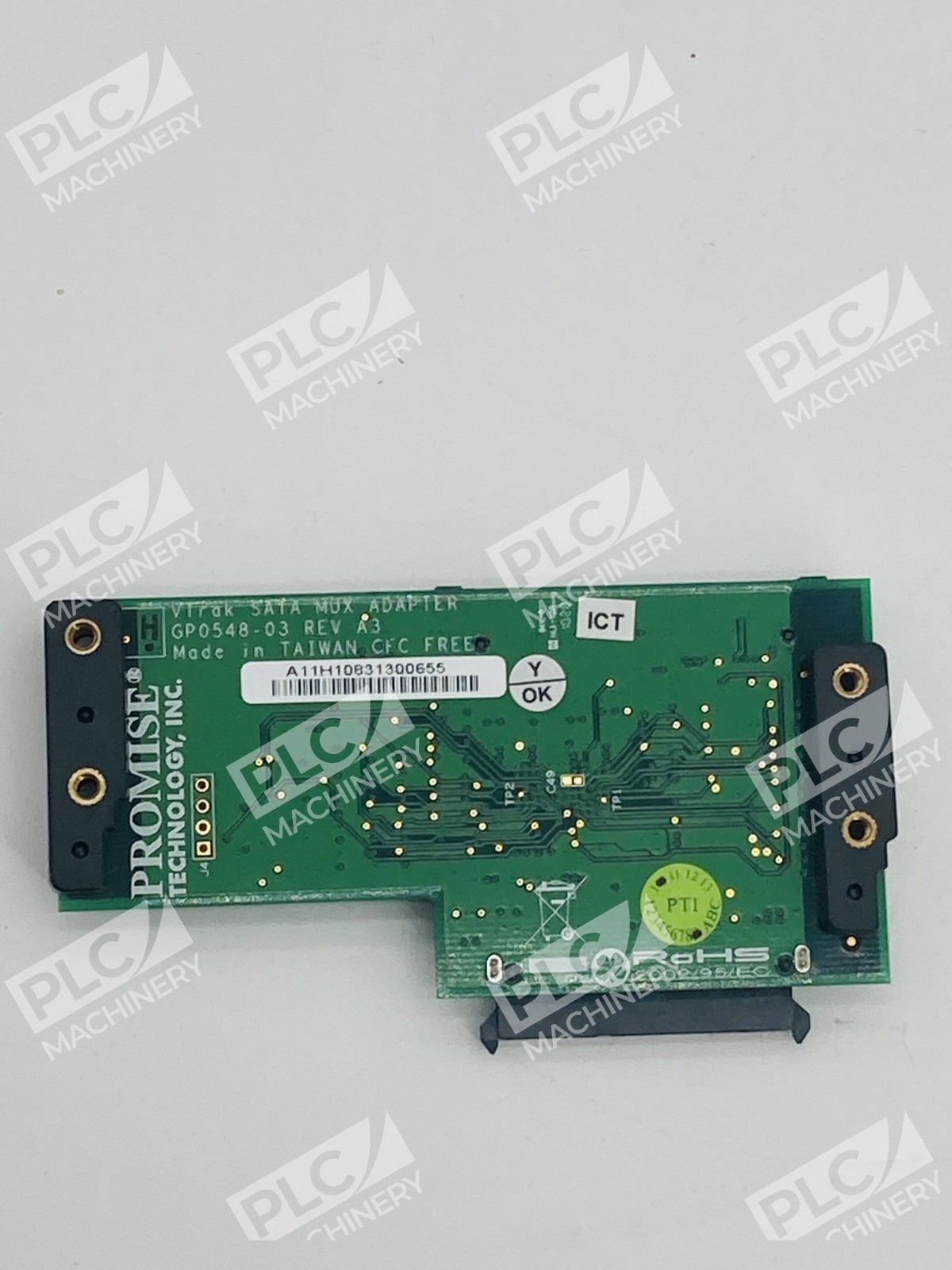

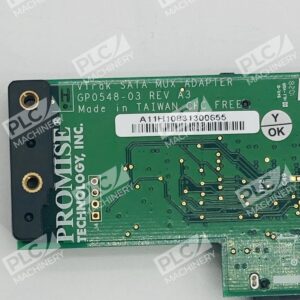

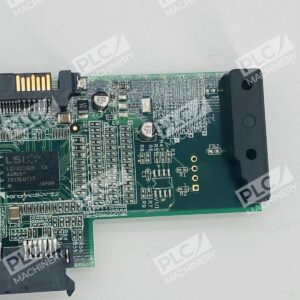

- Compact PCB design for drive-tray integration

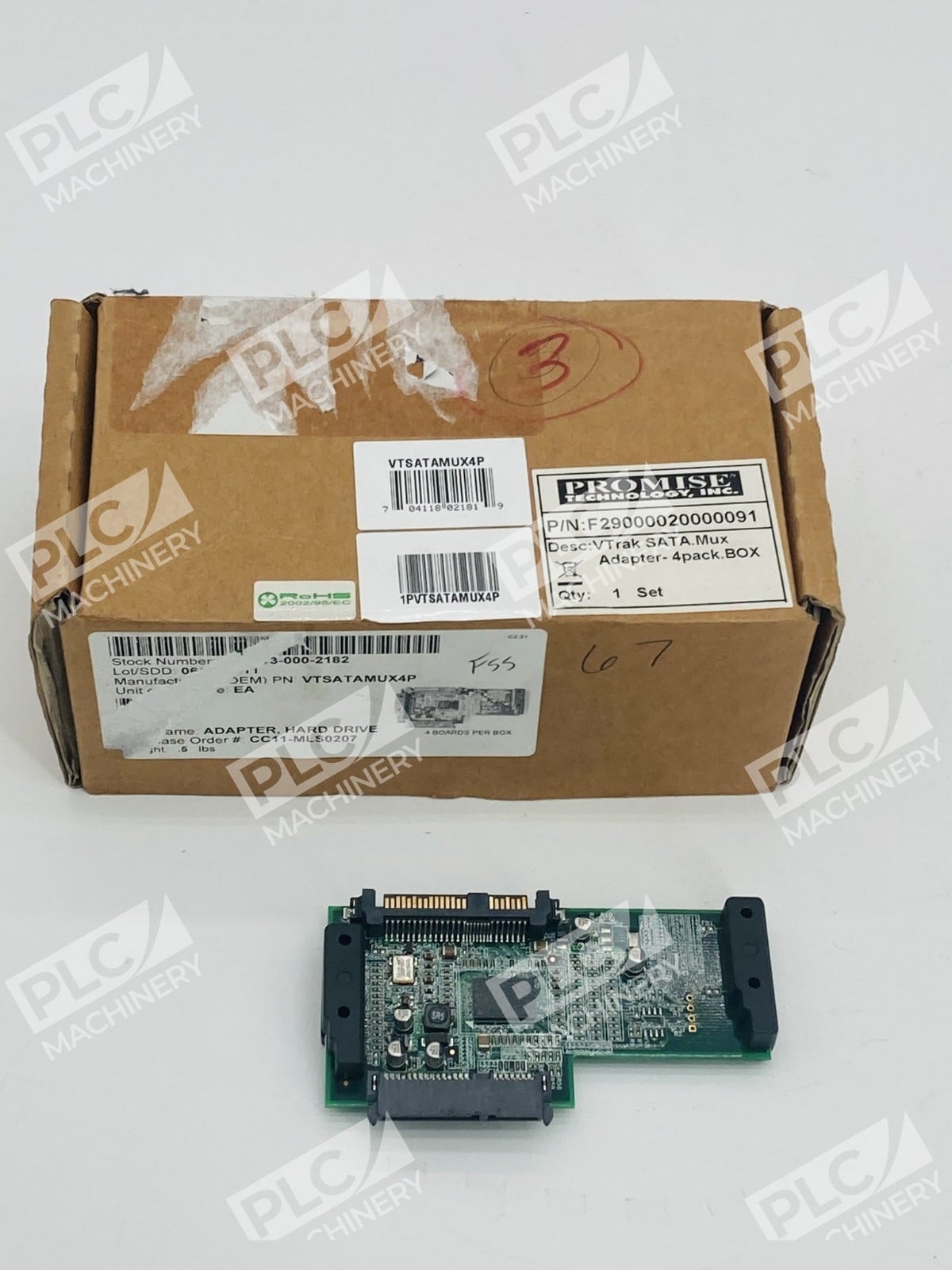

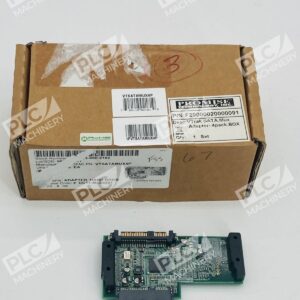

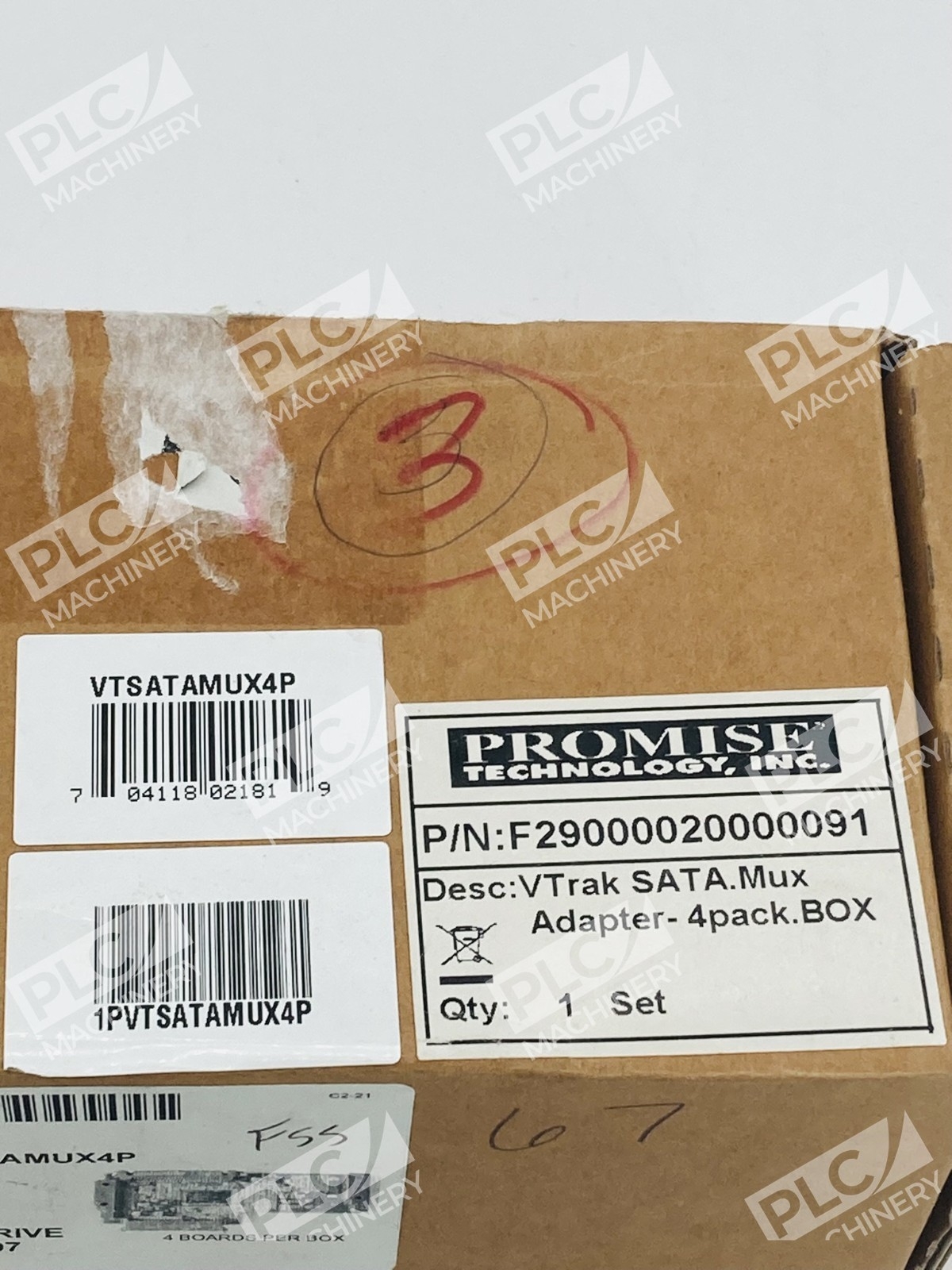

- Factory-sealed 4-pack ensures consistent stock and deployment readiness
Technical Specifications
Key technical parameters for integration and compatibility verification:
- Connector Configuration: 1 x 7-pin SATA to 2 x 7-pin SATA
- Interface Speed: 3 Gb/s
- Product Class: Data Transfer Adapter
- Quantity Per Box: 4 units
- Manufacturer: Promise Technology
- Shipping Weight: Approximately 2 lbs (box of 4)
Typical Applications
The VTSATAMUX4P is designed for VTrak dual controller/module configurations and is suitable for use with all dual controller E-class subsystems when used with SATA drives. Common deployment scenarios include:
- Scaling SATA-based VTrak storage arrays with redundant controllers
- Drive-tray upgrades requiring adapter replacement or supplementation
- Mixed-drive environments in enterprise NAS and storage appliances
- High-availability storage clusters requiring fault tolerance
Compatibility & Replacements
Compatible With
- VTrak E310fD, E310sD, E610fD, E610sD
- Promise VTrak E-class and J-class x10 series controllers
- Promise Vess R2000, J2000, R3000, J3000 series
- Promise VTrak D5000/E5000 systems
- 3 Gb/s SATA drives in dual-controller configurations
Replaces / Drop-In Replacement For
- Original Promise VTSATAMUX4P units
- Original part number F29000020000091
Works With
- Promise VTrak firmware (all x10-series supported versions)
- 3 Gb/s SATA protocol (SATA I, II, III compatible)
- Dual-channel SAS backplane architectures in Promise storage arrays
