Overview

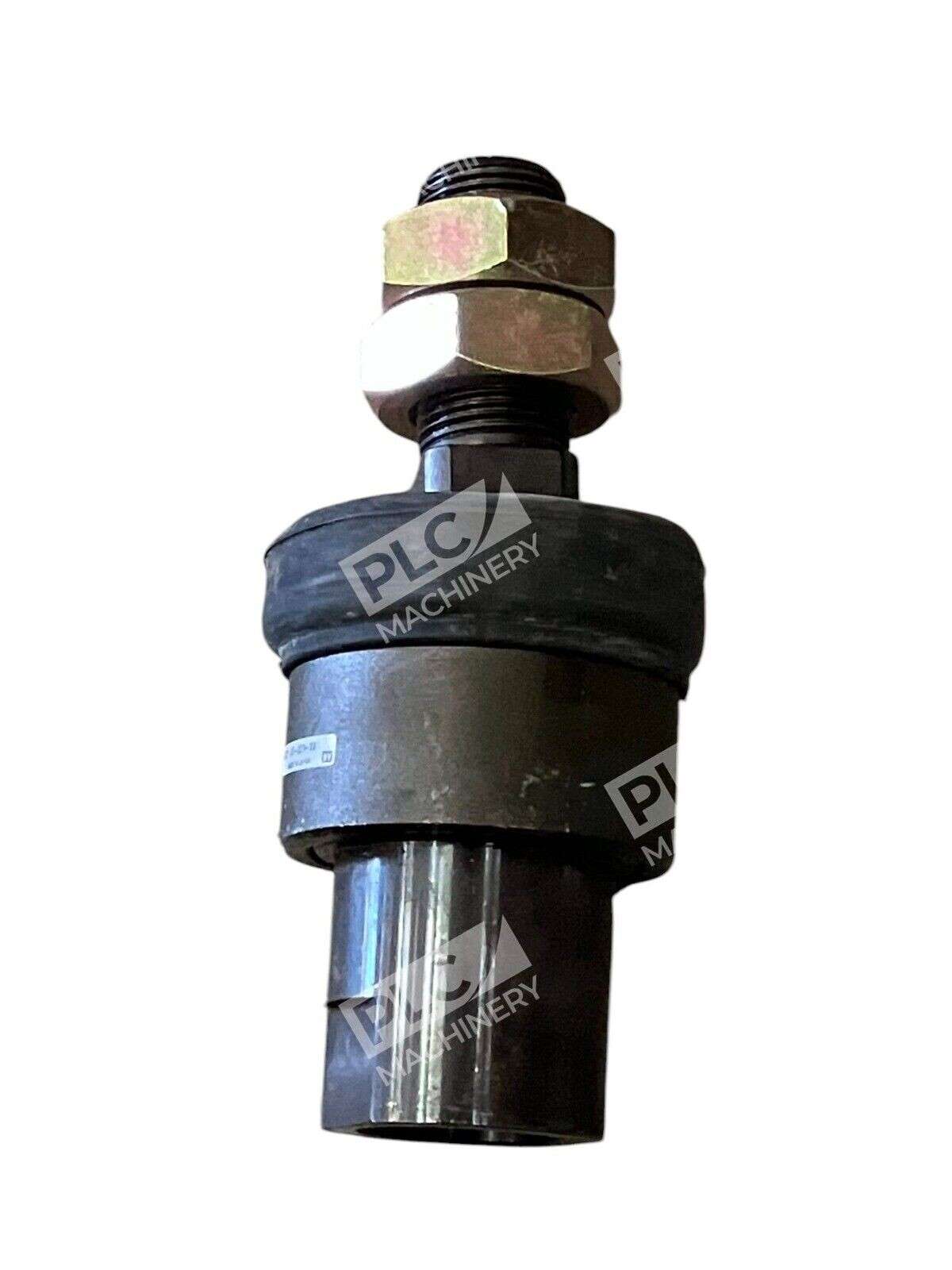

The SMC J125-27-200-X4 floating rod joint is a pneumatic cylinder accessory designed to accommodate misalignment between the cylinder rod and the driven load. The floating joint series JA (standard) and JAH (heavy duty) can absorb any off-centering or loss of parallel accuracy between the cylinder and the driven body, making this component essential for applications where perfect alignment is difficult to maintain. The JA series standard type floating joint is used for pneumatic cylinders (Ø 180, Ø 200). This unit is offered in used condition and is fully functional for integration into existing pneumatic systems.
Key Features
- Absorbs off-centering and parallel inaccuracy of double-acting cylinders
- Reduces stress and premature wear on cylinder rod and load connection
- Simplifies system alignment requirements during installation
- Includes replaceable dust cover for joint protection
- Compatible with standard pneumatic systems and applications
Technical Specifications

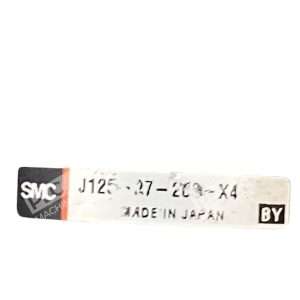

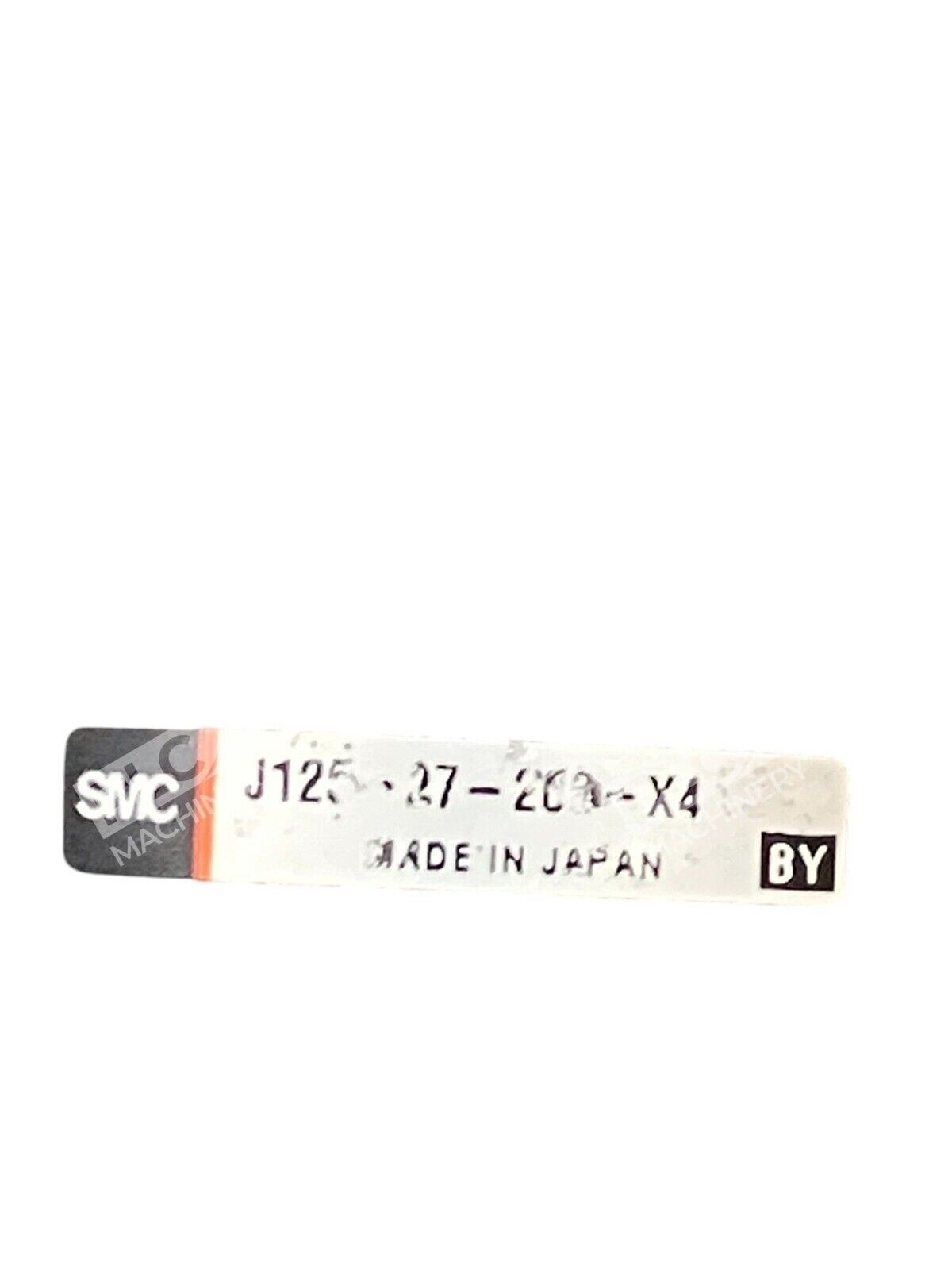

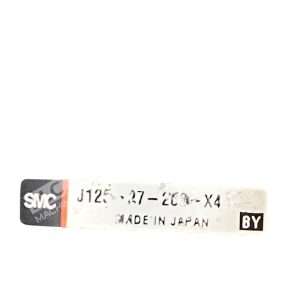

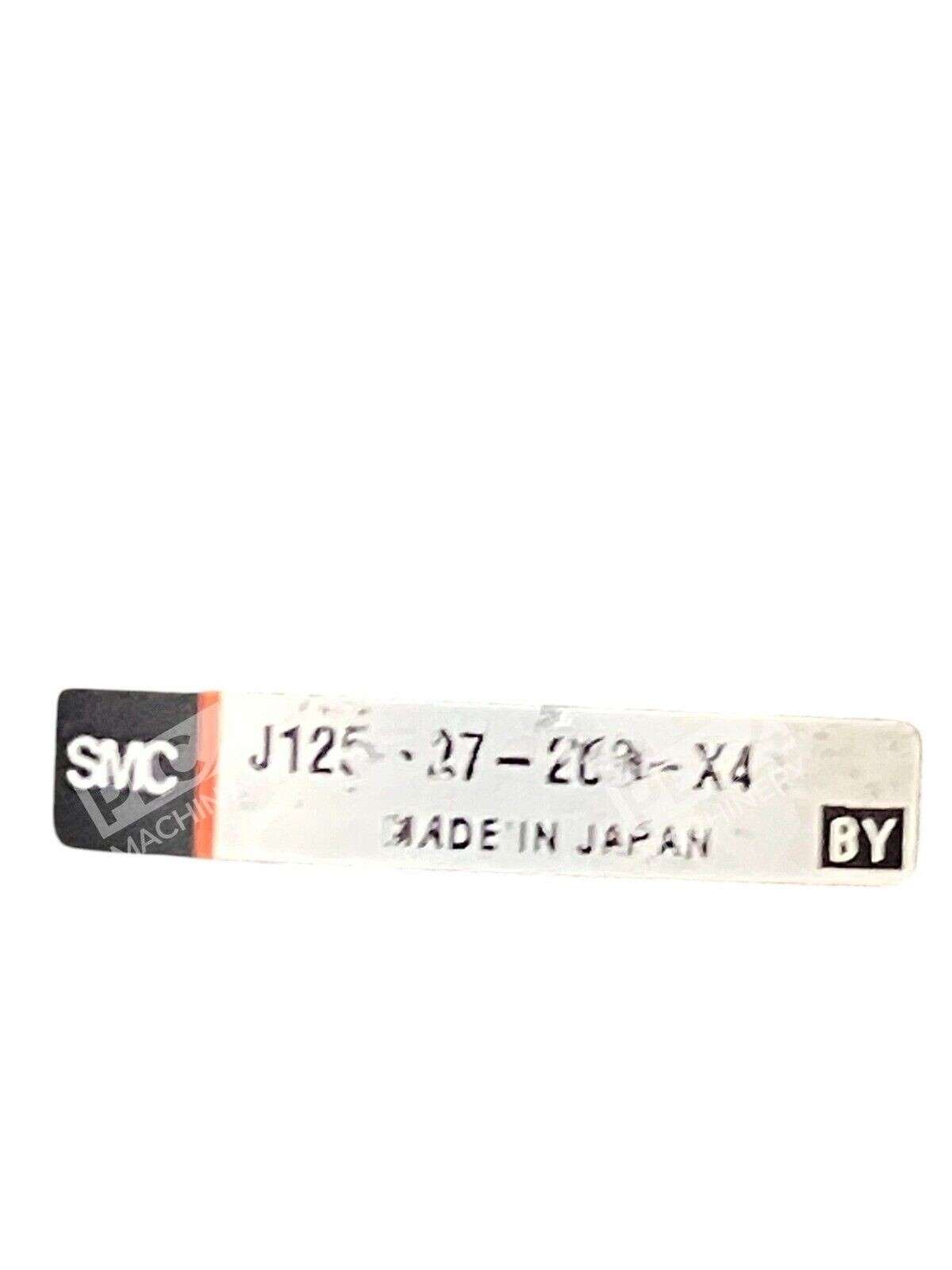

- Model: J125-27-200-X4
- Manufacturer: SMC
- Series: JA Floating Joint
- Applicable Bore Size: Ø125–Ø200 mm
- Rod Thread: M27
- Stroke/Length: 200 mm
- Housing Type: Standard basic style
- Included Components: Rod end nut supplied as standard
- Dust Cover: Replaceable (basic type)
- Condition: Used, fully functional
Typical Applications
The SMC J125-27-200-X4 is suited for:
- Material handling and transfer systems where load-to-cylinder alignment varies
- Packaging machinery with multi-axis press or clamp functions
- Automation assembly lines requiring flexible rod connection
- Industrial presses and stamping equipment
- Machine tool and fixture positioning systems
Compatibility & Replacements
Compatible With
- SMC pneumatic cylinders (180 mm and 200 mm bore)
- Double-acting pneumatic cylinder systems
- Standard pneumatic circuit pressure (verify with system documentation)
- Industrial automation pneumatic networks
Replaces / Drop-In Replacement For
- JA125-27-200 (standard floating joint equivalent)
- JAF125-27-200 (flange variant in JA series)
- Other J125 series floating joint models with M27 rod thread and 200 mm length
Works With
- SMC pneumatic control systems and manifolds
- Standard industrial pneumatic equipment
- Solenoid valve-controlled cylinders
- Manual and automated pneumatic circuits
