Overview

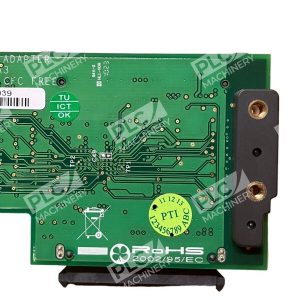

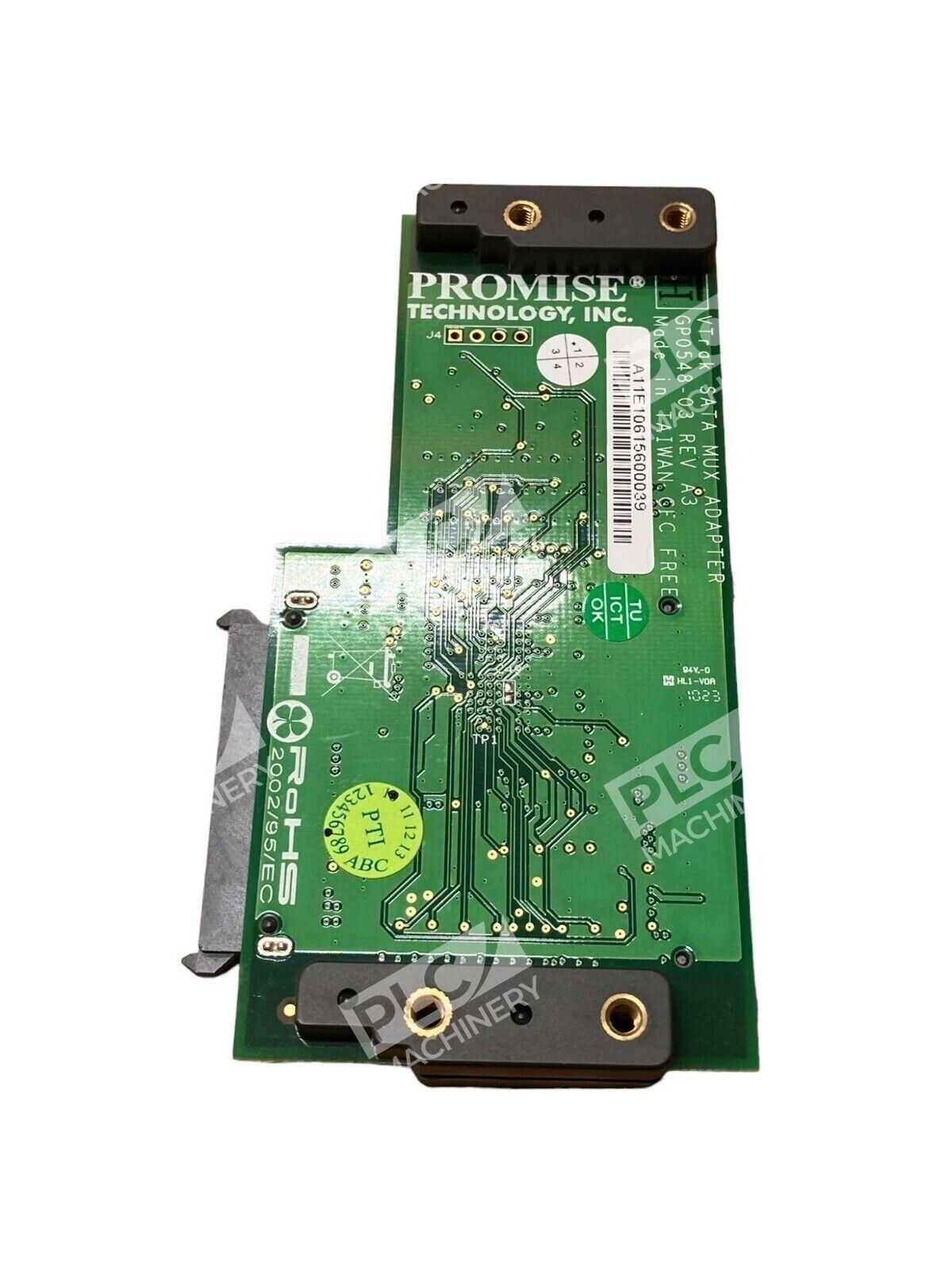

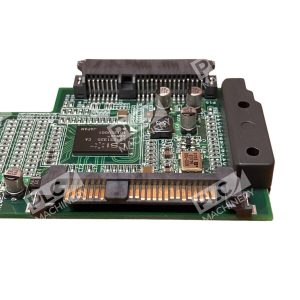

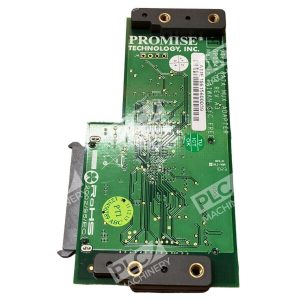

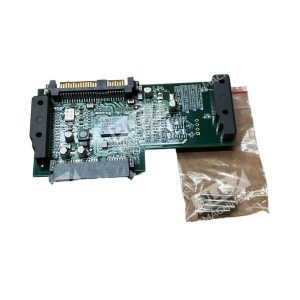

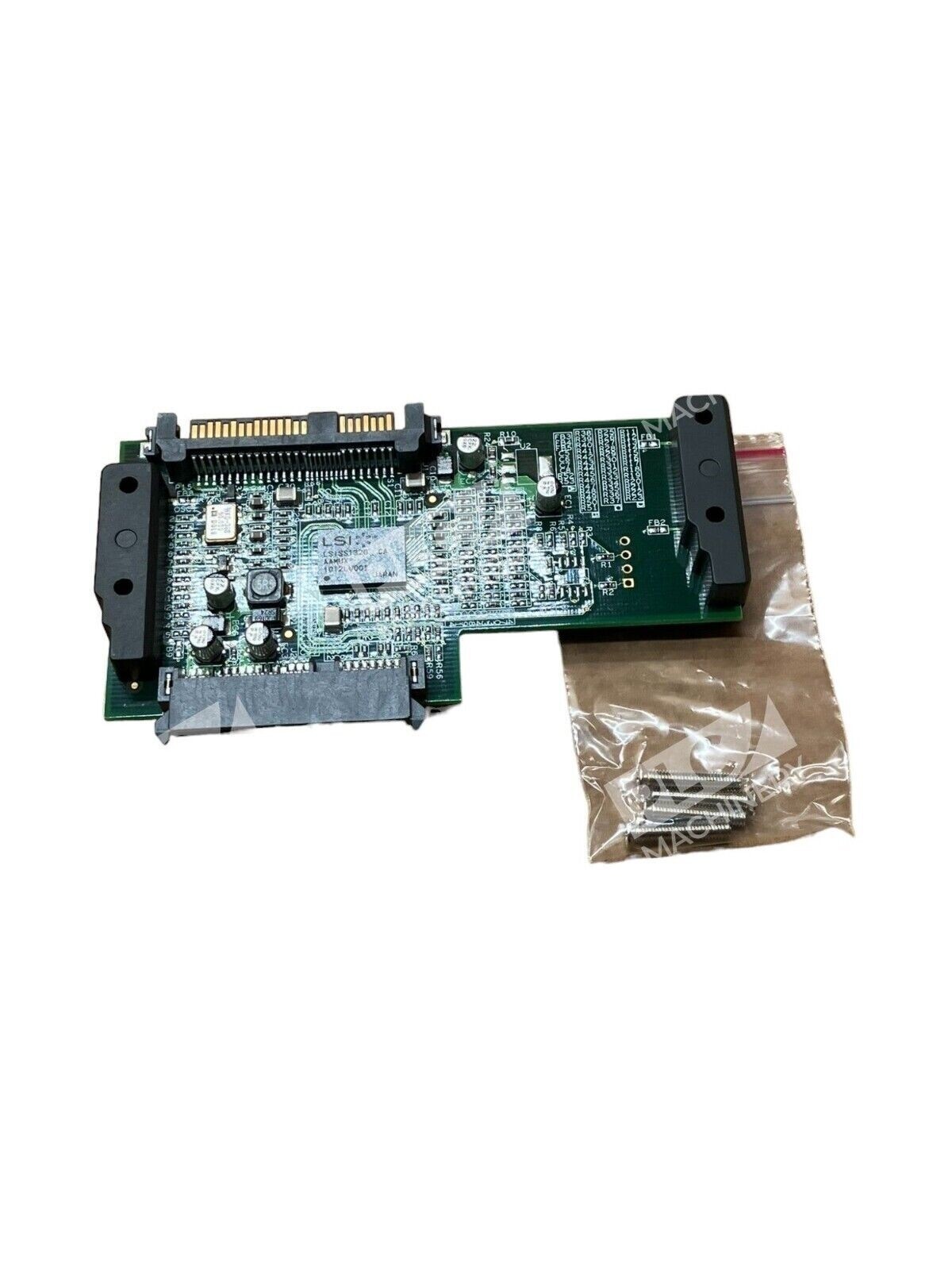

The Promise F29000020000091 VTrak SATA AA-MUX Adapter is a dedicated multiplexer card designed for Promise VTrak E-series and J-series storage arrays. This pack contains four adapters—one per drive sled—and enables dual-port functionality on single-ported SATA disk drives, allowing them to operate with active-active multipathing in dual-controller configurations.
Key Features
- SATA Active-Active Multiplexing: Provides true dual-port functionality to single-ported SATA drives without performance loss
- Full Bandwidth Support: Each port maintains full 3 Gbps SATA-II bandwidth; no sharing or degradation
- Multipathing Support: Enables active-active multipathing in dual-controller VTrak arrays
- Mixed Drive Compatibility: Allows safe mixing of SATA and SAS drives in the same array

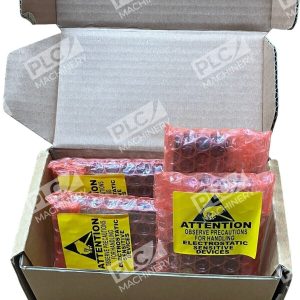

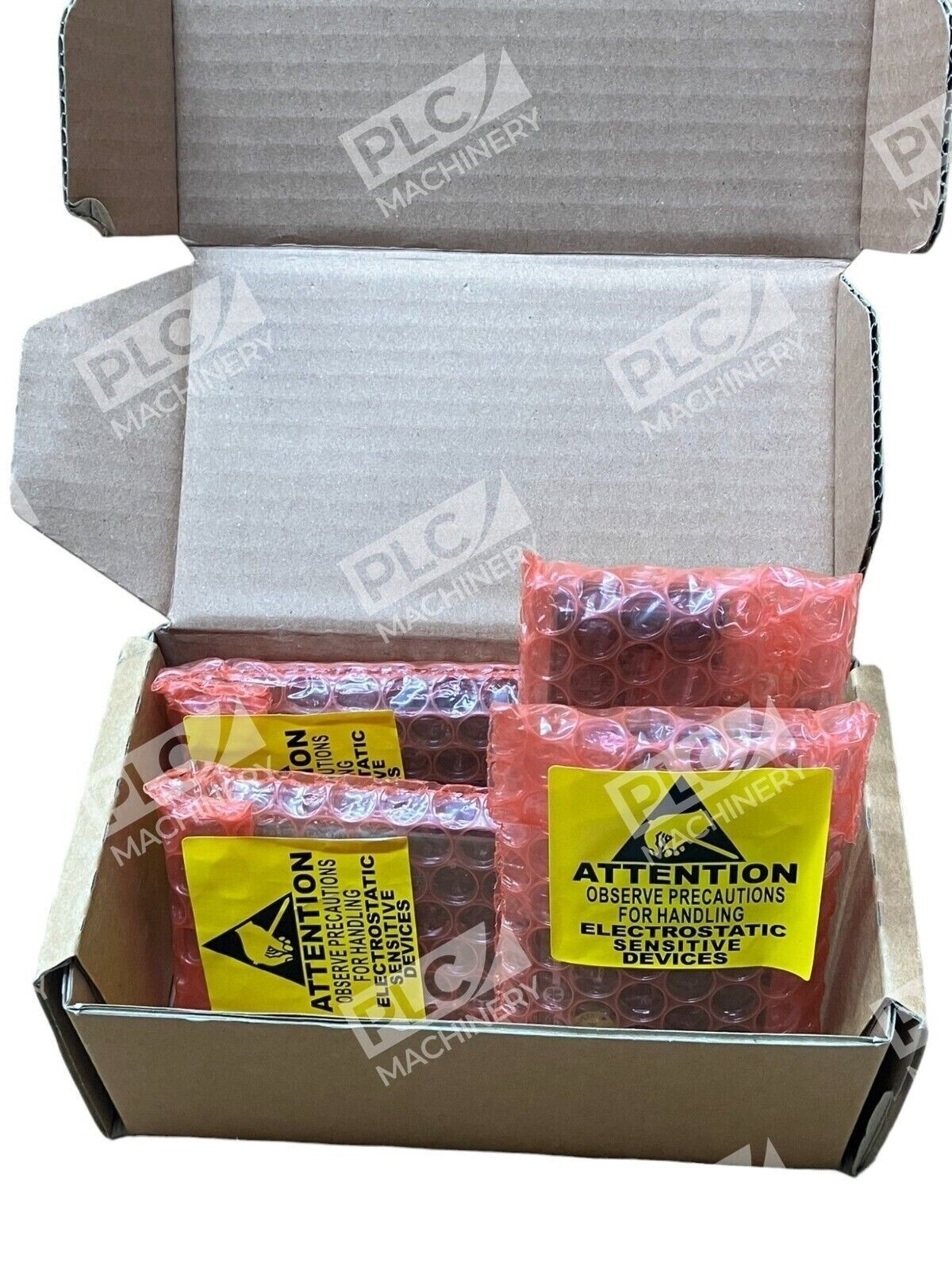

- Pack of Four: Supplies adapters for up to four drive sleds in a single order
Technical Specifications
| Manufacturer | Promise Technology |

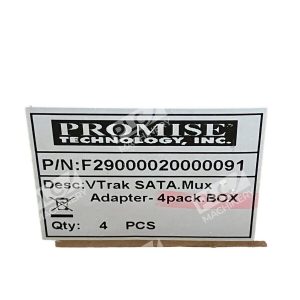

| Part Number | F29000020000091 |
| Alternative Part Number | VTSATAMUX4P (promotional designation) |
| Product Type | SATA Active-Active Multiplexer (AA-MUX) |
| Interface Standard | SATA-II (SATA 3 Gbps) |
| Host Ports | 2 x SATA-II |
| Device Port | 1 x SATA-II |
| Bandwidth per Port | 3 Gbps (full) |
| Sustained Throughput | 300 MBps |

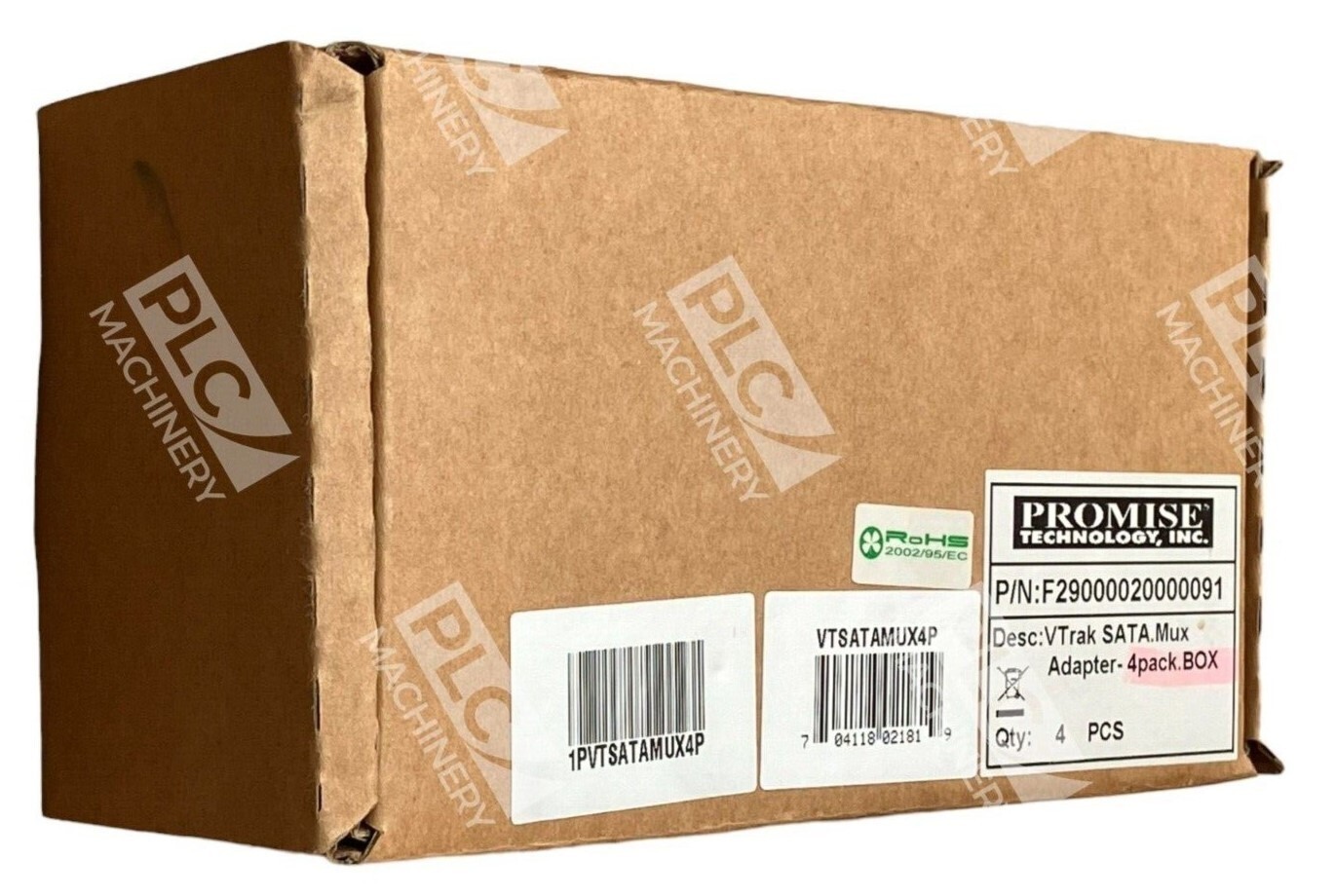

| Quantity per Box | 4 adapters |
| Application | VTrak x10 storage arrays with SATA drives |
Typical Applications
The Promise F29000020000091 is essential for:
- VTrak E310fD, E310sD, E610fD, E610sD dual-controller configurations
- VTrak J310, J610 arrays requiring SATA multipathing support
- Vess R2000/J2000, R3000/J3000, and VTrak D5000/E5000 systems using 3G SATA drives
- Storage environments needing active-active failover on SATA-based arrays
- Retrofits of existing VTrak enclosures without multiplexer adapters
Compatibility & Replacements
Compatible With
- VTrak E310fD, E310sD (E-series dual-controller 3U)
- VTrak E610fD, E610sD (E-series dual-controller 3U)
- VTrak J310, J610 (J-series arrays)
- Vess R2000, J2000, R3000, J3000 RAID systems
- VTrak D5000, E5000 storage arrays
- SATA-II (3 Gbps) single-ported drives
Replaces / Drop-In Replacement For

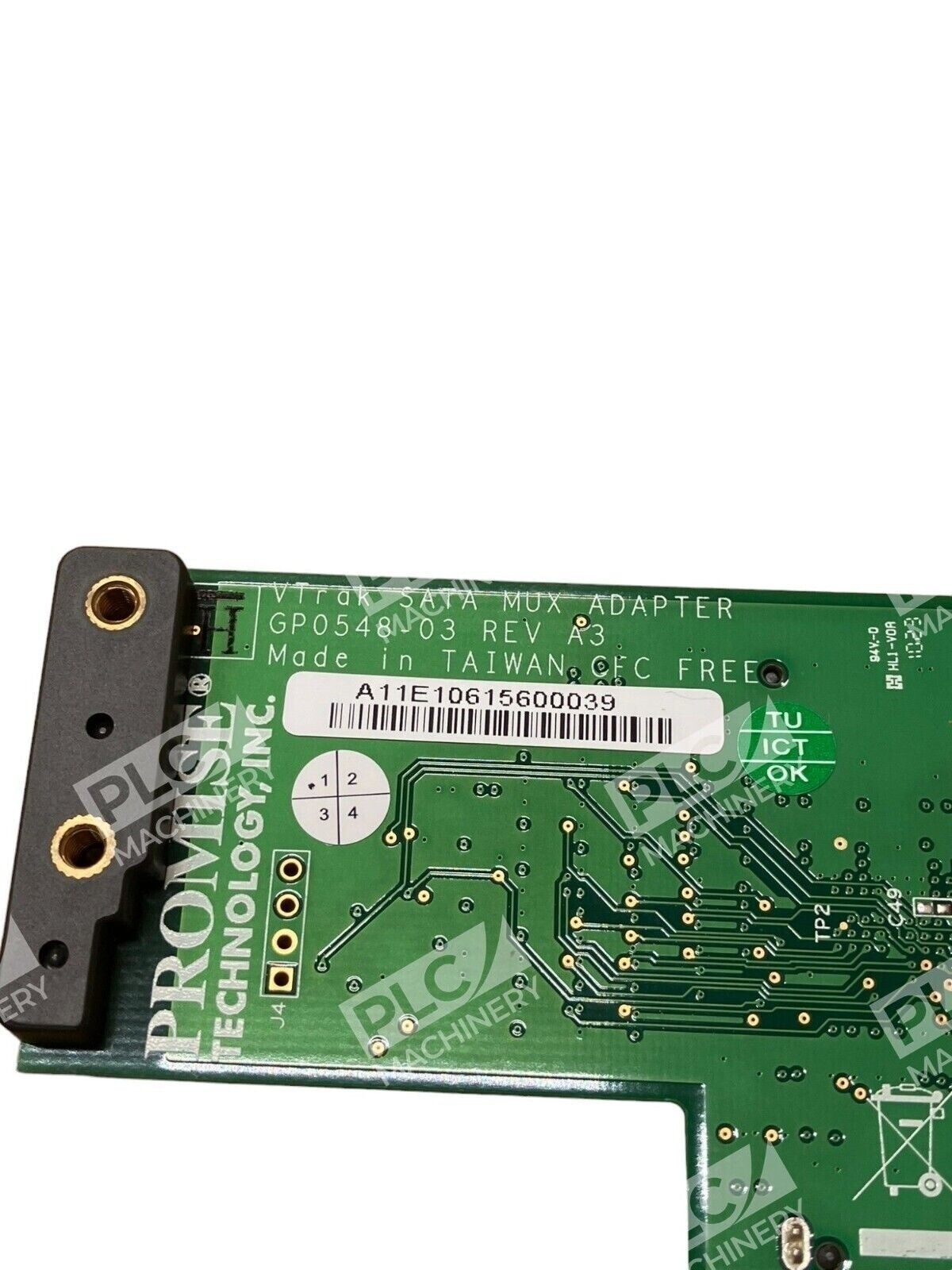

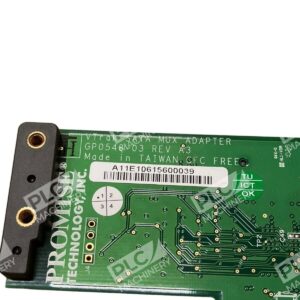

- Promise Technology GP0548-03 (alternative designation; same part, same functionality)
- Legacy VTrak arrays shipped without multiplexer adapters
Works With
- Promise VTrak storage management firmware and drivers
- SATA Active-Active Multiplexing protocol (proprietary Promise implementation)
- SAS-to-SATA drive mixing (when paired with SAS interface on VTrak controller)
- Multipath I/O (MPIO) and active-active failover strategies
