Overview

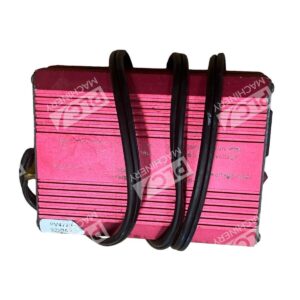

The Tripp Lite PV150 150W PowerVerter is a portable DC-to-AC inverter designed to convert 12V battery power from automotive sources into 120V household AC current. Continuously supplies up to 150 watts of 120V AC power to a single AC outlet from any 12V battery or automotive DC source. This compact inverter is ideal for professionals and travelers who need reliable AC power on the road without requiring installation into vehicle electrical systems.
Key Features
- 150 watts continuous output; 300 watts peak output power (instantaneous)

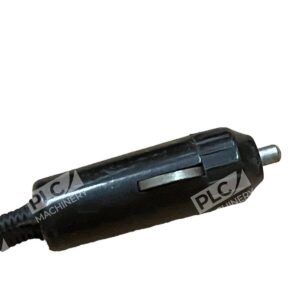

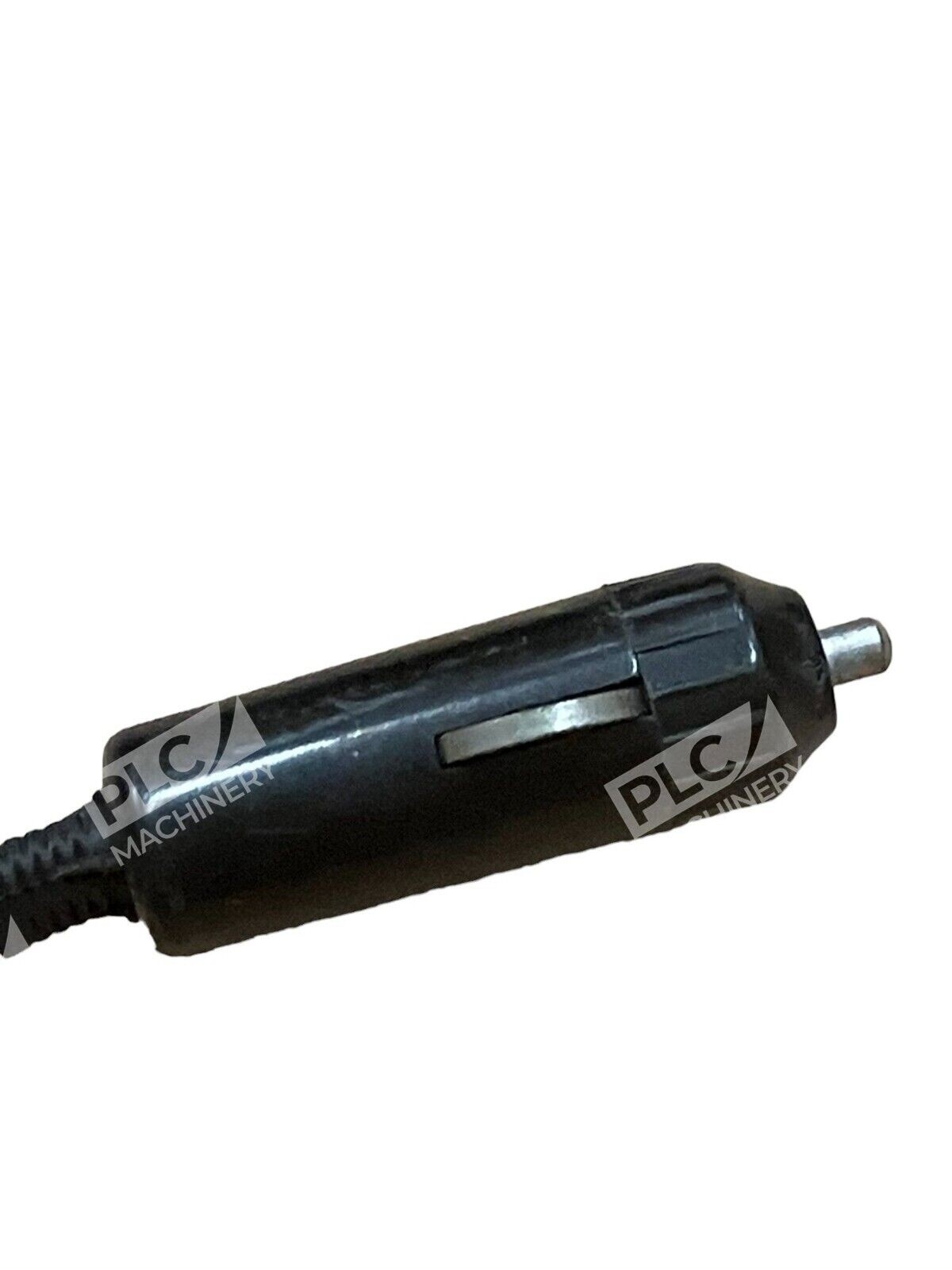

- 3-ft. (0.91 m) cord with cigarette-lighter plug — one-step installation with no wiring required
- Lightweight metal casing for durability and portability
- Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less
- Operates at 60 Hz to produce pulse-width modulated sine wave

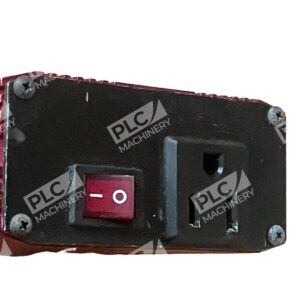

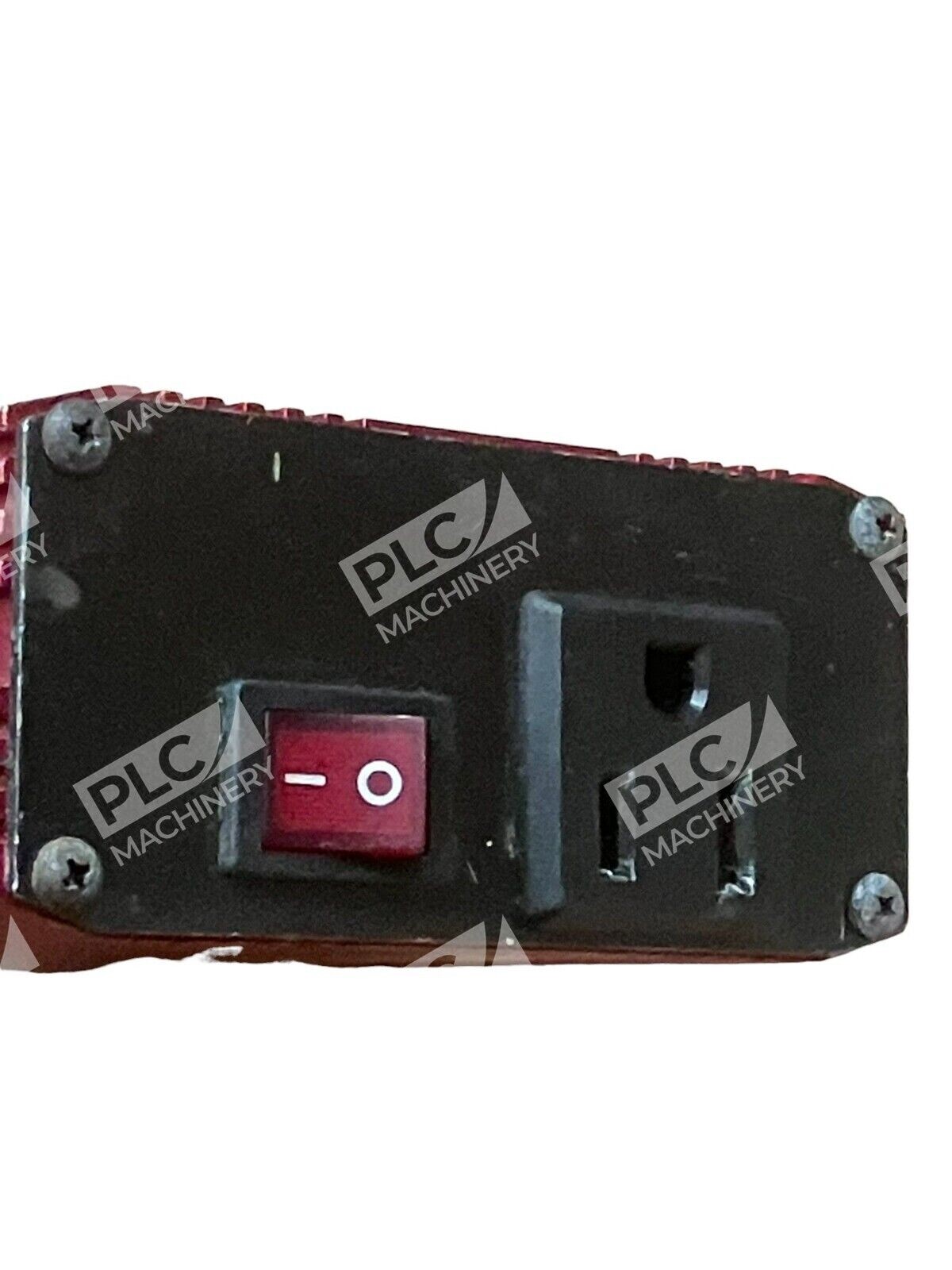

- Lighted on/off power switch for easy operation
Technical Specifications
- Input Voltage: 12VDC automotive systems
- Output Power: 150W (continuous)/300W (peak)
- Output Voltage: 120V
- Output Regulation: Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
- Frequency: 60 Hz ±3 Hz
- AC Outlet: 1 NEMA 5-15R
- Input Current (Full Load): 14A at 12VDC

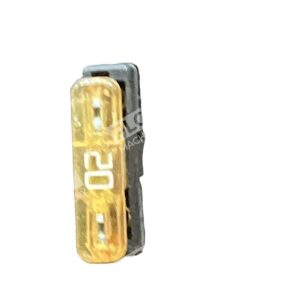

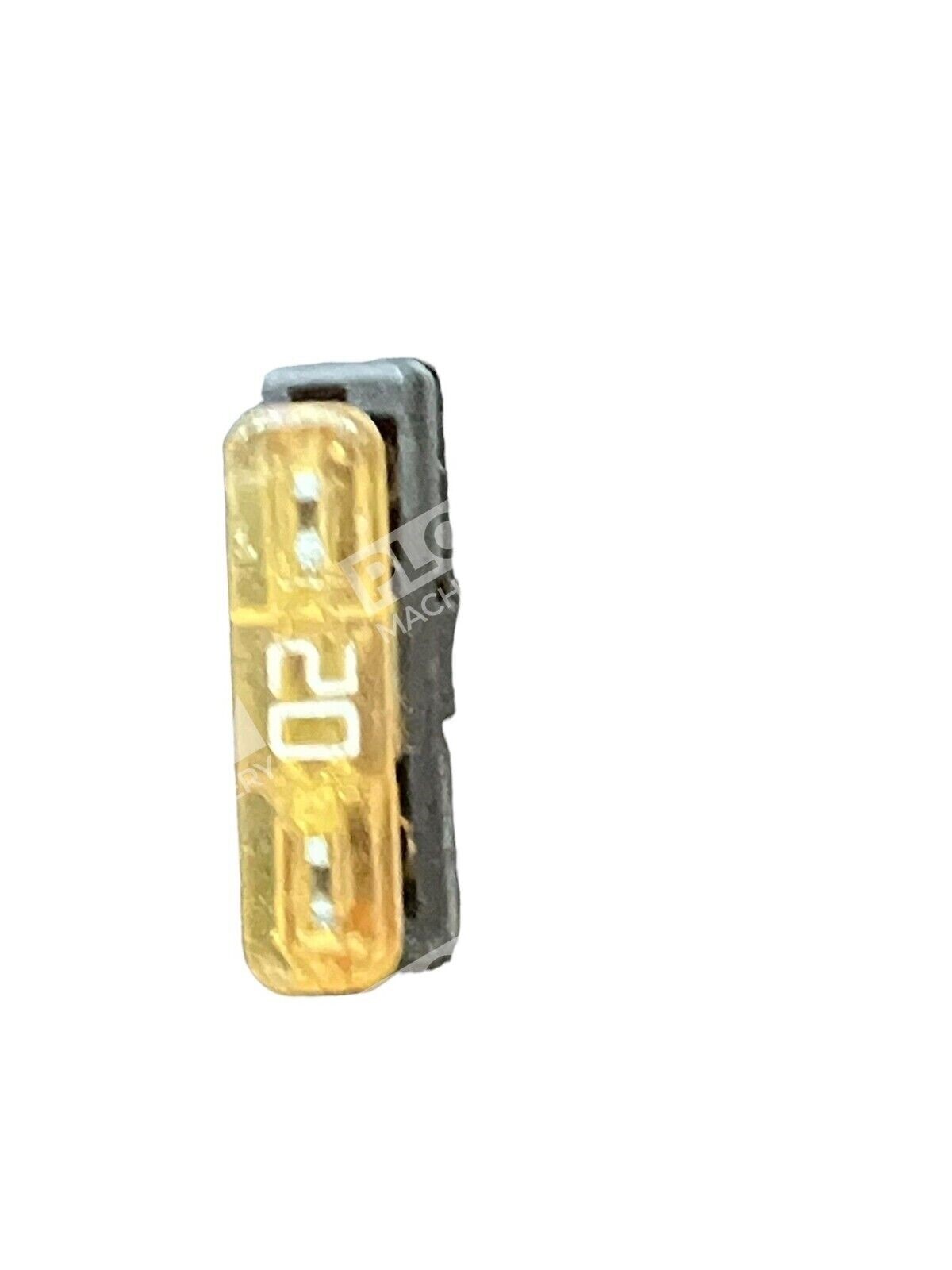

- Input Protection: 20A automotive input fuse
- Input Cable: 3 ft. hardwire input cable, 16 gauge, 2 wire
- Dimensions: 2.75" x 5" x 8.50"
- Weight: 1.3 lbs.
Typical Applications
Ideal for portable electronics, mobile office equipment and battery rechargers for small battery operated power tools, portable TV/audio systems, camcorders, low power lights, camping accessories and other low-power applications under 150 watts. The PV150 is commonly used in vehicles, boats, and RVs where a dedicated AC power source is needed for laptops, mobile phones, tablets, and portable medical equipment.
Compatibility & Replacements
Compatible With
- 12V automotive systems (cars, trucks, boats, RVs)
- Cigarette lighter DC input sockets
- Battery-powered equipment operating 12V DC systems
- 120V AC devices rated for 150W continuous / 300W peak power
Replaces / Drop-In Replacement For
- Tripp Lite PV100 (100W) — upgrade to higher power capacity
- Tripp Lite PV150USB (older variant with USB) — equivalent functionality
- Generic 150W automotive inverters — verify specifications for compatibility
Works With
- Standard NEMA 5-15R household AC outlets and power cords
- Mobile office equipment: laptops, printers, monitors
- Consumer electronics: cameras, camcorders, portable audio systems
- Medical equipment: CPAP/BiPAP machines (without heated humidifiers)
- Power tools: battery chargers and low-power portable tools
- 12V DC power systems in vehicles, marine vessels, and off-grid applications
