Overview

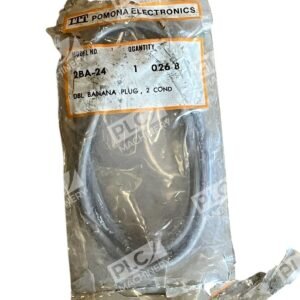

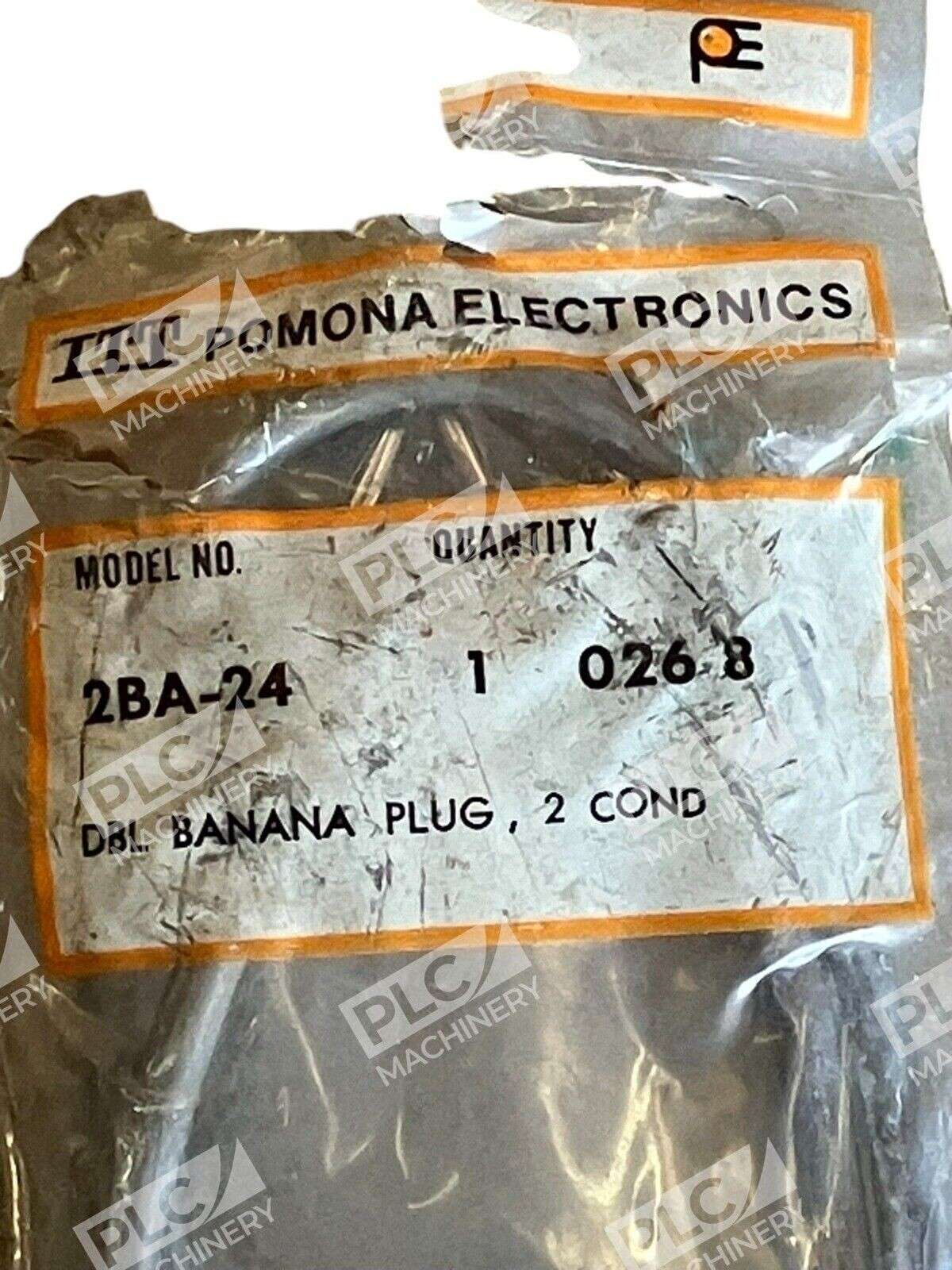

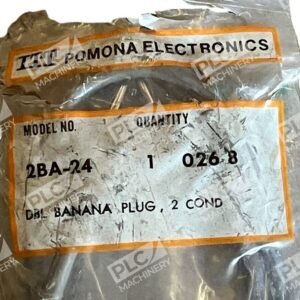

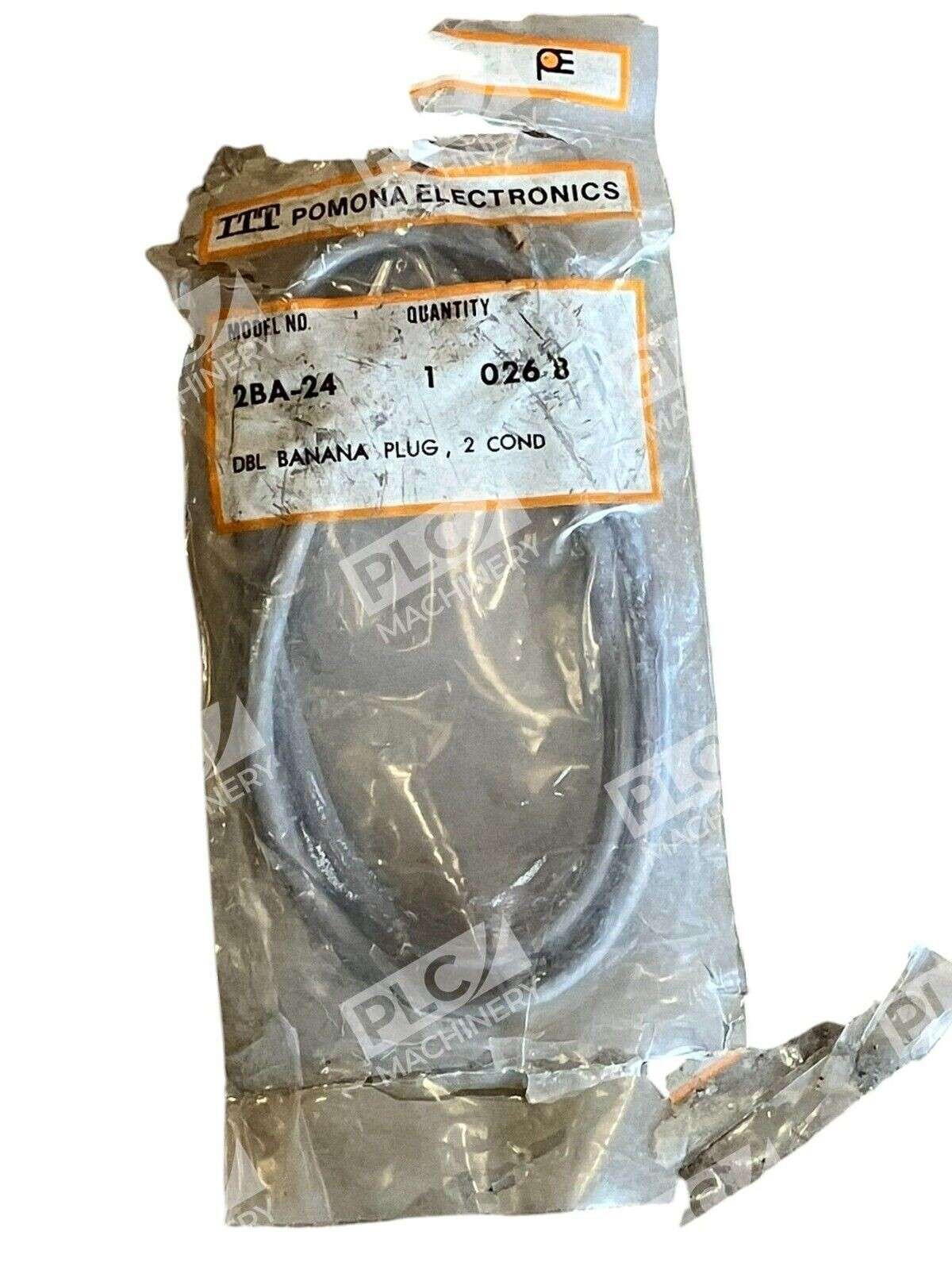

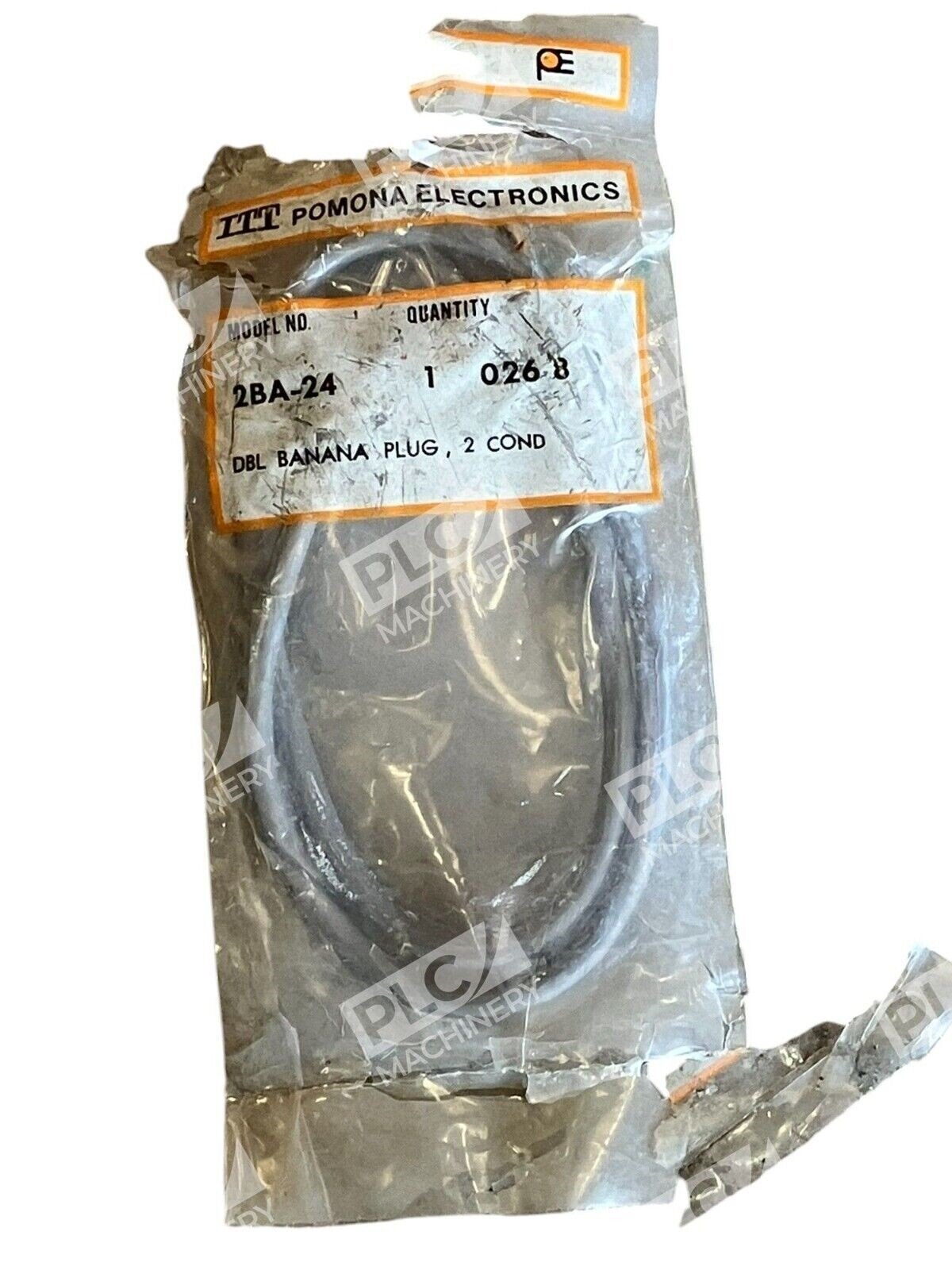

The Pomona Electronics 2BA-24 is a precision-engineered double banana plug patch cord designed for secure electrical connections in test and measurement applications. This 24-inch cable assembly features stackable banana plugs on both ends, making it ideal for laboratory setups, audio connections, and professional instrumentation work.
Key Features
- Double stackable banana plugs on both ends for front and vertical stacking capability
- 24-inch (609.6mm) twisted-pair cable construction for low noise and signal integrity
- 18 AWG wire gauge suitable for standard test lead applications
- Dual conductor design with gray and black cable identification
- RoHS compliant manufacturing meets international environmental standards
- Compact, durable design for repeated use in professional environments
Technical Specifications
- Cable Length: 24.0 inches (609.6mm)
- Voltage Rating: 300 VAC
- Wire Gauge: 18 AWG
- Connector Type: Double Stackable Banana Plugs (both ends)
- Cable Construction: Twisted pair
- Insulation Material: Poly-Vinyl Chloride (PVC)
- Conductor Colors: Black and Gray
- Operating Temperature: +55°C Max
- Stacking Method: Multi-Stacking, Front and Vertical
- Compliance: RoHS
Typical Applications
- Digital multimeter and oscilloscope test leads
- Power supply connections in laboratory environments
- Audio system interconnections requiring dual conductors
- General-purpose instrumentation and measurement setups
- Educational and electronics training applications
Compatibility & Replacements
Compatible With
- Standard banana jack receptacles rated 300VAC or higher
- Test equipment with dual-conductor banana inputs
- Stackable connector systems supporting front and vertical stacking
- Audio amplifiers and signal generators with banana connectors
Replaces / Drop-In Replacement For
- Pomona 2BA series variants in different lengths (2BA-18, longer models available)
- Other 24-inch double banana patch cords with equivalent 18 AWG specifications
- Legacy test leads requiring twisted-pair dual-conductor design
Works With
- Fluke digital multimeters and test instruments
- Keysight/Agilent bench equipment
- Any standard banana jack interface rated 300VAC or higher
- Passive measurement and audio applications
