Overview

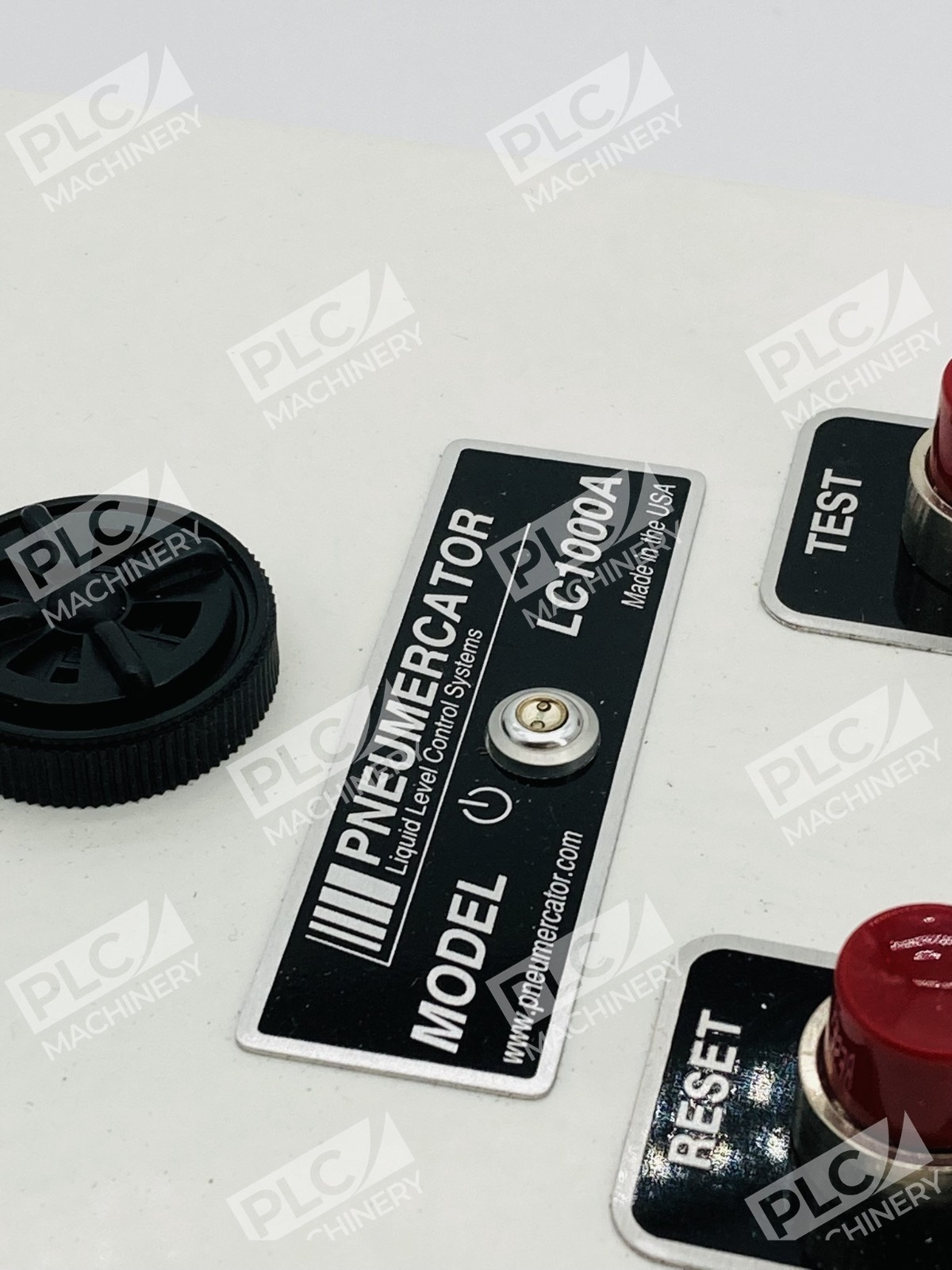

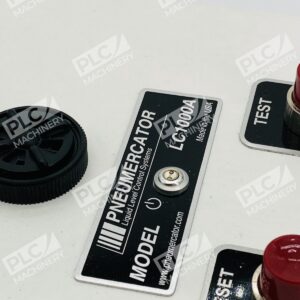

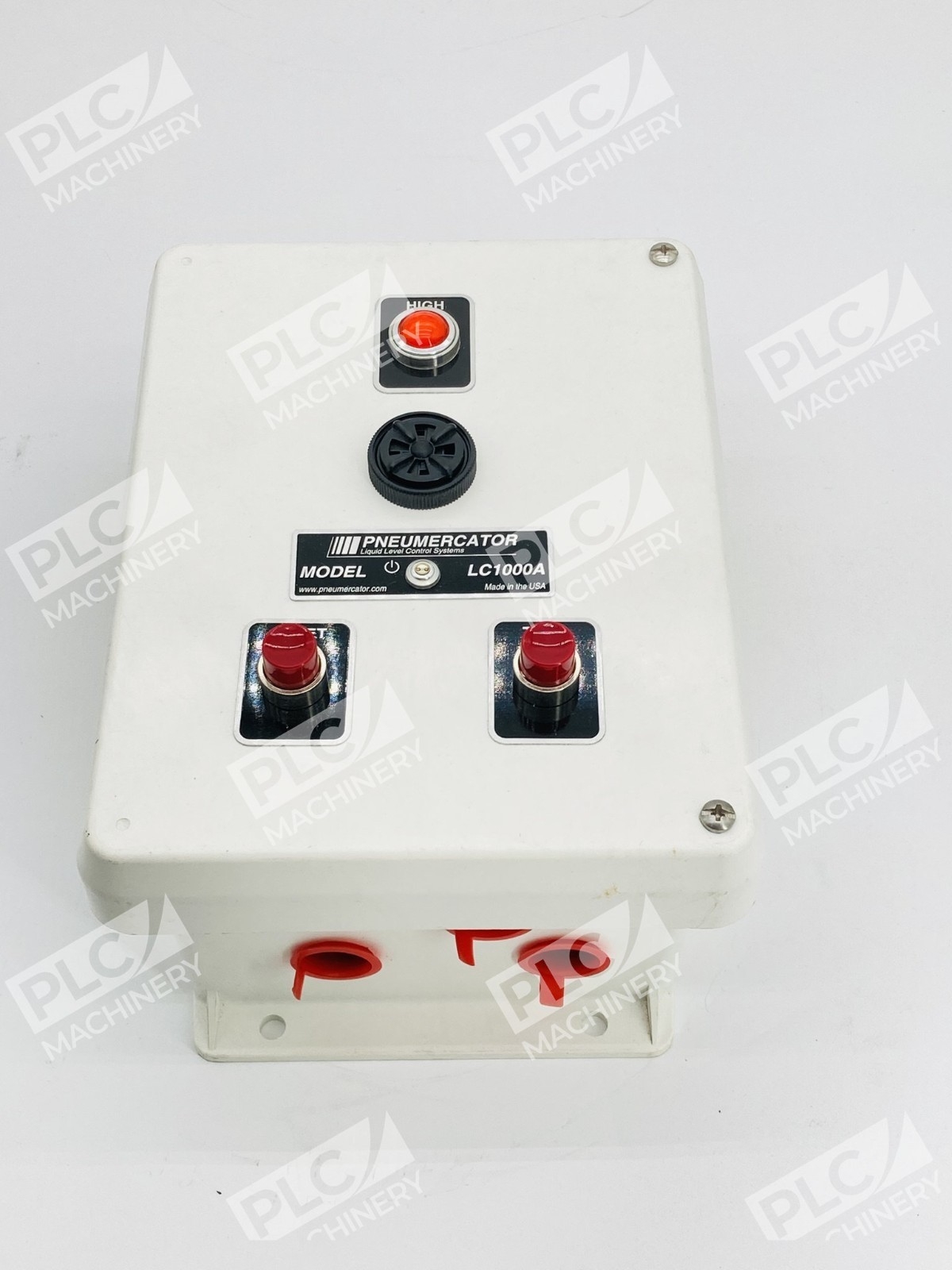

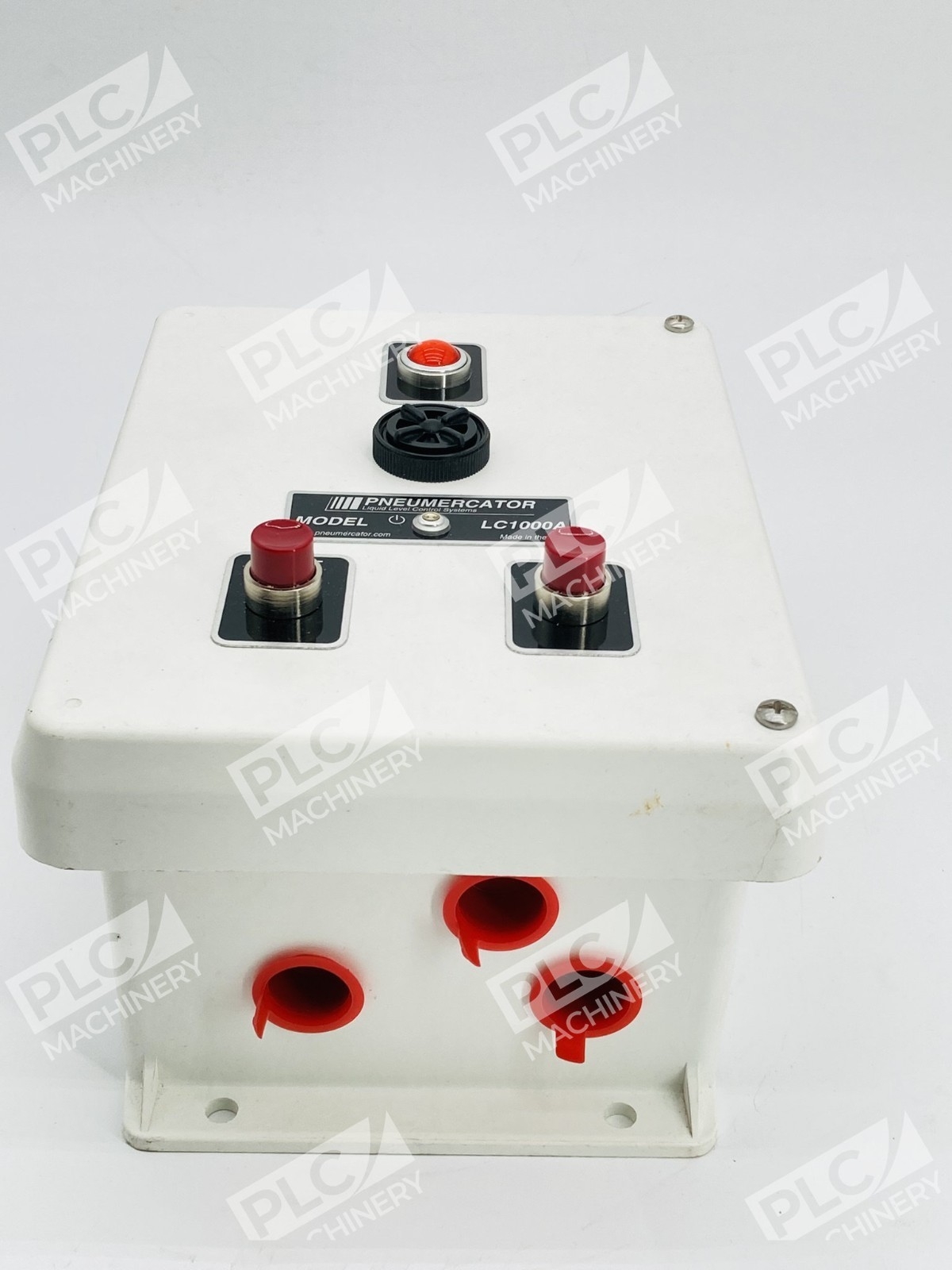

The Pneumercator LC1000-A liquid level alarm console is an intrinsically safe audible and visual alarm system designed for industrial tank monitoring. It monitors liquid level or secondary containment leak conditions using float switches and other dry contact sensors, providing immediate notification of alarm conditions with a bright LED indicator and loud audible horn.
Key Features
- Multi-Channel Configuration: Available with 1, 2, 3, or 4 sensor input channels with corresponding LED indicators and Form C relay outputs
- Intrinsically Safe Design: Low-voltage sensor interface (12 VDC at 15 mA) with up to 5000 feet sensor cable run capability

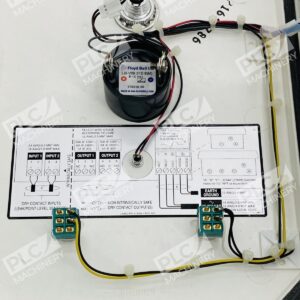

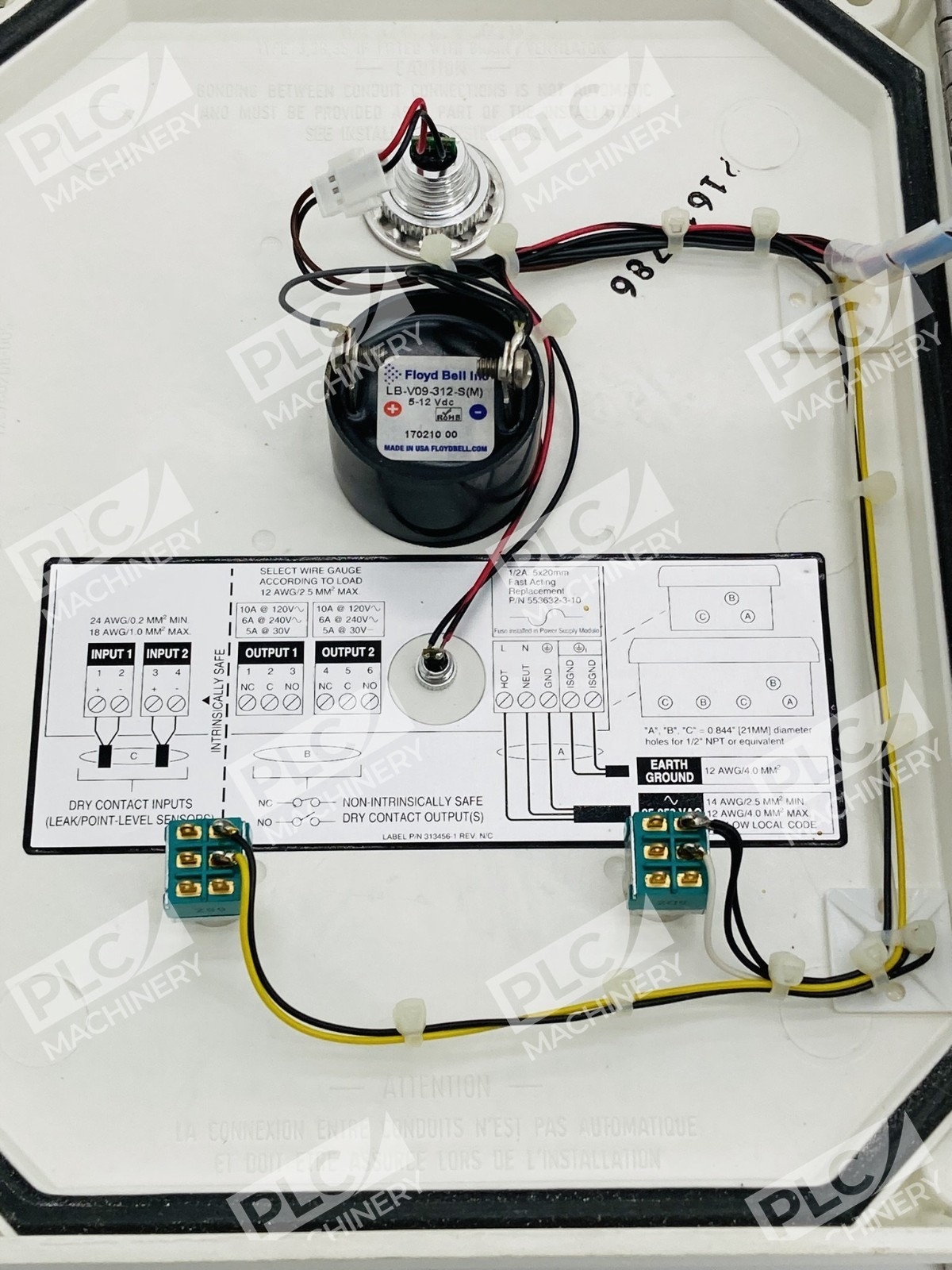

- Audible and Visual Alarms: 85 dB minimum horn output and super-bright LED indicators for alarm acknowledgment

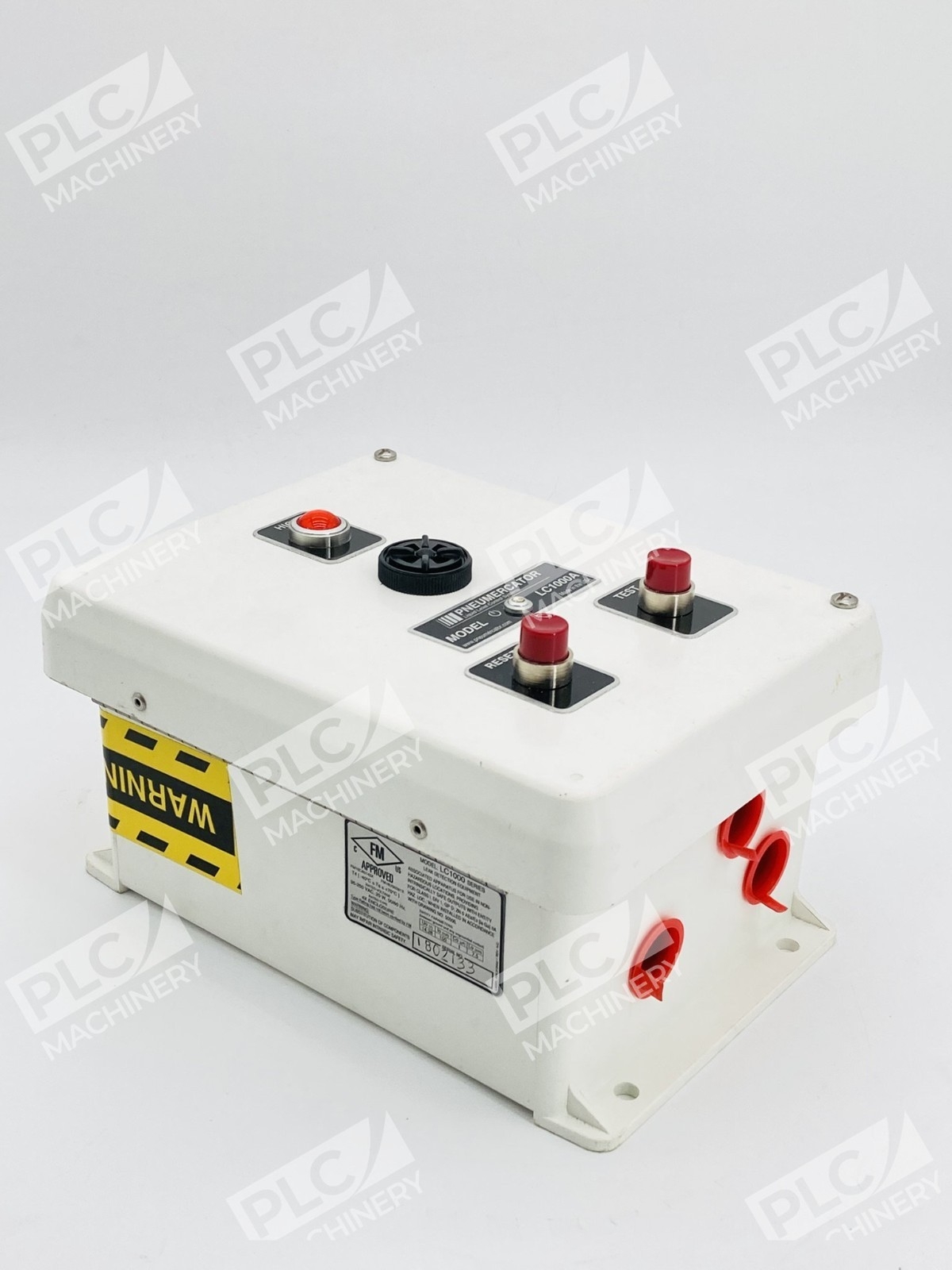

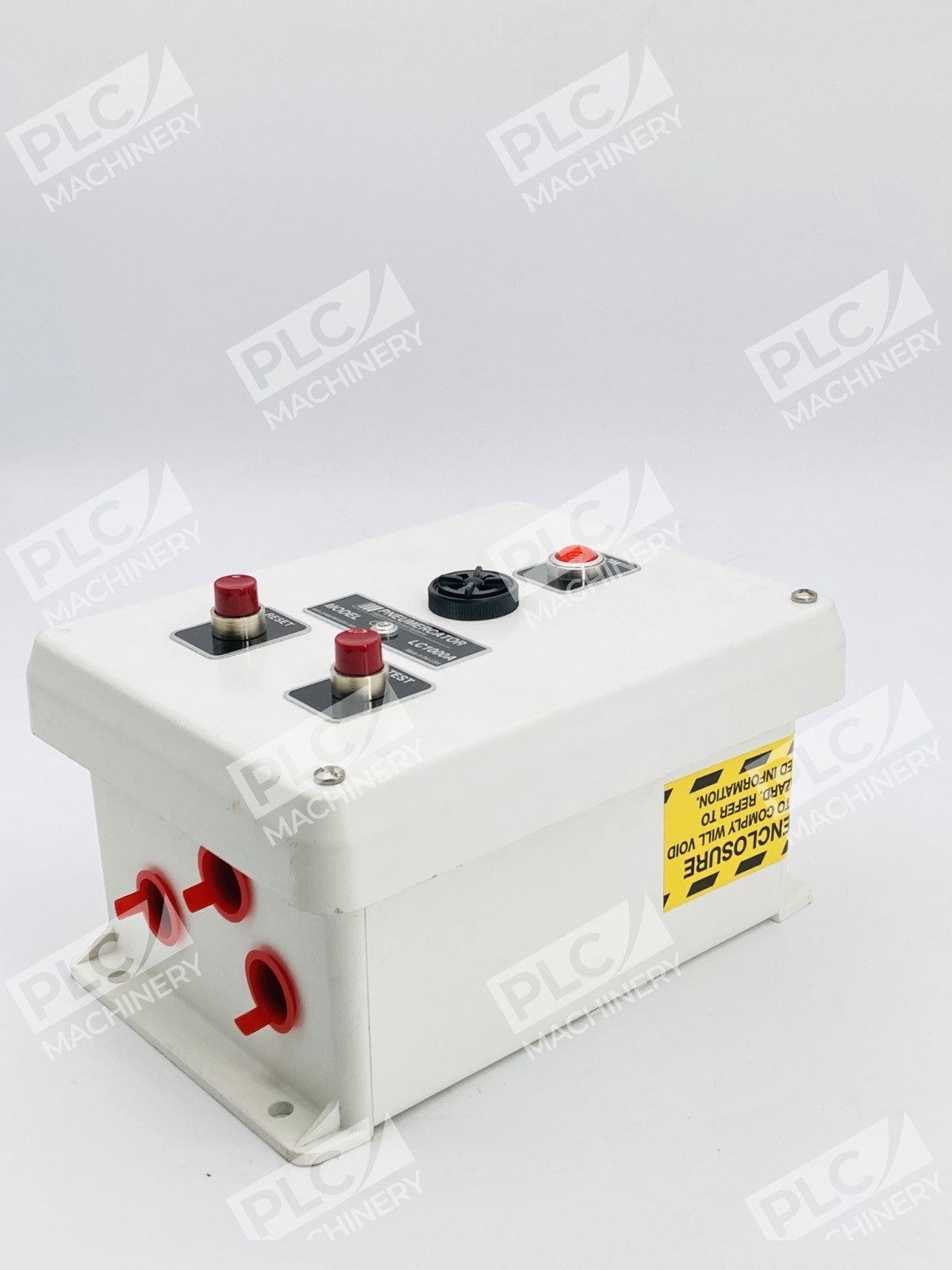

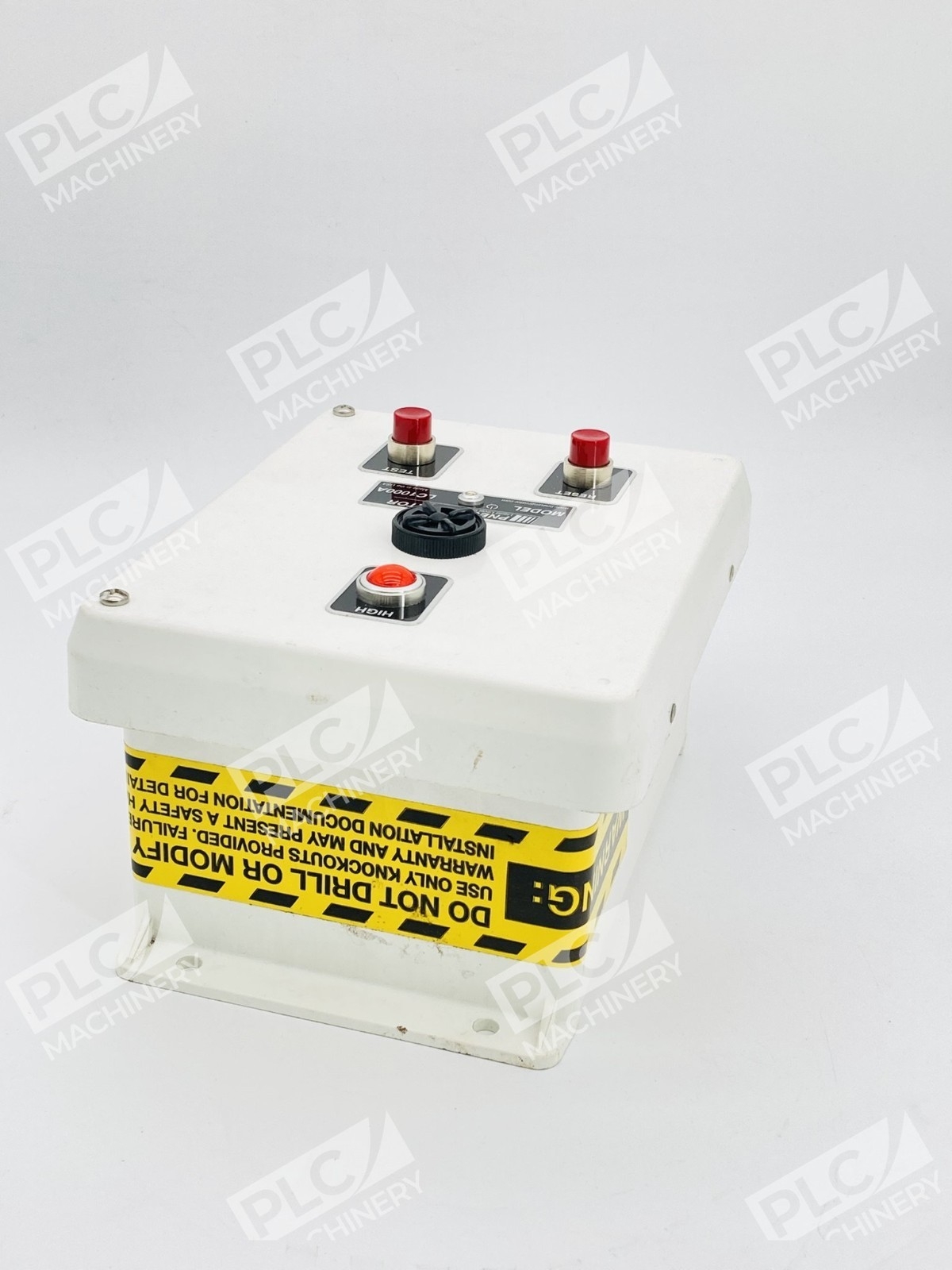

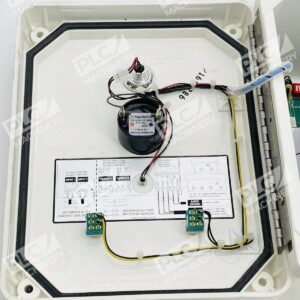

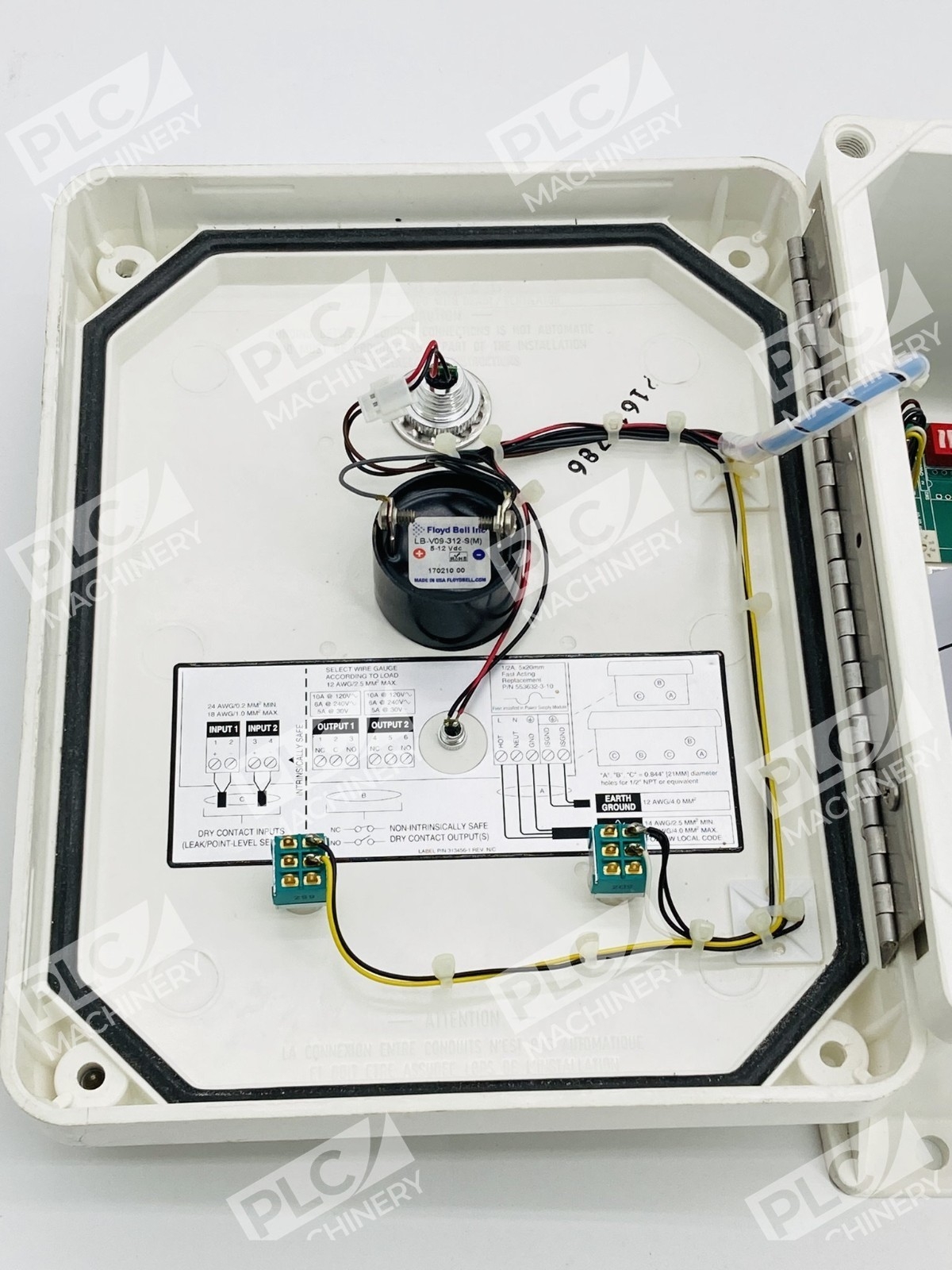

- Weatherproof Enclosure: NEMA 4X (IP56) fiberglass enclosure standard; optional stainless steel or NEMA 7 explosion-proof enclosures available

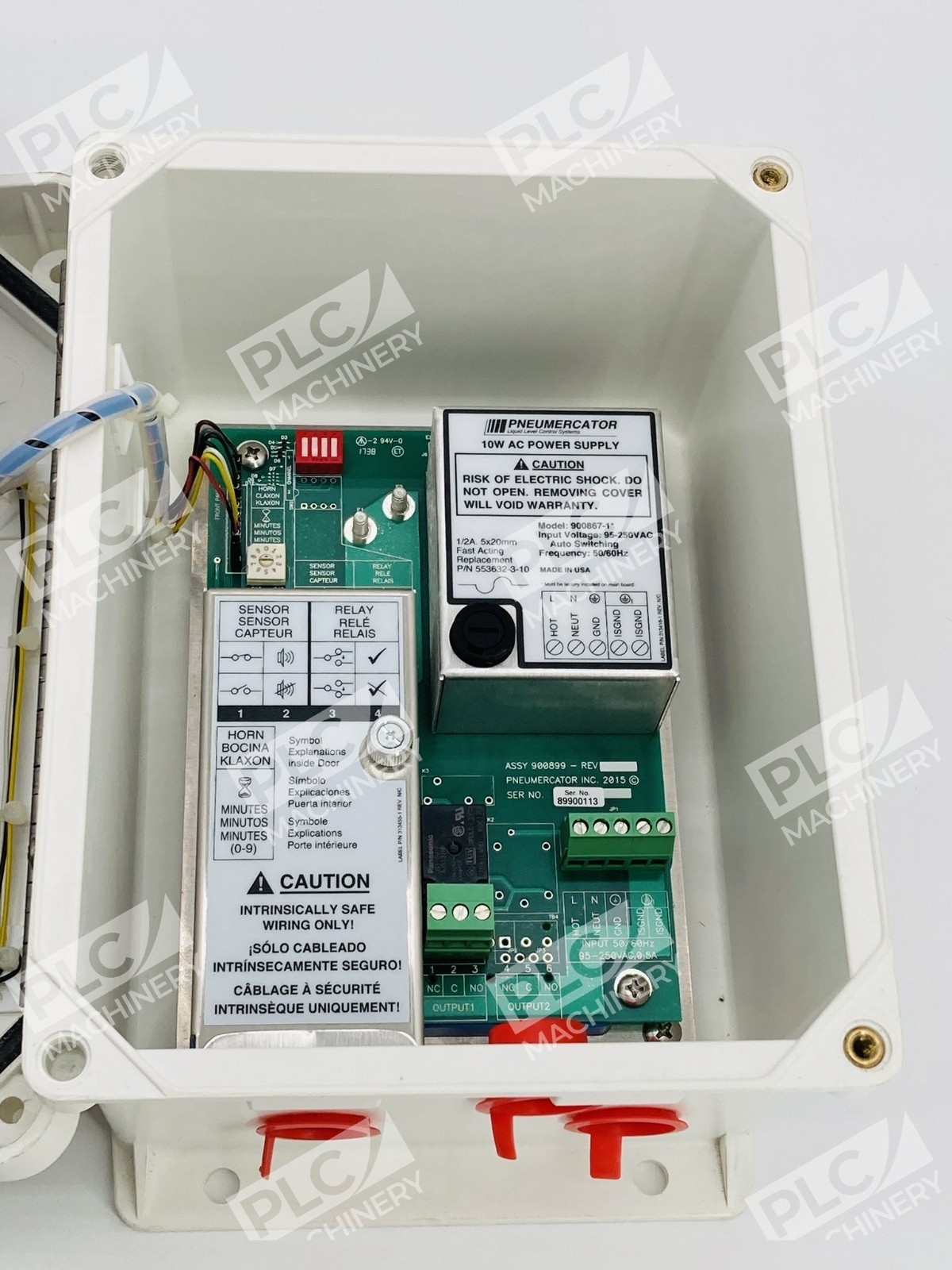

- Wide Input Power Range: Universal 95–250 VAC, 50–60 Hz auto-switching power supply

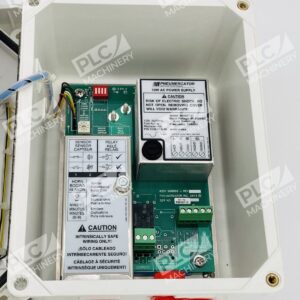

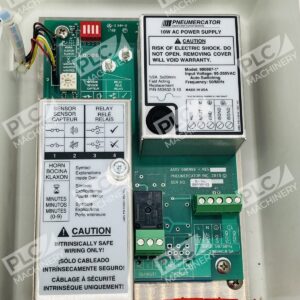

- DIP Switch Configuration: Field-adjustable relay reset behavior and alarm functions
Technical Specifications

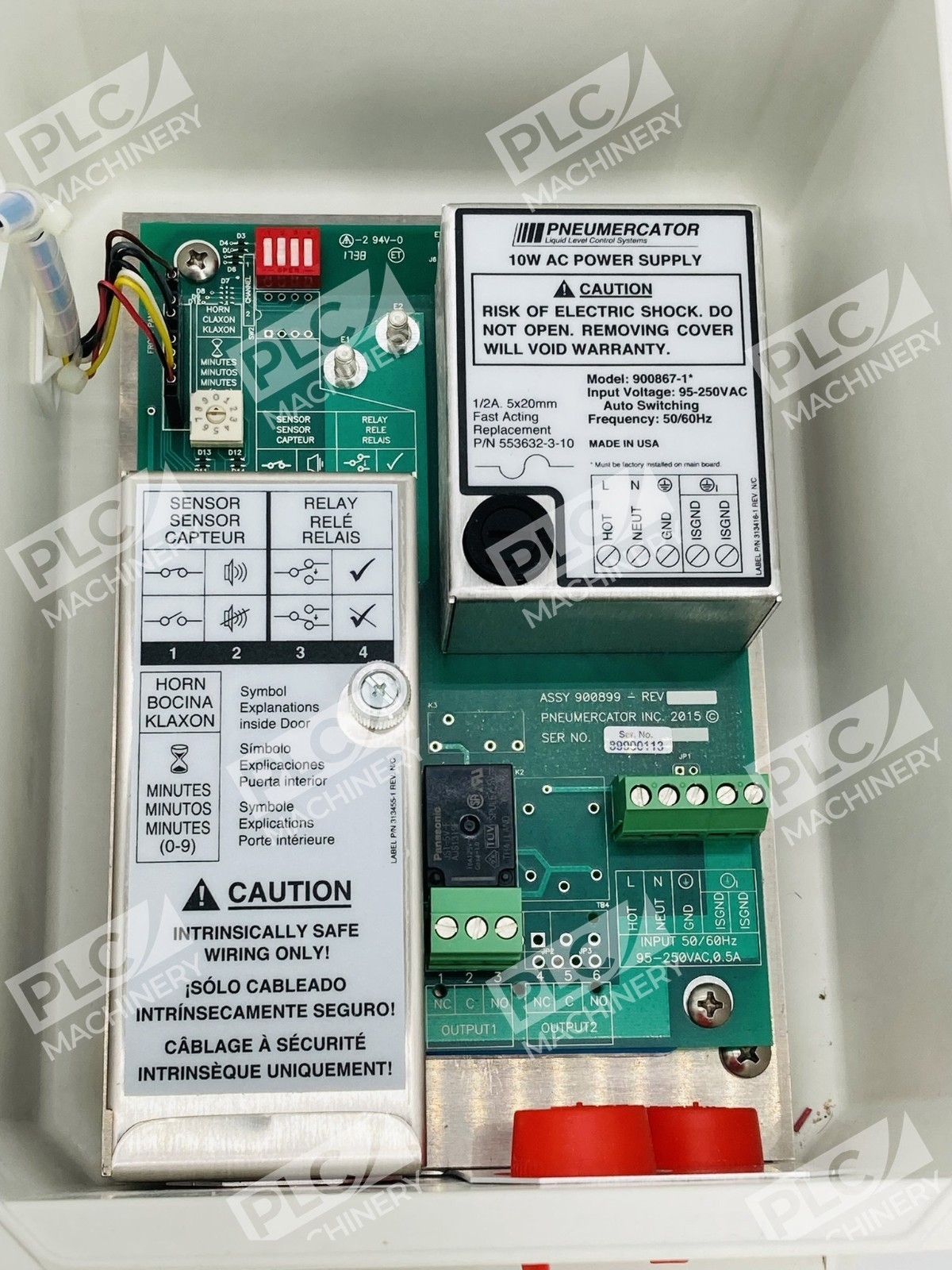

- Power Input: 95–250 VAC, 50–60 Hz, 10 W max
- Field Sensor Power: 12 VDC at 15 mA per sensor channel
- Sensor Cable: Standard 2-conductor #18 AWG; up to 5000 feet (1524 m)
- Alarm Output: 85 dB minimum audible horn + super-bright LED visual indicator
- Relay Contacts: Form C (SPDT) per sensor input
- Operating Temperature: −40 °F to 160 °F (−40 °C to 71 °C)
- Humidity: 95% non-condensing
- Console Dimensions (2-Input): 7.3 in × 9.5 in × 5.9 in (186 mm × 242 mm × 149 mm)
- Weight (2-Input): 4.7 lb (2.2 kg)
- Enclosure Rating: NEMA 4X (IP56) standard

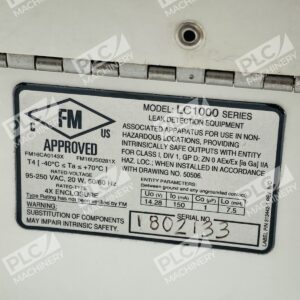

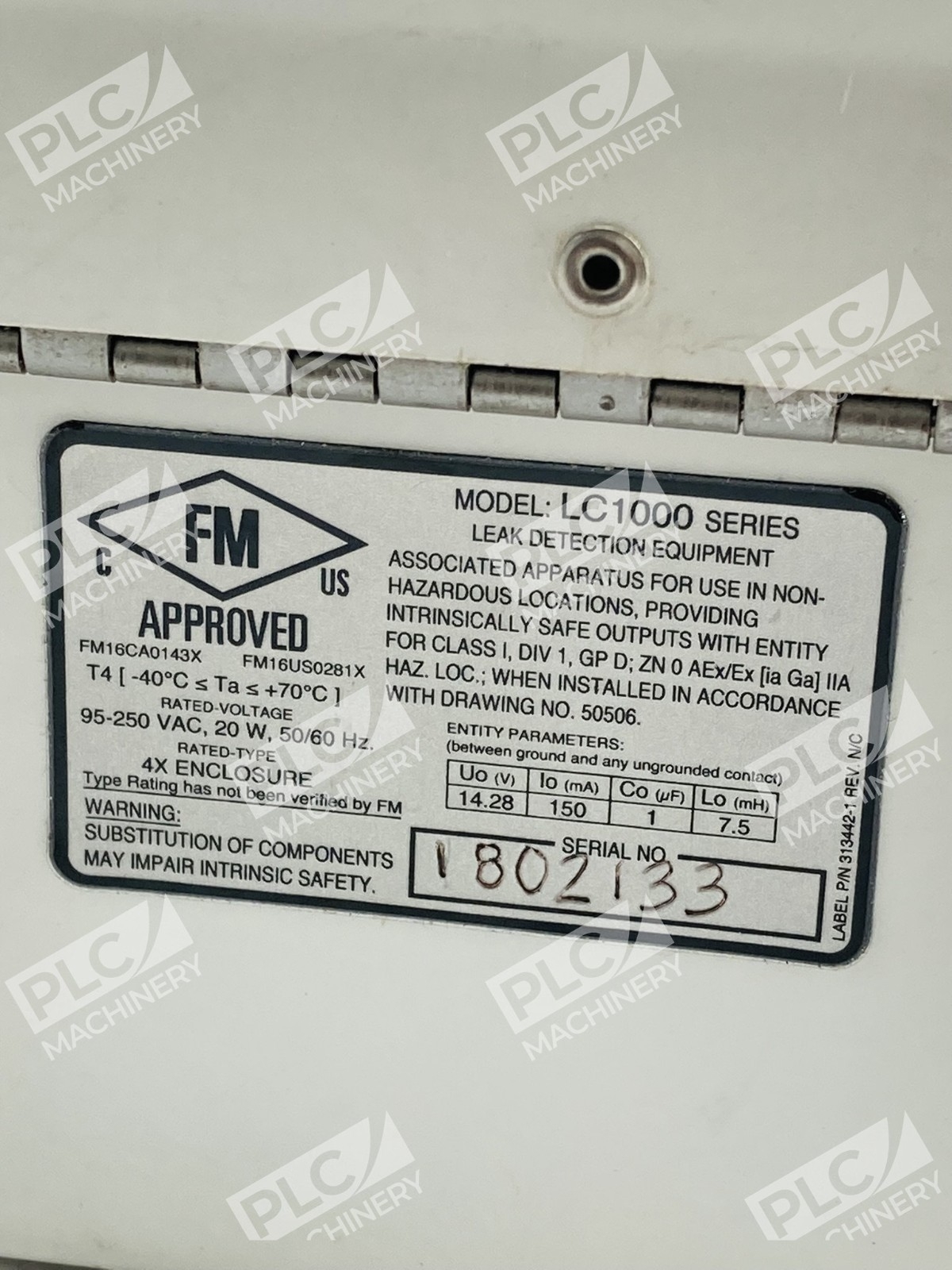

- Certifications: FM approved
Typical Applications
- Single and multi-point liquid level monitoring in fuel, lube, water, and chemical storage tanks
- Secondary containment leak detection in above-ground and underground tank systems
- Remote audible/visual alarm indication for tank levels or overfill conditions
- Integration with external control devices (pumps, valves, remote alarm stations) via dry contact outputs
- Hazardous area installations (with optional NEMA 7 enclosure)
Compatibility & Replacements
Compatible With
- Pneumercator float level sensors (all models)
- Any tank-mounted sensing device with dry contact (normally open/normally closed) switch output
- Relay devices for pump control, valve actuation, or remote alarm stations
- Standard 2-conductor wiring (#18 AWG minimum)
Replaces / Drop-In Replacement For
- Earlier LC1000 series models (non-intrinsically-safe versions)
- Other single-channel or multi-channel audible alarm consoles with compatible sensor input
Works With
- Pneumercator LS600 and LS700 series leak sensors
- Pneumercator RSU800 dual-float level sensors
- Any float switch with dry contact output (SPDT or SPSC)
- External control relay and annunciation systems
